Matek Digital Airspeed Sensor ASPD-AUAV

Are you looking to buy Matek Digital Airspeed Sensor ASPD-AUAV in Australia?

The ASPD-AUAV Digital AirSpeed Sensor delivers accurate and responsive airspeed data for fixed-wing flight controllers. Compact and lightweight, it ensures reliable readings across a wide range of conditions, making it ideal for precision flight, navigation, and autopilot systems.

Specifications

• ArduPilot AP_Periph L431 CAN node
• All sensors AUAV-L30D
• CAN  & I2C Interface
• CAN JST-GH connector,  DroneCAN Protocol
• I2C JST-GH connector,  AUAV-L30D I2C mode
• TX2,  MSP protocol
• CAN bootloader LED, Blue

  • Fast blinking,  AP_Periph bootloader
  • Slow blinking, CAN Node ready
• 3.3V Power LED, Red
• Input voltage range: 4.5~5.5V
• Power consumption: 26mA
• Operating Temperatures: -30°C to 85°C
• Pressure Range:  7500Pa (± 30 inH2O)
• Burst Pressure: 103kPa
• Speed Range: 400 km/h(111 m/s)
• 36mm*32mm*7.3mm
• 5g
• 3D step file ASPD-AUAV_STEP.zip

Includes

• 1x ASPD-AUAV
• 2x JST-GH-4P to JST-GH-4P 20cm silicon wire

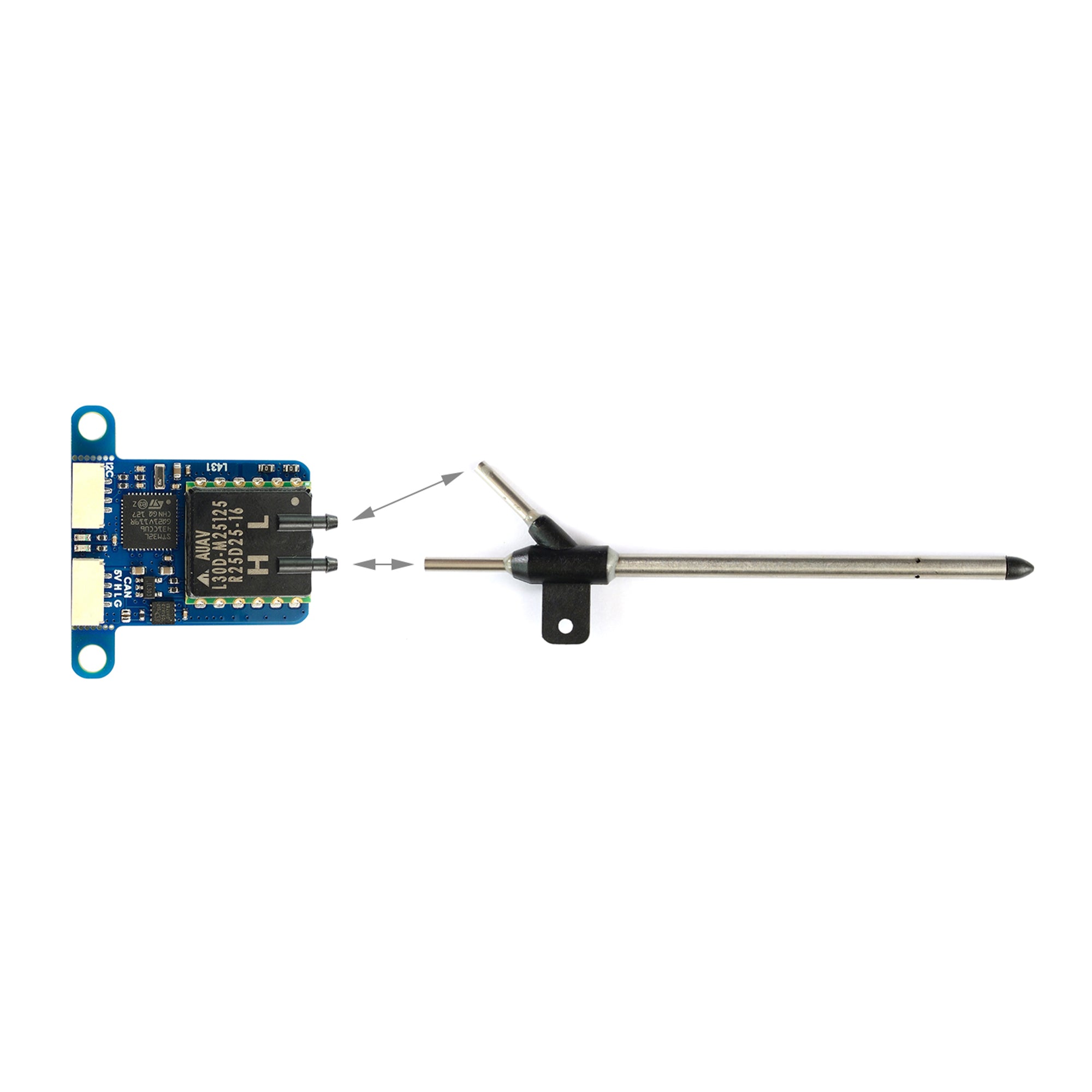

• Pitot Tube
• Clear silicon tubing  40cm

AP_Periph & DroneCAN protocol

• Firmware https://firmware.ardupilot.org/AP_Periph/latest/MatekL431-AUAV/
• AP_Periph https://github.com/ArduPilot/ardupilot/blob/master/Tools/AP_Periph/README.md
• DroneCAN protocol  https://dronecan.github.io/

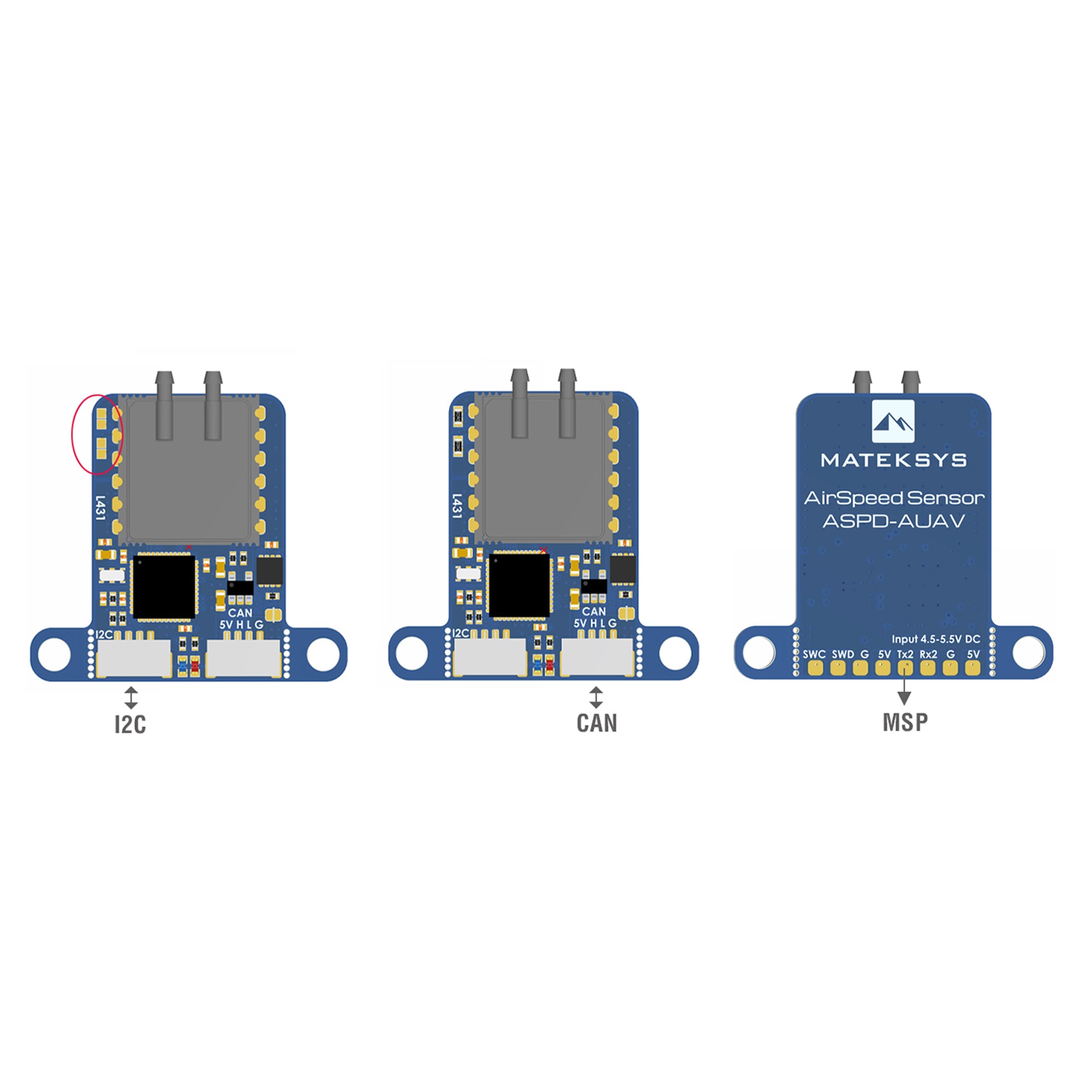

Wiring and AP Parameters

Tips

• CAN Baro is enabled by default, If you don’t use the Baro integrated in AUAV, set “BARO_ENABLE = 0” in “Mission Planner->Initial Setup->Optional Hardware->UAVCAN->MAVlink CANx -> Menu Parameters”
• ArduPilot has removed AUAV I2C support by default on flight controller with 1MB flash MCU(such as F405, F745 series).

AUAV vs DLVR

• Speed range 400km/h vs 227km/h
• AUAV has better offset in still air.
