Miniware TS101 Smart Soldering Iron (Black)

Are you looking to buy a Miniware TS101 Smart Soldering Iron (Black) in Australia?

The TS101 is an upgraded version of the Mini Soldering Iron TS100.

If cable version is sold out you can purchase cable seperately here if required.

The TS101 uses DC and PD dual power input. The power range of the popular DC5525 interface has been extended to DC 9-24V (up to 65W). A USB-C interface replaces the original Micro USB interface, which serves for firmware upgrade, and a standard PD power input up to 45W. The temperature adjustment range has also been optimized to 50-400℃ for more application scenarios.

The tip insertion end of controller fixes the soldering tip with a ball screw, no hex screw to loosen before inserting and removing a tip. A new convenient and practical accessory--an anti-slip cap, looking like the head of a cat, can not only be used as a simple stand to support the iron and prevent it from rolling, but also be used for finger anti-slipping and removing the soldering tip.

Features

• TS101 controller has a sharp and tough overall appearance, and uses a larger 128*32 pixel OLED screen to display more heating data.
• The classic A-B button operation continues the TS100 operation habit and reduces user’s learning cost. The tip insertion end of controller fixes the soldering tip with a ball screw, no hex screw to loosen before inserting and removing a tip.
• A new convenient and practical accessory--an anti-slip cap, looking like the head of a cat, can not only be used as a simple stand to support the iron and prevent it from rolling, but also be used for finger anti-slipping and removing the soldering tip.
• Smart Soldering Iron TS101 uses DC and PD dual power input. The power range of the popular DC5525 interface has been extended to DC 9-24V (up to 65W). A USB-C interface replaces the original Micro USB interface, which serves for firmware upgrade, and a standard PD power input up to 45W.
• The temperature adjustment range has also been optimized to 50-400℃ for more application scenarios. In terms of intelligent operation, TS101 has more detailed menu setting items, and the newly added “Boost” heating function can quickly heat up in a short time to meet the welding needs of special scenes.
• TS101 and TS100 use the same soldering iron tips, so your existing TS100 soldering tips can continue to be used to this upgrade version iron.

Specifications

• Voltage and Power Range
  DC 9-24V 9-65W（MAX）
  PD3.0 9-20V 9-45W（MAX）
  PD3.1 9-28V 9-90W （MAX） (After Firmware Update)
• Temperature Stability: +-2%
• Max Operation Ambient Temperature: 40 degrees
• Temperature Range: 50-400 Celius

• Screen: OLED

• Power Input: USB-C
• Weight: 33g (Including Tip)

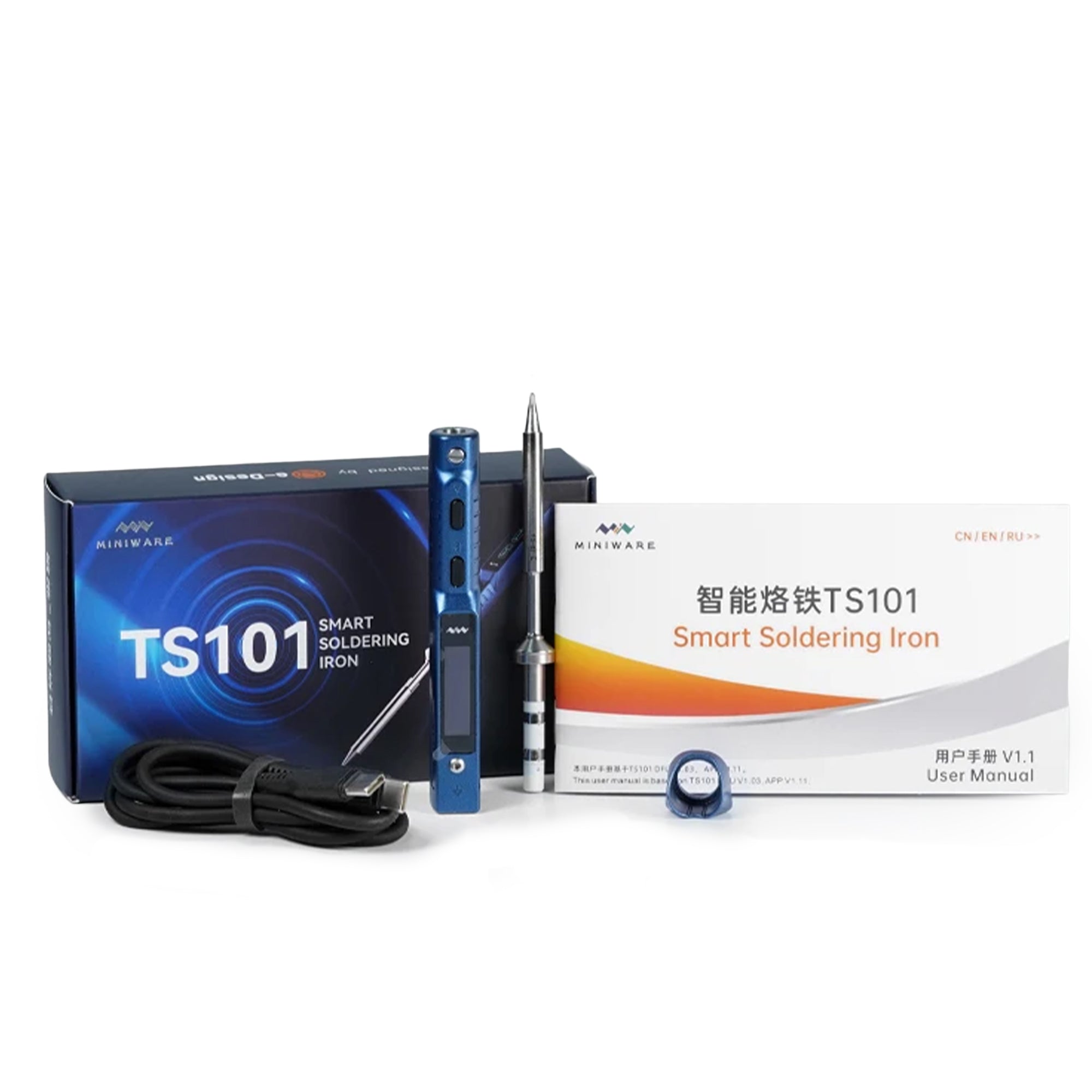

Package Includes

We also sell a large range of other tips

TS100 B2 Tip: The standard conical tip.
TS100 BC2 Tip: Cone-shaped with an angled flat tip.
TS100 K Tip: A large blade for jobs in tight spots.
TS100 C4 Tip: A large snub-nosed tip, for doing jobs with more solder.
TS100 D24 Tip: A small tip, like a flat-head screwdriver.
TS100 I Tip: A narrow long tip for small delicate jobs.
TS100 ILS Tip: A longer thinner version of the I tip.
TS100 KU Tip: A smaller version of the K tip.
TS100 C1: Similar to the BC2 tip, but with a longer tip for getting into tight spaces.

You may want to add the following accessories

Carrying Case - For Iron protection and transport
Solder Pig - For cleaning your tip
Miniware M-Stand - Budget Stand
Miniware T-Stand - High Quality Ceramic Stand for your Iron
DC5525 Cable - For powering iron via lipo or other means.
Power Bank - For powering your Soldering Iron
FLUX - For making soldering cleaner/easier and neater. It stops solder wicking up and helps heat up pads faster.
Solder 0.5mm
Solder 0.8mm
USB-C Power supply - Cheap and high powered but has US plug
65w or 90w AC to DC Power supply - For plugging into the wall and powering your Iron. Note you will need the XT60 TO DC 5525 Cable as well
The Jigs Up - The Best Soldering Jig EVER!
or
Budget Soldering Holder Set
Silicon Soldering Mat
Practice Soldering Board - Practice your soldering if you are new to it
Soldering Microscope with HD Screen
