Are you looking to buy HDZero FPV Goggles 2 HDZ3520 in Australia?
HDZero Goggle 2 builds on the success of the original with practical upgrades pilots will appreciate: a sharper, dust-resistant optic module, built-in analog receiver, integrated WiFi for wireless mirroring, and a protective hard case. It keeps everything that made the original great—ultra-low latency, open-source flexibility, and all-in-one digital + analog support—while adding more value and convenience for everyday flying.
HDZero Goggles 2 were designed with the FPV community for the FPV community. They asked what you wanted, and they delivered:
- Open-source goggle software and CAD files, so you can customise it to your preferences
- Clear digital video immune to warping, colour shifting, and image rolling
- 1080p 90hz adaptive refresh rate OLED micro-displays
- Resolutions for different flying types: 1080p30, 720p60, 540p90, and 540p60
- Smoothest and fastest link for the most connected flying feel (3ms glass-to-glass)
- Fly with friends – 1-way broadcast doesn’t interfere with nearby pilots
- Improved analogue video resolution with real-time de-interlacer
- Built-in analogue receiver sharing antenna with HDZero receiver

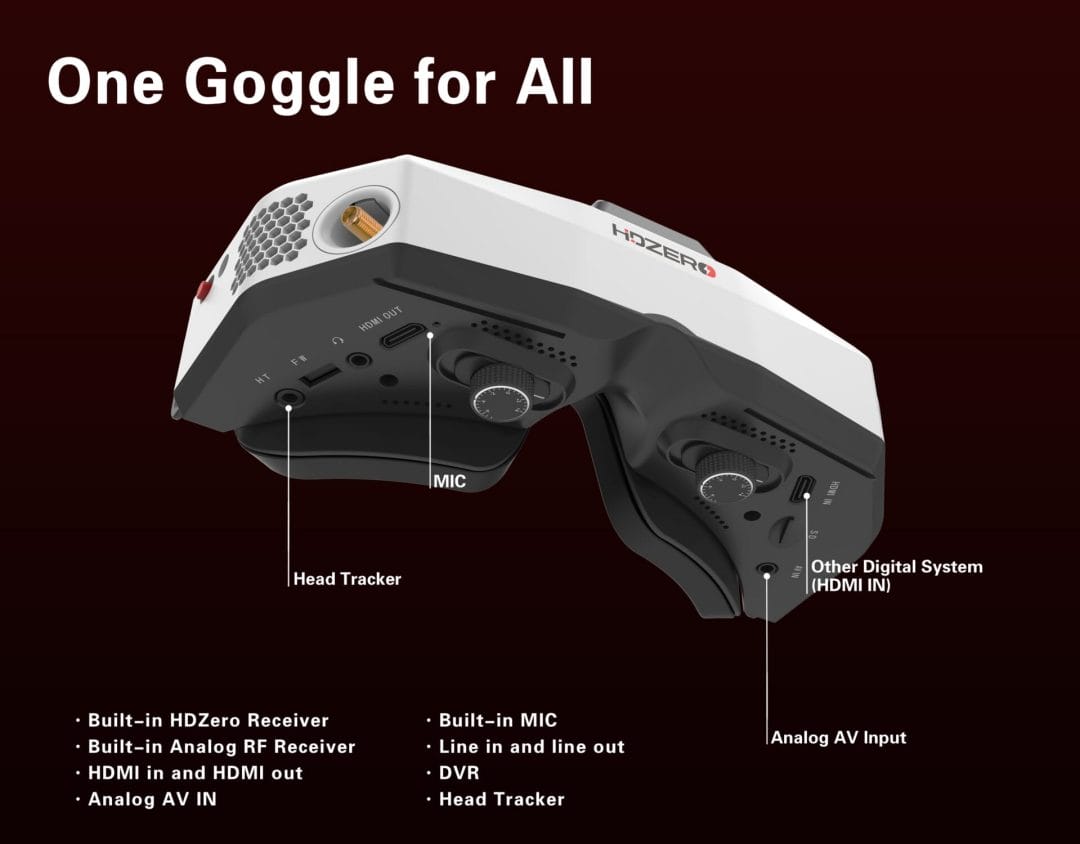

- All the video input and output you need – one goggle for digital, analogue, and HDMI video
- Analogue 3.5mm AV input
- HDMI input and output
- Headphone/microphone combo jack
- Add-on analogue module bay that accepts most of today’s analogue modules
- Mount antennas to innovative rail mount system
Features
- Fully enclosed optical module to keep dust out
- Significantly sharper edges for enhanced optical display clarity (<1.5% distortion)
- Greatly enhanced analogue reception performance, ensuring improved handling of weak signals
- Available in two shell colours—White and Red—to suit individual preferences
- On/off sliding switch – be confident that the goggle is on or off at a glance or by feel
- Designed for open source, the new goggle runs Linux. All code for the user interface is new and open source
- Support diopter lens inserts
- 90Hz 1080p OLED screens with sliding IPD adjustment and dials for focus adjustment
- By integrating the entire goggle display pipeline with HDZero’s fixed-latency video transmission, these goggles achieve 3ms glass-to-glass sub-frame latency with no jitter or dropped frames
- Mounting rails for patch antennas or whatever else you might want to mount
- Recessed front SMA jacks so no need to remove antennas when packing the goggle away
- Three independently addressable fans work in combination to cool the internals and prevent fogging. They are soft mounted to prevent screen vibration and noise
- HDMI input and HDMI output
- Built-in microphone for DVR
- 3.5mm combination headphone / microphone jack for audio and external mic
- 3.5mm analogue video/audio input for use with ground station inputs
- Integrated 2D de-interlacer that adds no delay for analogue input
- Built-in ELRS backpack support
- Built-in H.265 DVR for HDMI in/Analog/HDZero input
- Built-in analogue receiver
- Built-in 2.4Ghz WiFi video streaming module for live streaming
- 6-axis smart inertial measurement for head tracking pan+tilt support
- Add-on side-mounted analogue module bay that accepts most of today’s analog modules
Specifications
- HDMI input latency: <1ms
- Analogue Camera glass-to-goggle glass latency: <2ms
- HDZero Camera glass-to-goggle glass latency: <3ms
- Adjust IPD range: 58-72mm (57-70mm for v1)
- Adjustable focus range: +4 to -7 diopter (was +2 to -6 for v1)
- Full HD 1920x1080p 90fps OLED micro display
- FOV: 46deg
- Input voltage: 7V-25.2V (2S-6S)
Includes
- 1x HDZero goggle 2
- 1x wide face plate
- 1x narrow face plate
- 1x foam padding
- 1x Goggle Strap
- 1x 1200mm XT60 cable
- 1x 150mm HDZero VTX programing cable
- 1x hard case travel box
- 1x Lens cloth
