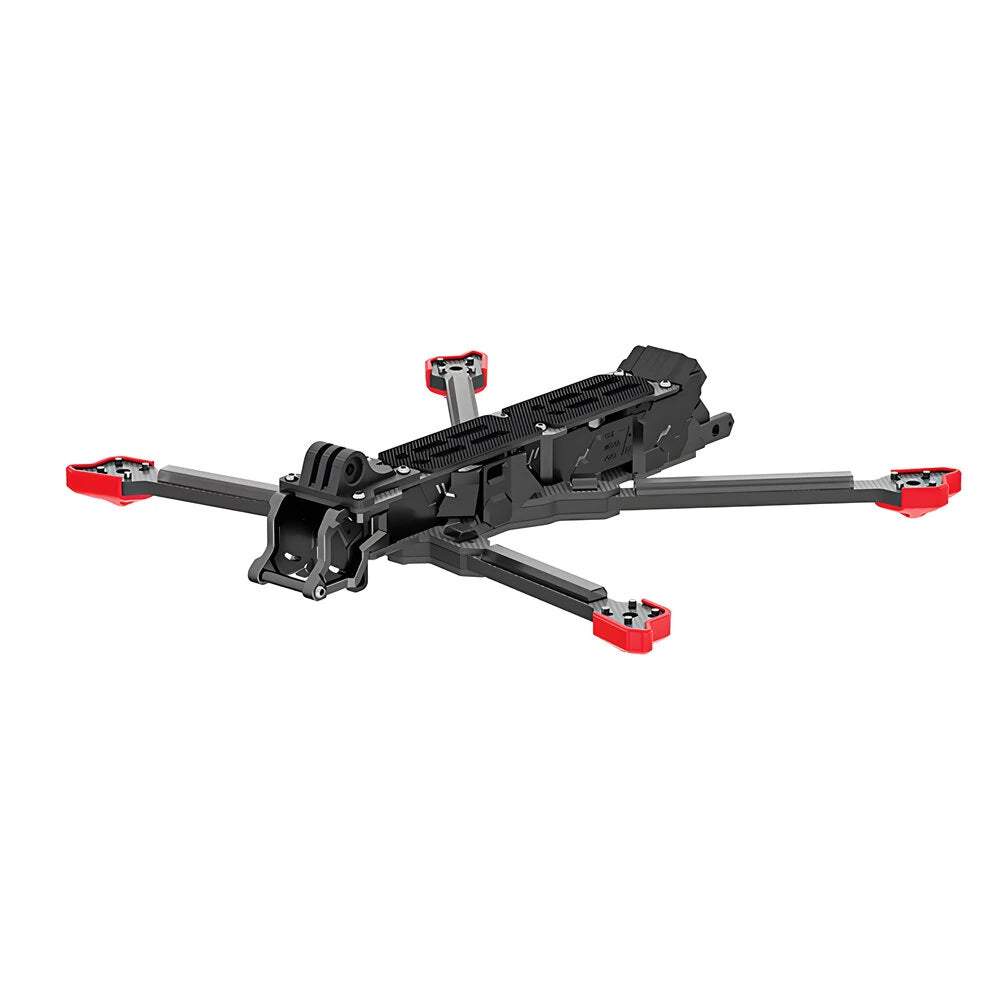

Are you looking to buy Chimera7 Pro V2 O4 Frame Kit in Australia?
iFlight's upgraded Chimera 7 Frame Kit, now compatible with the DJI O4 Pro Air Unit, delivers exceptional stability and longer flight times ideal for cinematic shooting. Built from super-stiff carbon to minimize resonance, it pairs best with 2809 motors for optimal 7.5" prop performance. Expect smooth and versatile flights, whether skimming over water or soaring through the Swiss Alps.
Features
- DJI O3 to O4 was upgraded for the DJI O4 Pro Air Unit
- New Camera Mount for DJI O4 Pro Air Unit
- New Silicone side panels
- New DJI O4 Pro MIPI Video Cable
Specifications:
- Brand: iFlight
- Model: Chimera7 Pro V2
- Product Name: 7.5 Inch O4 Pro Freestyle Frame Kit
- Wheelbase: 327mm
- Frame Dimension: L270*W199*H34 mm
- Arm Thickness: 6mm
- Bottom Plate Thickness: 3mm
- Top Plate Thickness: 2mm
- Upper Plate Thickness: 3mm
- Camera Plate Thickness: 3mm
- Maximum Flight Stack Height: 21mm
- Maximum VTX Height: 30mm
- Flight Stack Mounting: 30*30/Φ3mm
- Motor Mounting: 16x16mm / 19*19mm Φ3mm
Whats Included
- 1 x Chimera7 Pro V2 O4 Frame Kit
- 1x 220mm O4 MIPI Digital Video Cable
- 2x O4 IPEX to RP-SMA Antenna Pigtails
- 1 x Dual Antenna TPU
- 1 x GPro TPU Base Mount
- 1 x Screw Bag
- 4 x TPU Arm Guard
- 2 x Anti-Slip Battery Pad
- 2 x Battery Strap
Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
