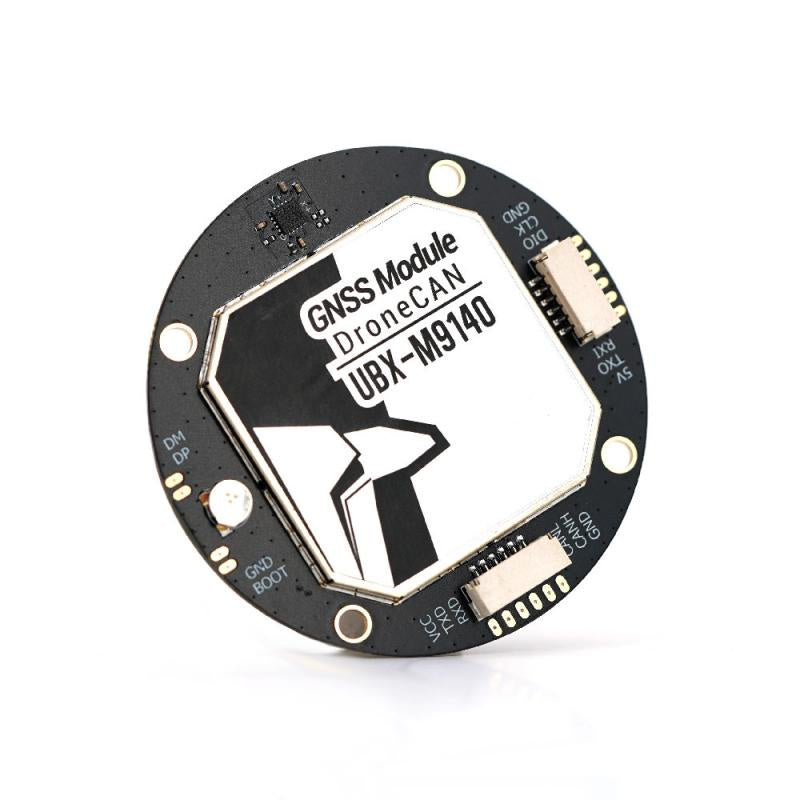

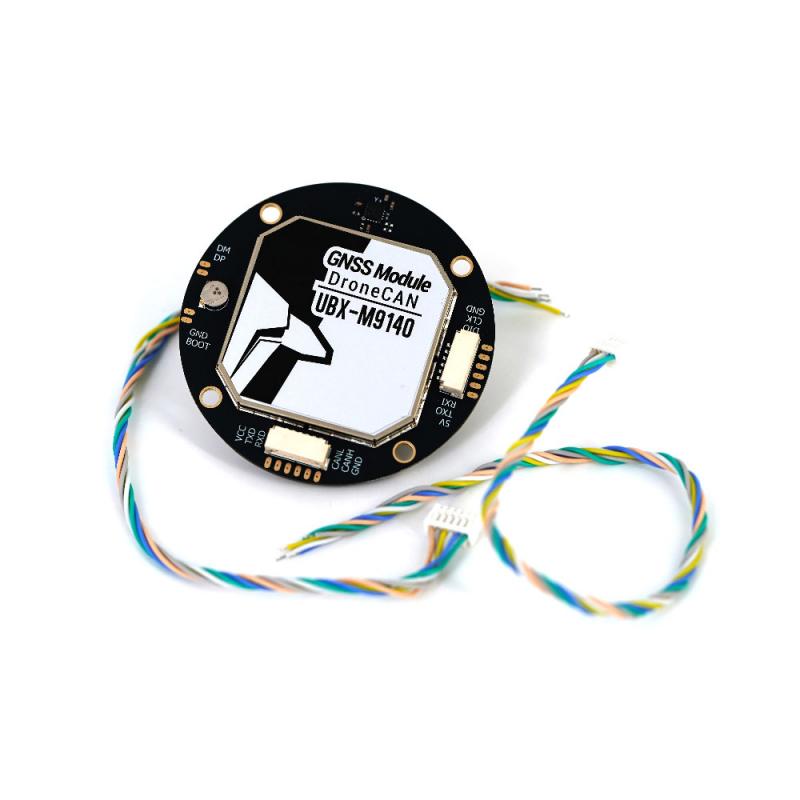

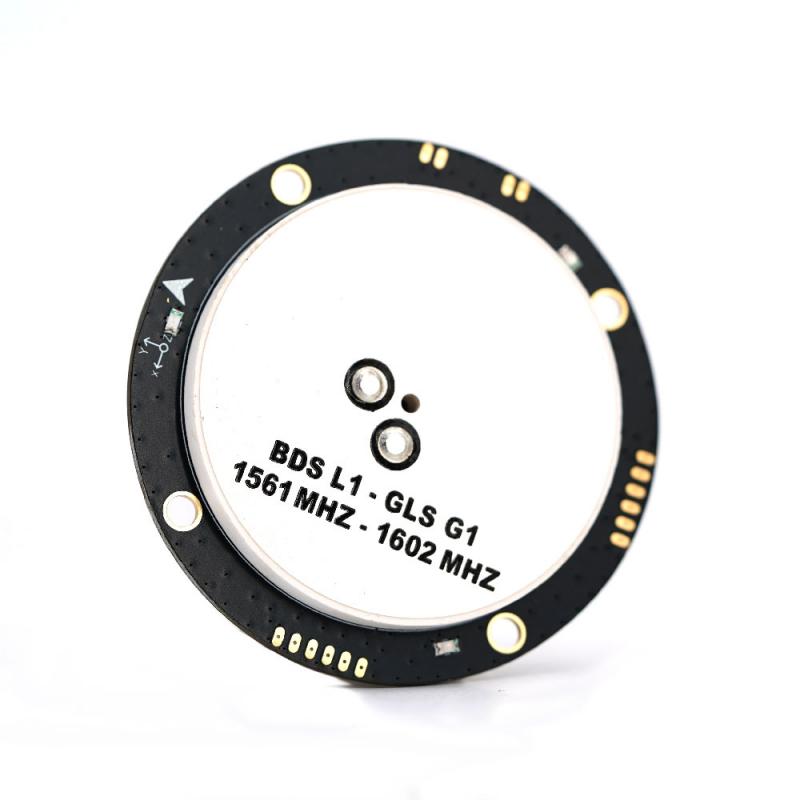

Are you looking to buy TBS DroneCan GNSS Module UBX-M9140 in Australia?
Electrical Characteristic
- Chip: M9140
- Receiver type: GPS，GLONASS，BDS，GALILEO
- Auxiliary system: SBAS，QZSS
- Channel: 92
Sensitivity
- Track: -167dBm
- Recapture: -160dBm
- Cold start: -148dBm
- Hot start: -159dBm
- Accuracy
- Horizontal accuracy: 1.5m CEP
- Speed accuracy: 0.05m/s
- 1PPS time accuracy: RMS30ns 99%60ns
Start Time
- Cold start: 24s
- Aided start: 2s
- Hot start: 2s
Data Output
- Baud rate (bbs): 4800bps-921600bps，default 9600bps
- Output level: TTL level
- Output protocol: NMEA，UBX
- Update frequency: 0.25Hz-25Hz，default 1Hz
MCU
- MCU: Arm Cortex-M3 MCU, 72MHz, 128Kbytes Flash, 20Kbytes SRAM;
- Peripherals: CAN 2.0 A/B
LED
- FIX led: N/A
- CAN led: Green light, slow blinking after successful CAN communication
- SAFETY led: N/A
- RGB led: N/A
- PPS led: Red light is steady on after powering on, and flashes after positioning
- Red led: N/A
- Yellow led: N/A
- TX led: Blue light flashes when there is an output
Compass
- QMC5883
