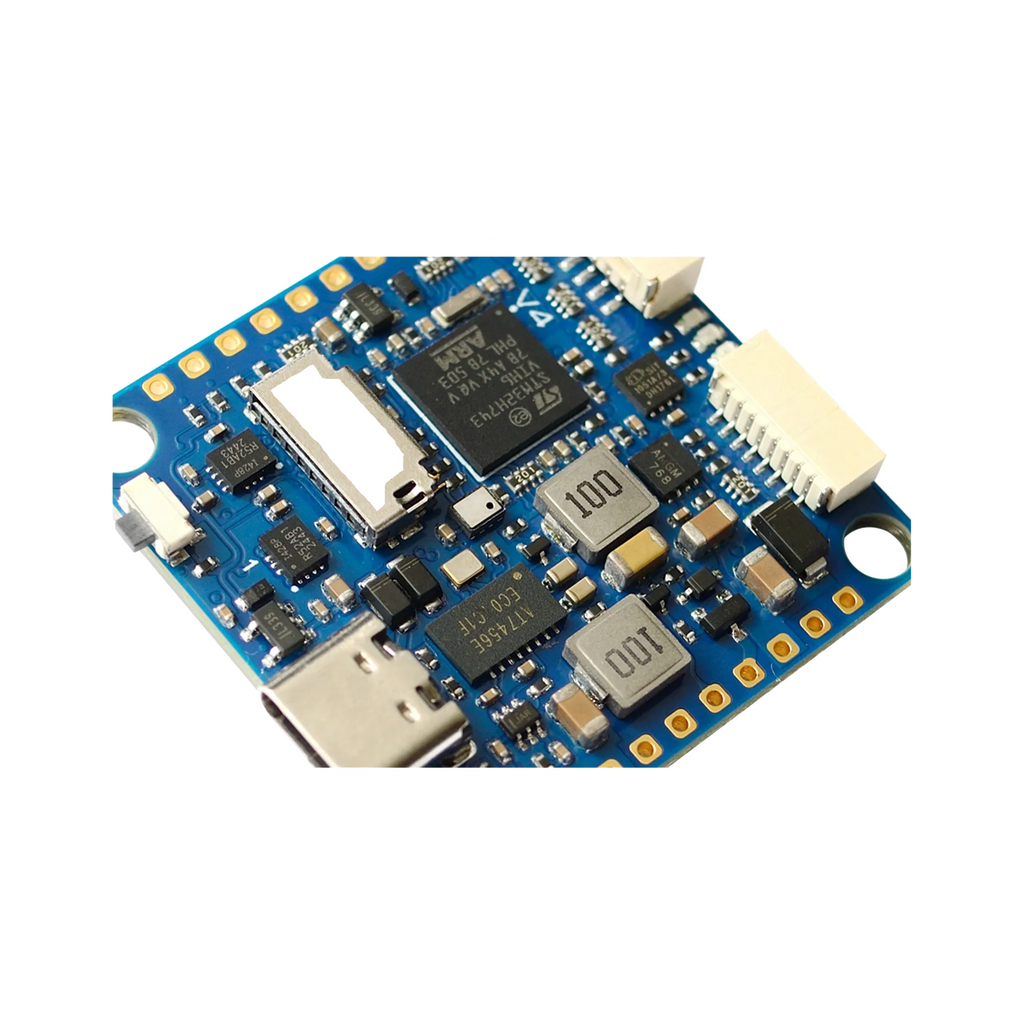

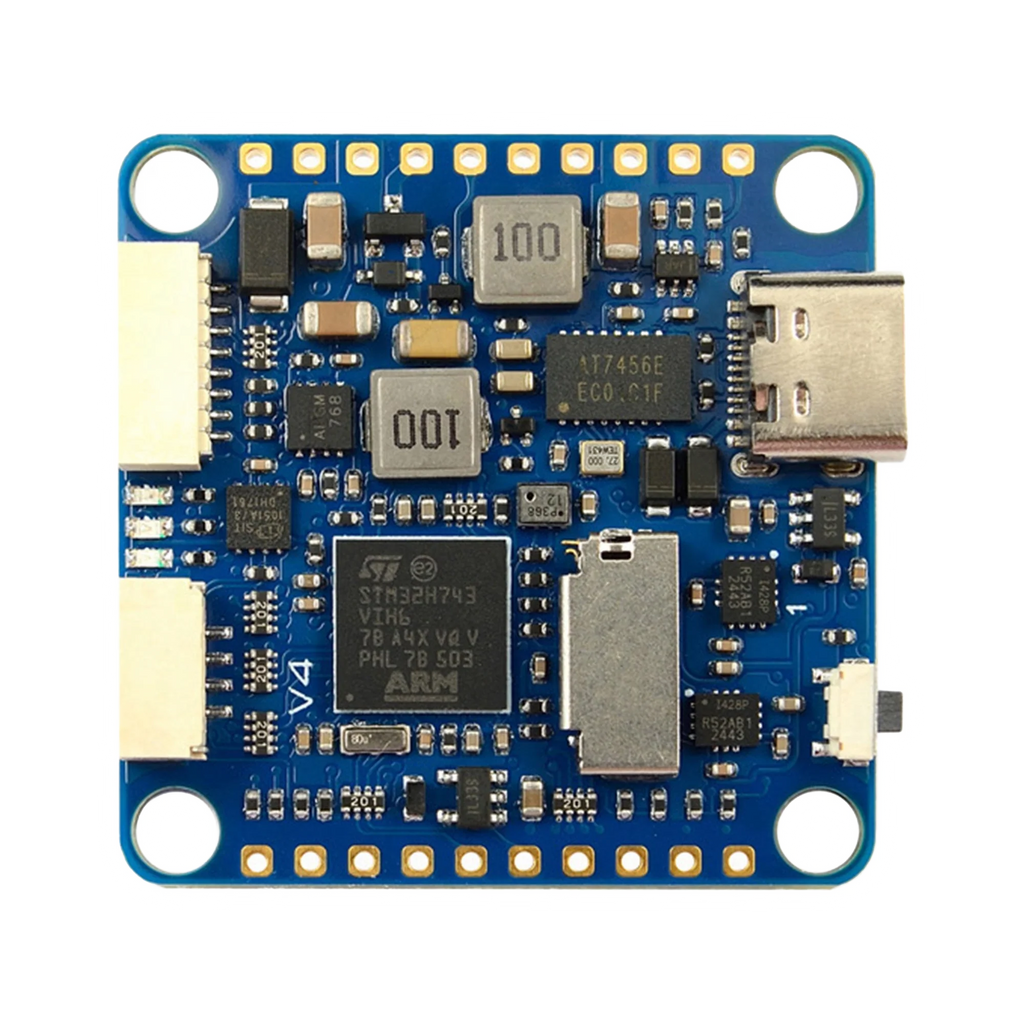

Matek Flight Controller H743-SLIM-V4

$134.80 AUD
Skip to product information
Matek H743-SLIM-V4 Flight Controller – dark-mode image 1
  • Matek H743-SLIM-V4 Flight Controller – dark-mode image 1
  • Matek Flight Controller H743-SLIM-V4
  • Matek H743-SLIM-V4 Flight Controller – dark-mode image 2
  • Matek Flight Controller H743-SLIM-V4
  • Matek Flight Controller H743-SLIM-V4
  • Matek Flight Controller H743-SLIM-V4
  • Matek Flight Controller H743-SLIM-V4
Matek Flight Controller H743-SLIM-V4

Matek Flight Controller H743-SLIM-V4

$134.80 AUD
GST included Shipping calculated at checkout.

Delivery options

Matek Flight Controller H743-SLIM-V4

Pickup

Local pickup is free. Collect from Somersby NSW; choose Pick up at checkout instead of a courier. Usually ready in 2 hours.

Delivery options
Out of stock
Price match

Request a price match

Matek Flight Controller H743-SLIM-V4 Our price: $134.80

We reply approved or declined by email, usually within 15–60 minutes during business hours. Matching is at our discretion — we can't promise every price, but if it's fair we usually will.
Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.
Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup availability

1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
Product details
SKU: 33794
Shipping Weight: 20g
W/H: W-04-B-03
Categories: 30x30 Flight Controller, Ardupilot Flight Controllers, Flight Controllers, H7 Flight Controllers, ICM42605 Gyro FPV Flight Controllers, ICM42688-P Gyro FPV Flight Controllers, Matek, Matek Flight Controller
Tags: 30x30, 30x30 Flight Controllers, Ardupilot, Betaflight, H7, H7 Flight Controller, ICM42605, ICM42688-P, INAV


Are you looking to buy Matek Flight Controller H743-SLIM-V4 in Australia?

MatekSYS Flight Controller H743-SLIM-V4

Features

  • STM32H743VIH6, 480 MHz, 2MB Flash
  • IMU Dual ICM42688P
  • Analogue OSD
  • Baro DPS368
  • MicroSD slot for datalogging
  • 7x UARTs, 2x 12C, 1x CAN, 1x SPI3 breakout
  • 6x ADC (Vbat, current, VB2, CU2, RSSI, Airspeed)
  • 13x PWM Outputs

Specifications

  • FC
    • MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash
    • IMU: Dual ICM42688P
    • Baro: DPS368
    • OSD: AT7456E (SPI2)
    • Blackbox: MicroSD card socket
    • 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
    • 13x PWM outputs(including “LED” pad)
    • 2x I2C
    • 1x CAN
    • 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
    • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
    • 1x SPI3 breakout
    • USB Type-C(USB2.0)
    • 1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
    • 1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
    • Dual Camera Inputs switch
    • 5V 0r Vbat(2A) filtered power ON/OFF switch
    • DJI FPV OSD is supported by any spare UART
  • Power
    • Vbat Input: 6~36V (2~8S LiPo) with TVS protection
    • BEC: 5V 2.5A cont. (Max.3A)
    • LDO 3.3V: Max.200mA
    • VBat filtered output 2A for VTx and camera
    • No Current Sensor built-in
    • ADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K)
    • Static power: 200mA@5V with Betaflight,  150mA@5V with ArduPilot
  • FC Firmware
    • ArduPilot: MATEKH743
    • BetaFlight: MATEKH743
    • INAV: MATEKH743
  • Physical
    • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
    • Dimensions: 36 x 36 x 5 mm
    • Weight: 7g

Includes

  • 1x H743-SLIM-V4
  • 6x Silicon grommets M4 to M3
  • 1x JST-SH1.0_8pin cable, 5cm
  • 2x JST-SH1.0_8pin connectors
  • 1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm
