Aikon AK32 55A 2-6s 4 in 1 ESC BLHELI_32 - V3
$128.95 AUD
Skip to product information
Out of stock

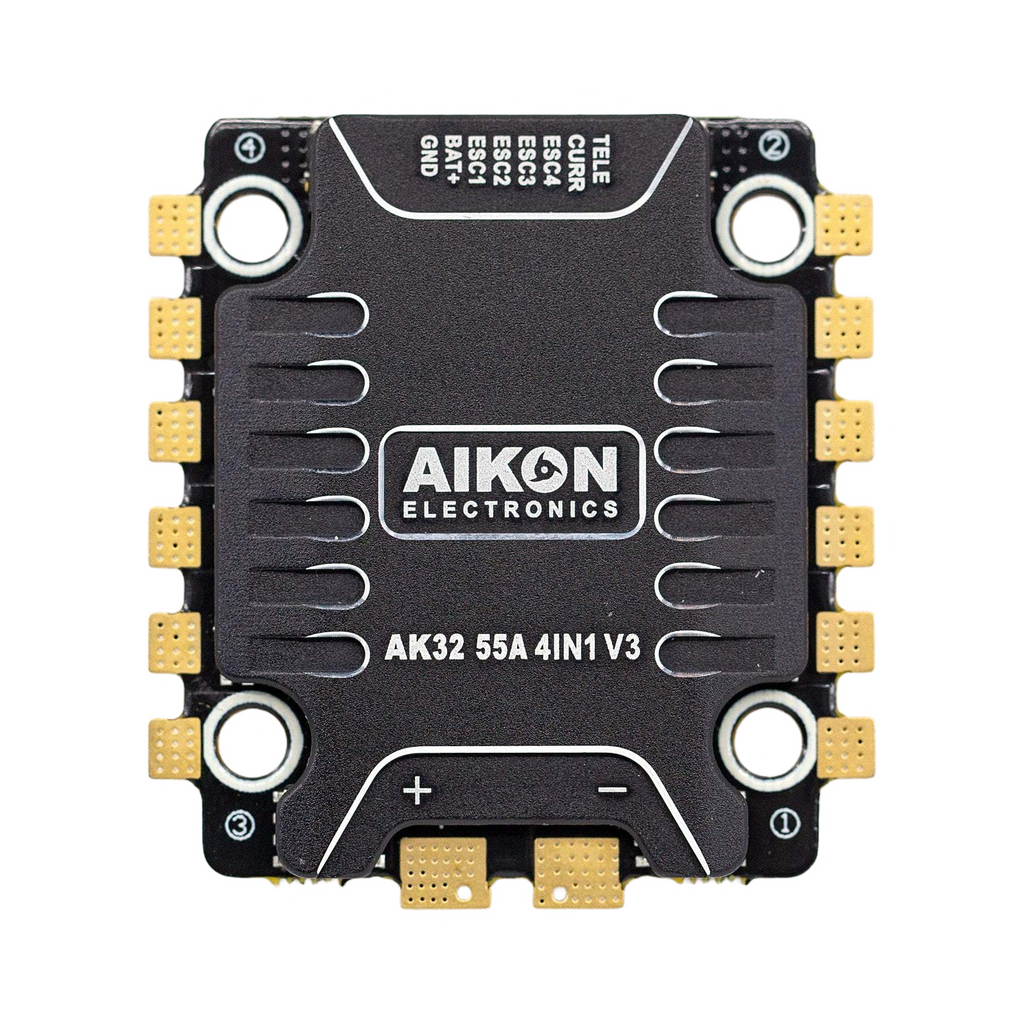

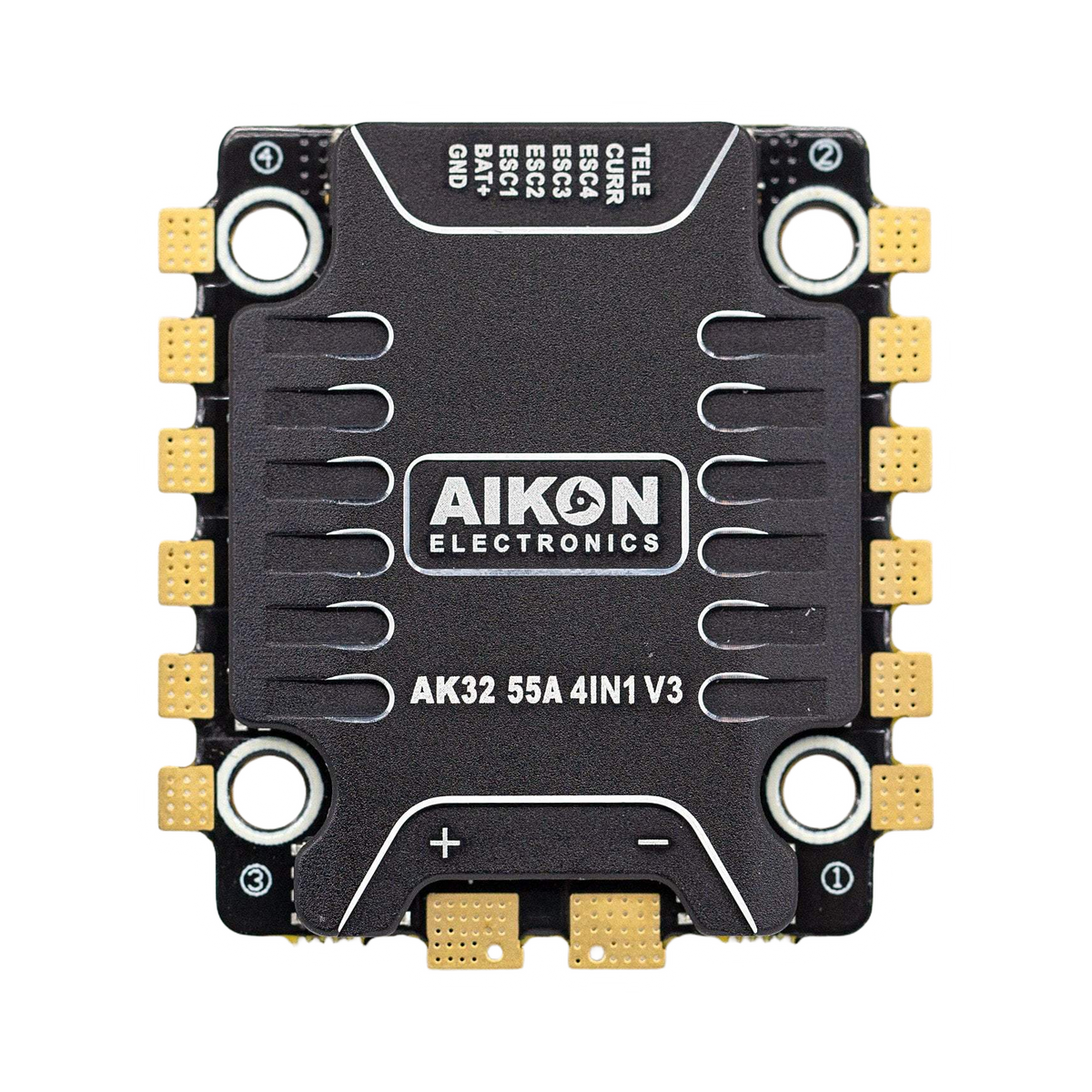

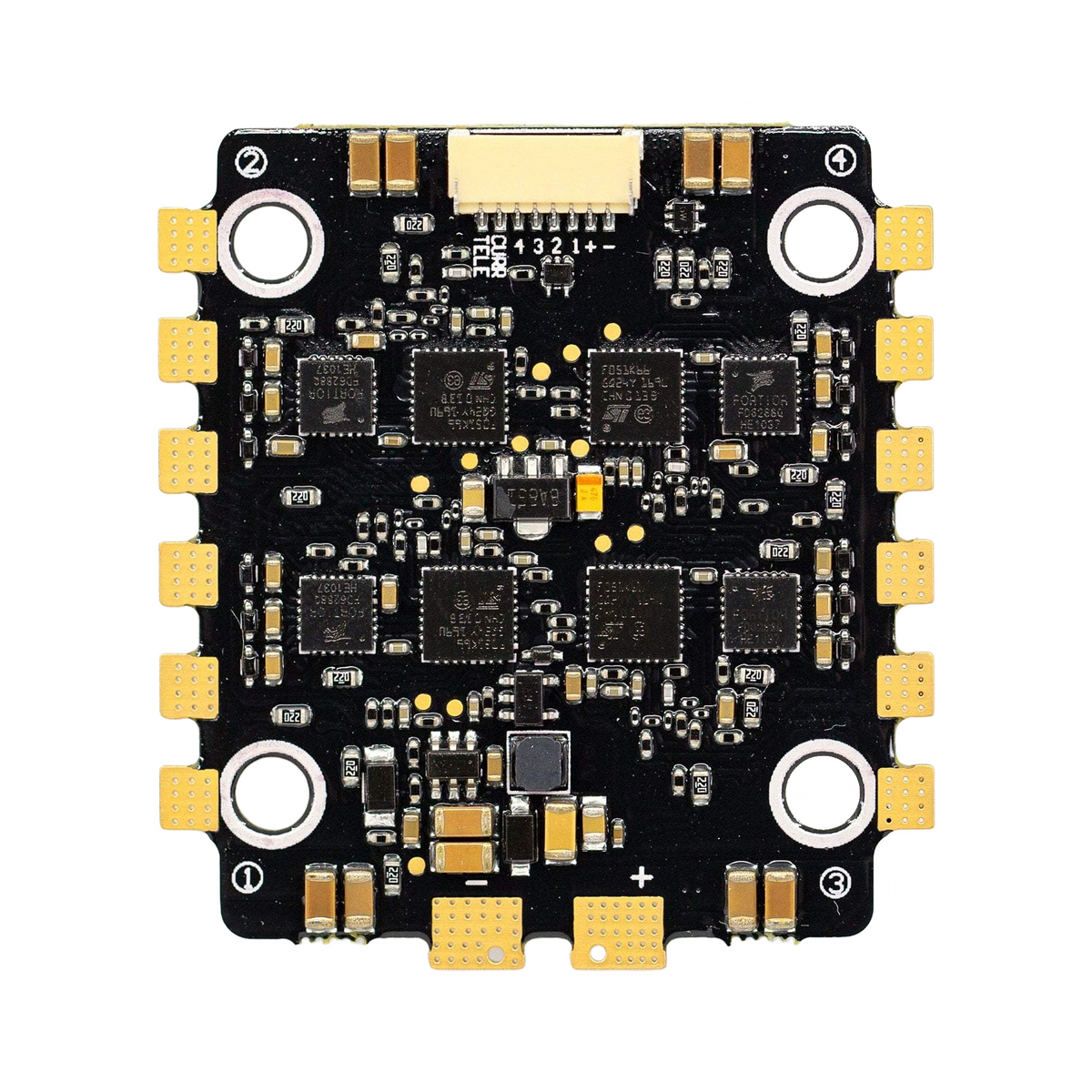

Aikon AK32 55A 2-6s 4 in 1 ESC BLHELI_32 - V3
$128.95 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
Product details
SKU:
9538
Barcode:
AKAK324556 V3
Shipping Weight:
50g
W/H:
V-04-E-03
Categories:
30x30 ESC, 4 in 1 ESC, Aikon, Aikon ESC, blheli32, Drone ESCs
Are you looking to buy an Aikon AK32 55a 2-6S ESC in Australia?
The Aikon AK32 4-in-1 55A 6S is a new generation ESC that uses a variety of bleeding-edge technologies in hardware and firmware.
Note: This is the updated version v3. - It does not have a 5v BEC like v1 and v2.
Features
- New BLHeli_32 code base
- Programmable PWM frequency of up to 48KHz
- Auto-timing for higher efficiency and reliability
- Voltage/Current sensing
- Adjustable “Brake on Stop” force
- Improve direction change in Bidirectional mode
- ESC Telemetry (Voltage and RPMs only, no current)
- Configuring from FC using DShot commands
Specifications
- Input Voltage: 3-6S
- Constant Current: 55A
- Burst Current(10s): 70A
- MCU: AT32F421
- Firmware: BLHeli32
- Telemetry: Yes
- Current Sensor: Yes
- Current Sensor Scale: 210
- Mounting Dimensions: 30.5 x 30.5mm
- Weight (w/o wire): 18.5g
Includes
- 1X Aikon AK32 4-in-1 55A 6S BLHELI32 ESC v3
- 35v 470uf capacitor
- 5X Silicone grommets
- 1X Power/Ground wire
- 1X ESC cable
