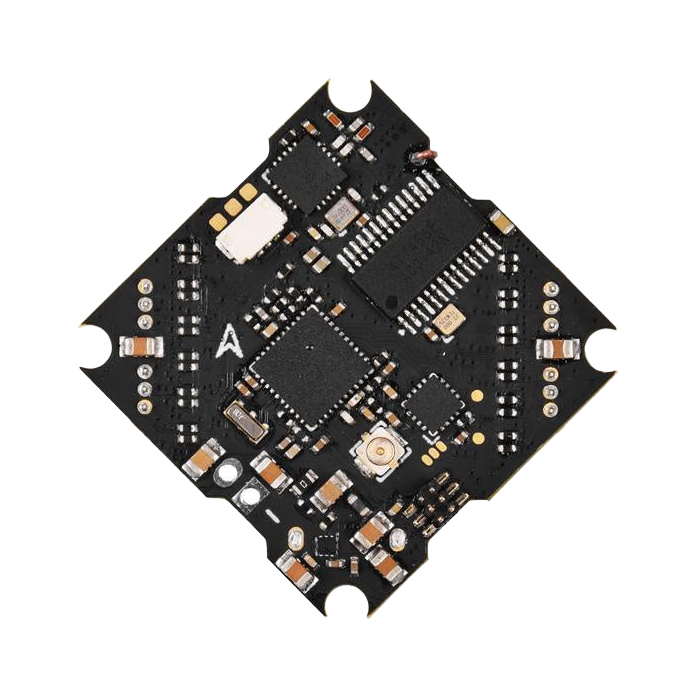

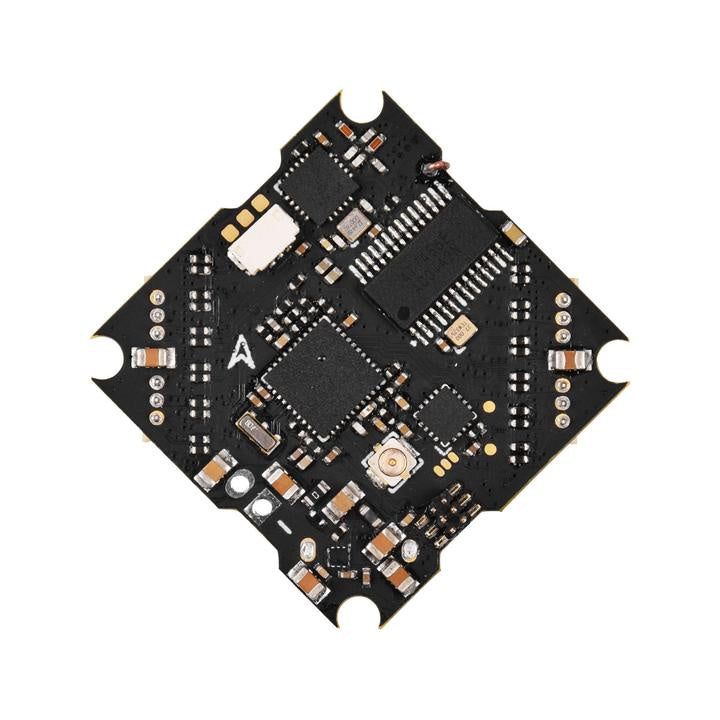

BetaFPV F4 1S AIO SPI FrSky D16 FCC Brushless Flight Controller (Built in VTX)


IN STOCK ( left )

Style: Frsky D16 FCC- 1S Only

  • Frsky D16 FCC- 1S Only
  • PNP - 1-2S Compatible
  • Frsky D16 LBT- 1S Only
Add to Wishlist
SKU: 19091N/A W/H: N/A Barcode: N/A Shipping Weight: 0g N/A Categories: AIO , BetaFPV , BetaFPV FC , Drone ESCs , FPV Stack Combos , Tinywhoop Flight Controller Tags: AIO, BetaFPV, Flight Controller, FPV Stack Combos, Tinywhoop Flight Controller

We accept the following payment methods

Are you looking to buy a BetaFPV F4 1S AIO SPI FrSky D16 FCC Brushless Flight Controller in Australia?

F4 1S AIO FC(SPI Rx) integrates 4 components as F411 FC, 5A ESC, 25mW VTX and SPI receiver. It is ultralight only 3.92g and still maintains an amazing performance capability, which makes it become your best choice to run with a 1S brushless quad!
F4 1S AIO FC(No Rx) integrates 3 components as F411 FC, 5A ESC and 25mW VTX. It supports external receivers like TBS Crossfire, Frsky XM+ and Spectrum DSMX etc. Meanwhile, this version can handle the 2S power system.
  • Integrated with a 25mW VTX, this AIO board(Frsky/Futaba Rx) is ultralight only 3.92g, which can extremely save the weight of building drone, perfectly suitable for the 1S weight-sensitive drone such as Meteor65 HD and HX100 SE.
  • F4 1S AIO FC(No Rx) not only integrates with the 25mW VTX but also supports a 1-2S power system, which is perfectly suitable for the weight-sensitive drone such as Meteor75 and Beta85 Pro2.
  • This AIO board also reserves a Plug & Play port for the C01 Camera, C01 Pro Camera and BETAFPV Nano HD Camera, no soldering work needed, super convenient for installation.
  • Specially added with 2 RGB LED indicators, this board brings the drone an incredible light effect while pilots flying on the night.
  • This board can handle 5A continuous current(6A burst), supports the 1S lipo battery, brings the drone a stronger flight performance.
  • Come with a BT2.0 connector, it solves the problem of voltage sag, the discharge can be more efficient, which brings this board a better performance on function for power and responsiveness.

Specification of F4 1S AIO FC(SPI Rx)

  • Item: F4 1S AIO FC(Frsky/Futaba Rx)
  • Weight: 3.92g(without antenna and BT2.0 connector)
  • VTX Power: 25mW
  • CPU: STM32F411CEU6 (100MHZ )
  • Six-Axis: MPU6000 (SPI connection)
  • Firmware version: betaflight_4.2.0_STM32F411
  • Receiver: Support Frsky Receiver/ Futaba Receiver
  • Motor Pin Connecter: 1.25mm Header Pins
  • Mounting hole size: 29mm x 29mm / suitable for almost all kind of whoop frame

Specification of ESC

  • Built-in ESC with 5A continuous and peak 6A current
  • Input voltage: 1S Lipo
  • ESC firmware: O_H_5_REV16_8.HEX
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM
  • 4 Indicators: Receiver indicator (Blue)/Flight control status indicator (Green)/Flight control power indicator (Red)/VTX indicator (Pink)

Diagram for F4 1S AIO FC(SPI Rx)

SPI Receiver CC2500

Come with the build-in SPI Receiver CC2500, F4 1S AIO FC(SPI Rx) can compatible with Futaba S-FHSS, Frsky D8 and D16 protocol. The default Frksy protocol is Frsky D16, if pilots buy the wrong receiver of the SPI Frsky version or upgrade the wrong firmware accidentally, which needs to switch the protocol to Futaba or FrskyD8, please upgrade the Betaflight Firmware according to this tutorial.


  • 1 * F4 1S AIO Brushless Flight Controller
  • 4 * M1.2x4mm Screws
  • 4 * M1.4x5mm Screws
  • 4 * Anti-vibration Rubber dampers
