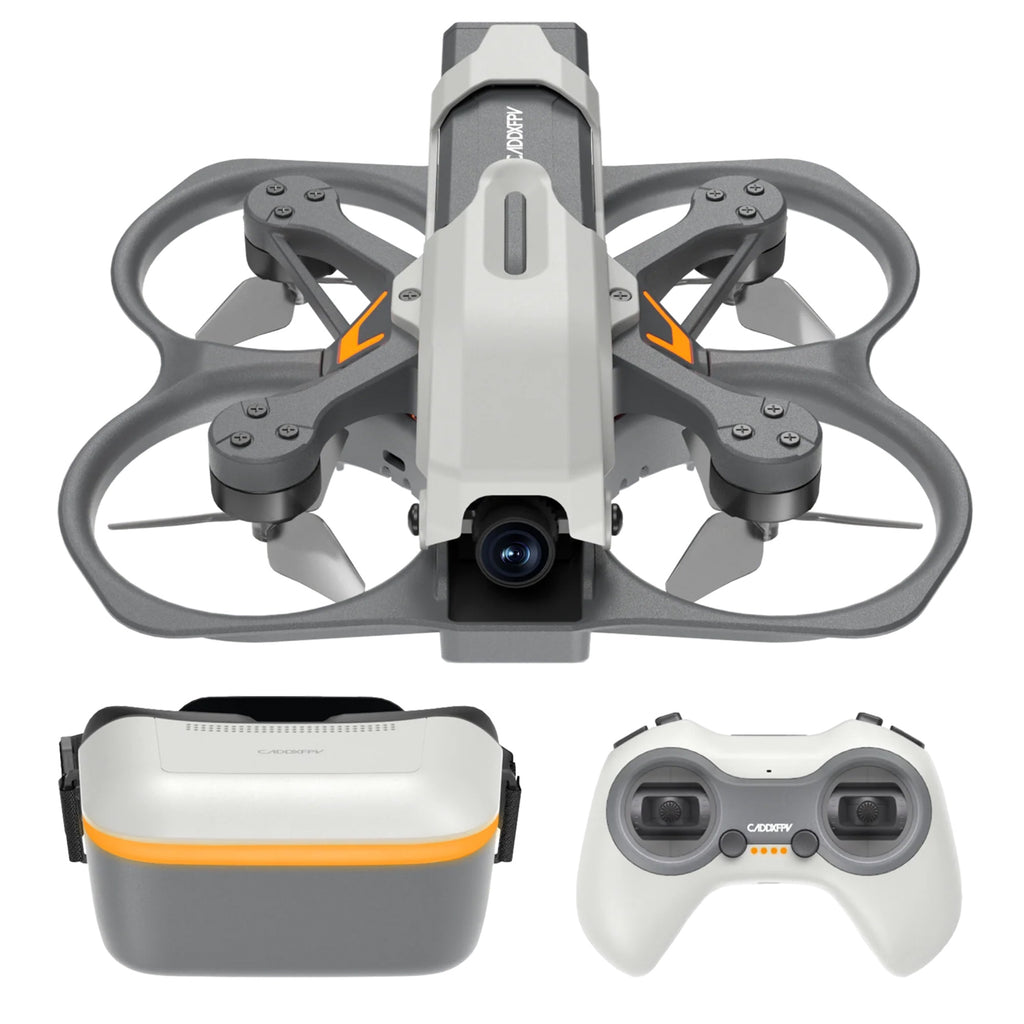

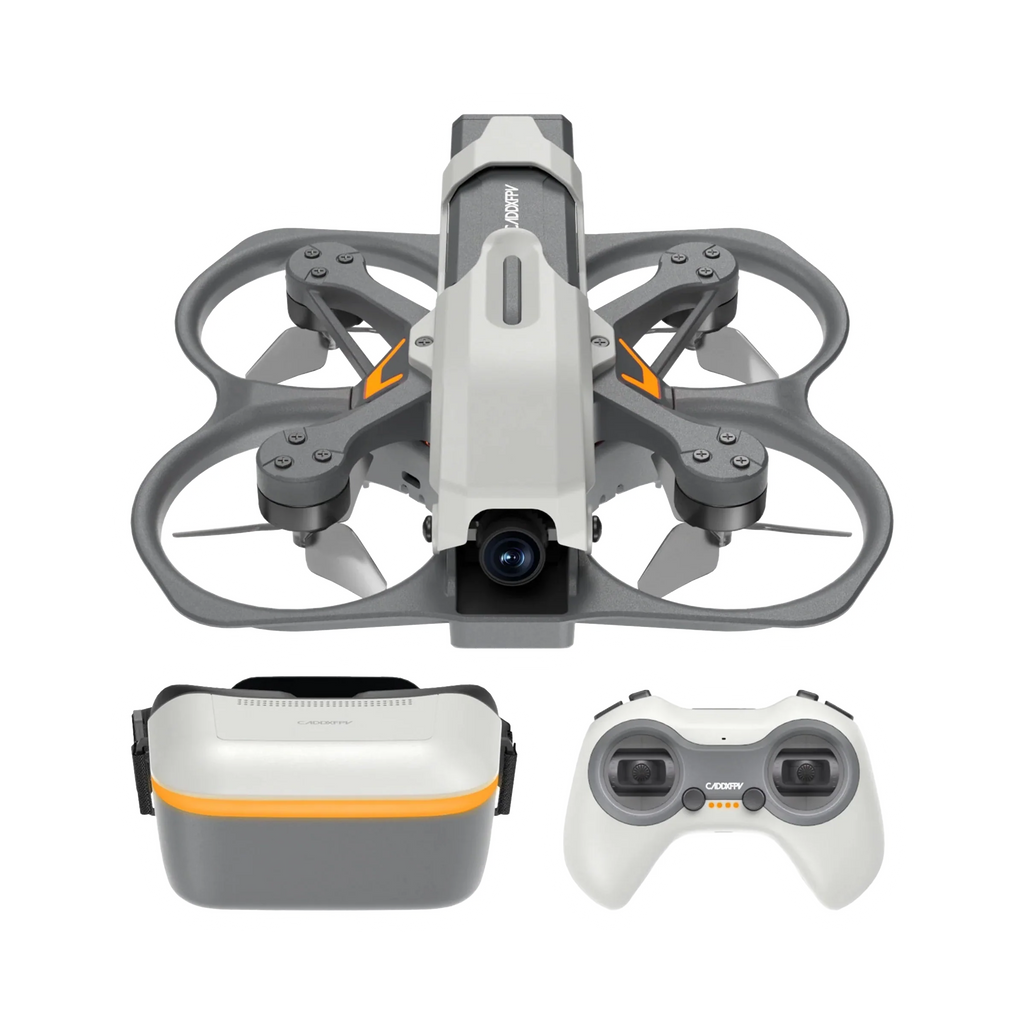

CaddxFPV Protos Flymore RTF Kit C0CA-TZ056 [DG]

Name: CaddxFPV Protos Flymore RTF Kit C0CA-TZ056 [DG]
Brand: Caddx
SKU: 34022-DG
Price: 549.99 AUD
Availability: InStock

$549.99 AUD $678.81 AUD

Save 19% GST included Shipping calculated at checkout.

Price match

4 In stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup available

1/80 Somersby Falls Road, Somersby NSW

Get directions

Ready to collect tomorrow from 9:30am

Product details

SKU: 34022-DG

Shipping Weight: 1900g

Shipping Dimensions: L 32 × W 13 × H 22 cm

W/H: S-01-B

Categories: [DG] Dangerous Goods, Caddx, FPV Cameras, FPV Drones (Ready to Fly and Bind and Fly), FPV Gear & Equipment, FPV Starter Kits, New FPV Products, Quadcopter Parts, Tiny Whoop, Walksnail Compatible Quads

Tags: Complete Quad, FPV, RTF, Tinywhoop Quad, Walksnail Quad

Why buy from Phaser FPV?

Dependable Phaser started in 2014. Long reputable history and 5 star reviews.
Fast dispatch All stock is on the shelf in our Somersby warehouse. In-stock orders placed before 1pm Sydney time on a business day ship the same day. Shipping details.
Transparent stock If it says in stock, we ship today. If it's sold out but more is on the way and we know the ETA, it's on the product page, so you know what to expect before you order.
Showroom and pickup Walk into our Somersby showroom, an hour north of Sydney, talk to the team and see it before you buy, or order online and collect from the front counter.
Support after you buy Something won't bind, connect or work? We troubleshoot it with you first. Repair, soldering and 3D printer servicing are available when needed, quoted before any work starts. Returns and warranty.
Price match Found it cheaper at an Australian store? Use the Price match button on the product and we'll take a look.
One warehouse, three stores The same crew runs Phaser FPV, Central Coast Coffee and Tradiemods from one fast, efficient warehouse, with over a decade of online retail behind it.
3D printing and design Need a custom part? Our sister site Phaser3D prints from your file and can design to print.
Experience Our staff fly, build and use this gear, and will help you pick parts that work together so you don't buy twice. Not sure what to buy? Message us on live chat, or call us and leave a voicemail; we'll call you back as soon as we can.
Community Large Facebook community for like-minded pilots, or view our Facebook page.
GST registered If your business is registered, you claim the GST back and save 10%. Some small online stores are not registered, so there's nothing to claim.

#1

CaddxFPV Protos 2S Battery — transparent dark-mode product image 1

CaddxFPV 840mAh 7.2V 2S 15C Li-ion Battery for Protos [DG] $18.25 In stock #2

CaddxFPV Protos 2S Battery Charger — transparent dark-mode product image 1

CaddxFPV Protos 2S Battery Charger $27.50 In stock

Product description

Are you looking to buy CaddxFPV Protos Flymore RTF Kit C0CA-TZ056 [DG] in Australia?

Features

Feather-light Build. Rock-Solid Signal

At only 6g, this ultra-light digital HD VTX makes your drone lighter, its signal stronger, and its flight smoother.

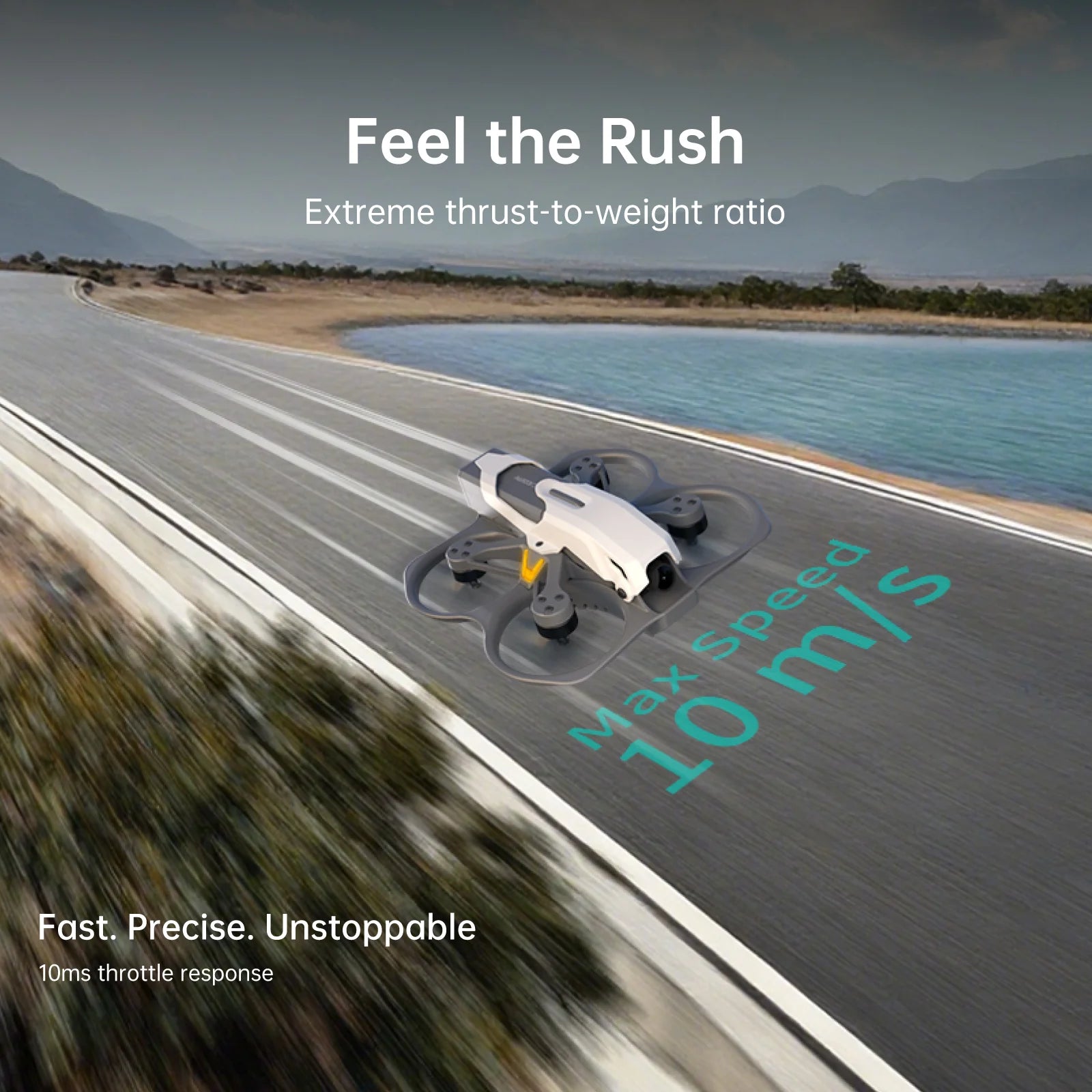

Optimised Brushless Motor for Instant Takeoff

High RPM and efficient power delivery ensure smooth, responsive performance with minimal delay, giving you faster launches and steady flight control.

Your Flight, Redefined

Dive into the action with our 4.5" high-resolution FPV display. Every detail, from the sharp edges of urban landscapes to the vibrant hues of nature, springs to life with stunning clarity and rich colour.

Strong Low-Light Performance

With 0.01 Lux low-light sensitivity, smooth 1080P/60FPS video, and a 147° FOV, you'll capture every detail—even in challenging light.

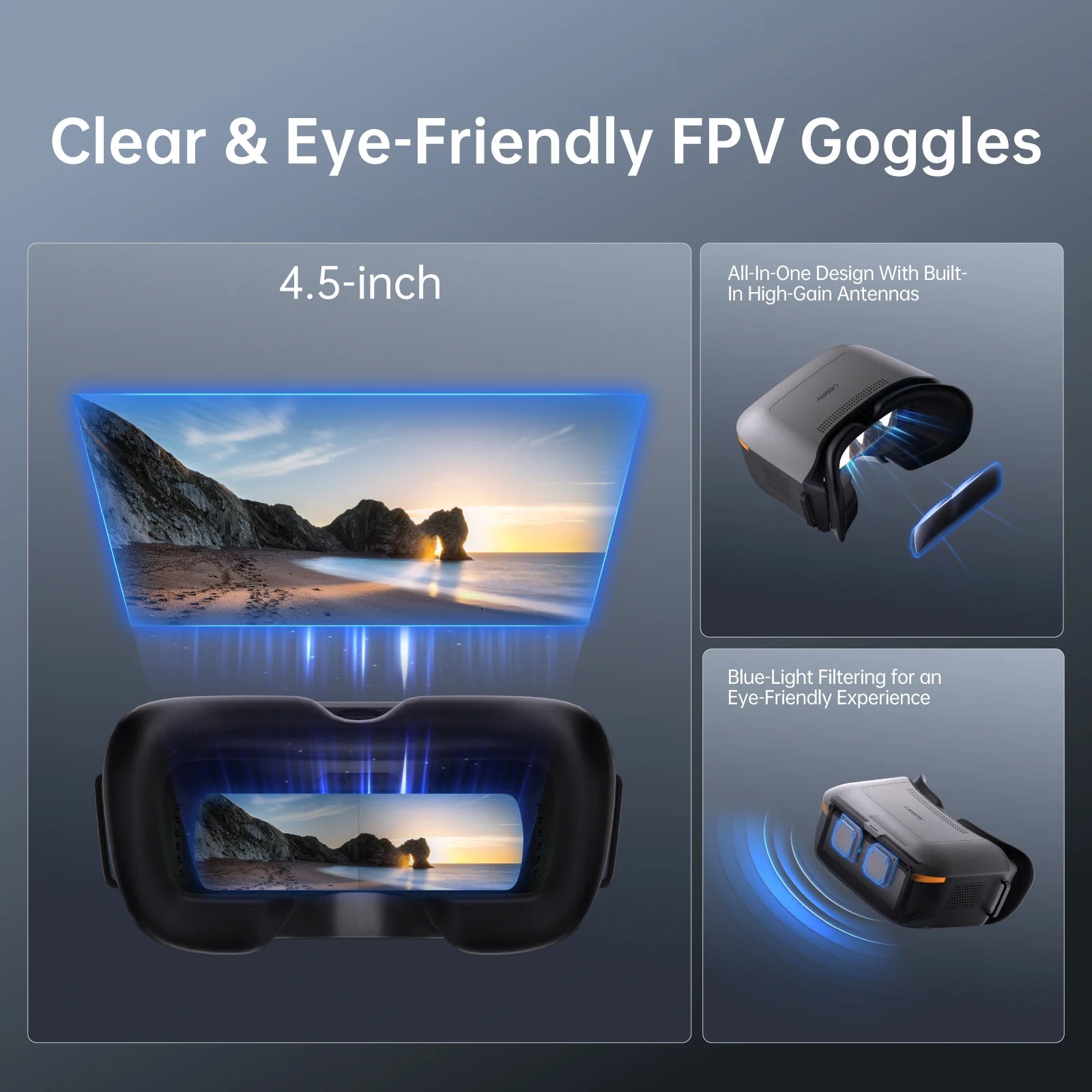

Immersive, Eye-Friendly Goggles

Strong signal, 256 GB recording, and custom diopter lenses deliver an all-day clear view. A stylish, LED-accented frame completes the immersive flight experience.

Start as a Beginner, Fly Like a Pro

Three intelligent flight modes help you progress from simple flying to advanced maneuvers with confidence.

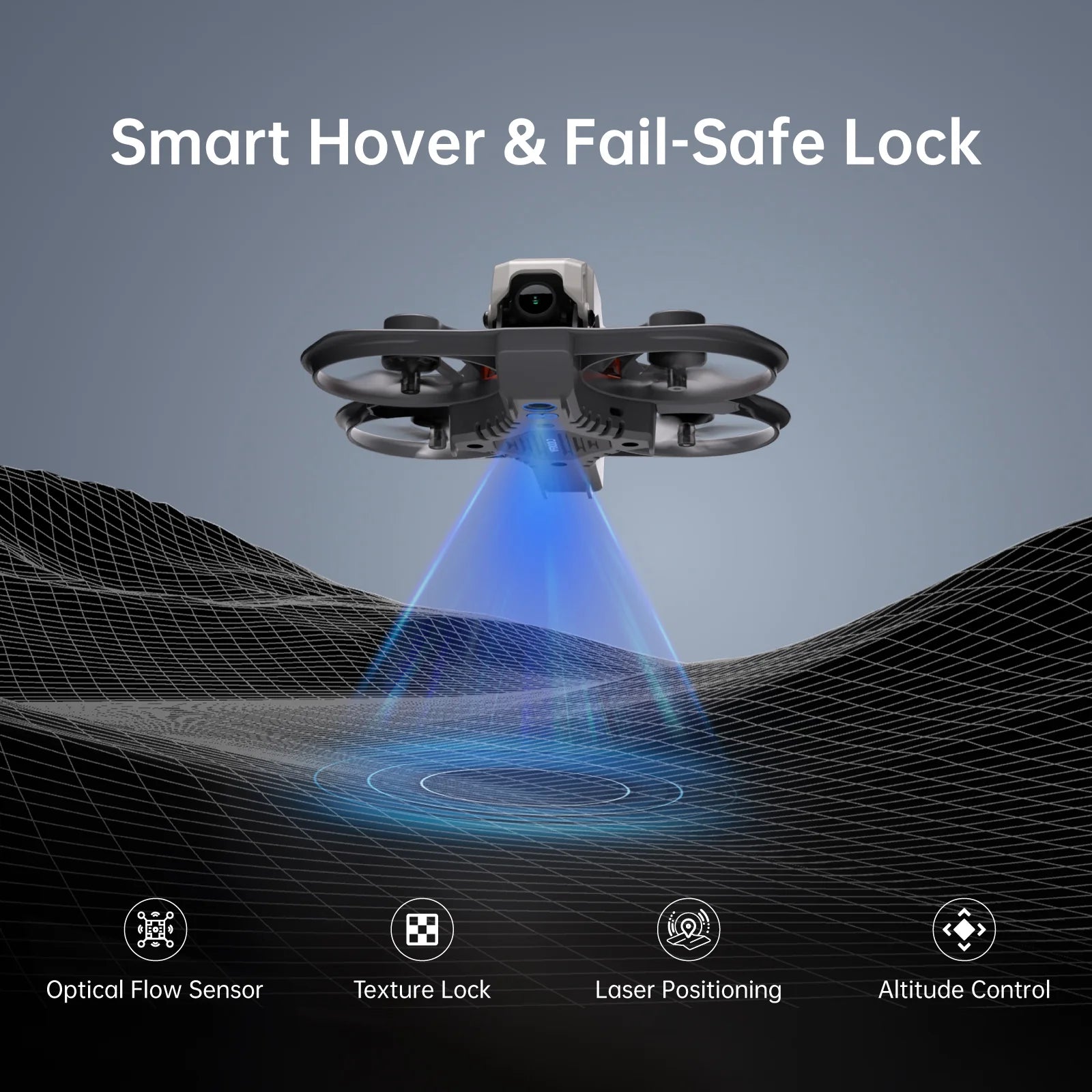

Smart Hover & Fail-Safe Lock

Optical flow enables precise indoor hovering, with a smart failsafe lock for easy emergency recovery.

Make Stunts Look Easy

Pull off flips, rolls, and 180° spins with ease for an exciting flying experience-—show off smooth tricks with minimal effort.

A-LINK ELRS Control, Ultimate Freedom

Powered by A-LINK ELRS, it delivers millisecond-level response, long-range performance, and strong signal penetration. It’s also compatible with popular FPV simulators like Liftoff.

FPV Drone for Every Play

Flying anytime anywhere, ready for all your FPV adventures

Specifications

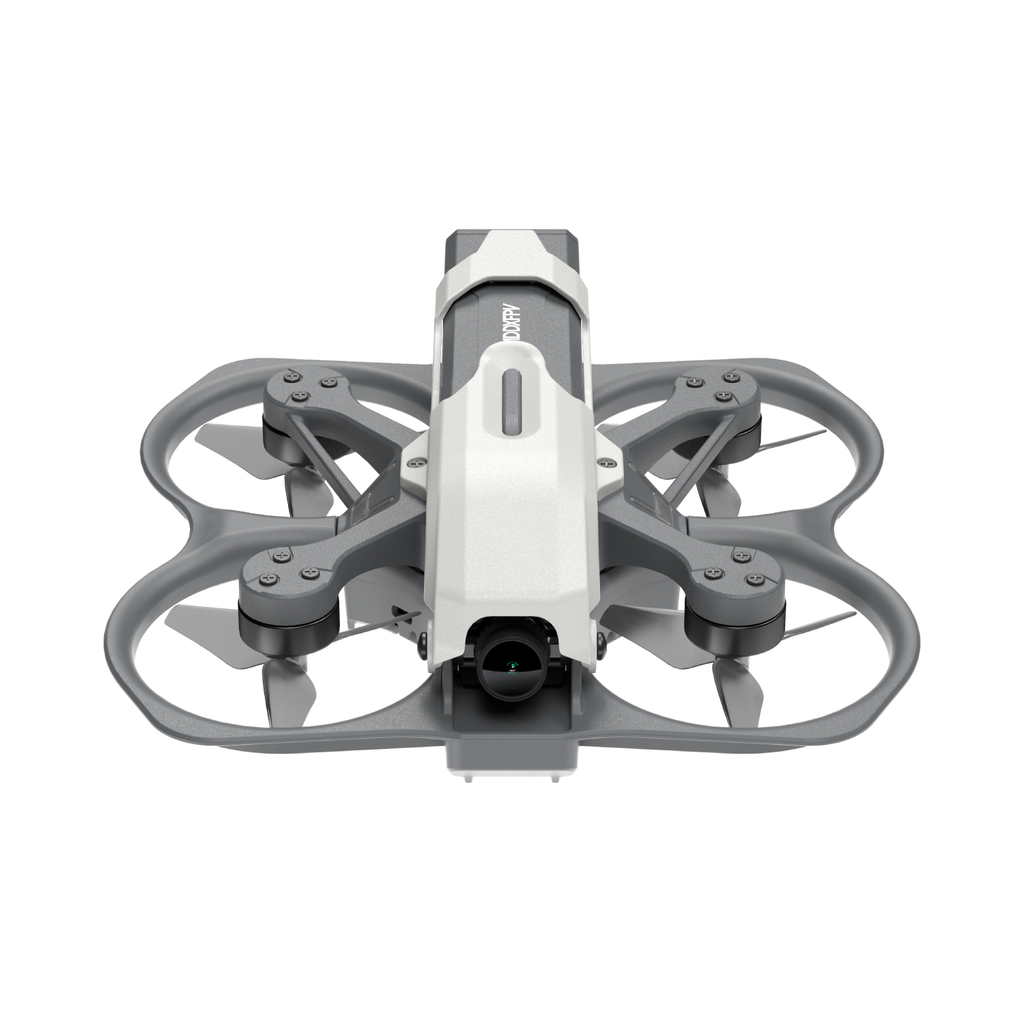

Protos

Flight Control: Caddx Protos Aio 1.0
Video Transmission: Ascent Lite
Motor Diagonal Distance: 78mm
Motor: 1102 14000KV
Propeller: HQprop U40mmx3GR PC 1.5mm
Weight: 104.4g±1.5g
Dimensions: 110x102.8x41mm
Flight Endurance: 8.5min ±0.5min
RC Receiveer: ELRS 2.4GHz

FC

Main Control Chip: STM32-F405RGT6
Gyroscope: BMI270
Barometer: SPL06
Onboard Receiver: ESP8285
Receiver Protocol: ELRS 2.4GHz
ESC Protocol Compatibility: Bluejay / BLHeli-S Optional
ESC Maximum Current: 12A (Single Channel)

VTX

VTX Model: Ascent Lite
Image Sensor: 1 / 2.8 inch Sensor
FOV: 147°
Ratio: 16:9
Resolution: 1080P 60FPS;720P 60FPS
Built-in Storage: N/A
Max Transmission Range: Max 3km
Latency: Average delay 35ms
Power: 25~100mW

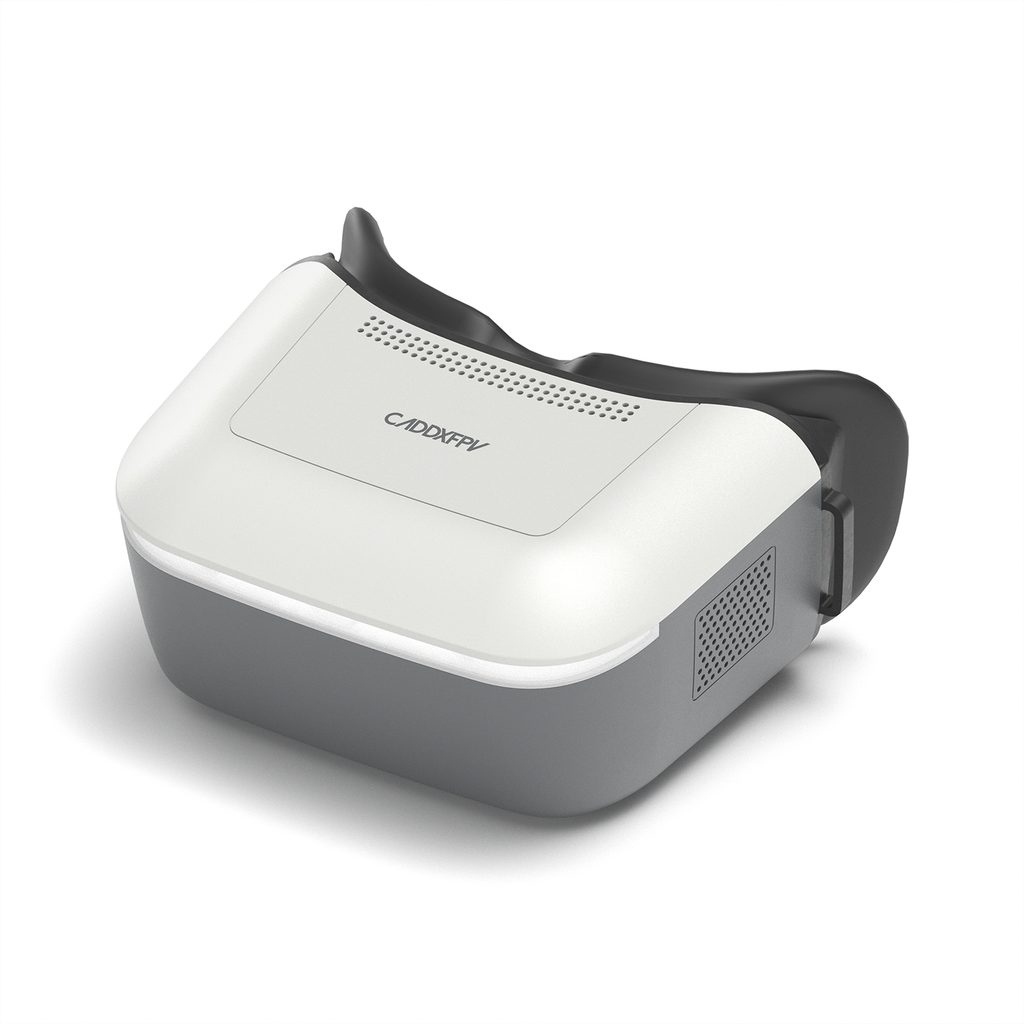

Ascent Goggles

Communication Frequency: 5.725-5.850GHZ
Transmit Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
I/O Interface: 4Pin 3.5mm Plug, DC5.5*2.1mm, Micro SD Card Slot
Transmission Resolution: 1080P60FPS, 720P60FPS
Code Rate: Max 50 Mbps
Minimum Latency: Average 32ms
Average Gain: 4.9dBi
Polarisation: LHCP
Transmission Distance: >4km
Channel: 8
Screen Resolution: 1920*1080 / 60Hz
Screen Material: LCD
Screen Size: 4.5 Inch
Wide Voltage Input: 6V~25.2V (2S~6S)
SD Card Slot: Support 256G

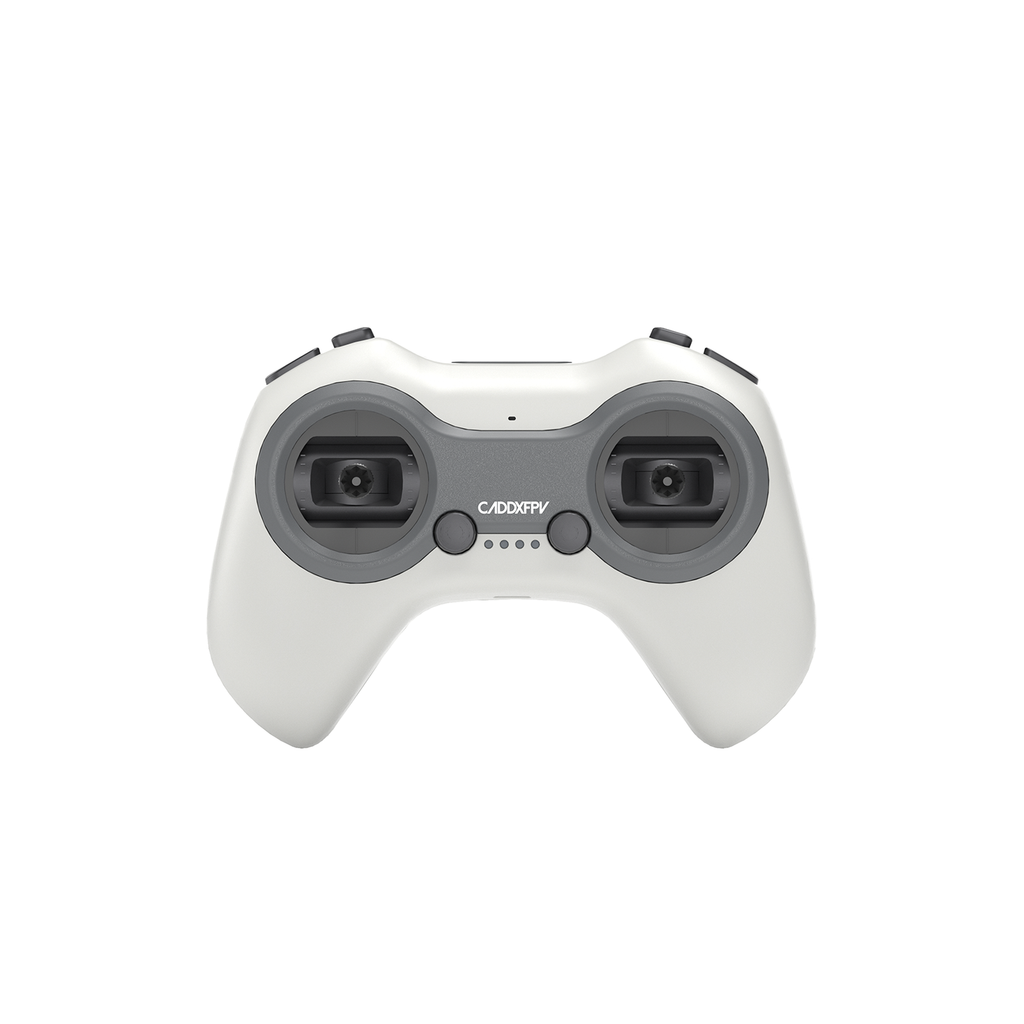

CADDXFPV Alink

Main Control Chip: AT32 F413RCT7
RF Module: ELRS 2.4GHZ
RF Protocol: CRSF
Max RF Power: 100mW (20dB)
Number of Available Channels: 10 Channels (including 4 joystick channels)
Joystick Type: Full-Bearing Hall-Sensor Joystick Assembly
Function Switch:
- 1x Latching Button
- 2x Momentary Buttons
- 2x 3-Position Toggle Switches
- 1x Scroll Wheel
Status Indicator Module: 4x Status Indicator LEDs / Buzzer
Charging & Communication Interface: USB-Type C
Battery Specification: Lipo 1s 1000mAh
Max Charging Power: 5V / 1A / 3.50W
Operating Voltage Range: DC 3.50V~4.20V
Dimensions: 158mmx108mmx58mm
Weight: 180g±5g

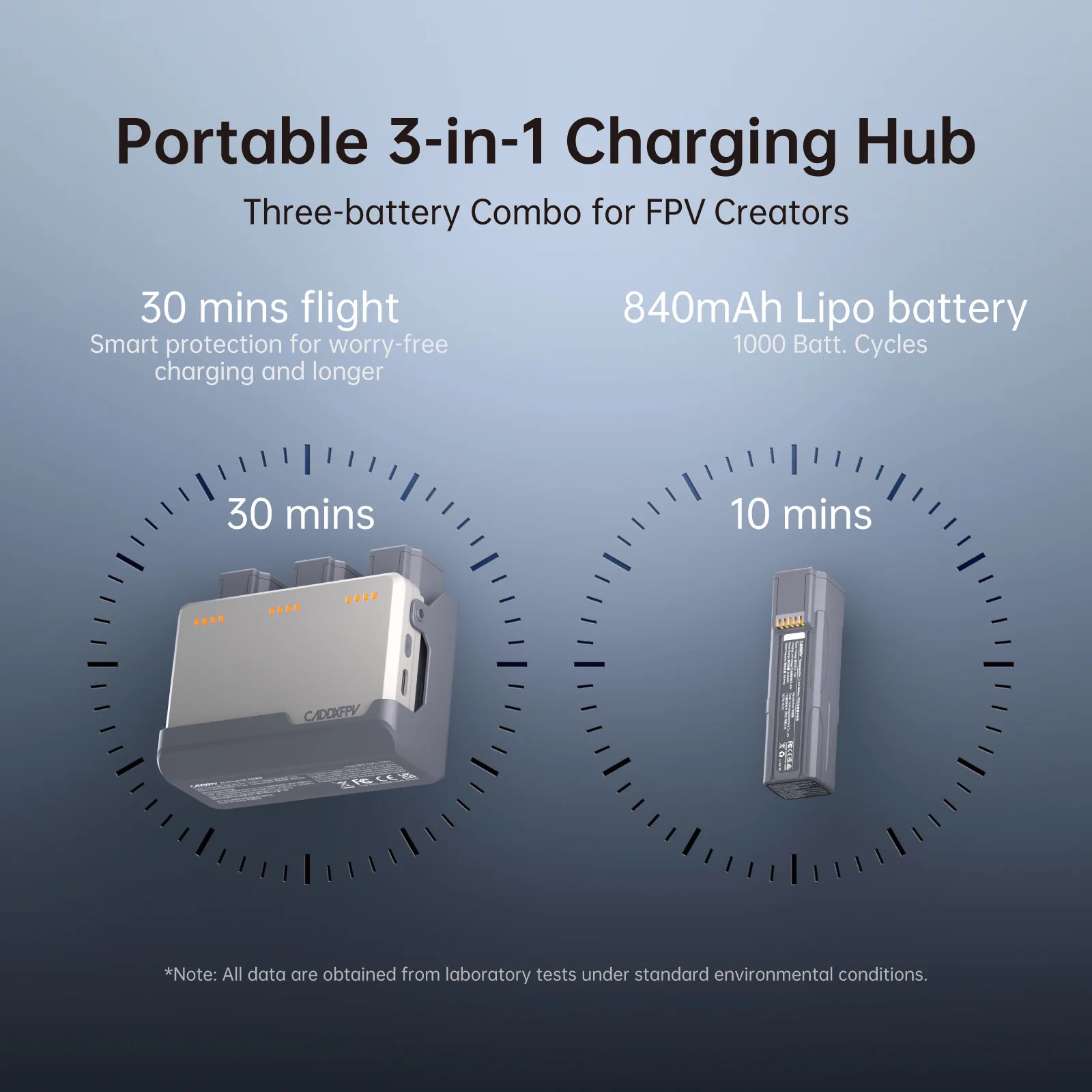

2S Charger

Name: 2S Charger
Display: LEDx4
Channel: 3 (Sequential Charging)
Function Selection: Charging, Storage
Battery Type: Li-ion 2S 840mAh Battery
Input Voltage: 12‒15V (PD Input, 5V Adapter Not Supported)
Output Voltage: 8.7V
Input Current: Max.3A
Charging Current: Max.3A
Balancing Current: Max.0.21A
Charging Power: Max.25W
Discharging Power: Total Power: 5W (Max 1.6W per Channel)
Interface: Type-C
Operating Temperature: -10~45℃
Storage Temperature: -20℃~60℃
Dimensions: 94x63x39.1mm
Weight: 65±0.5g

2S Battery

Name: 2S Battery
Battery Type: Li-ion (Lithium-ion Battery)
Battery Capacity: 840mAh
Battery Specification: 2S1P (2 Cells in Series, 1 in Parallel)
Discharge Rate (C-Rate): 15C
Maximum Power: 6.384Wh
Voltage Range: 6.80V~8.70V
Max Charging Voltage: 8.5V
Charging Method: 2S Charger
Charging Time: ≤20min
Protection Mechanism: When the voltage of a single cell drops below 2.8V, battery lock protection is triggered and charging is required to reactivate.
Dimensions: 77.5x24x21mm
Weight: 41.9g±0.5g
