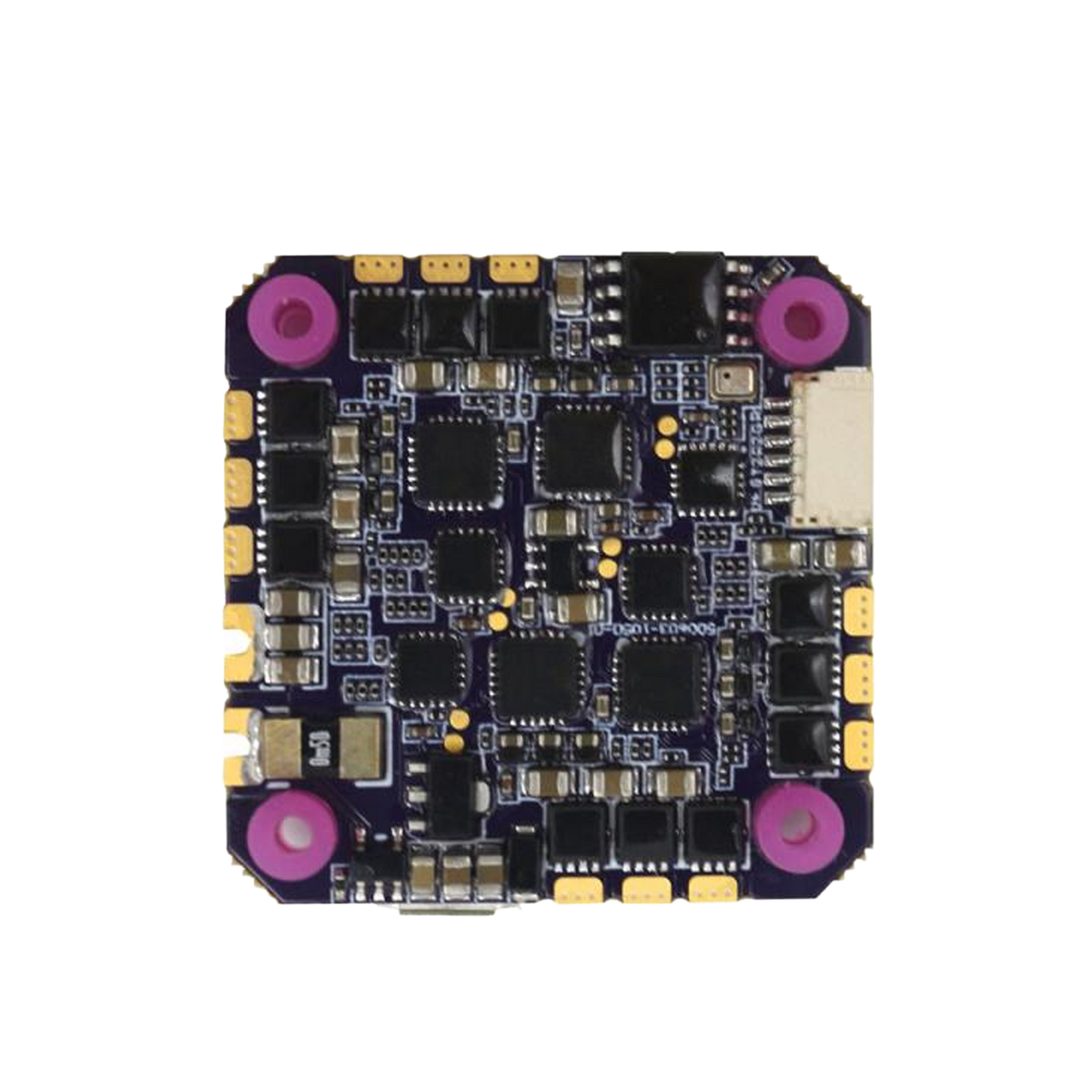

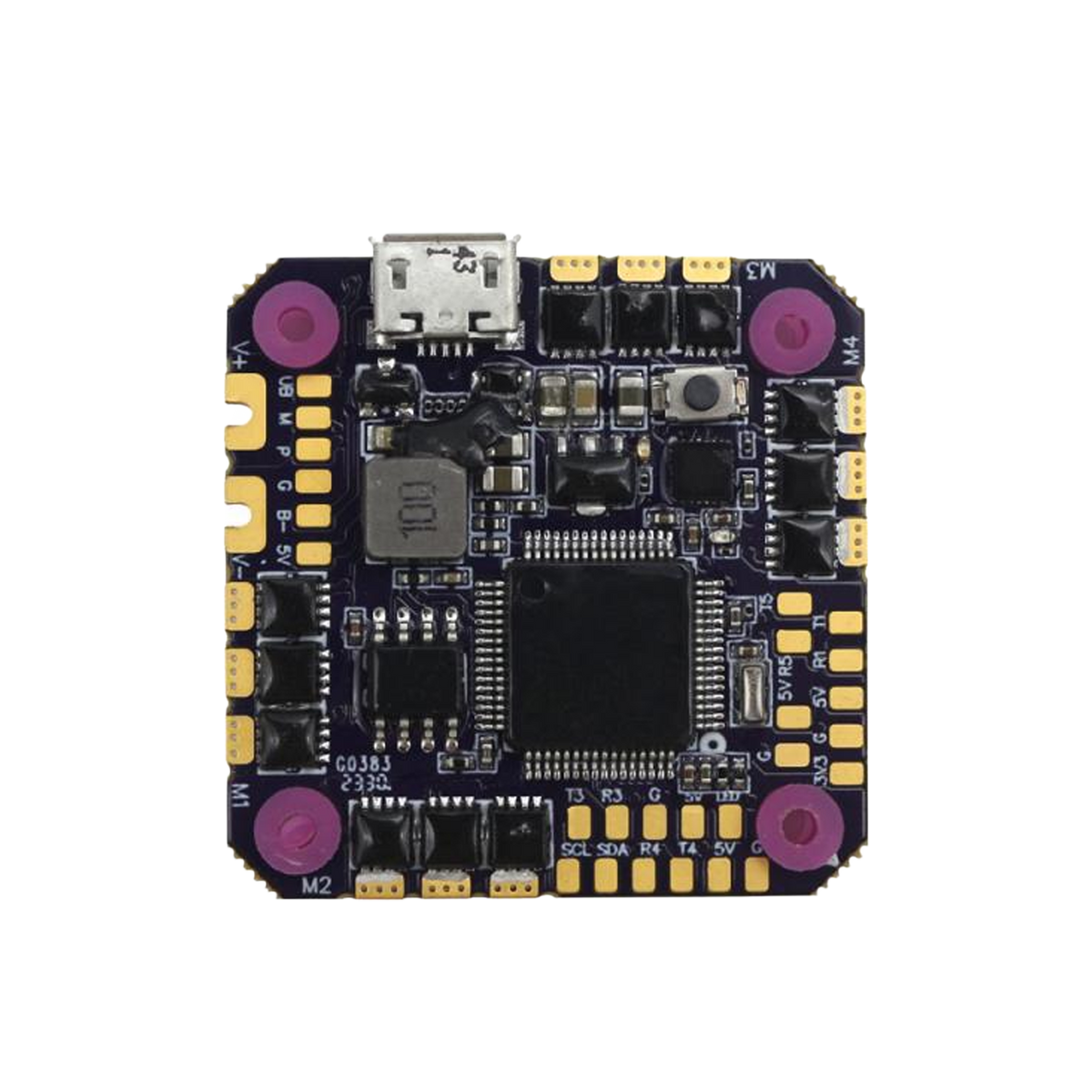

Flycolor RAPTOR AIO 45A F7 HD
$135.00 AUD
Skip to product information
Get directions
1 In stock
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby Falls Road, Somersby NSW
Ready to collect Monday from 9:30am
- Open: Mon to Fri, 7:30am to 5pm
- Online orders: at the front counter by 9:30am, or about 2 hours after you order. We'll email you when it's ready.
- Walk-ins: come by any time we're open and buy over the counter.
Product details
SKU:
35932
Shipping Weight:
40g
W/H:
W-02-C-20
Categories:
4 in 1 ESC, AIO, Drone ESCs, F7 Flight Controllers, Flight Controllers, FPV Electronics (Flight Controllers, ESCs, AIOs, Stacks), FPV Recent Stock Arrivals, MPU6500 Gyro FPV Flight Controllers, New FPV Products
Tags:
ESC, F7, Flight Controller, Flycolor, MPU6500
Why buy from Phaser FPV?
- Dependable Phaser started in 2014. Long reputable history and 5 star reviews.
- Fast dispatch All stock is on the shelf in our Somersby warehouse. In-stock orders placed before 1pm Sydney time on a business day ship the same day. Shipping details.
- Transparent stock If it says in stock, we ship today. If it's sold out but more is on the way and we know the ETA, it's on the product page, so you know what to expect before you order.
- Showroom and pickup Walk into our Somersby showroom, an hour north of Sydney, talk to the team and see it before you buy, or order online and collect from the front counter.
- Support after you buy Something won't bind, connect or work? We troubleshoot it with you first. Repair, soldering and 3D printer servicing are available when needed, quoted before any work starts. Returns and warranty.
- Price match Found it cheaper at an Australian store? Use the Price match button on the product and we'll take a look.
- One warehouse, three stores The same crew runs Phaser FPV, Central Coast Coffee and Tradiemods from one fast, efficient warehouse, with over a decade of online retail behind it.
- 3D printing and design Need a custom part? Our sister site Phaser3D prints from your file and can design to print.
- Experience Our staff fly, build and use this gear, and will help you pick parts that work together so you don't buy twice. Not sure what to buy? Message us on live chat, or call us and leave a voicemail; we'll call you back as soon as we can.
- Community Large Facebook community for like-minded pilots, or view our Facebook page.
- GST registered If your business is registered, you claim the GST back and save 10%. Some small online stores are not registered, so there's nothing to claim.
0 Hand-picked accessories
Compatible options selected by our team
Product description
Are you looking to buy Flycolor RAPTOR AIO 45A F7 HD in Australia?
Features
- MCU EFM8BB21F16G,pipelined 8-bit C8051 core with 50 MHz maximum operating frequency.
- Default ESC firmware: Bluejay, A-H-30 (Using Bluejay configurator).
- Support for loading firmware: BLHeli-S,A-H-30 (Using BLHeliSuite).
- Dimensions: 34x34mm.
- Install holes: 25.5x25.5mm,26.5x26.5mm,M2.
- Weight: 9.6g.
- 4in1 ESC is highly integrated with F7 Flight Control. Ultra small size, especially suitable for small multi rotor.
- Bluejay firmware supports Dshot300 & Dshot600.
- BLHeli-S code supports regular 1-2ms pulse width input, as well as Oneshot125, Oneshot42 and Multishot , supports all Dshot .
- ESC maximum speed is limited to 500k eRPM (BLHeli-S firmware).
- Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling (BLHeli-S firmware).
Specifications
- FC firmware: STM32F7X2 (Config.：FLYCOLORF7_AIO_HD).
- MCU: STM32F722.
- Gyro: MPU-6500.
- USB: Micro USB.
- Spare pad for USB, supporting additional soldering of external USB.
- Simplified circuit design, only retaining support for HD image transmission (not supporting analog image transmission).
- Integrated Vbat,3.3V,5V, for HD VTX, receiver, buzzer, LED and other devices.
Includes
- Raptor AIO HD x 1
- 2mm vibration absorber x4
- Power wire (XT60) x1
- Electrolytic capacitor x1
- Connecting wire(HD TX) x1
