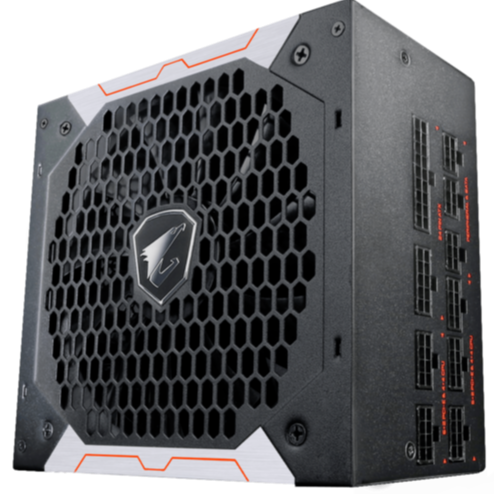

Gigabyte AP850GM AORUS 850W ATX PSU Power Supply 80+ Gold >90% Modular 135mm Fan Black Flat Cables Single +12V Rail Japanese Capacitors [PC]

Name: Gigabyte AP850GM AORUS 850W ATX PSU Power Supply 80+ Gold >90% Modular 135mm Fan Black Flat Cables Single +12V Rail Japanese Capacitors [PC]
Brand: Gigabyte
SKU: 18649
Price: 219.00 AUD
Availability: OutOfStock

$219.00 AUD

GST included Shipping calculated at checkout.

Price match

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup not available

1/80 Somersby Falls Road, Somersby NSW

Get directions

No stock currently available

Product details

SKU: 18649

Categories: Computers Coming Soon, Gigabyte, Phaser Computers

Why buy from Phaser FPV?

Dependable Phaser started in 2014. Long reputable history and 5 star reviews.
Fast dispatch All stock is on the shelf in our Somersby warehouse. In-stock orders placed before 1pm Sydney time on a business day ship the same day. Shipping details.
Transparent stock If it says in stock, we ship today. If it's sold out but more is on the way and we know the ETA, it's on the product page, so you know what to expect before you order.
Showroom and pickup Walk into our Somersby showroom, an hour north of Sydney, talk to the team and see it before you buy, or order online and collect from the front counter.
Support after you buy Something won't bind, connect or work? We troubleshoot it with you first. Repair, soldering and 3D printer servicing are available when needed, quoted before any work starts. Returns and warranty.
Price match Found it cheaper at an Australian store? Use the Price match button on the product and we'll take a look.
One warehouse, three stores The same crew runs Phaser FPV, Central Coast Coffee and Tradiemods from one fast, efficient warehouse, with over a decade of online retail behind it.
3D printing and design Need a custom part? Our sister site Phaser3D prints from your file and can design to print.
Experience Our staff fly, build and use this gear, and will help you pick parts that work together so you don't buy twice. Not sure what to buy? Message us on live chat, or call us and leave a voicemail; we'll call you back as soon as we can.
Community Large Facebook community for like-minded pilots, or view our Facebook page.
GST registered If your business is registered, you claim the GST back and save 10%. Some small online stores are not registered, so there's nothing to claim.

Product description

Are you looking to buy Gigabyte AP850GM AORUS 850W ATX PSU Power Supply 80+ Gold >90% Modular 135mm Fan Black Flat Cables Single +12V Rail Japanese Capacitors [PC] in Australia?

Gigabyte AP850GM AORUS 850W ATX PSU Power Supply 80+ Gold Modular >90% 135mm Fan Black Flat Cables Single +12V Rail Japanese Capacitors >100K Hrs MTBF

Features
Fully Modular Design
High quality 100% Japanese Capacitors
135mm 2 ball bearing smart fan with fan stop function
80 PLUS Gold certified: above 90% efficiency at 50% load
Single +12V rail
OCP/OTP/OVP/OPP/UVP/SCP protection

Model GP-AP850GM
Type Intel Form Factor ATX 12V v2.31
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 10A
Input Frequency 47-63 Hz
Output Capacity 850W
Dimension 150 x 160 x 86mm
Fan Type 135mm Double ball bearing fan
80 PLUS Gold
Efficiency 90% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Singal 100ms ~ 150ms
Hold Up Time > 16m sec at full load (115V)
Cable Type Flat, All black
Connectors ATX/MB 20+4 Pin x 1 : 650mm
CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1
PCI-e 6+2 Pin x 6 : 750mm*2 , 650mm+150mm*2
SATA x6 + 4 Pin Peripheral x2 :
550mm+100mm+100mm+100mm*1
450mm+100mm+100mm+100mm *1
4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1
4 Pin Floppy x 1 : 100mm
