Are you looking to buy HappyModel Mobula6 2024 V3 1S 65mm Ultra Light Micro FPV Whoop in Australia?

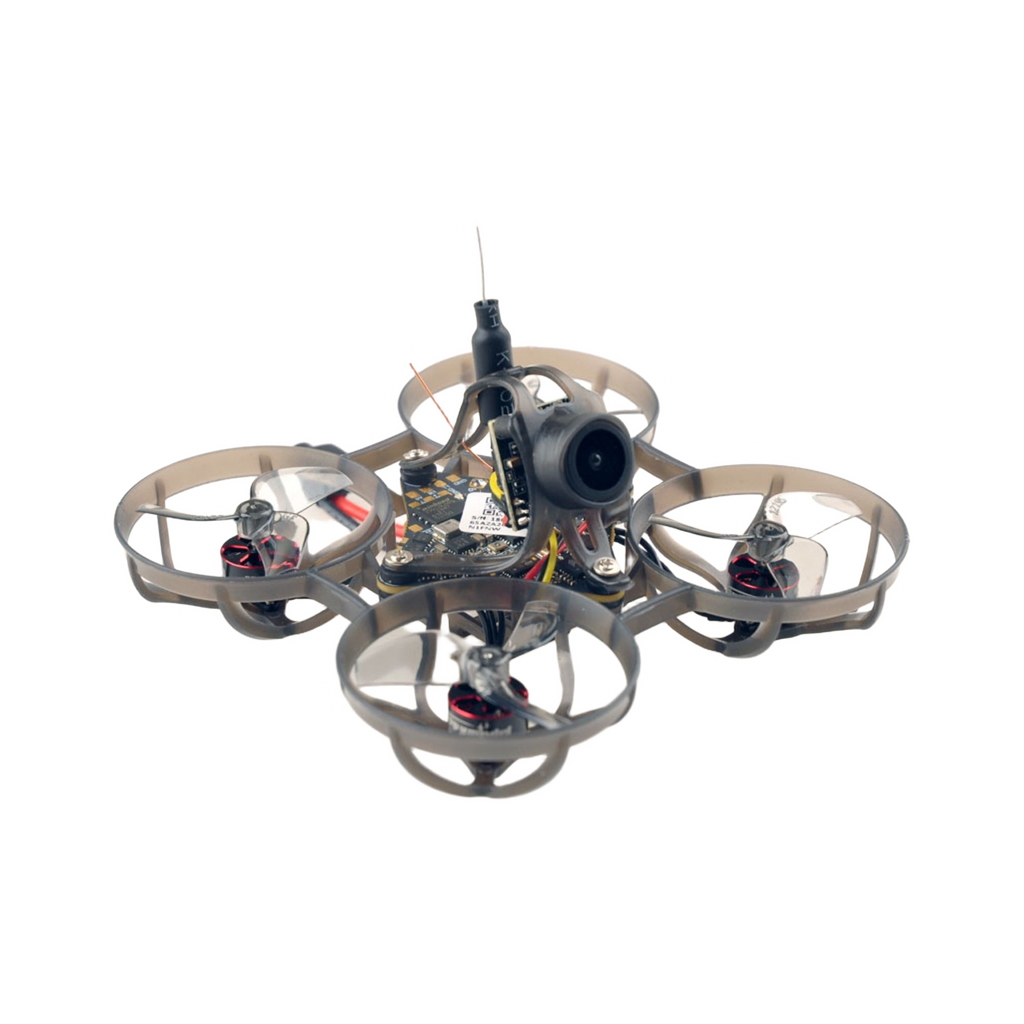

The Happymodel Mobula6 2024 V3 is an ultra-lightweight (17.6g) 65mm micro FPV whoop. Built with high- efficiency brushless motors and the upgraded AIO flight controller, it offers an incredible power-to-weight ratio for both indoor freestyle and tight outdoor spaces.
Features
- Includes the new CrazyG473 AIO flight controller
- Optimal visuals using the Happymodel new 1200TVL Nano5 camera
- Super lightweight at only 17.6g
- Equipped with the lightest (1.46g) brushless motors (SE0702)
- Smooth and powerful
- Built-in Serial ELRS receiver
- Built-in Power max to 400mw openVTX
Comparison
| Mobula6 2024 V3 | Mobula6 2024 V2 | |
| Flight controller | CrazybeeG473 | SuperX ELRS V2.0 |
| Firmware target | Betaflight 4.6 CrazybeeG473 | Customised STM32F411 |
| Built-in ExpressLRS receiver | Serial ELRS 2.4GHz | Serial ELRS 2.4GHz |
| Built-in Dshot ESC | 5A | 5A |
| Receiver antenna plug | Enameled Copper wire | Enameled Copper wire |
| Onboard VTX power | 25mw~400mw | 25mw~400mw |
| Brushless Motor | 0702 KV28000 no plug | 0702 KV28000 with plug |
| Propeller | Gemfan 1208-3 tri-blade | Gemfan 1208-3 tri-blade |
| Battery plug | A30(compatible with BT2.0) | A30(compatible with BT2.0) |
| Frame | Mobula6 2024 frame 2.76gram | Mobula6 2024 frame 2.76gram |
Specifications
- Brand Name: Happymodel
- Item Name: Mobula6 2024 V3 1S 65mm ultra light micro FPV Whoop
- Wheelbase: 65mm
- Size: 81mm*81mm*37mm
- Weight: 17.6g
- Receiver option: 2.4GHz ExpressLRS Serial receiver
Motor
- Mode: SE0702 KV28000 no plug version
- Configu-ration:9N12P
- Stator Diamter:7mm
- Stator Length:2mm
- Shaft Diameter:Φ1mm
- Motor Dimension(Dia.*Len):Φ9.5mm*14mm
- Weight(g):1.46g
- No.of Cells(Lipo):1S only
Propellers
- Materials: PC
- Inch: 31mm
- Pitch: 0.8 in
- Weight: 0.21g
- Mount hole diameter: 1mm
Flight Controller
- MCU: STM32G473CEU6
- Gyro: ICM42688P
- Sensor: Voltage & Current
- BEC: 5V, Max. 2A
- UART: UART 1, UART 2, UART 3 (For RX), UART 4(For VTX)
- BetaFlight OSD: AT7456E
- ESC: 5A continuous
- RX: Serial ELRS 2.4GHz
- RX antenna: Enameled copper wire 31mm length
- Receiver firmware target: HappyModel EP1/EP2 2.4GHz RX
- OPENVTX: 5.8GHz 48 channels, Max. 400mW
- FC firmware target: CRAZYBEEG473
- USB port: SH1.0-4Pin
- Battery connector: A30
- Mounting hole size: 25.5mm x 25.5mm
- Weight: 3.83g without pigtail and vtx antenna
Onboard 4in1 ESC
- Power supply: 1S LiPo/LiPo HV
- Current: 5A continuous peak 6A (3 seconds)
- Support BLHeliSuite programmable
- Factory firmware: Bluejay v0.21
- Firmware target: A_X_5_96KHz
- Default protocol: DSHOT300 DSHOT600
- Recommend ESC Startup power value to min1100/max1200
Onboard Serial ExpressLRS receiver
- Packet Rate option: 50Hz/150Hz/250Hz/500Hz
- ExpressLRS Firmware version: V3.0
- RF Frequency: 2.4GHz
- Antenna : Enameled copper wire antenna
- Telemetry output Power: <12dBm
- Receiver protocol: Serial_based CRSF
- Compatible with ExpressLRS V3.x.x TX Module
- Could flash single ELRS receiver firmware by Wifi
- ExpressLRS firmware target: Generic ESP32 2.4Ghz Rx and VTx
Onboard 5.8g VTX
- OPENVTX Firmware
- Support firmware upgrade by openvtx configurator
- Output power: PIT/10/25/100/400
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.1
- Modulation type: FM
- Operating temperature: -10℃~+80℃
- Antenna port: IPEX1/U.FL
Nano5 Camera
- Image Sensor: 1/3″ CMOS
- Horizontal Resolution: 1200 TVL
- Lens: 2.1mm (M10) 155° FOV
- TV System: NTSC
- Signal-to-Noise Ratio: >52dB
- Electronic Shutter: Auto
- Automatic Gain Control (AGC): Auto
- Minimum Illumination: 0.001Lux@1.2F
- Digital Wide Dynamic Range: Auto
- Power Supply: DC 3-5.5V
- Current: 110mA@5V 120mA@3.3V
- House Material: ABS
- Net Weight: 1.57g (1.0mm plug version)
Includes
- 1x Mobula6 2024 1S 65mm whoop Drone Frame +Canopy
- 1x CrazybeeG473 AIO 5-IN-1 Flight controller
- 4x SE0702 KV28000 brushless motor
- 1x Gemfan 1208-3 31mm tri-blade propellers(4cw+4ccw)
- 1x HQPROP ultralight whoop prop 1.2×1.1×3(2cw+2ccw)
- 1x Nano5 1200TVL camera NTSC 4:3
- 1x Onboard 5.8G 25mw~400mw VTX
- 1x Spare canopy
- 1x Propeller disassemble tool
- 1x Screw driver
Downloads
Dump file for Mobula6 2024 V3(Betaflight 2025.12.1) version that comes with Latest CrazybeeG473 AIO flight controller(LSM6DSV16X gyro)
Betaflight firmware 2025.12.1 hex file for X14 ELRS AIO flight controller already include support for Gyro LSM6DSV16X
Betaflight 2025.12.1 hex file for CrazybeeG473 AIO with LSM6DSV16X Gyro Mobula6 2024 V3 compatible
