Are you looking to buy HappyModel Mobula6 Race HD BNF in Australia?

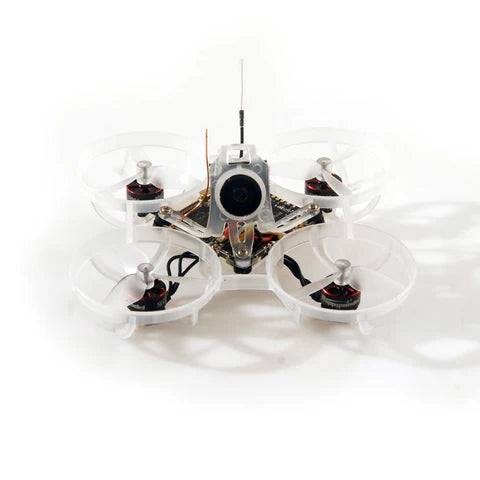

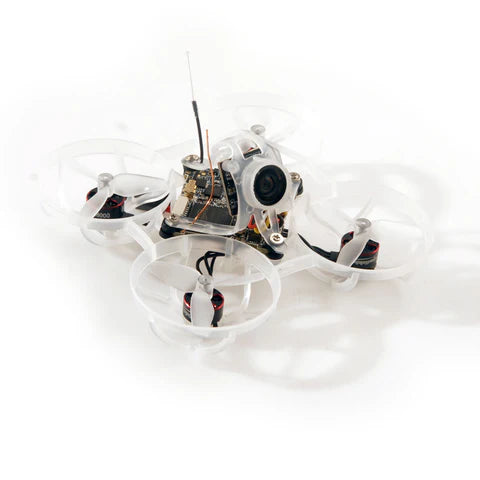

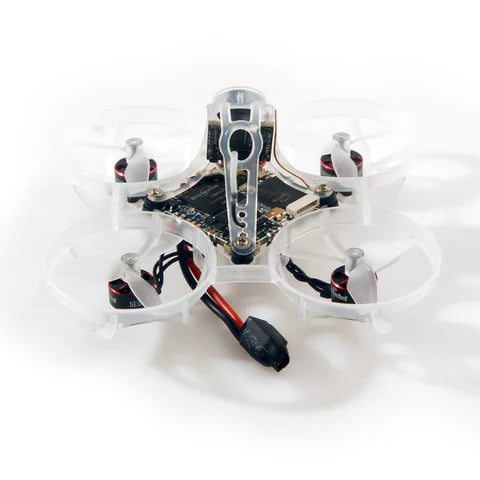

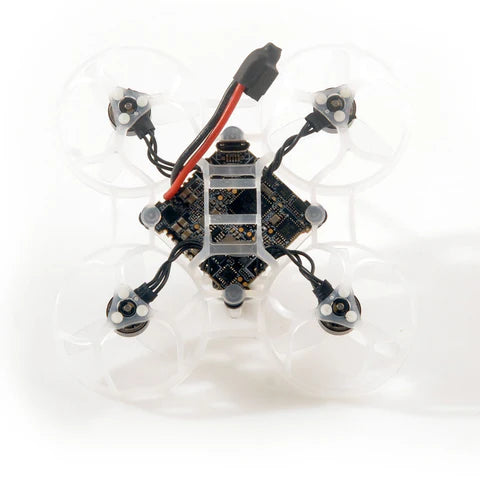

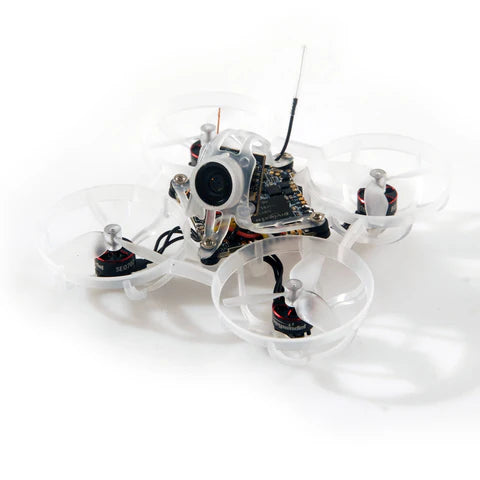

The Happymodel Mobula6 Race HD BNF is the first 65mm HD brushless tiny whoop that weighs less than 19.4g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a low weight, HDZero has developed the world’s first 5-in-1 AIO that contains a HDZero VTX, FC, ESC, ELRS RX, and 5V1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity – get ready for a new era of no-compromise tiny whooping in clear digital video!
To keep weight and cost to a minimum, the Race HD BNF features the light weight HDZero Eco camera. The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability. The digital video signal has stable colour reproduction and 720p progressive scan video with the stable near-zero latency HDZero is known for.
Specifications
- Weight: 19.3g
- Recommended Battery: 1S 300mAh
- Propeller Size: 31mm
- AIO
- MCU: STM32F411 (100MHz, 512K Flash)
- Gyro: BMI270
- On board voltage and amperage meters
- Built-in 5A(each) BLHeli_S 4-in-1 ESC
- Built-in 5.8G HDZero VTX
- Built-in SPI ExpressLRS 2.4GHz receiver
- Built-in 5V 1A BEC
- Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size
- HDZero Eco Camera
- Sensor size: 1/3 inch
- Resolution: 720p60 4:3
- FOV: D:150° H:120° V:98°
- Motors
- Kv:28000
- Stator diameter: 7mm
- Stator length:2mm
- Shaft diameter: Φ1mm
- Weight:1.5g

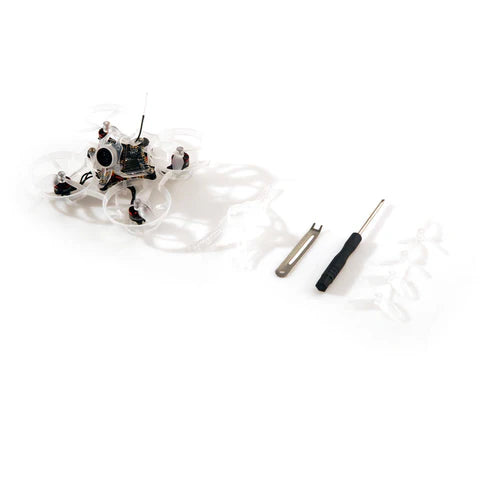

Includes
- 1x Happymodel Mobula6 Race HD BNF
- 1x Spare canopy
- 1x Spare propeller(set)
- 1x Screw driver
- 1x propeller disassemble tool
