Are you looking to buy a Happymodel X12 AIO 5-in-1 Board in Australia?

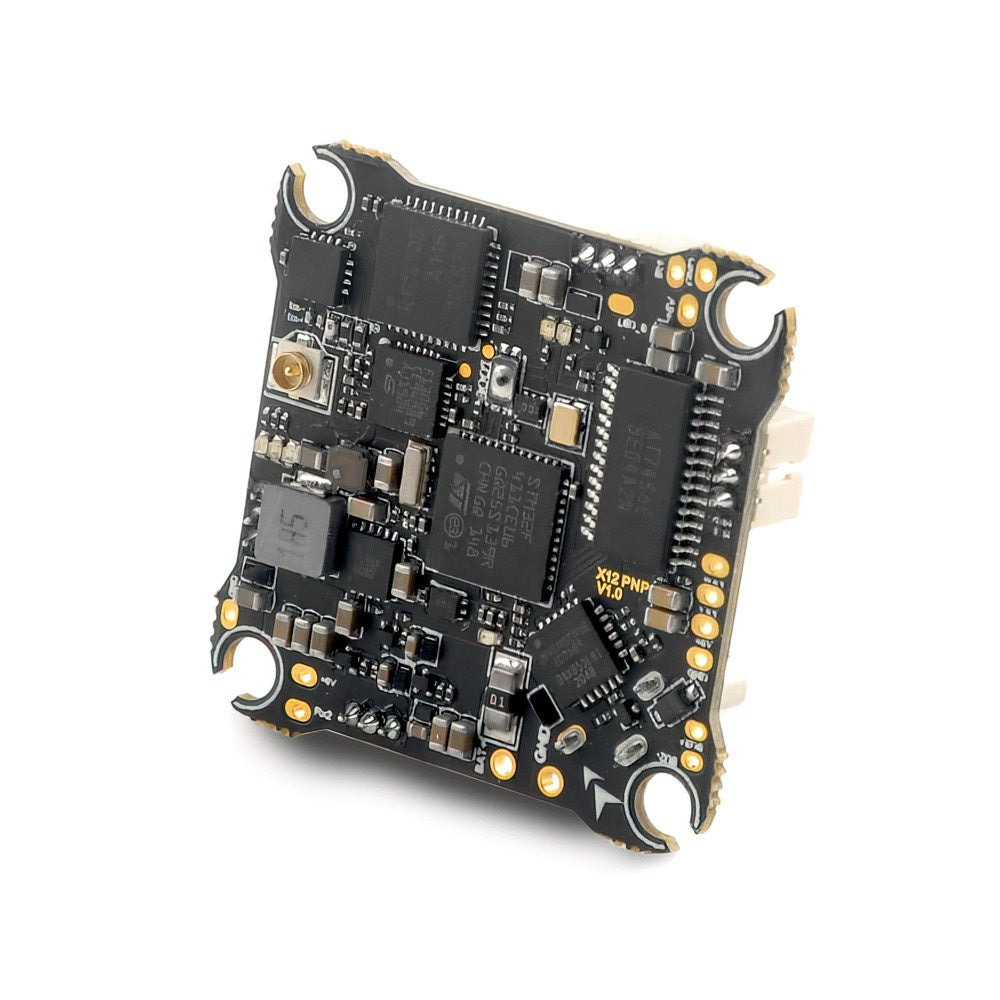

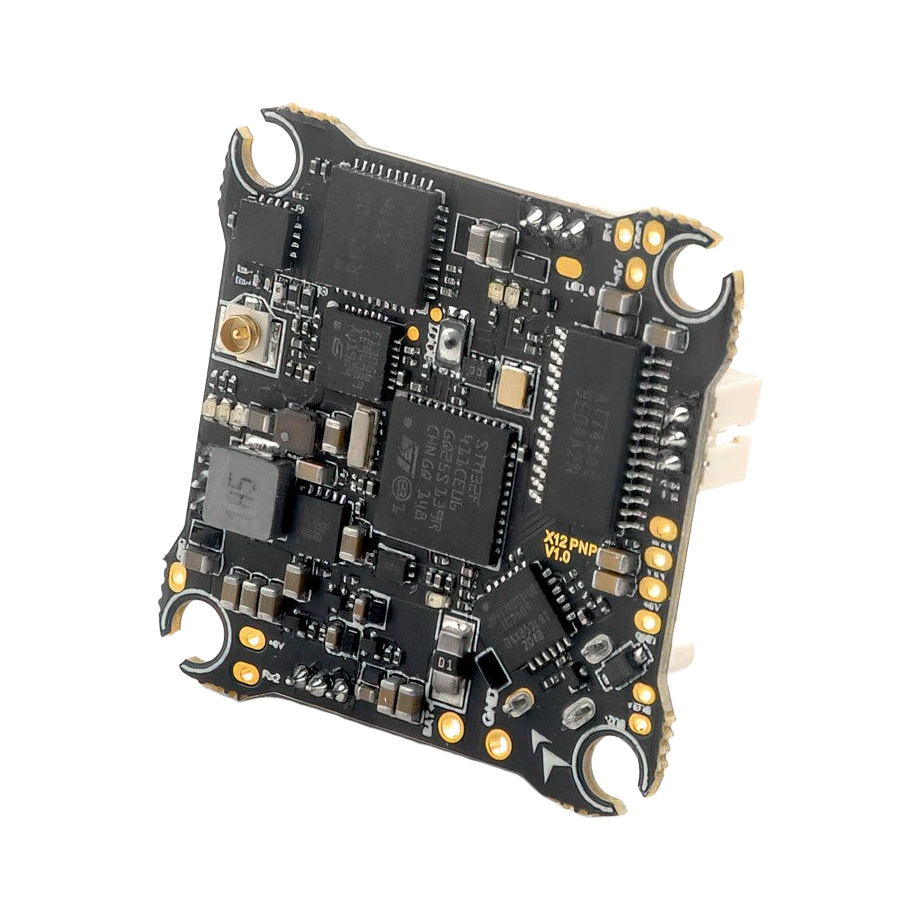

The Happymodel X12 is a 5-in-1 AIO board featuring an F4 Flight Controller, onbard 12A 4-in-1 ESC, 5.8GHz OpenVTX, and three different receiver options: PNP, FrSky, or ELRS. This AIO is great for brushless whoops with its great RX an VTX range!

5-in-1 AIO flight controller using OpenVTX (up to 400mW), 12A ESC (BLHeli_S ESC), onboard ELRS receiver (2.0 firmware), plugin connector for your motors and can take 1S or 2S batteries.

Notes: This is the V2 version capable of taking up to 2S.

Specifications:

FC:
- Betaflight firmware target: CRAZYBEEF4SX1280
- MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: ICM42688P
- Mount hole size: 25.5mm*25.5mm
- Power supply: 1-2S battery input (DC 2.9V-8.7V)
- Built-in 12A (each) Blheli_S 4in1 ESC
- Built-in Betaflight OSD (SPI Control)
- Built-in 5.8G OpenVTX 0mw~400mw
- Built-in ExpressLRS 2.4G,
- Built-in voltage meter sensor: voltage meter scale 110
- Built-in current meter sensor: current meter scale 470
- Weight: 5.1g
4in1 ESC:
- Power supply: 1-2S LiPo/LiPo HV
- Current: 12A continuous peak 15A (3 seconds)
- Supports BLHeliSuite
- Factory firmware: Z_H_30_REV16_7.HEX
- Default protocol: DSHOT300
- Supports Bluejay firmware
- When using Bluejay firmware with 48khz, set startup power to 1100/1200
Receiver:
- Packet rate options: 50Hz/150Hz/250Hz/500Hz
- ExpressLRS firmware version: V2.0
- RF frequency: 2.4GHz
- Antenna : SMD antenna
- Telemetry output Power: <12dBm
- Receiver protocol: SPI ExpressLRS
- Compatible with ExpressLRS V2.0 TX Modules
- Can’t flash ExpressLRS firmware separately
OpenVTX:
- Firmware version: OPENVTX
- Smartaudio v2.1
- PIT mode supported
- RACE mode supported
- Channels: 48ch
- Transmitting Power: 0/RACE/25mw/100mw/400mw
- Power supply: DC 5V
- Current (5v): <650ma (400mw)
- Antenna connector: U.FL
