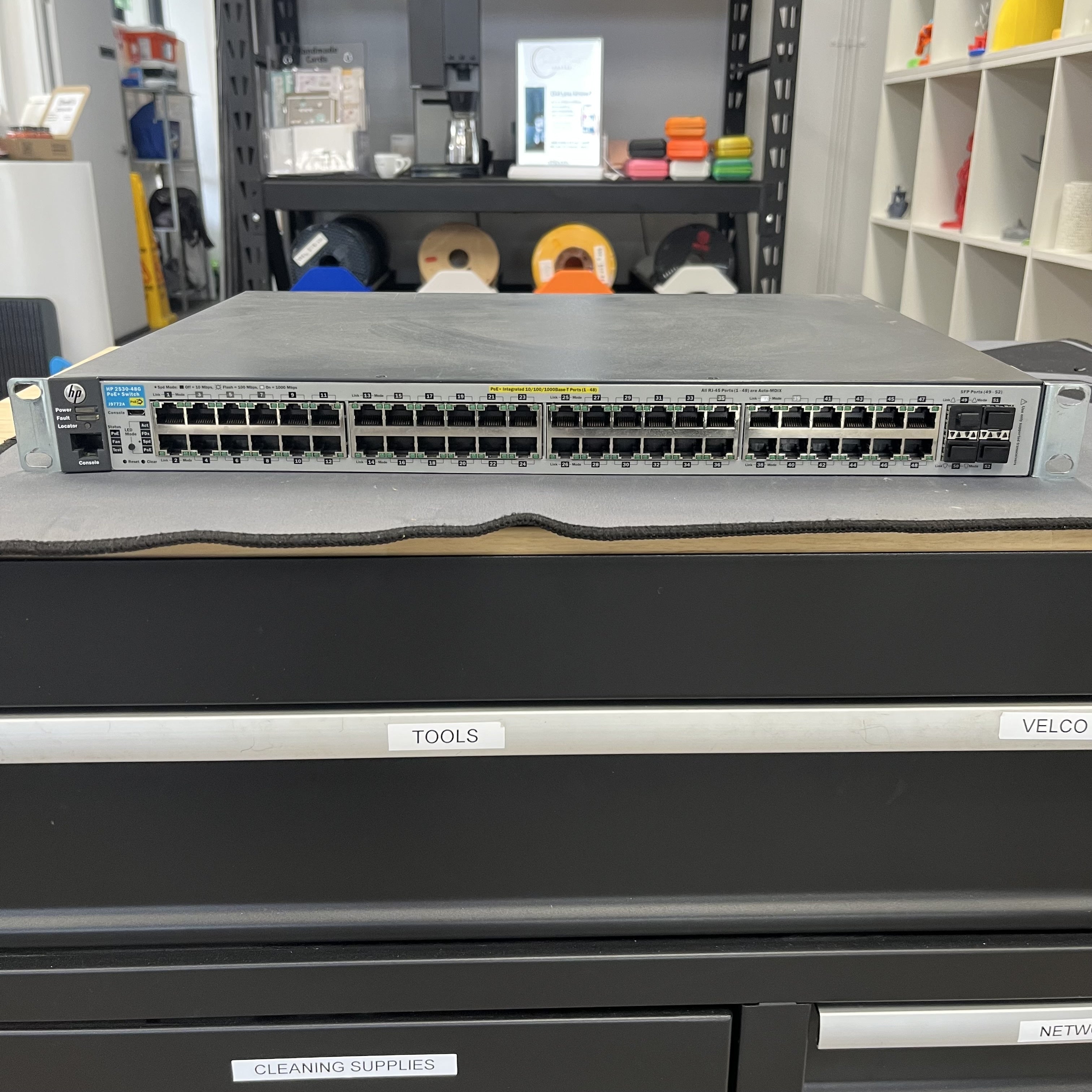

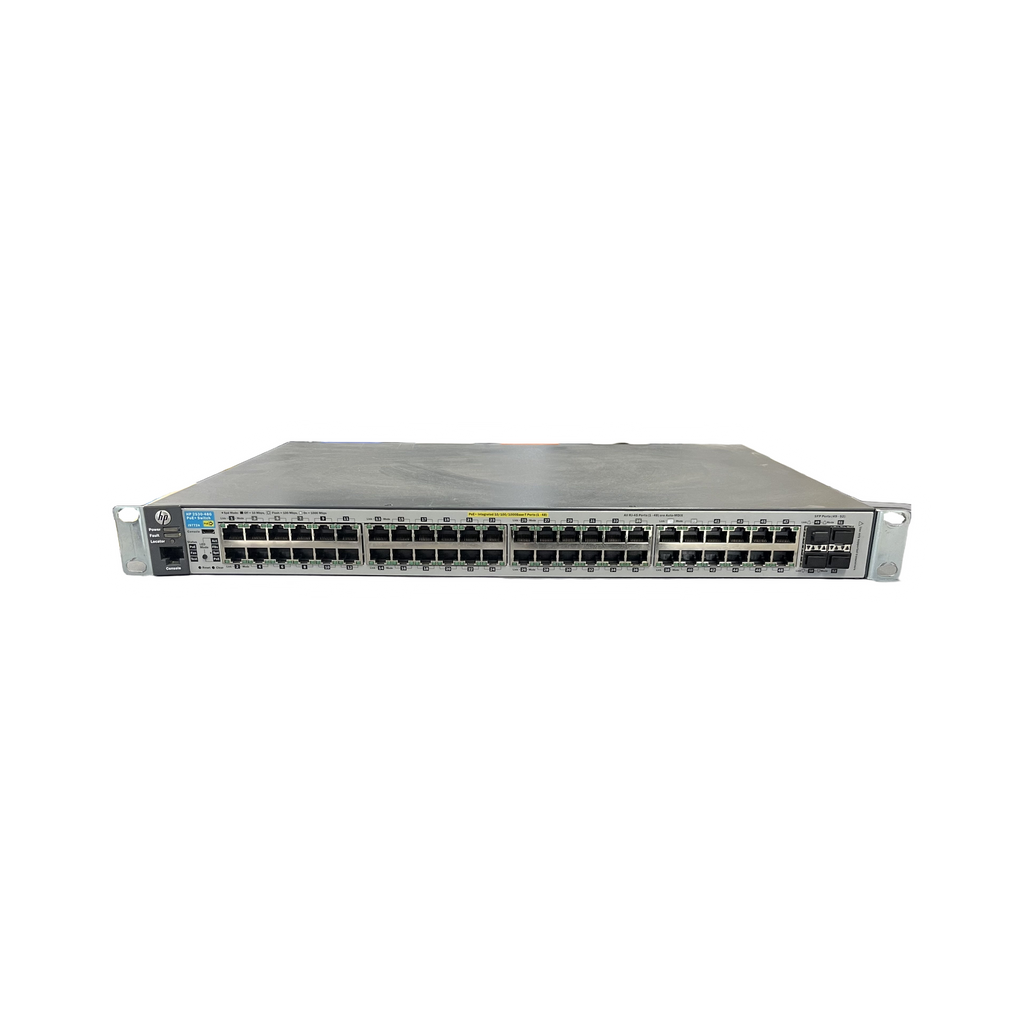

Name: HP ProCurve 2530-48G POE+ 48 Port Gigabit Switch USED [PC]
Brand: HP
SKU: 34089
Price: 129.95 AUD
Availability: InStock

Description

Are you looking to buy HP ProCurve 2530-48G POE+ 48 Port Gigabit Switch USED [PC] in Australia?

HP ProCurve 48 port Gigabit POE+ switch used in good condition.

System Specifications

Description

I/O ports and slots

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type 1000BASE-T)

Duplex: 10BASE-T/100BASE-TX: Half or full

1000BASE-T: Full only

4 fixed GbE SFP ports

Additional ports and slots

1 Dual-Personality (RJ-45 or USB Micro-B) serial console port

Memory and processor

ARM9E @ 800 MHz, 128MB flash

Packet buffer size: 3MB dynamically allocated, 256MB DDR3 DIMM

Mounting and enclosure

Mounts in an EIA-Standard 19-inch telco rack or equipment cabinet (Rack-Mounting kit available)

Horizontal surface mounting

Wall mounting

Management

IMC

CLI

Web browser

Configuration menu

Out-of-Band management (Serial RS-232C or Micro-USB)

IEEE 802.3 Ethernet MIB

Repeater MIB

Ethernet interface MIB

Performance (IPv6 Ready Certified)

Description

1000Mb latency

< 2.3 µs (LIFO 64-byte packets)

100Mb latency

< 7.4 µs (LIFO 64-byte packets)

Throughput

Up to 77.3 Mp/s (64-byte packets)

Switching capacity

104 Gb/s

MAC address table size

16000 entries

Physical Specifications

Description

Dimensions (H x W x D)

4.45 x 44.3 x 25.4 cm (1.75 x 17.44 x 10.00 in)

1U height

Weight

3.08 kg (6.8 lb)

Electrical Specifications

Description

Maximum heat dissipation

203 BTU/hr (214.17 kJ/hr)

Voltage

100 - 127 / 200 - 240 V ac

Current

1.2/0.7 A

Idle power¹

29.5 W

Maximum power rating²

59.5 W

Frequency

50/60 Hz

NOTE

Idle power is the actual power consumption of the device with no ports connected

Maximum power rating and maximum heat dissipation are the Worst-Case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (If equipped), 100% traffic, all ports plugged in,and all modules populated

Environmental Specifications

Description

Operating temperature

0° to 45°C (32° to 113°F)

Operating relative humidity

15% to 95% @ 40°C (104°F), noncondensing

Non-Operating/storage temperature

(-40°) to 70°C ((-40°) to 158°F)

Non-Operating/storage relative humidity

15% to 90% @ 149°F (65°C), noncondensing

Altitude

Up to 3 km (10,000 ft)

Acoustic

Power: 31.0 dB, pressure: 34.5 dB

Safety Certifications

Description

Safety

UL 60950-1

CAN/CSA 22.2 No. 60950-1

EN 60825

IEC 60950-1

EN 60950-1

Emissions

FCC Class A

EN 55022/CISPR-22 Class A

VCCI Class A

Immunity

Generic: EN 55024, CISPR 24

EN: EN 55024, CISPR 24

ESD: IEC 61000-4-2

Radiated: IEC 61000-4-3

EFT/Burst IEC: 61000-4-4

Surge: IEC 61000-4-5

Conducted: IEC 61000-4-6

Power frequency magnetic field: IEC 61000-4-8

Voltage dips and interruptions: IEC 61000-4-11

Harmonics: EN 61000-3-2, IEC 61000-3-2

Flicker: EN 61000-3-3, IEC 61000-3-3

NOTE

IEEE 802.3az applies to Gb models only

IEEE 802.3at and IEEE 802.3af apply to PoE+ models only

When using SFPs with this product, SFPs with revision B or later (Product number ends with the letter B or later, e.g., J4858B, J4859C) are required
