Are you looking to buy a SucceX-D 20A Whoop V3.2 AIO Flight Controller in Australia?
Firmware: iFLIGHT_F411_PRO
iFlight SKU: S012863
Specifications
- Size：30.5*30.5mm
- Mounting pattern：25.5*25.5mm/φ3mm
- Weight: 7.5g
- MCU：STM32F411
- Gyro：BMI270
- Blackbox：8MB
- BEC output: 5V 2A
- Config：IFLIGHT_F411_PRO.config
- INA pad：nR2
- Barometer：No
- Constant current：20A，25A（Burst）
- Input：2-4S
- Current sensor：yes
- BLHeli：BLHeli-S
- ESC Telemetry：no
- Firmware Target：IFLIGHT_F411_PRO
- ESC Firmware: Bluejay Q-H-50

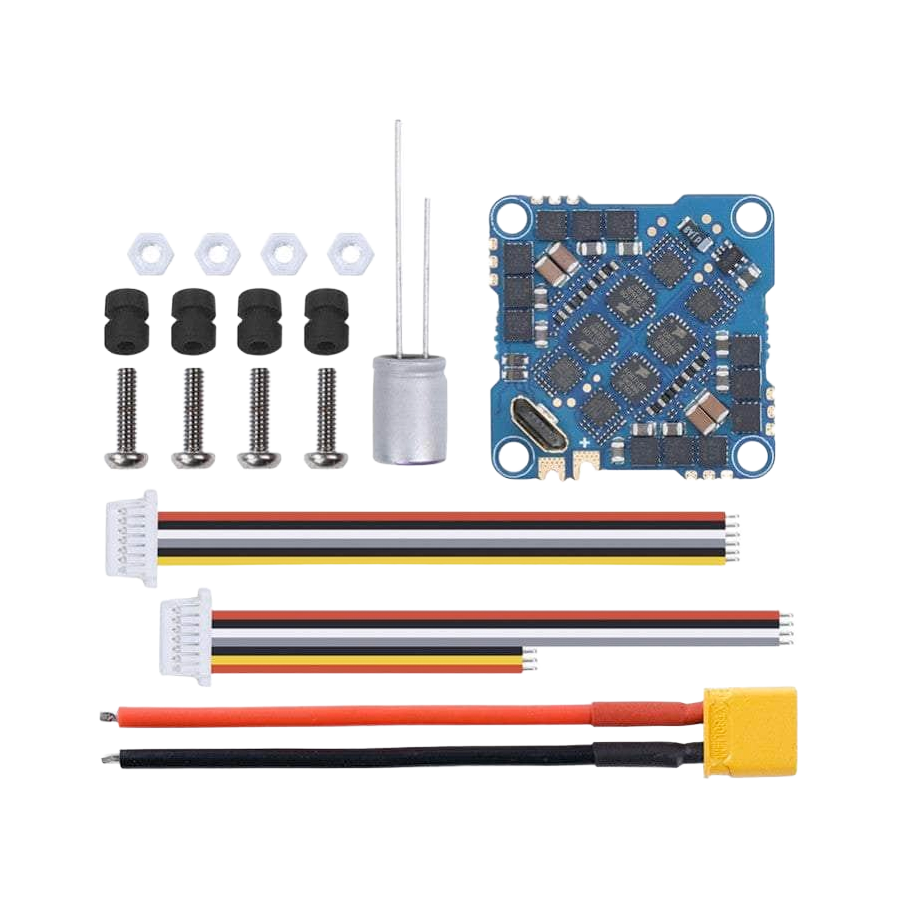

Included
- SucceX-D Whoop V2 F4 AIO Board× 1
- Capacitor 470uF/16V × 1
- XT30 18awg cable
- Wire harness (plug&play) for DJI Air Unit × 1
- M2 silicon grommets × 4
- M2 damping balls x 4
- M2*8mm Screws x 4
