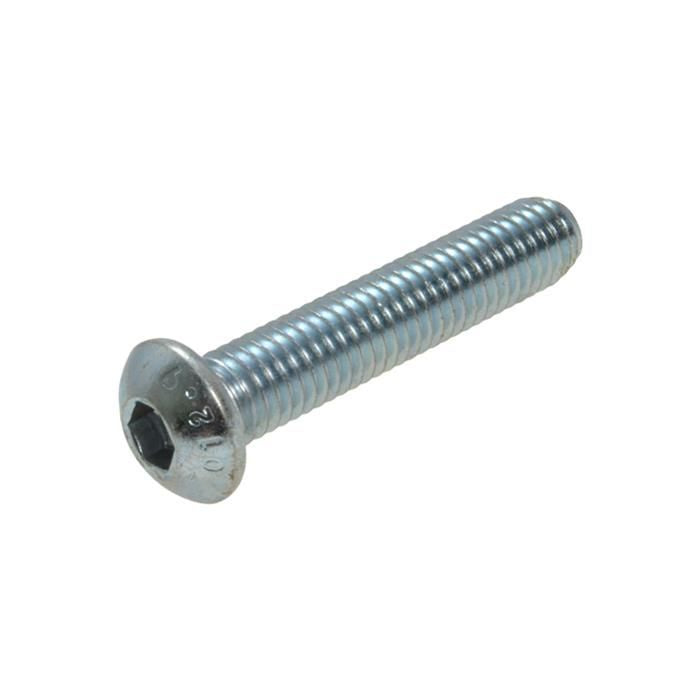

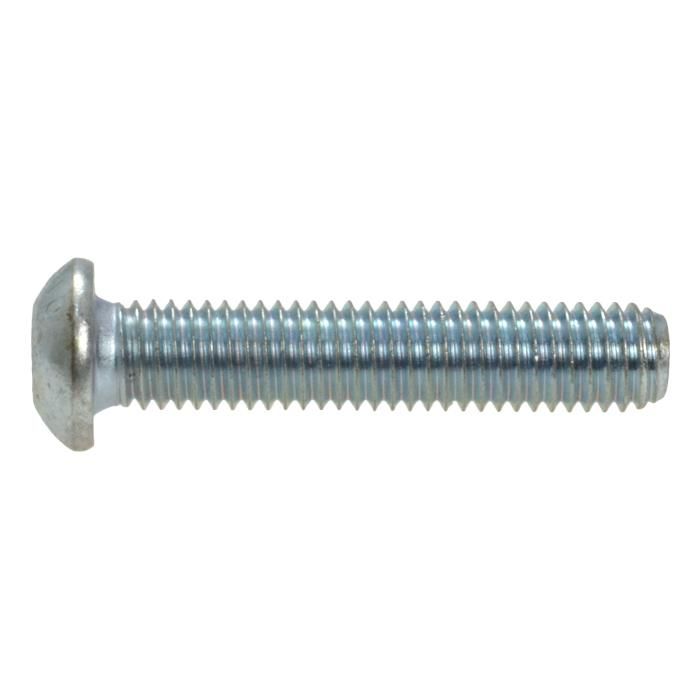

M5 Zinc Grade 12.9 Button Head Socket Screws (3mm Key)

Are you looking to buy M5 Zinc Grade 12.9 Button Head Socket Screws (3mm Key) in Australia?

Button Head Socket Screws have a larger bearing surface, low profile head and are installed using an allen key. Button socket screws provide a larger bearing surface and a lower head profile than a socket head cap screw and are generally used when the material is too thin to countersink, or decorative finish is desired. Use a hex key also called an Allen wrench or hex power bit to drive a socket screw. The tensile strength isn’t as high as a socket head cap, but as a comparison they are twice the strength of a machine screw

They are fully threaded and have uniformly threads, meaning they maintain the exact same diameter throughout the entire length of the threaded section of the fastener, unlike self tapping or chipboard screws which have tapered threads

Also known as: Socket Button, Button Allen Head, Button Hex, Allan Bolt, BHSS

Material / Coating: Zinc Plated is the most common fastener of plating due to its the low cost and shinny bright silver finish. A thin layer of Zinc is applied by either electroplating or mechanically. It is intended to be used internally. Whilst some people use it externally it isnt recommended if corrosion is a concern. If you want a fastener that will withstand the outdoor elements choose from our Stainless steel range

Galling: can occur when excessive pressure is used to tighten a nut onto a thread, common with stainless fasteners but can also be an issue with other materials. Fasteners with damaged or fine threads are particularly prone to galling.
Some suggestions to help prevent thread galling:
Tightening the nut more slowly without excessive pressure, will frequently reduce or sometimes solve completely, the problem. As the installation RPM speed increases, the heat generated with friction during tightening escalates the chances of thread galling.
Reduce the friction by applying a suitable lubricant to the thread frequently eliminates thread galling. Typical lubricants are chloride-paraffine, molykoat lacquer, molybdenum disulphide, high pressure oil, graphite, mica, or talc, some assemblies where there is extreme pressure, corrosion resistant grease or waxes may also be effective

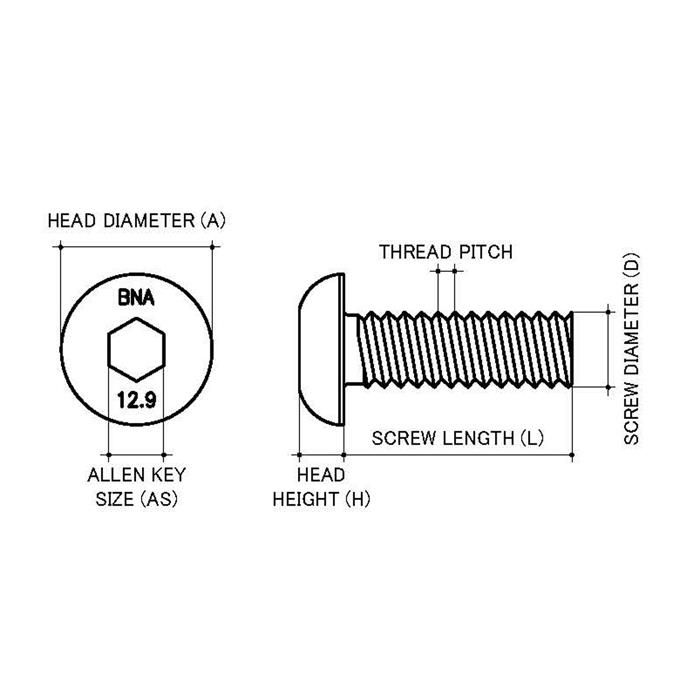

Thread Pitch (Metric): is the distance between the peaks of two threads along a screw, bolt, nut or fastener expressed in millimetres (mm). Used when referring to Metric parts. For example, a thread pitch of 1.50mm means that the distance between one thread and the next is 1.50mm

Fastener Length: is generally measured from the point where the surface of the material will be when the fastener is installed to the end of the fastener. Thus, fasteners with heads that sit above the surface are measured from under the head to the end of the fastener, while fasteners that sit flush with the surface are measured from the top of the head to the end of the fastener
