Matek Digital Airspeed Sensor ASPD-DLVR (CAN BUS)
$173.99 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSW
Usually ready in 2 hours
Product details
SKU:
15782
Shipping Weight:
35g
W/H:
W-04-B-04
Categories:
Matek, Wing Accessories
Tags:
CAN Bus Protocol
Are you looking to buy Matek Digital Airspeed Sensor ASPD-DLVR (CAN BUS) in Australia?

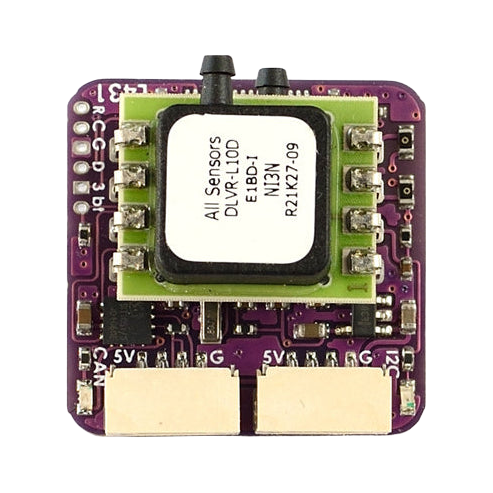

As STM32F303CCT6 and STM32F405RGT6 are in shortage. ASPD-DLVR has been updated with L431 CAN node since Mar.2022. L431 version has identical PCB size(purple PCB) and layout to previous F405 version.
- Black PCB, F303 CAN node, Jul.2020 — Dec.2020
- Blue PCB, F405 CAN node, Jan.2021 — Feb.2022
- Purple PCB, L431 CAN node, Mar.2022 — now
DLVR series is the best airspeed sensor ArduPilot currently support.
Specifications & Features
- ArduPilot AP_Periph F303 CAN node
- All sensors DLVR-L10D, Industrial temperature range
- CAN & I2C Interface
- Typical Platforms: Fixed-Wing, QuadPlane, VTOL
- CAN JST-GH connector, UAVCAN Protocol
- I2C JST-GH connector, DLVR-L10D I2C mode (I2C address 0x28)
- UART1, Firmware update
- UART2, Spare for external GPS
- UART3, MSP Protocol (To be supported)
- CAN bootloader LED, Blue
- Fast blinking, No communication between CAN node and Flight Controllers
- Slow blinking, Communicating between CAN node and Flight Controllers
- 3.3V Power LED, Red
- Input voltage range: 4~6V
- Power consumption: 60mA
- Operating Temperatures: -20°C to 85°C
- Pressure Range: 2500Pa (± 10 inH2O)
- Burst Pressure: 75kPa
- Speed Range: ±250 km/h
- 22mm*22mm*12.5mm
- 4g
Package Includes
- 1x ASPD-DLVR
- 2x JST-GH-4P to JST-GH-4P 20cm silicon wire
- 1x Pitot Tube
