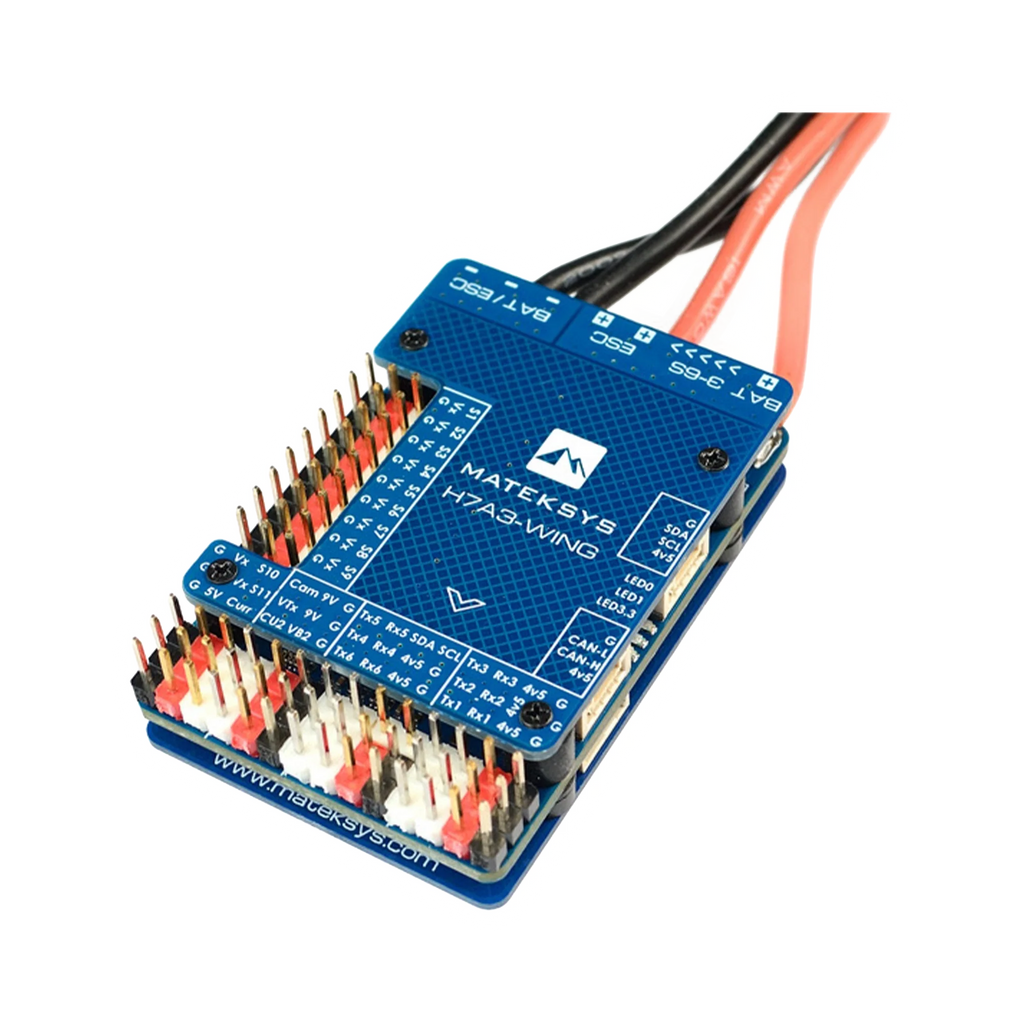

Matek H7A3-WING Flight Controller – dark-mode image 1

Matek H7A3-WING Flight Controller EOL

Name: Matek H7A3-WING Flight Controller EOL
Brand: Matek
SKU: 33548
Price: 148.76 AUD
Availability: OutOfStock

$148.76 AUD

GST included Shipping calculated at checkout.

Price match

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup not available

1/80 Somersby Falls Road, Somersby NSW

Get directions

No stock currently available

Product details

SKU: 33548

Shipping Weight: 70g

W/H: W-02-E-12

Categories: 30x30 Flight Controllers, ESCs & Stacks, CAN Devices, F4 Flight Controllers, Flight Controllers, FPV Coming Soon, FPV Electronics (Flight Controllers, ESCs, AIOs, Stacks), H7 Flight Controllers, ICM42688-P Gyro FPV Flight Controllers, Matek, Matek Flight Controller, Wing Flight Controllers

Tags: 30x30, CAN Node, Flight Controller, H7, ICM42688-P, Wing FC

Why buy from Phaser FPV?

Dependable Phaser started in 2014. Long reputable history and 5 star reviews.
Fast dispatch All stock is on the shelf in our Somersby warehouse. In-stock orders placed before 1pm Sydney time on a business day ship the same day. Shipping details.
Transparent stock If it says in stock, we ship today. If it's sold out but more is on the way and we know the ETA, it's on the product page, so you know what to expect before you order.
Showroom and pickup Walk into our Somersby showroom, an hour north of Sydney, talk to the team and see it before you buy, or order online and collect from the front counter.
Support after you buy Something won't bind, connect or work? We troubleshoot it with you first. Repair, soldering and 3D printer servicing are available when needed, quoted before any work starts. Returns and warranty.
Price match Found it cheaper at an Australian store? Use the Price match button on the product and we'll take a look.
One warehouse, three stores The same crew runs Phaser FPV, Central Coast Coffee and Tradiemods from one fast, efficient warehouse, with over a decade of online retail behind it.
3D printing and design Need a custom part? Our sister site Phaser3D prints from your file and can design to print.
Experience Our staff fly, build and use this gear, and will help you pick parts that work together so you don't buy twice. Not sure what to buy? Message us on live chat, or call us and leave a voicemail; we'll call you back as soon as we can.
Community Large Facebook community for like-minded pilots, or view our Facebook page.
GST registered If your business is registered, you claim the GST back and save 10%. Some small online stores are not registered, so there's nothing to claim.

Product description

Are you looking to buy Matek H7A3-WING Flight Controller EOL in Australia?

Specifications

MCU: STM32H7A3RIT6, 280MHz Cortex-M7, 1.4MB RAM, 2MB Flash
IMU: ICM42688P
Baro: SPL06-001
OSD: AT7456E
Blackbox: MicroSD socket
I2C digital power monitor
6x Uarts (1,2,3,4, 5, 6) with built-in inversion.
11x PWM outputs
1x I2C
1x CAN
4x ADC (VBAT, Current, VB2, Cur2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

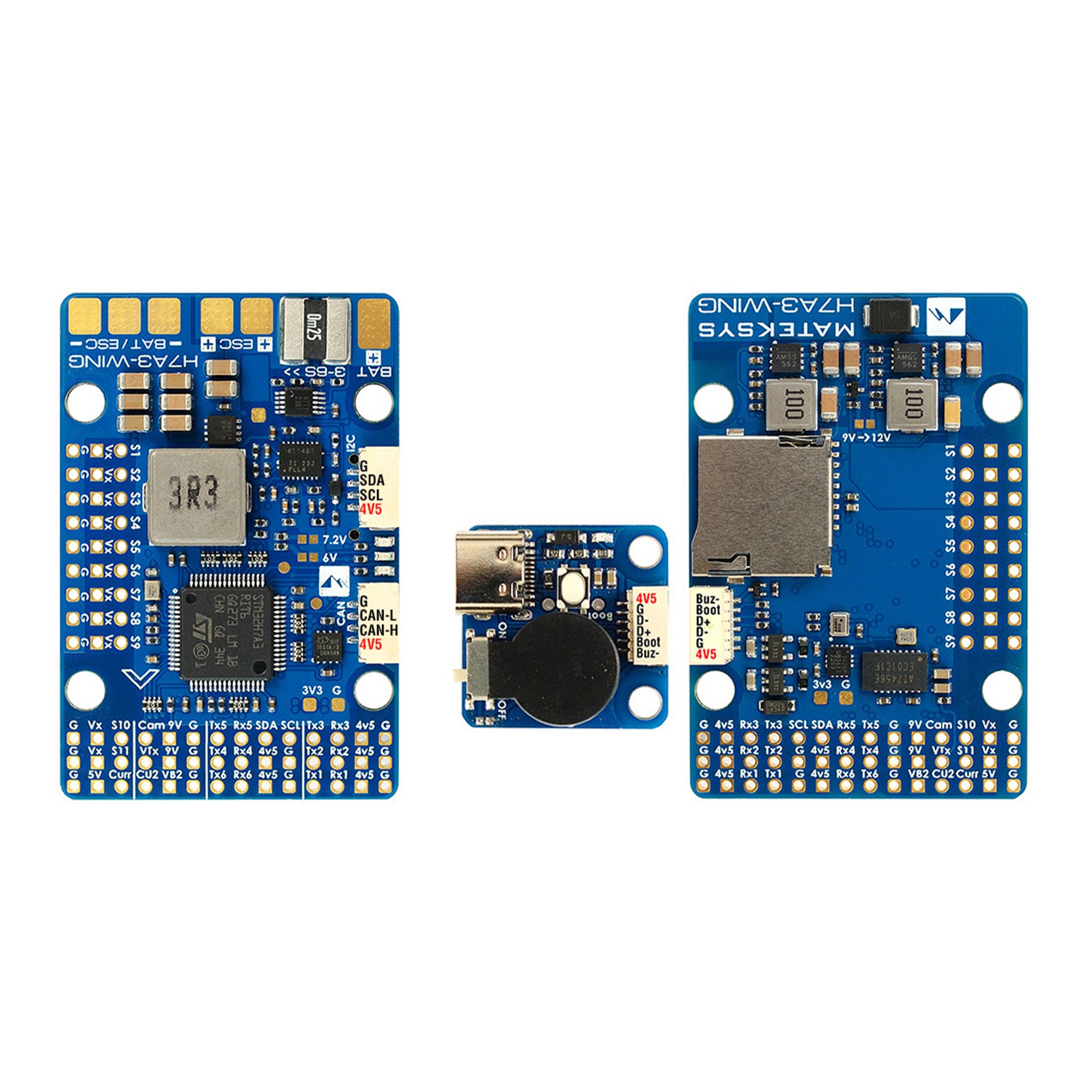

USB/Beep Extender with Type-C(USB2.0)
2x JST-GH1.25_4pin connector for CAN and I2C
9V/12V output ON/OFF switchable
Digital video OSD is supported by any spare UART

Regulators

Vbat Input: 9~30V (3~6S LiPo)
BEC 5V/4v5: 2.5A cont. /3A peak
BEC 9V/12V: 2A cont. /3A peak
BEC Vx: 8A cont. /12A Peak, output 5V Default, 6V or 7.2V option.
LDO 3.3V: Max.200mA

12C Digital Power Monitor

No calibration required.
Current sensing resistor: 0.00025 ohm
Load current on current sensing resistor: 100A(Continuous), 164A(Burst)
Voltage accuracy: ± 0.1%
Current accuracy: ± 2%
INA2xx I2C address: 0x45 (69)
Parameters
- BATT_MONITOR ->21 (INA2xx)
- BATT_SHUNT -> 0.00025
- BATT_MAX_AMPS -> 164
- BATT_I2C_BUS -> 0 default
- BATT_I2C_ADDR -> 0 default (or 69)
