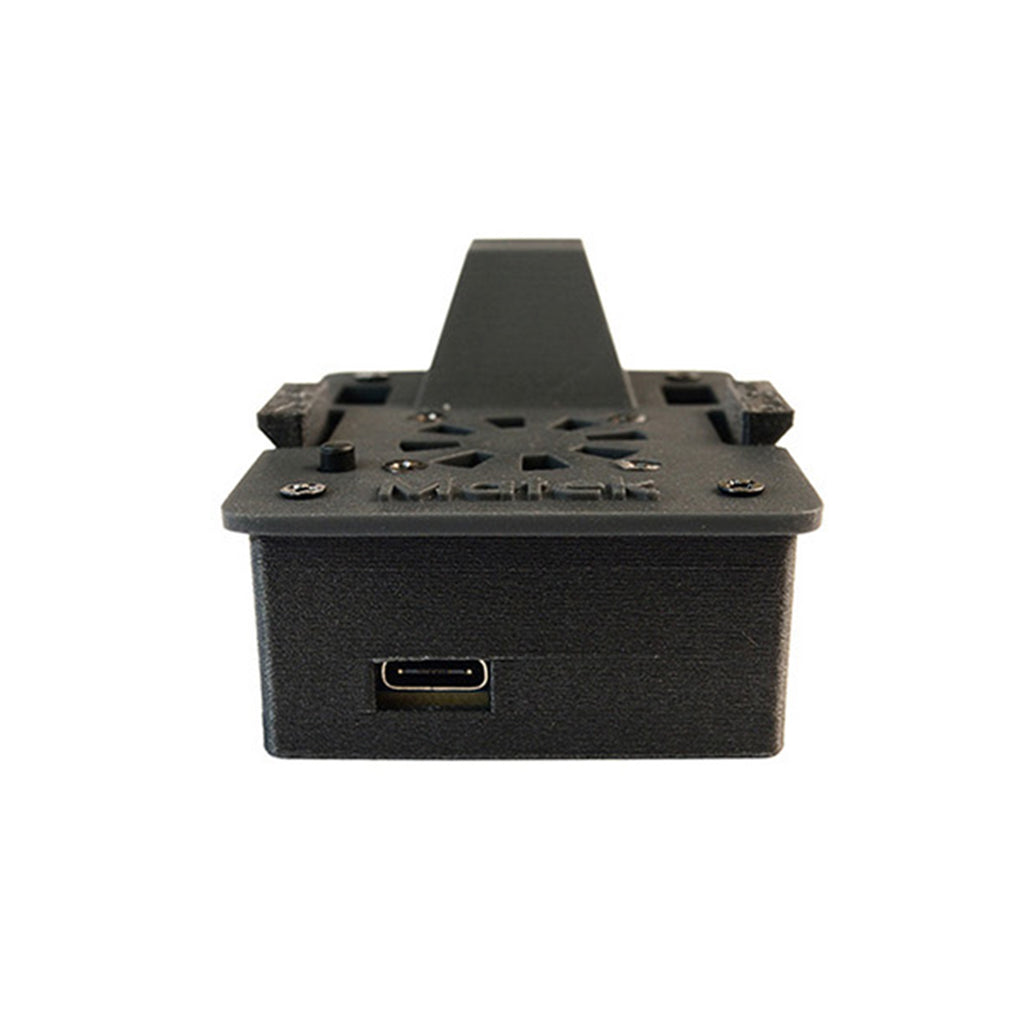

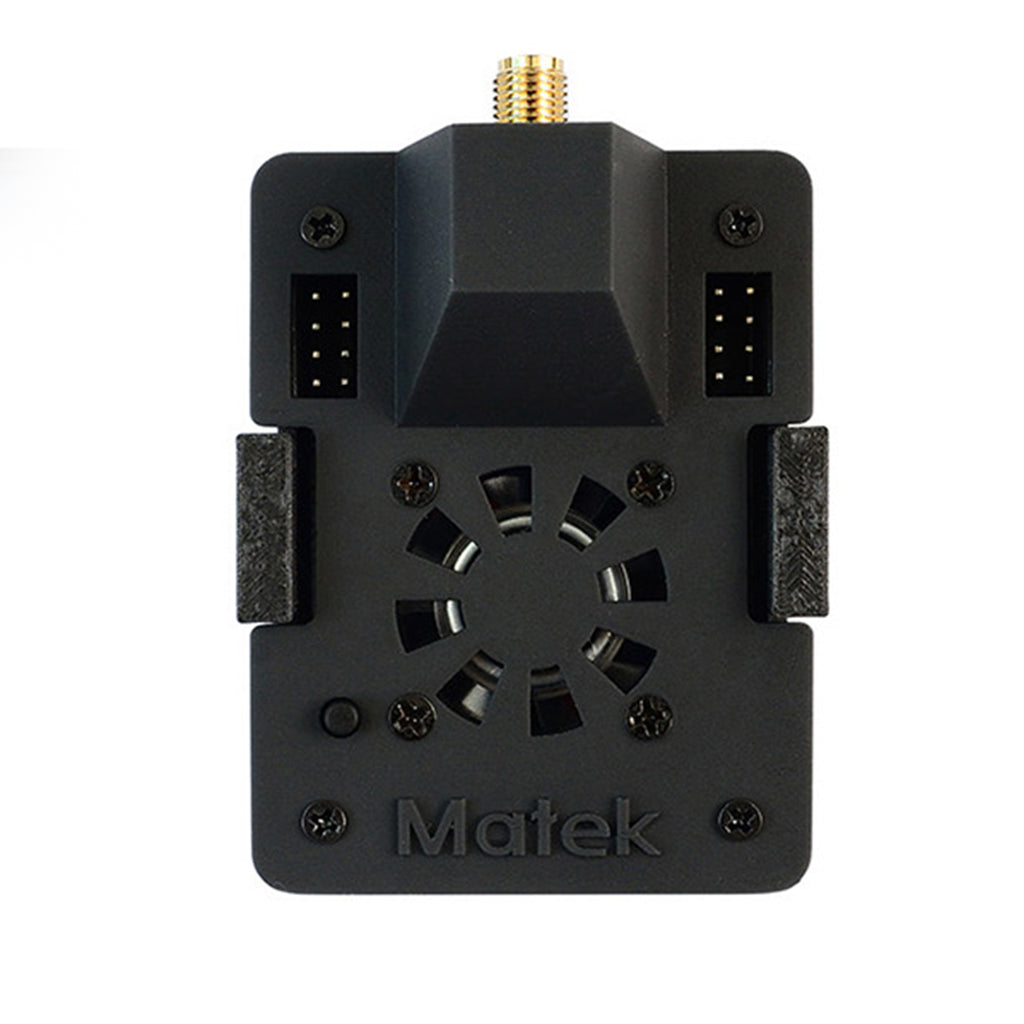

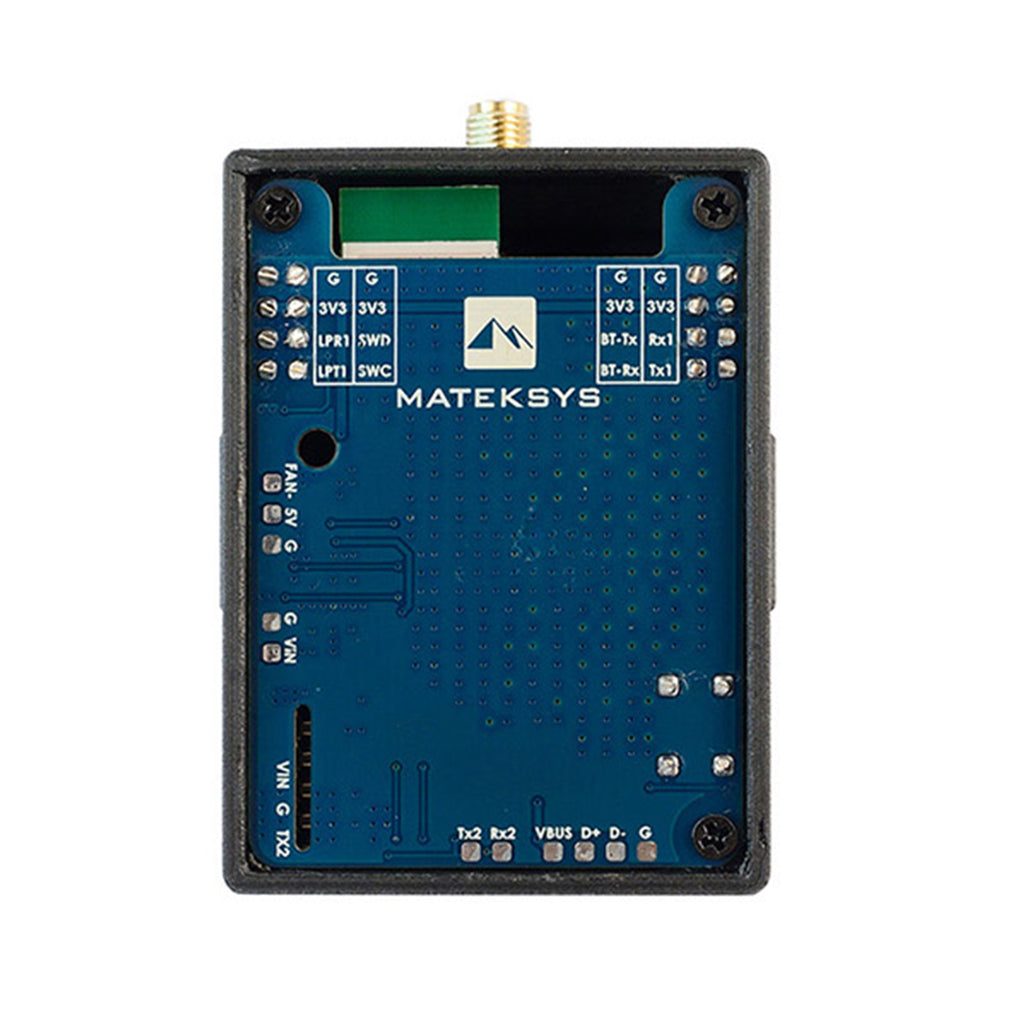

Matek mLRS MAVLink TX Module KIT mR24-30-TX (2.4ghz)

Are you looking to buy Matek mLRS MAVLink TX Module KIT mR24-30-TX (2.4ghz) in Australia?

Specifications

• mR24-30

  • STM32G431KB,  mLRS firmware
  • LoRa SX1281 with TCXO
  • PA/LNA SKY68383-11
  • RF Frequency: 2.4GHz ISM
  • RF power: 13dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
  • Antenna connector: IPEX MHF-1 to SMA
• mRx-Tx Adapter

  • Built-in HC-04 Bluetooth module
  • Built-in 5V fan controller,  running if ourput power>=500mW
  • TX2: RC IN(CRSF)
  • one buttom for DFU mode and Bind
  • Red and Green LED for mLRS status
  • Blue LED for bluetooth status
  • Power supply: 5-13V DC @ JR_PIN3 (VIN)

Includes

• 1x mR24-30-TX
• 1x IPEX MHF1 to SMA adapter cable 5cm

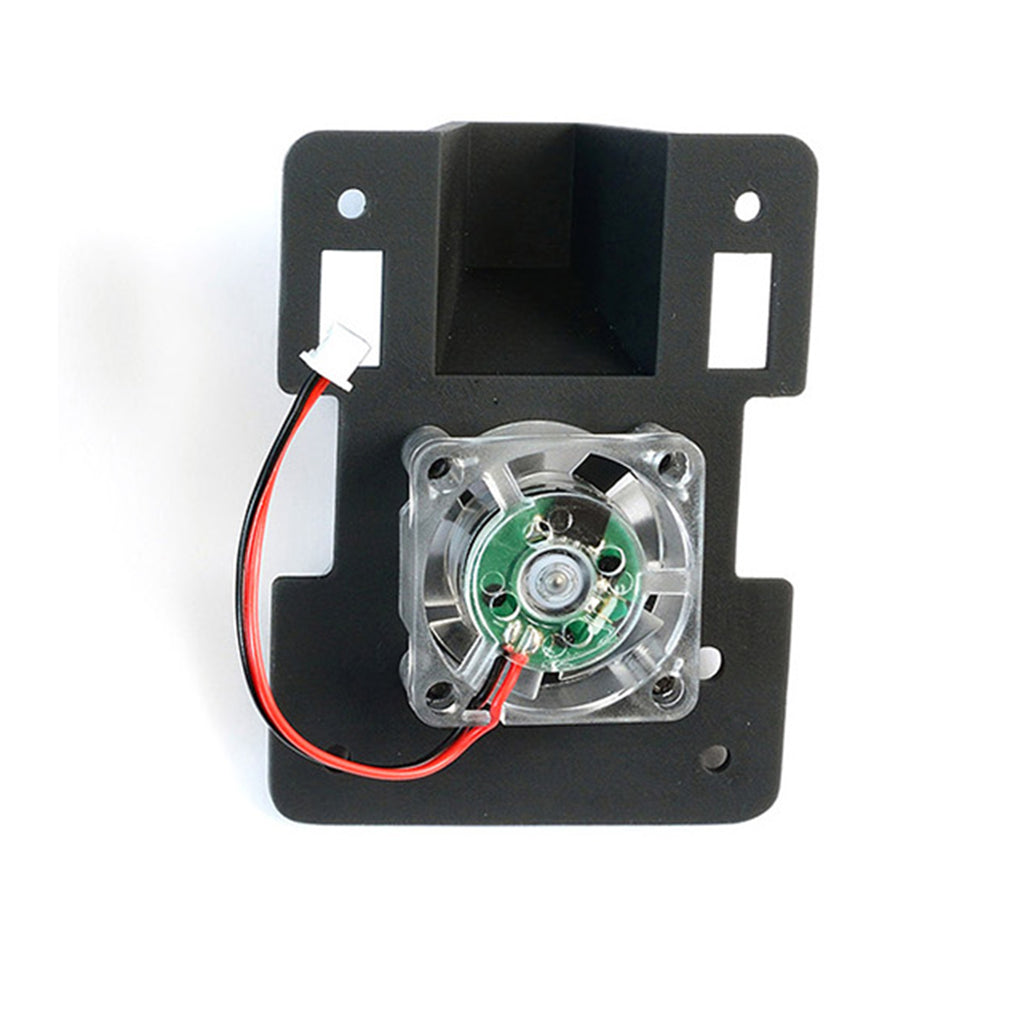

• 1x 5V Fan (25*25*10mm) and some screws

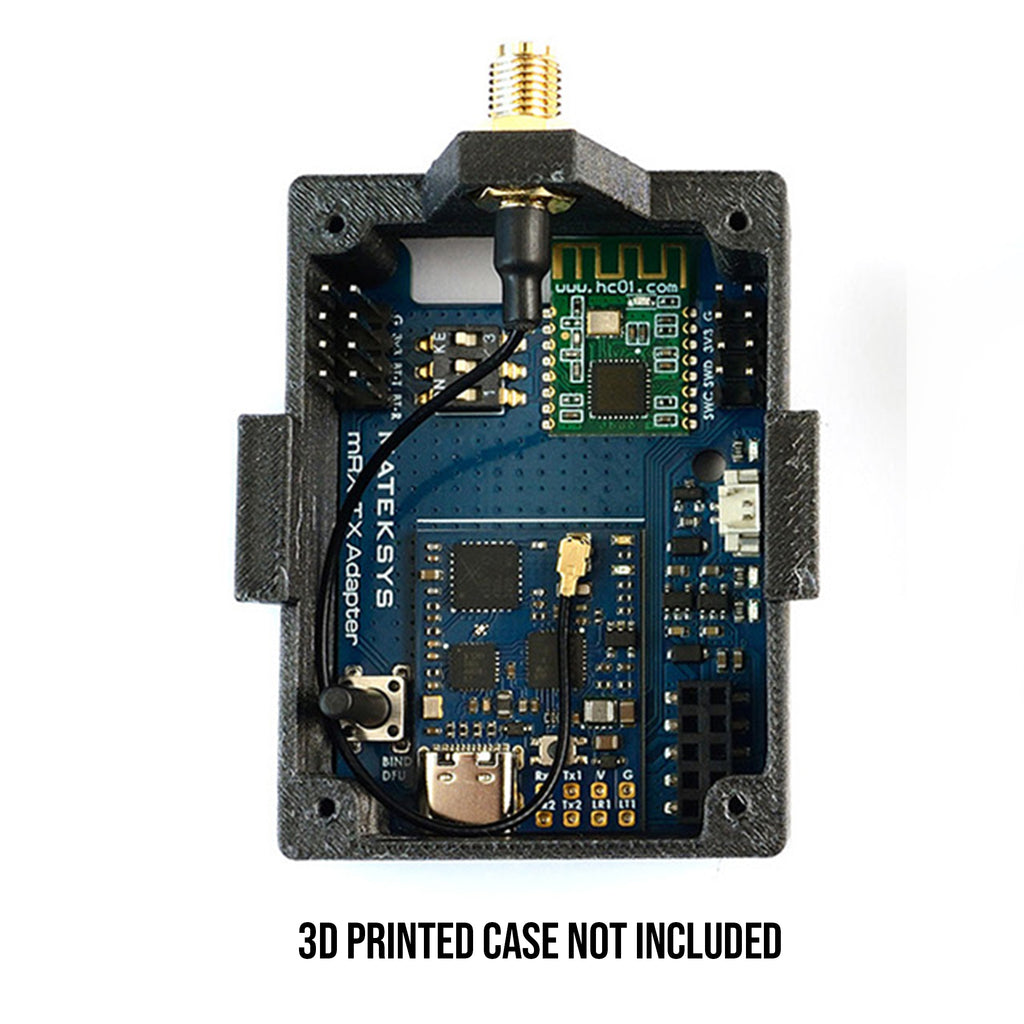

• no SMA antenna & 3D printed Case packed

LED Status

• [Red flashing 2Hz], not connected to transmitter
• [Green flashing 1Hz], connected to transmitter
• [Red and Green alternately ], Binding mode enabled

Binding

• After powering on,  press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
• https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md

Firmware

• mLRS https://github.com/olliw42/mLRS/tree/v1.3/firmware/release-matek
• Target:  tx-matek-mr24-30-g431kb-default
