NewBeeDrone Hummingbird 200 RaceSpec Stack F4 ELRS FC 80A AM32 ESC

Name: NewBeeDrone Hummingbird 200 RaceSpec Stack F4 ELRS FC 80A AM32 ESC
Brand: NewBeeDrone
SKU: 34210
Price: 184.97 AUD
Availability: OutOfStock

$184.97 AUD

GST included Shipping calculated at checkout.

Price match

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup not available

1/80 Somersby Falls Road, Somersby NSW

Get directions

No stock currently available

Product details

SKU: 34210

Shipping Weight: 100g

W/H: W-03-D-01

Categories: 20x20 Flight Controllers, ESCs & Stacks, 4 in 1 ESC, AIO, BMI270 Gyro FPV Flight Controllers, Drone ESCs, ELRS Express LRS Receivers & Modules, F4 Flight Controllers, Flight Controllers, FPV Coming Soon, FPV Electronics (Flight Controllers, ESCs, AIOs, Stacks), FPV Stack Combos, ICM42688-P Gyro FPV Flight Controllers, NewBeeDrone, Radio Gear, Tinywhoop Flight Controller

Tags: 2.4ghz, 20x20, AM32, BMI270, ELRS, ESC, F4, Flight Controller, ICM42688-P

Why buy from Phaser FPV?

Dependable Phaser started in 2014. Long reputable history and 5 star reviews.
Fast dispatch All stock is on the shelf in our Somersby warehouse. In-stock orders placed before 1pm Sydney time on a business day ship the same day. Shipping details.
Transparent stock If it says in stock, we ship today. If it's sold out but more is on the way and we know the ETA, it's on the product page, so you know what to expect before you order.
Showroom and pickup Walk into our Somersby showroom, an hour north of Sydney, talk to the team and see it before you buy, or order online and collect from the front counter.
Support after you buy Something won't bind, connect or work? We troubleshoot it with you first. Repair, soldering and 3D printer servicing are available when needed, quoted before any work starts. Returns and warranty.
Price match Found it cheaper at an Australian store? Use the Price match button on the product and we'll take a look.
One warehouse, three stores The same crew runs Phaser FPV, Central Coast Coffee and Tradiemods from one fast, efficient warehouse, with over a decade of online retail behind it.
3D printing and design Need a custom part? Our sister site Phaser3D prints from your file and can design to print.
Experience Our staff fly, build and use this gear, and will help you pick parts that work together so you don't buy twice. Not sure what to buy? Message us on live chat, or call us and leave a voicemail; we'll call you back as soon as we can.
Community Large Facebook community for like-minded pilots, or view our Facebook page.
GST registered If your business is registered, you claim the GST back and save 10%. Some small online stores are not registered, so there's nothing to claim.

Product description

Are you looking to buy NewBeeDrone Hummingbird 200 RaceSpec Stack F4 ELRS FC 80A AM32 ESC in Australia?

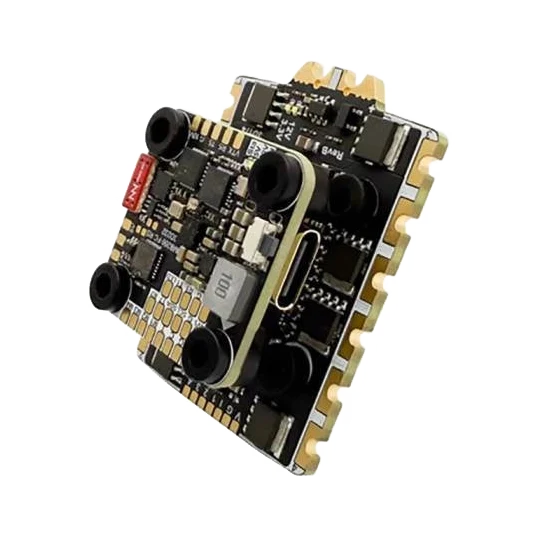

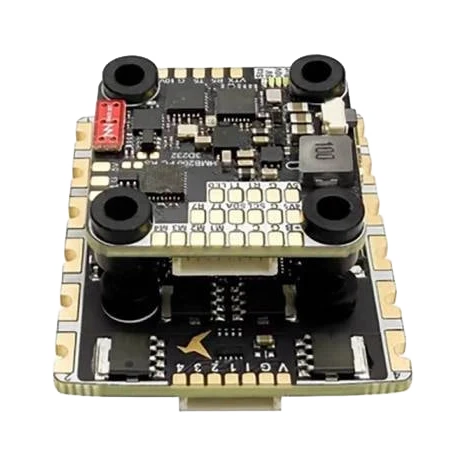

The NewBeeDrone Hummingbird 200 RaceSpec Stack - F4 ELRS FC + 80A AM32 ESC - is a purpose-built 20x20 flight stack designed from the ground up for competitive 5” FPV racing. Co-developed with professional racer Kyle Buell (aka Twidgit) and tested rigorously over half a year of real racing conditions, this stack delivers the durability, precision, and simplicity that race pilots demand.

At the heart of the system is the Hummingbird 200 Flight Controller, powered by a blazing-fast AT32F435 MCU at 288MHz, offering performance that surpasses even F722 processors. It features the highly respected ICM-42688 gyro with dedicated LDO power, and a built-in UART-based ExpressLRS 2.4GHz receiver with dual ceramic patch antennas and a TCXO oscillator for unmatched signal stability. This design eliminates the need for external receivers, simplifying builds and improving reliability during crashes.

Paired with the FC is the Hummingbird 200 4in1 ESC, rated for 80A continuous for 10 seconds and 100A burst for 3 seconds per channel, supporting 3–6S LiPo input. Built on a 6-layer 3oz copper PCB with blind vias and gold plating, this ESC is engineered to survive repeated abuse. It features three massive onboard TVS diodes for voltage spike protection and four corner-mounted capacitor pads for larger builds.

Features

AT32F435 MCU @ 288MHz – faster than F722
Built-in ExpressLRS 2.4GHz receiver (UART-based)
Dual ceramic patch antennas
TCXO oscillator for signal stability

Specifications

F4 ELRS FLIGHT CONTROLLER
- MCU: AT32F435 @ 288MHz
- RX: Built-in ExpressLRS 2.4GHz receiver (UART-based)
- Antenna: Dual ceramic patch
- Firmware target name: NewBeeDrone Diversity 2.4Ghz RX V2
- TCXO oscillator: Yes
- Gyro: ICM-42688 with dedicated LDO power supply - External clock sampling in BF4.6 reduces gyro noise, improves stability.
- OSD: NBD7456 chip
- BEC power outputs: 10V 2A and 5V 2A dual
- UART Layout:
  - UART1: Internal ELRS
  - UART5: Direct HDZero VTX plug
  - UART7: Free
- I2C and LED: pad ready
- Mounting: 20x20mm (M2 or M3)
- Weight: 4.8g
- Nano Coating: Yes
80A AM32 ESC
- 10 Seconds Continuous Current: 80A per channel
- 3 Seconds Burst Current: 100A (3s)
- Voltage Input: 3–6S LiPo
- MCU: AT32F421 with integrated gate driver
- Firmware: AM32
- 6-layer, 3oz copper PCB with blind via and gold plating
- TVS diodes: 2x onboard rated for 400W peak
- Motor pads: 3D motor pad structure (top + bottom + side solderable)
- Mounting: 20x20mm (M3 holes)
- Dimensions: 35x45mm (incl. pads)
- Weight: ~13.9g
- Nano Coating: yes

Includes

1x NewBeeDrone Hummingbird 200 RaceSpec Stack - F4 ELRS FC + 80A AM32 ESC - 20x20
- Flight Controller:
  - 5x Grommets
  - 1x DJI O3/O4/HDZERO plug and play cable 100mm
  - 1x SH1.0 8Pin 36mm for FC to ESC
  - 2x 120mm silicon wire 4color cable
- ESC
  - 5x Grommet
  - 1x 14awg Power cable
  - 1x XT60 Plug
  - 1x 8Pin 100mm Silicone Cable for FC Connection
  - 1x 1000uf Capacitor
  - 2x Tiny heat shrink for capacitor
