Polymaker Fiberon PA6-GF25 Nylon Glass Fibre 1.75mm Filament 3kg

Name: Polymaker Fiberon PA6-GF25 Nylon Glass Fibre 1.75mm Filament 3kg
Brand: Polymaker
SKU: 36030
Price: 199.95 AUD
Availability: OutOfStock

$199.95 AUD

GST included Shipping calculated at checkout.

Price match

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup not available

1/80 Somersby falls RD, Somersby NSW

Get directions

No stock currently available

Bulk discount across filament rolls

Quantity discount tiers for filament rolls
Quantity	You save
Buy 5+	8% off
Buy 10+	11% off
Buy 20+	13% off
Buy 30+	15% off

Mix and match filament rolls. The discount applies automatically at checkout when you buy enough.

Product details

SKU: 36030

Categories: 3D Printer Filaments, 3D Printing Coming Soon, Nylon & Carbon Fibre Filament, Polymaker

Tags: Filament Roll, Nylon, Speciality Filament

Why buy from Phaser FPV?

Dependable — Phaser started in 2014. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy Polymaker Fiberon PA6-GF25 Nylon Glass Fibre 1.75mm Filament 3kg in Australia?

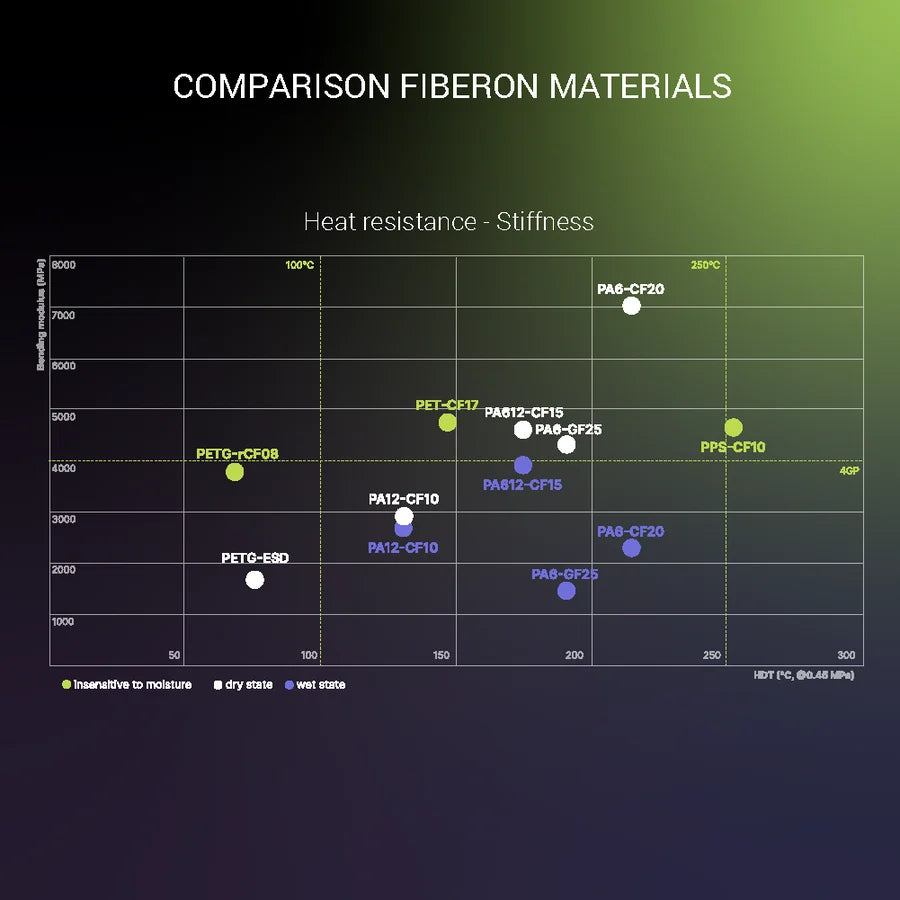

Technical Specifications

Mechanical Properties

Property	X-Y	Z	Value	Method
Density	—	—	1.2g/cm³	ISO 1183
Tensile strength	80.1MPa	60.7MPa	—	ISO 527
Elongation at break	2.4%	4%	—	ISO 527
Bending strength	133.8MPa	99.9MPa	—	ISO 178
Bending modulus	4314.2GPa		—	ISO 178
Young's modulus	5356.9GPa	3375.9GPa	—	ISO 527
Charpy, unnotched	—	16.2KJ/m²	—	ISO 179
Charpy, notched	10KJ/m²	—	—	ISO 179

Tested on 100% infill specimens. X-Y = across the layers, Z = between the layers (layer adhesion).

Thermal Properties

Property	Value	Method
Melting temperature	214.5°C	ISO 11357
Glass transition temperature (Tg)	70.4°C	ISO 11357
Vicat softening temperature	211.7°C	ISO 306

Tested on 100% infill specimens. X-Y = across the layers, Z = between the layers (layer adhesion).

Printing Tips

Use a wear-resistant nozzle, such as hardened steel or ruby, because the glass-fibre reinforcement is abrasive.
Store and print under dry conditions (relative humidity below 20%); dry at 100°C for 10 hours before use.
Use a 40-50°C build plate, and turn the cooling fan OFF; an actively heated chamber is not required.
Use glue stick or Magigoo PA if bed adhesion is weak.
If the material is used as its own support, remove the support before excessive moisture absorption to avoid permanent bonding.
Anneal at 100°C for 16 hours when the annealed performance stated in the TDS is required.
