Polymaker HT-PLA Pro 1.75mm Filament 1kg
Black
$39.95 AUD
Skip to product information
Out of stock
Polymaker HT-PLA Pro 1.75mm Filament 1kg
$39.95 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSWUnavailable for pickup
Bulk discount across filament rolls
| Quantity | You save |
|---|---|
| Buy 5+ | 8% off |
| Buy 10+ | 11% off |
| Buy 20+ | 13% off |
| Buy 30+ | 15% off |
Mix and match filament rolls. The discount applies automatically at checkout when you buy enough.
Product details
SKU:
35400
Categories:
3D Printer Filaments, 3D Printing Coming Soon, PLA Filaments, Polymaker
Tags:
1.75mm, Filament Roll, PLA, Speciality Filament
0 Hand-picked accessories
Compatible options selected by our team
Are you looking to buy Polymaker HT-PLA Pro 1.75mm Filament 1kg in Australia?
Heat Ready. Impact Ready. Still PLA
Polymaker™ HT-PLA Pro is a tough PLA for functional parts that need better durability in real-world use. It prints as easily as standard PLA and keeps its shape without load in warm environments. It is made for makers, engineers, and print farms that need real durability without added printing complexity.

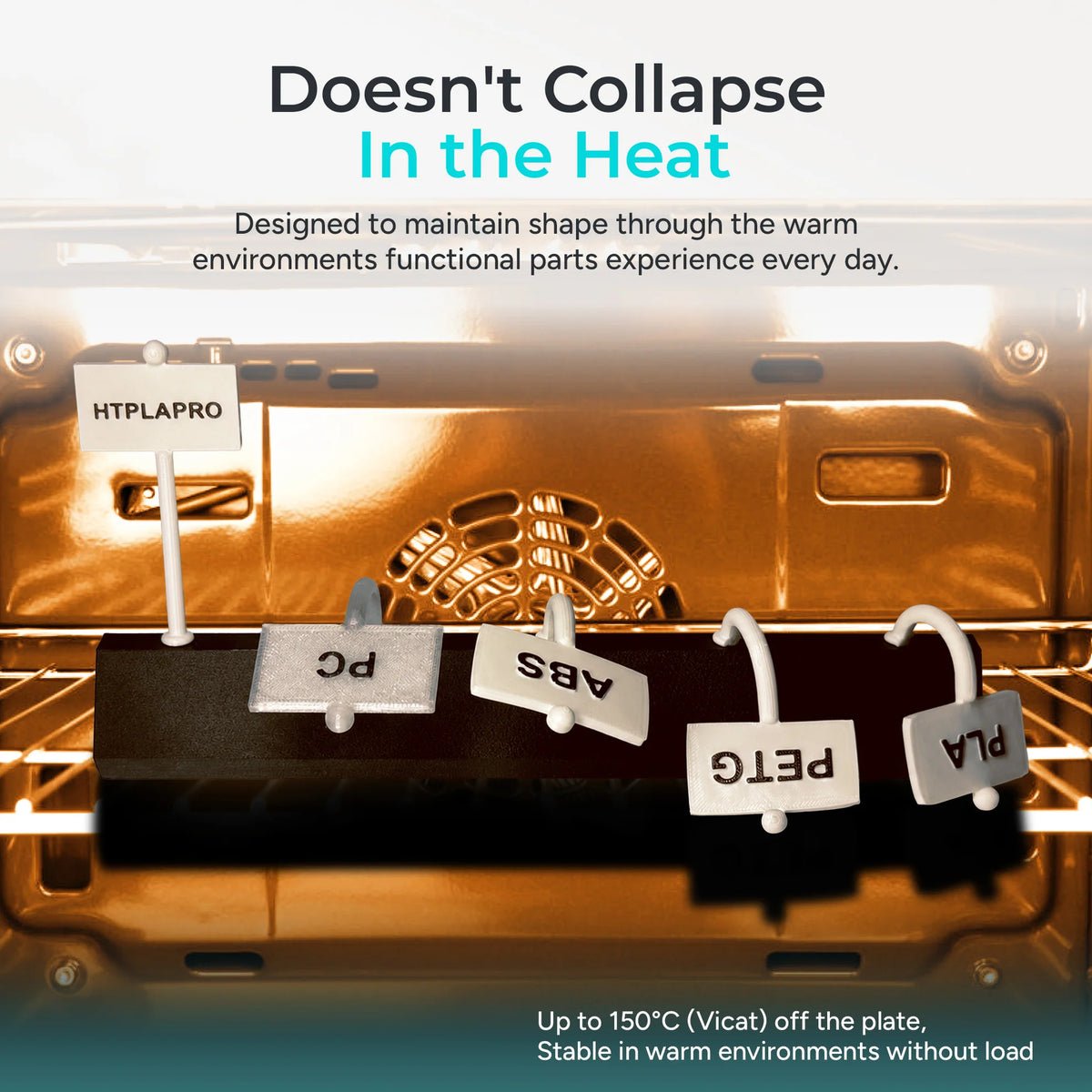

Won't sag up to 150°C straight off the plate
Polymaker™ HT-PLA Pro is designed to keep its shape in heat-exposed environments without load. Its Vicat softening temperature reaches 148.3 °C straight off the build plate and 150.5 °C after annealing, tested off the plate with no load. For applications that require heat resistance under load, annealing is needed. A 30-minute anneal at 100°C increases the Heat Deflection Temperature (HDT @ 0.45 MPa) from 56.3°C to 107.6°C. This makes it better suited for warm-use cases such as sunlit windowsills or parts placed near heat-emitting machinery.

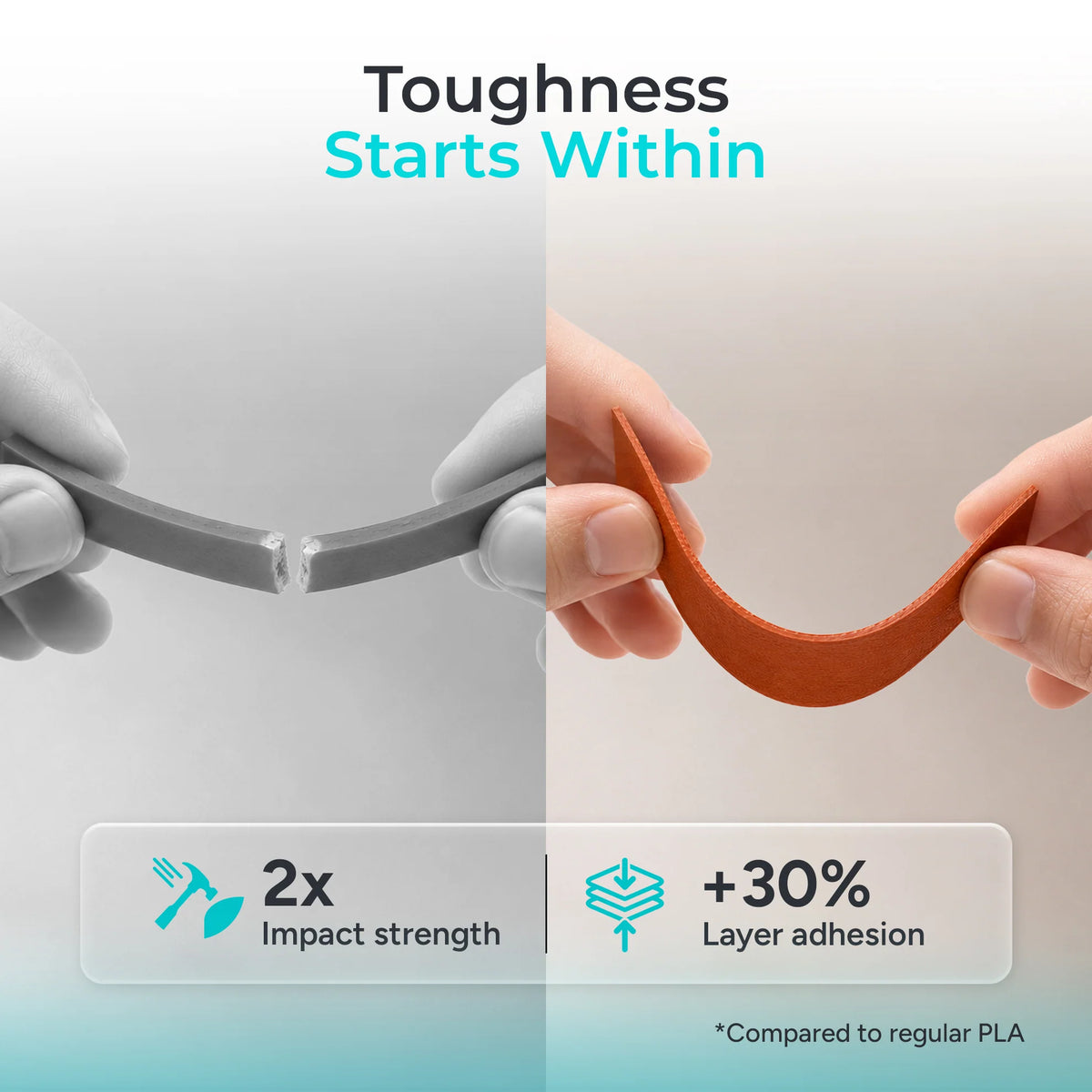

2x PLA durability
HT-PLA Pro keeps strong thermal properties while improving mechanical performance. Compared with regular HT-PLA, it delivers more than 2x higher impact strength (9.94 kJ/m² vs 4.94 kJ/m²) and 30% higher Z-axis interlayer adhesion (26.8 MPa vs 20.8 MPa). This helps printed parts resist impact and splitting along layer lines.

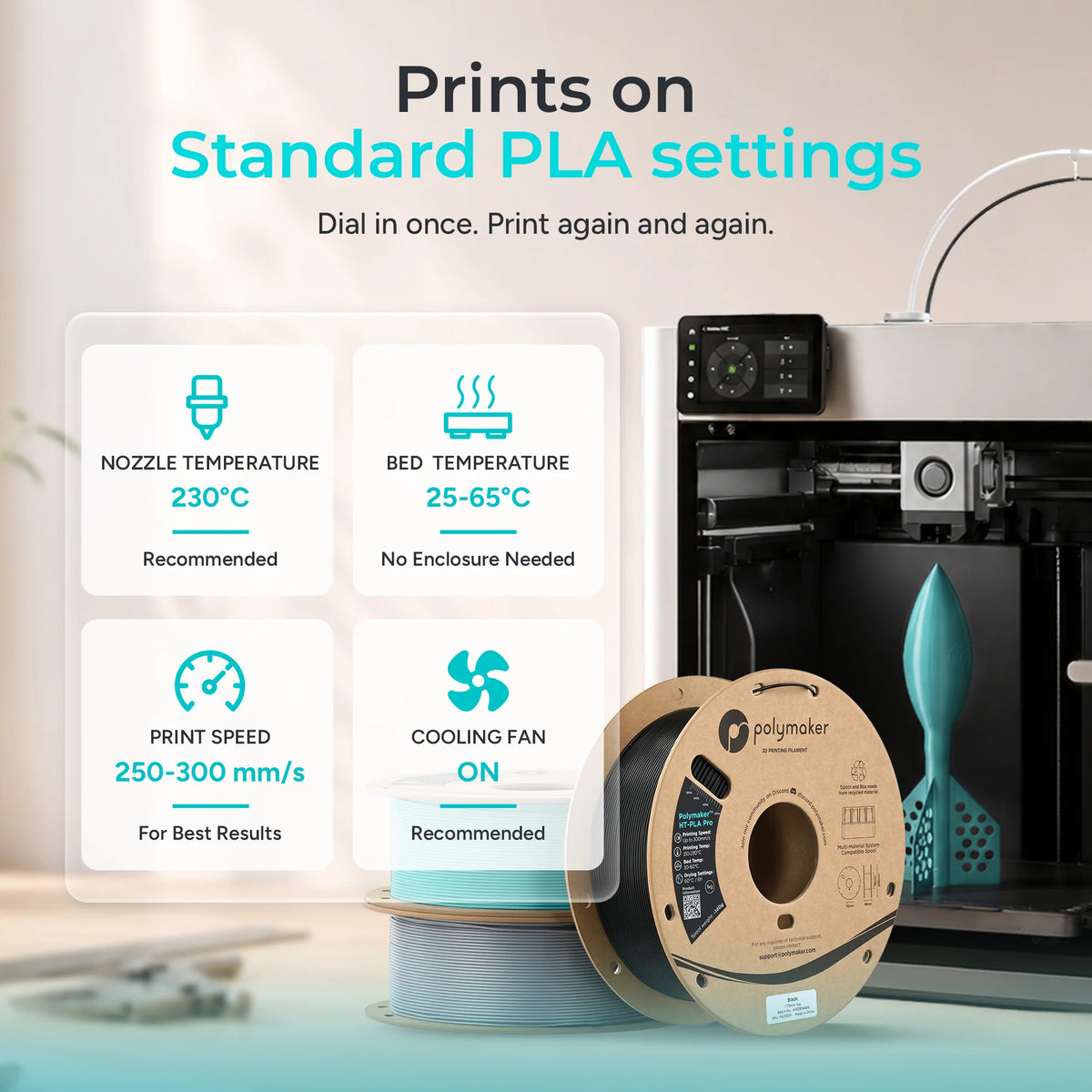

Prints with PLA settings
Unlike many high-temperature filaments, HT-PLA Pro prints with standard PLA settings. It runs on most standard FDM printers, with no enclosure, no specialty hotend, and no complex tuning required. Supporting print speeds up to 300 mm/s, it can fit into existing production workflows with minimal changes.
Please note: Annealing is required for heat resistance under load
Technical Specifications
Mechanical Properties
| Property | X-Y | Z | Method |
| Tensile strength | 37.6MPa | 26.8MPa | ISO 527 |
| Elongation at break | 13% | 2.6% | ISO 527 |
| Bending strength | 60.1MPa | 37.1MPa | ISO 178 |
| Bending modulus | 2.21GPa | 1.91GPa | ISO 178 |
| Young's modulus | 2.27GPa | 1.85GPa | ISO 527 |
| Charpy, unnotched | 45.7KJ/m² | 10.3KJ/m² | ISO 179 |
| Charpy, notched | 9.94KJ/m² | - | ISO 179 |
Tested on 100% infill specimens. X-Y = across the layers, Z = between the layers (layer adhesion).
Thermal Properties
| Property | Value | Method |
| Melting temperature | 173.35°C | ISO 11357 |
| Glass transition temperature (Tg) | 59.15°C | ISO 11357 |
| Vicat softening temperature | 148.3°C | ISO 306 |
| HDT (0.45 MPa) | 56.3°C | ISO 75 |
| HDT (1.8 MPa) | 53.8°C | ISO 75 |
Tested on 100% infill specimens. X-Y = across the layers, Z = between the layers (layer adhesion).
Print Settings
- Printing Temperature: 210°C - 230°C (230°C recommended for optimal performance)
- Bed Temperature: 25°C - 65°C
- Printing Speed: Up to 300mm/s
- Fan: ON
- Hardware Requirements: Standard brass nozzle (no hardened nozzle required); prints perfectly without an enclosure or heated chamber.
- Direct Drive:
- Retraction Distance: 1-3mm
- Retraction Speed: 20-40mm/s
- Drying Settings: 60°C for 6h (Only if the material has absorbed moisture)
- Annealing for Maximum Heat Resistance: To achieve maximum temperature stability and unlock the peak HDT properties, anneal your printed parts at 100°C for 30 minutes.
