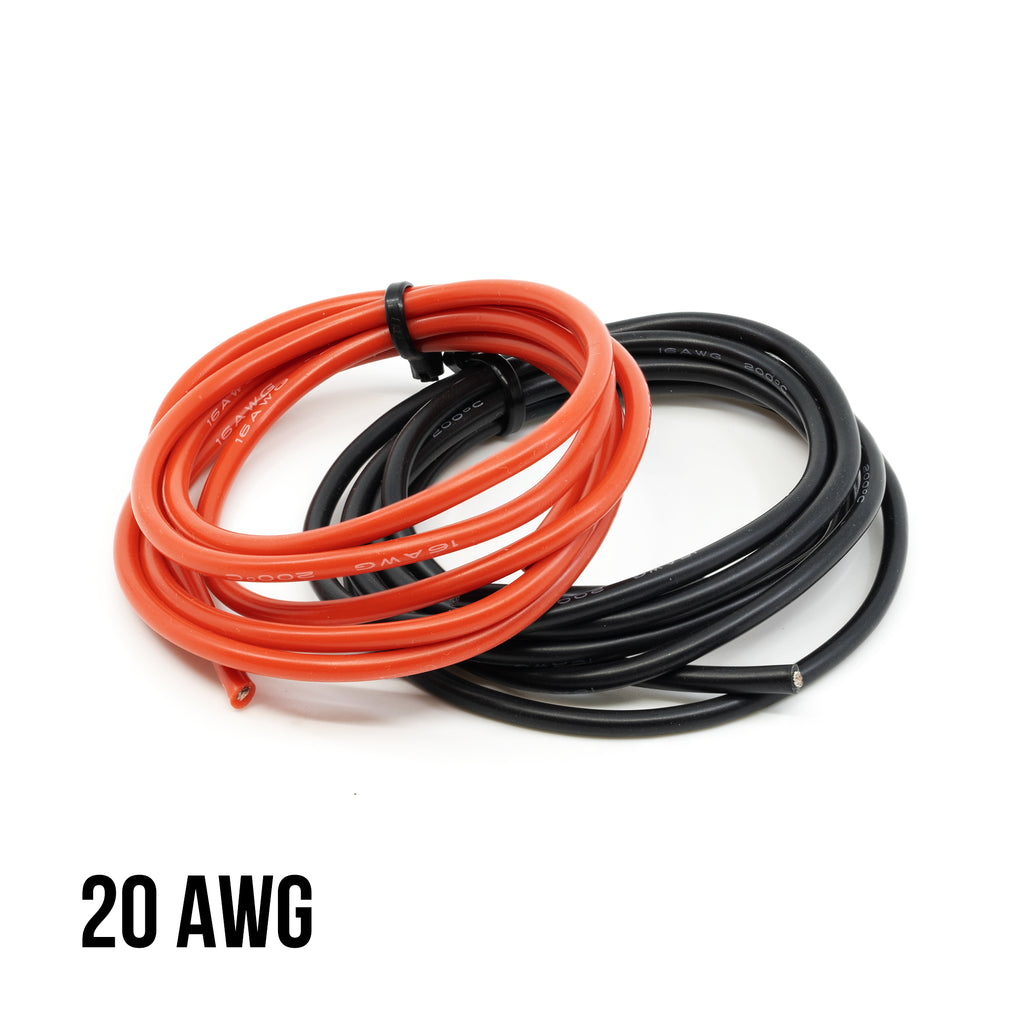

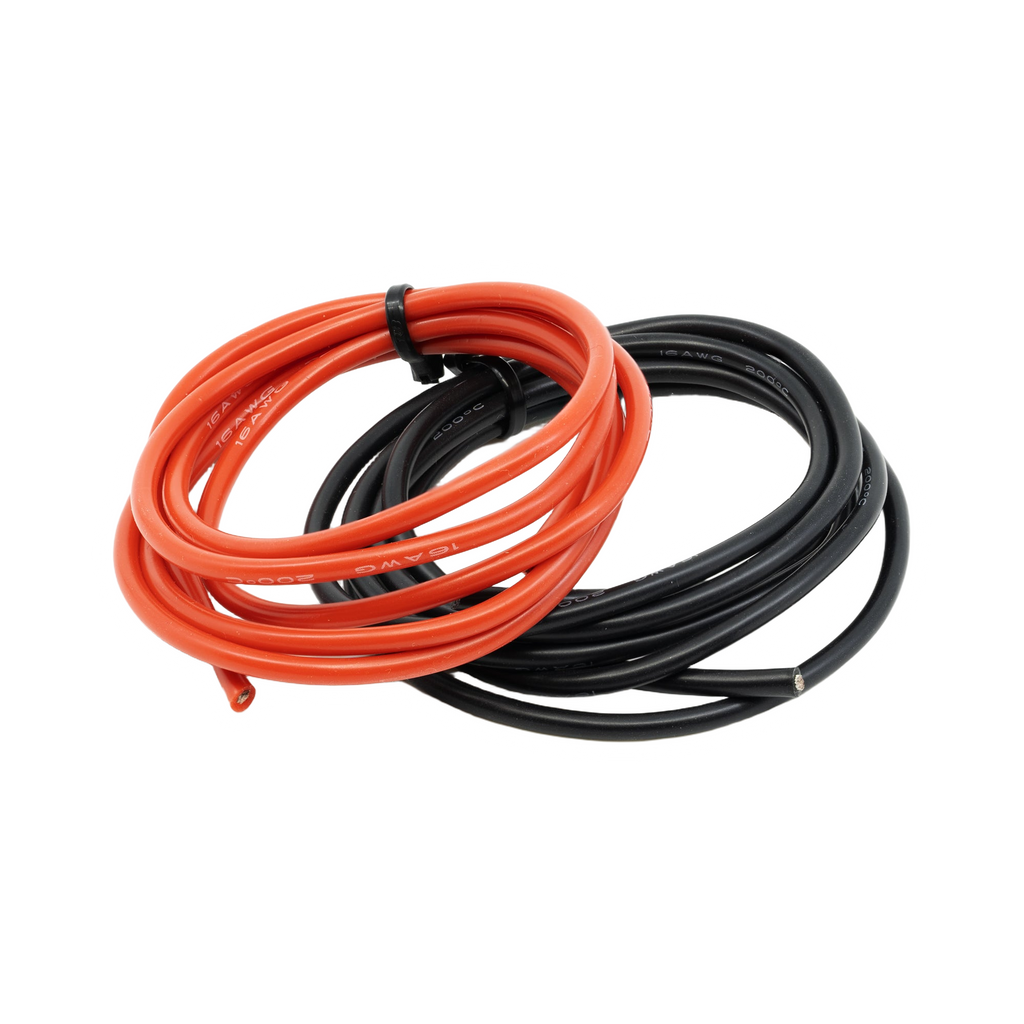

Silicon Soft Heat Proof Wire 1 Metre 20AWG Various Colours

$4.95 AUD

IN STOCK ( left )

Colour: Red

  • Red
  • Blue
  • White
  • Black
  • Orange
Out of stock
Order in H, M, Seconds (before 1pm AEST) for same day despatch
Add to Wishlist
SKU: 5620N/A W/H: T-01-D-06 N/A Barcode: N/A Shipping Weight: 25g N/A Categories:

We accept the following payment methods


lease choose the correct thickness for your need, all prices are PER METER.

As an estimation, this is your max curst current for each thickness. The ones in bold are what we stock.

12AWG Wire - 160A (only available in XT60 Pigtail)
14AWG Wire - 120A
16AWG Wire - 80A
18AWG Wire - 45A
20AWG Wire - 27A 22AWG Wire - 17A
26AWG Wire - Signals Only
28AWG Wire - Signals only

12 AWG (for XT60 pigtail, high performance 5″ racing quad)

14 AWG (for XT60 pigtail, medium power 5″ racing quad)

16 AWG (for XT30 and XT60 pigtail, low power up to 80A burst)

18 AWG (for XT30, ESC power, and motor wire extension, up to 45A burst)

20 AWG (For Motor Wire Extension)

Connectors Rating General Guide

Like wires, connectors also have current limitation, so you should choose carefully based on the application to avoid it becoming the “bottleneck” of your system. Here are the guideline – continuous and burst current.

  • JST connector – 5A (10A)
  • 2mm bullet connectors – 20A (40A)
  • XT30 – 30A (60A)
  • XT60 connectors – 60A (120A)

The wire we stock has the following properties

  • Silicon & Flexible
  • Heat Proof (200 degrees maximum rating except for signal wires)
  • Tinned Copper structure
