Are you looking to buy TBS Lucid 16s 200A ESC in Australia?
The TBS Lucid 12S is a force to be reckoned with. Built for high voltage and high power applications that demand high reliability and power at your fingertips.
Featuring a 10 layer high current density board with excellent heat resistance the ESC is built to withstand the harshest punishment of everyday flying while delivering excellent payload capabilities. With built in TVS, voltage spikes are no longer a concern. By focusing on thermal dissipation from the ground up, the ESC achieves excellent power to weight density without the need of heavy heat sinks.
A close collaboration with AM32 allowed us to squeeze the last bit of performance without breaking the bank.
Important Notes
Remember to wire up the GND connection of your signal wire back to the FC. At high voltages, this is required.
Specifications
- ESC Software: AlkaMotors32 (AM32)
- ESC Target: AM32_TBS_16S_L431 or AM32_TBS_16S_L431_CAN
- IP Rating: N/A (contact us for IP-rated versions)
- Rated Current: 200A, 600 seconds, 580A 10 seconds (With airflow:33m/s)
- Propellers: Up to 32" (over 11" requires good airflow)
- Input: 3 -16S Lipo
- Protocol: Bi-directional Dshot 300/600, KISS ESC Telemetry
- ESC Current Sense: Yes / Built-in
- ESC Voltage Sense: Yes / Built-in
- BEC: No
- Size: 107mm x 57mm x 38mm
- Weight: 222g excl. cables
Includes
- 1x TBS Lucid 16S 200A ESC

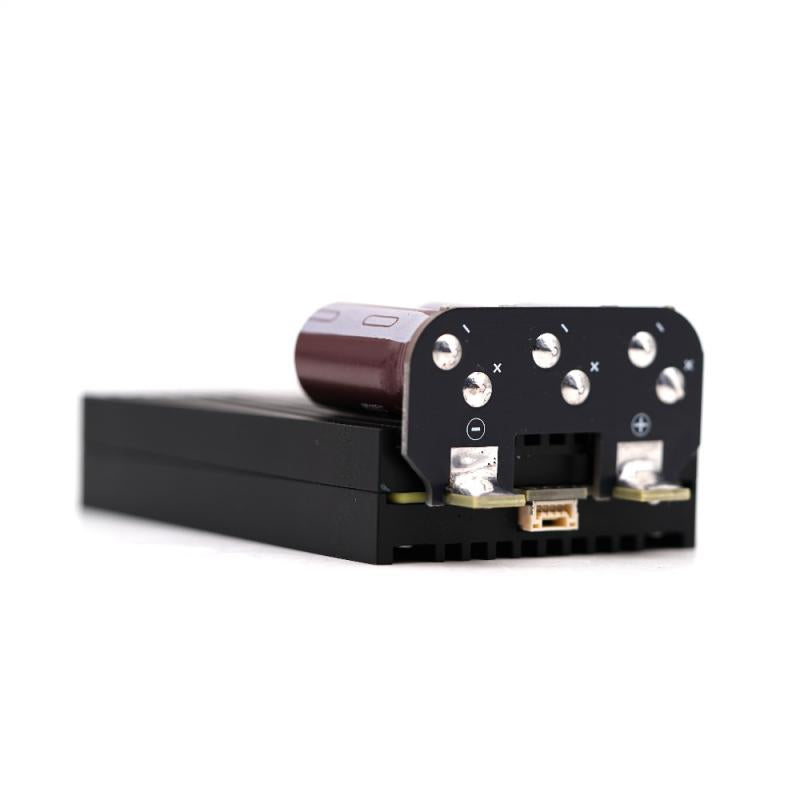

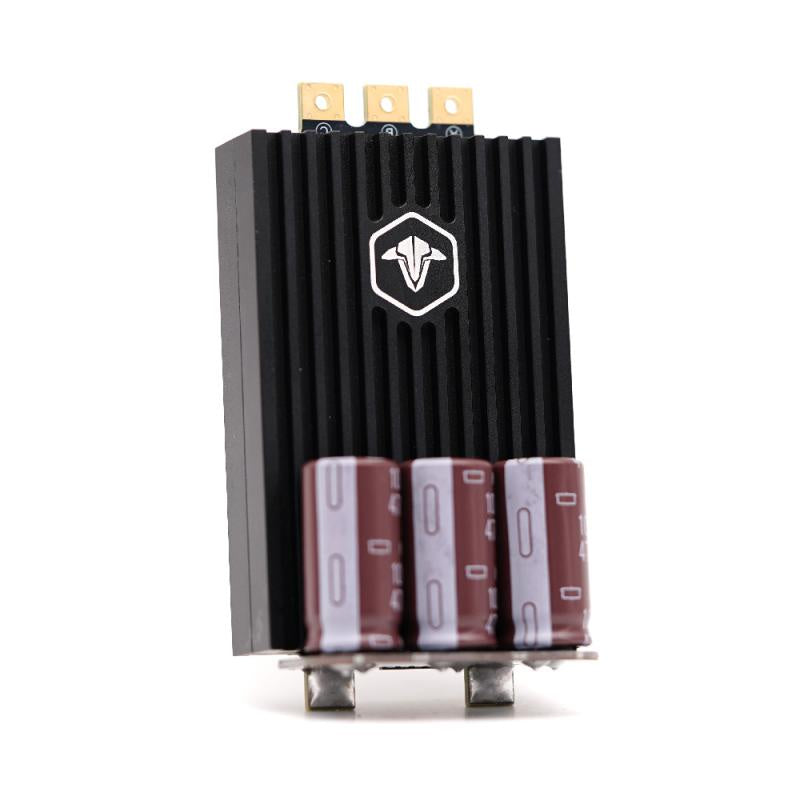

- 1x TBS Lucid 16S Capacitor PDB (3x 470uF)
- 1x TBS Lucid 16S aluminum heatsink
