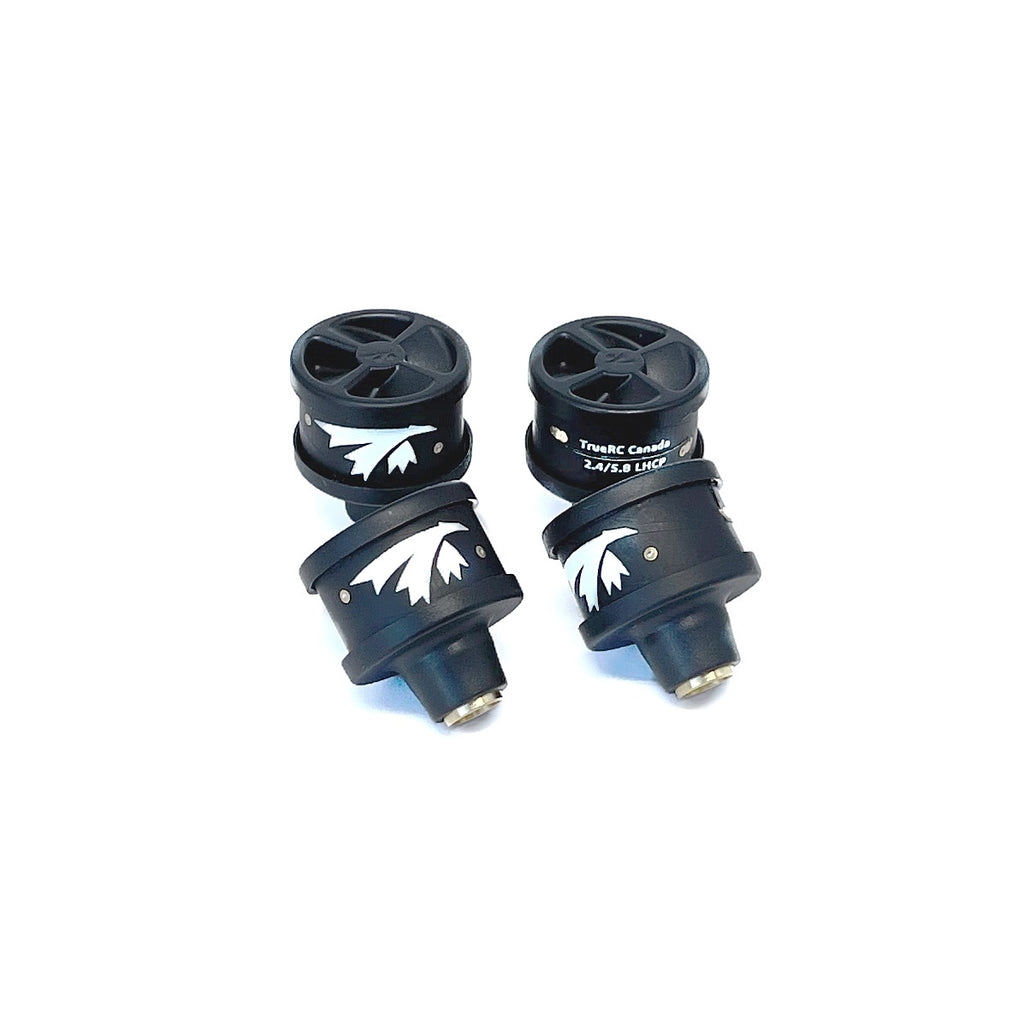

TrueRC Duality 2.4/5.8 Stubby for DJI (RP-SMA)

Name: TrueRC Duality 2.4/5.8 Stubby for DJI (RP-SMA)
Rating: 5.00 (2 reviews)

$40.95 AUD

GST includedShipping calculated at checkout.

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Option one LHCP RHCP

Option two Single 4 Pack

Pickup availability

1/80 Somersby falls RD, Somersby NSW

Unavailable for pickup

SKU: 19412

Shipping Weight: 6g

W/H: W-03-E-04

Categories: 2.4GHz Antennas, 5.8ghz Antennas, DJI FPV System 2021 (Vista & Goggles V2), EOFY SALE / Clearance Items, FPV Antennas, FPV Gear, FPV Gear & Equipment, Radio Gear, True RC

Tags: 2.4ghz, 5.8ghz, Aerials, Antenna, Antennas, DJI, FPV Antenna, Truerc

Add to Wishlist

Why buy from Phaser FPV?

Dependable — Phaser started in 2012. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy TrueRC Duality 2.4/5.8 Stubby for DJI (RP-SMA) in Australia?

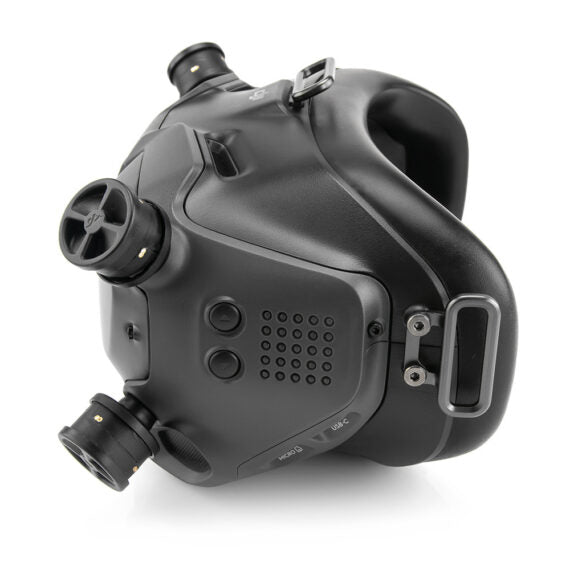

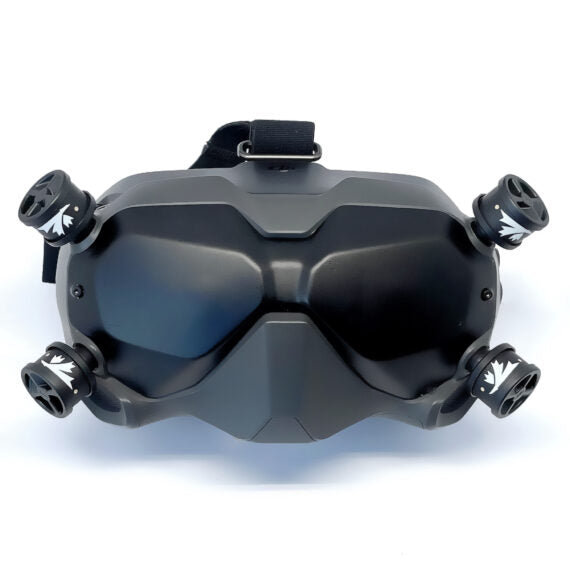

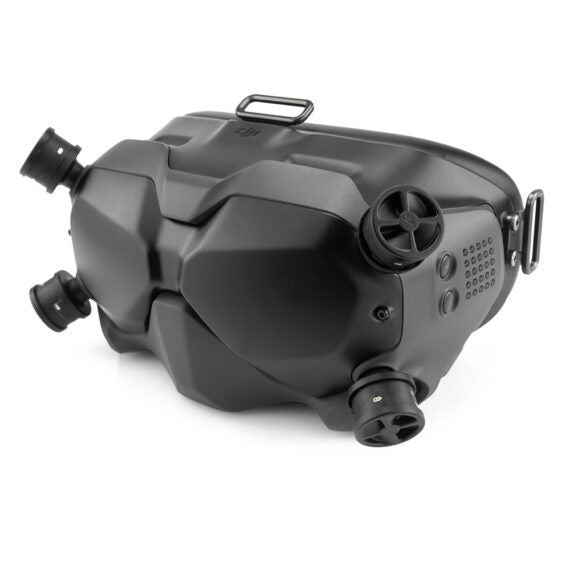

TrueRC never stop! The Duality is a dual band CP omni covering both 2.4 and 5.8GHz bands in a single compact stubby package. Drop-in fit on the DJI FPV goggles V2*, letting you leaving them on at all times, thanks to a much lower profile than the stock linear antennas. Each unit is hand tuned on a professional analyzer so you get the most of your digital HD system.

Specifications

Gain: 1.7dBic @2.4GHz, 2.8dBic @5.8GHz
Polarisation: RHCP or LHCP
Cross-Polar Rejection: -15 to -30dB, (2.2%)
Bandwidth: 2.39GHz-2.52GHz & 5.6GHz-6.1GHz
Radiation Efficiency: 99%
SWR: <=1.5:1
Weight: 5.25g
Dimensions: 23.3mm dia. X 22.0mm height
Connector: RP-SMA

US. Pat. 10,804,618; Can. Pat. 2,968,566; and other pending patents.

**The Duality can be used on the DJI FPV goggles V1, however, since they won’t make use of the 2.4Ghz band, we suggest our singularity 5.8 stubby instead.
