Ubiquiti U7 Pro XGS [PC]
$589.00 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSWUnavailable for pickup
Product details
SKU:
35948
0 Hand-picked accessories
Compatible options selected by our team
Are you looking to buy Ubiquiti U7 Pro XGS [PC] in Australia?

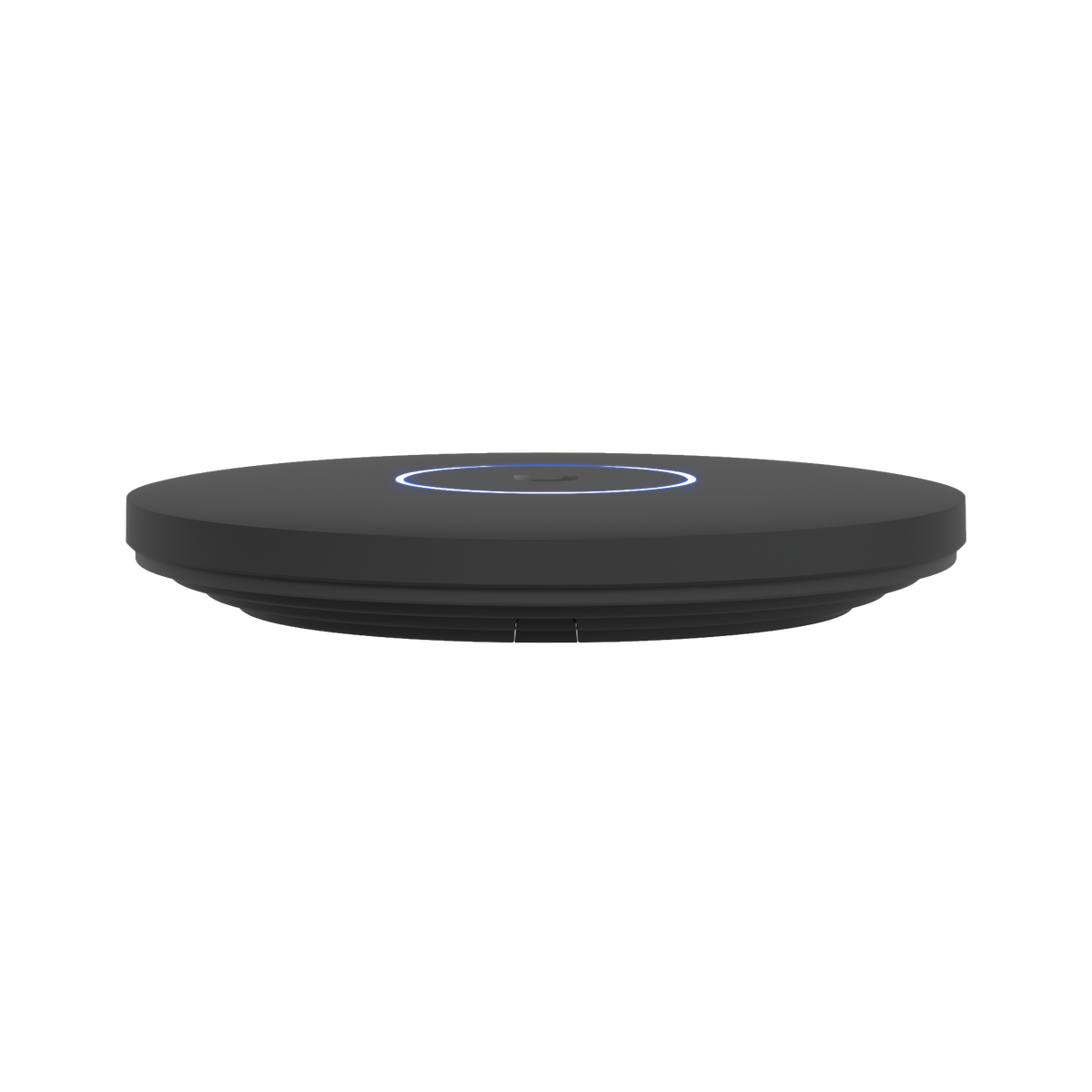

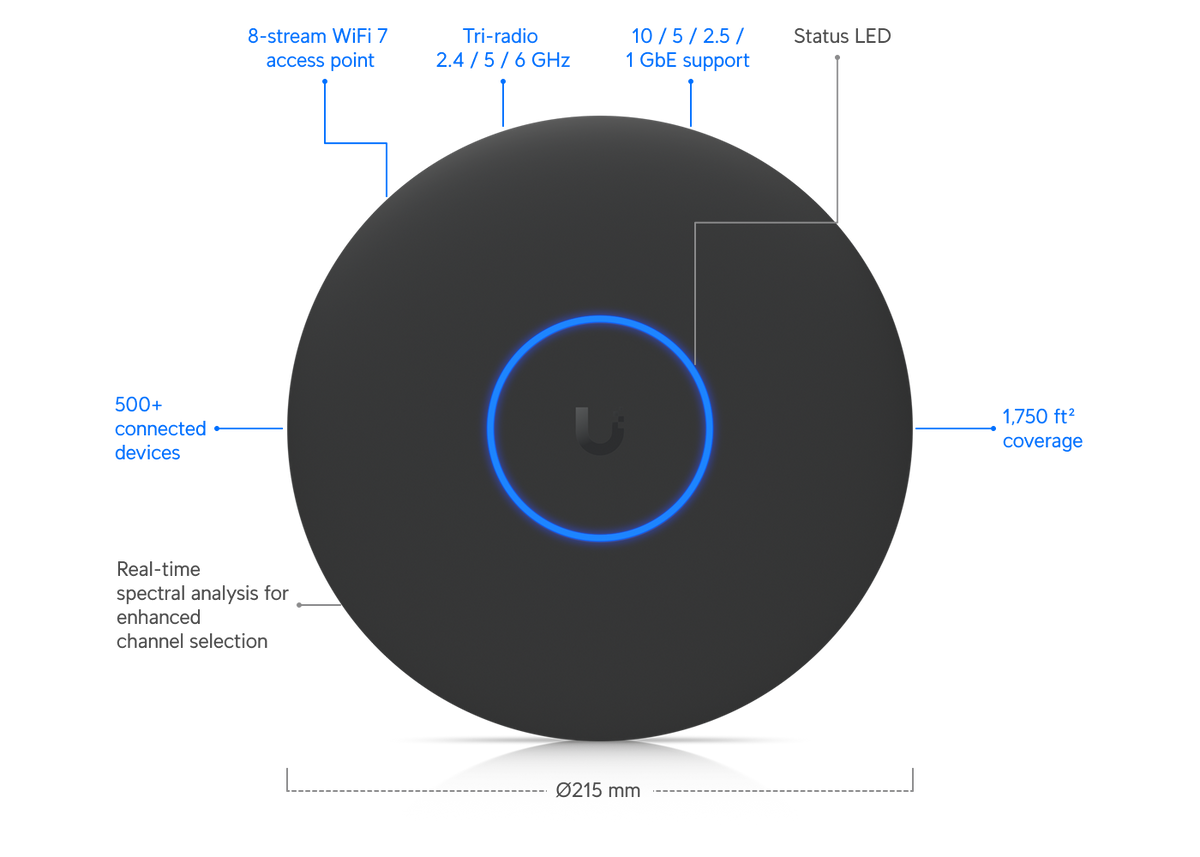

The Ubiquiti UniFi U7 Pro XGS Wireless Access Point features WiFi 7, a large 160 m2 (1,750 ft2) coverage range, support for 500+ simultaneous connected devices, is powered using PoE++, has 10 GbE uplink and can be wall or ceiling mounted.
Features
- Wireless meshing
- Band steering
- 802.11v BSS Transition Management
- 802.11k Radio Resource Management (RRM)
- Zero-Wait DFS
- Advanced Radio Management
- Real-Time Spectral Analysis
- Passpoint (Hotspot 2.0)
- Captive Hotspot Portal
- Custom Branding Landing Page
- Voucher Authentication
- Payment-Based Authentication
- External Portal Server Support
- Password Authentication
- Guest Network Isolation
- Private Pre-Shared Key (PPSK)
- WiFi Speed Limiting
- Client Device Isolation
- WiFi Schedules
- RADIUS over TLS (RadSec)
- Dynamic RADIUS-assigned VLAN
Specifications
General

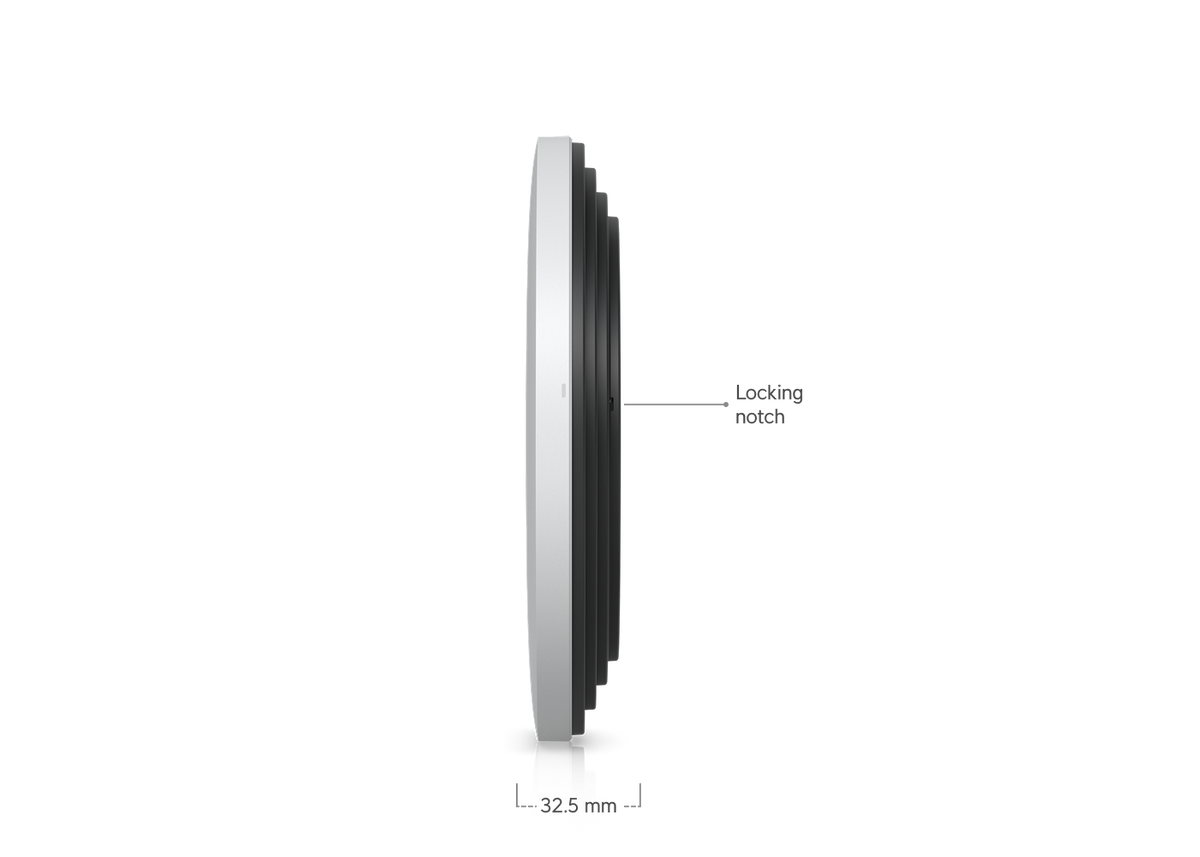

- Dimensions: ⌀215 x 32.5 mm (⌀8.5 x 1.3")
- WiFi standard: WiFi 7
- Spatial streams: 8
- Coverage area: 160 m² (1,750 ft²)
- Max. client count: 500+
- Uplink: 10 GbE

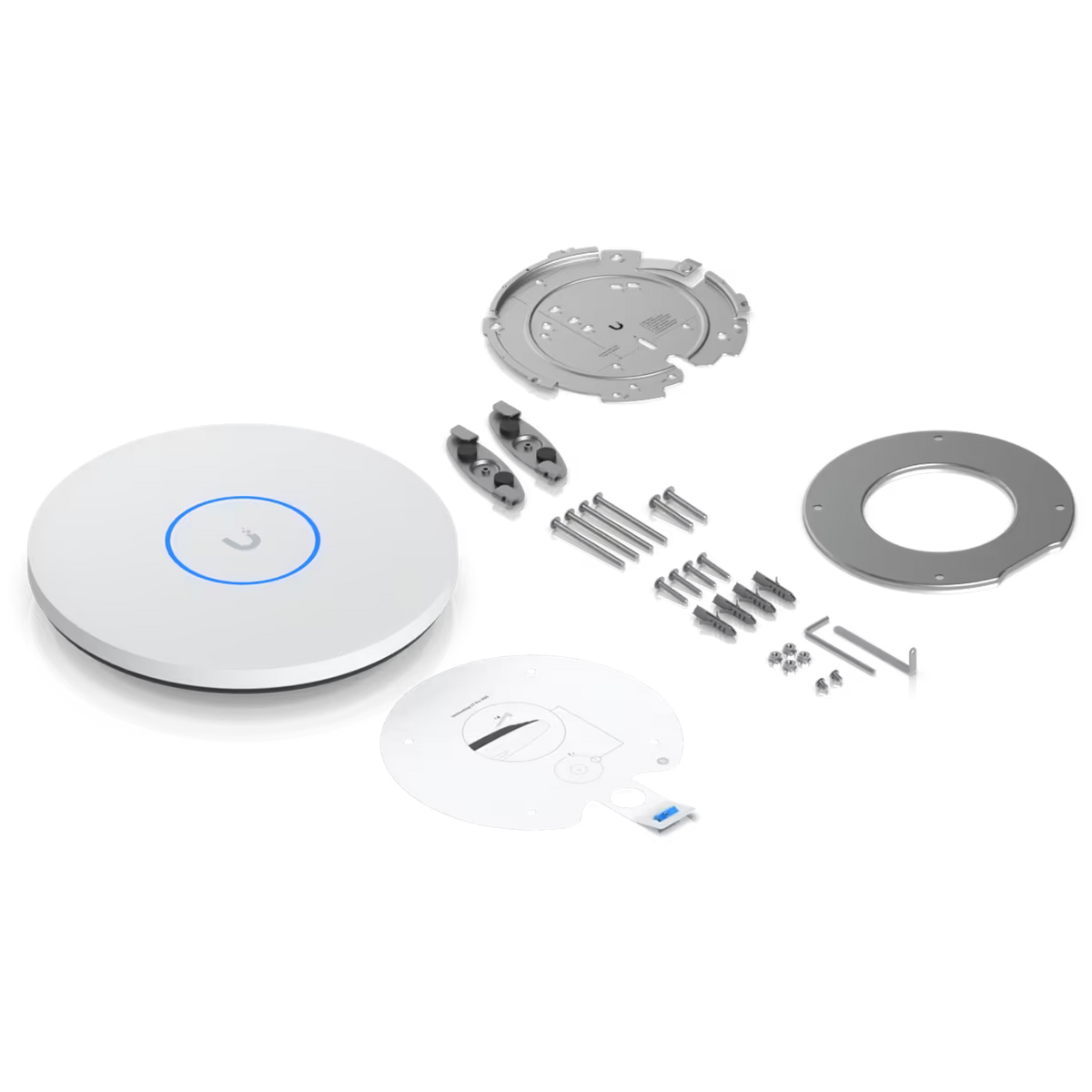

- Mounting: Ceiling, Wall (Lite Mount Included)
- Power method: PoE++
Performance
- MIMO:
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5GHz: 4 x 4 (DL/UL MU-MIMO)
- 2.4GHz: 2 x 2 (DL/UL MU-MIMO)
- Max. data rate:
- 6 GHz: 5.8 Gbps (BW320)
- 5 GHz: 8.6 Gbps (BW240)
- 2.4GHz: 688 Mbps (BW40)
- Antenna gain:
- 6 GHz: 6 dBi
- 5 GHz: 6 dBi
- 2.4GHz: 4 dBi
- Max. TX power:
- 6 GHz: 24 dBm
- 5 GHz: 29 dBm
- 2.4GHz: 23 dBm
- Max. BSSIDs: 8 per radio
- Supported data rates:
- 802.11be (WiFi 7):
- 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
- 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
- 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
- 802.11be (WiFi 7):
Hardware
- Max. Power Consumption: 29W
- Supported Voltage Range: 42.5–57V DC

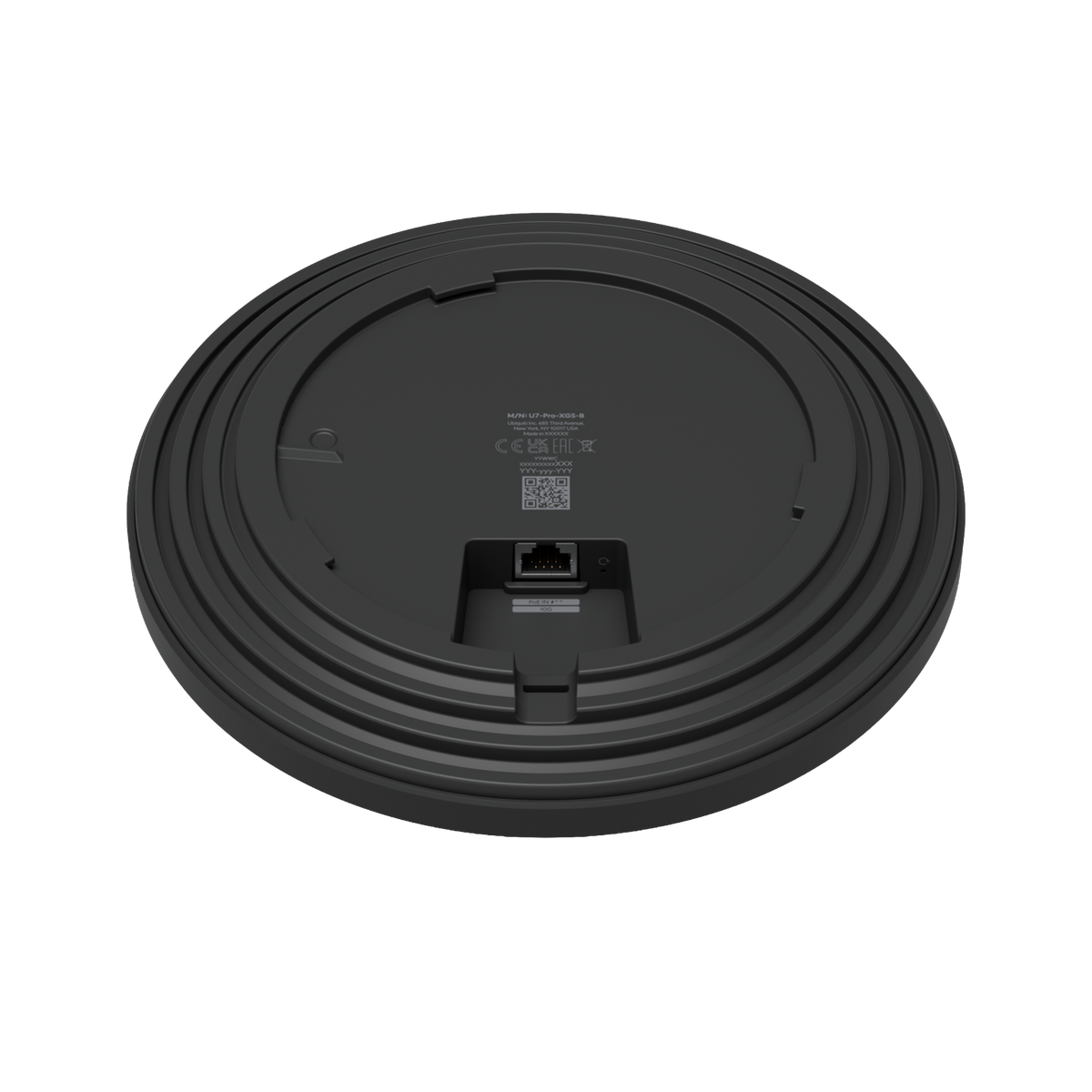

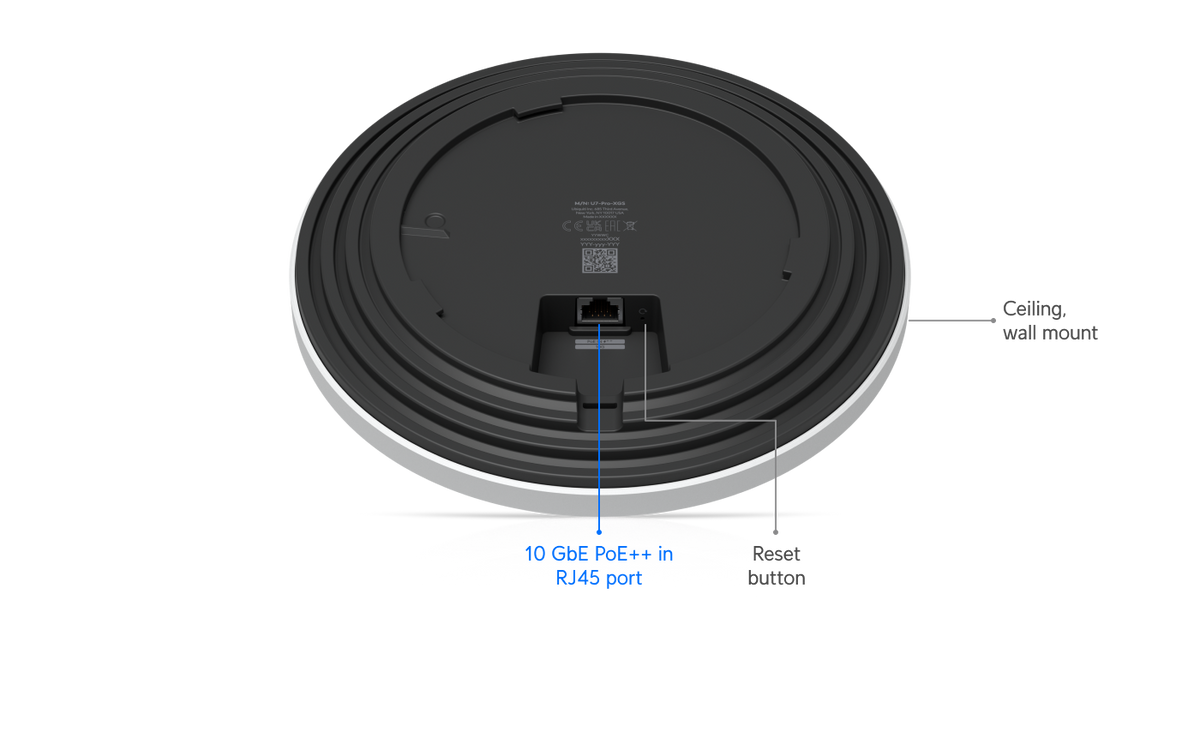

- Networking Interface: (1) 10 GbE RJ45 port
- Weight: 800 g (1.8 lb)
- Management: Ethernet
- Enclosure Material: UV-stabilised polycarbonate, aluminium alloy
- Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
- LEDs:
- System: White/Blue
- Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
- Operating Frequency:
- US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8: 5925 - 7125 MHz - Worldwide:
2400 - 2483.5 MHz
5150 - 5850 MHz
5925 - 7125 MHz
- US/CA:
- Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- NDAA Compliant: Yes
- Certifications: CE, FCC, IC, Anatel: 05123-25-08356
Software
- Application Requirements:
- UniFi Network:
- Version 9.0.114 and later (U7 Pro XGS - White)
- Version 9.1.120 and later (U7 Pro XGS - Black)
- UniFi Network:
