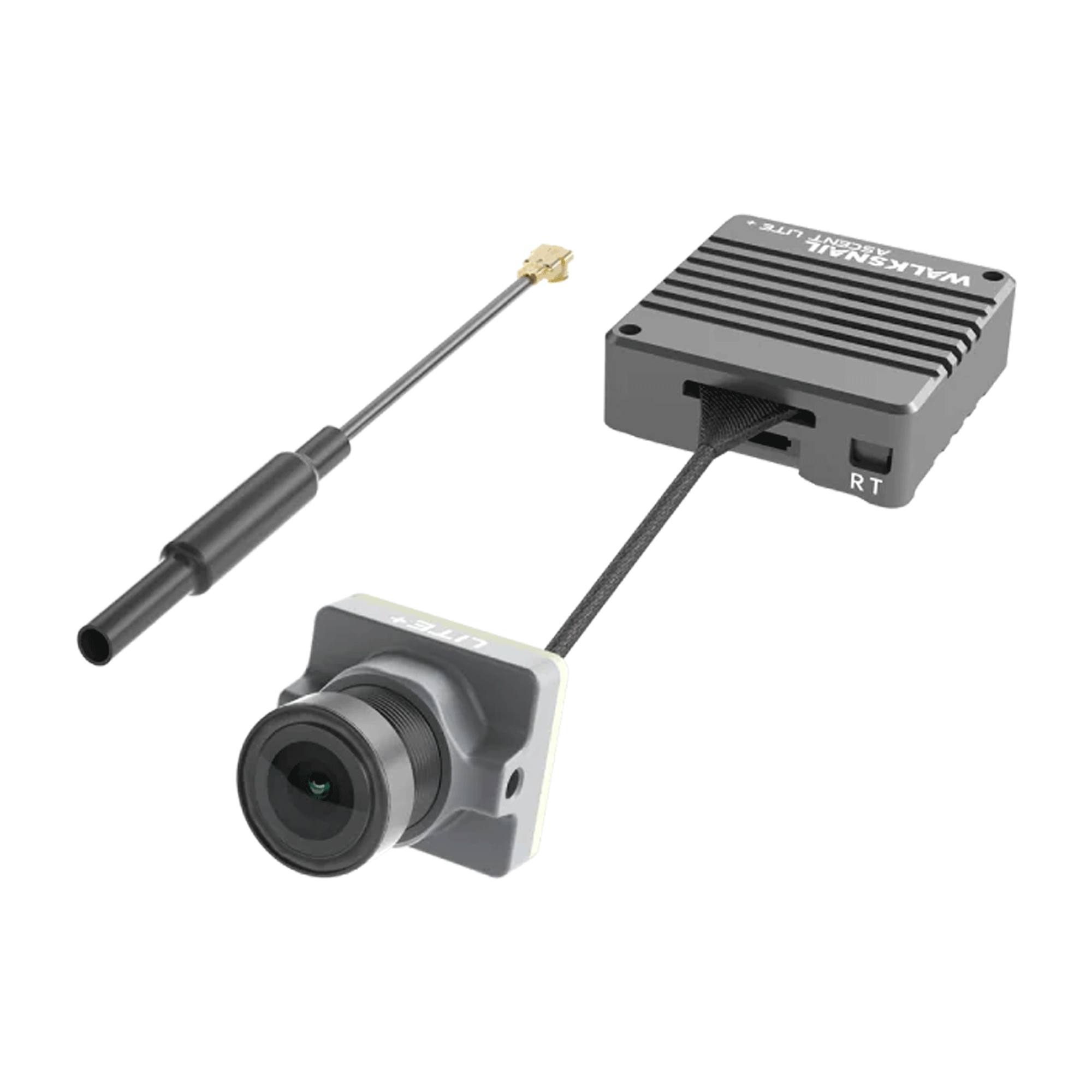

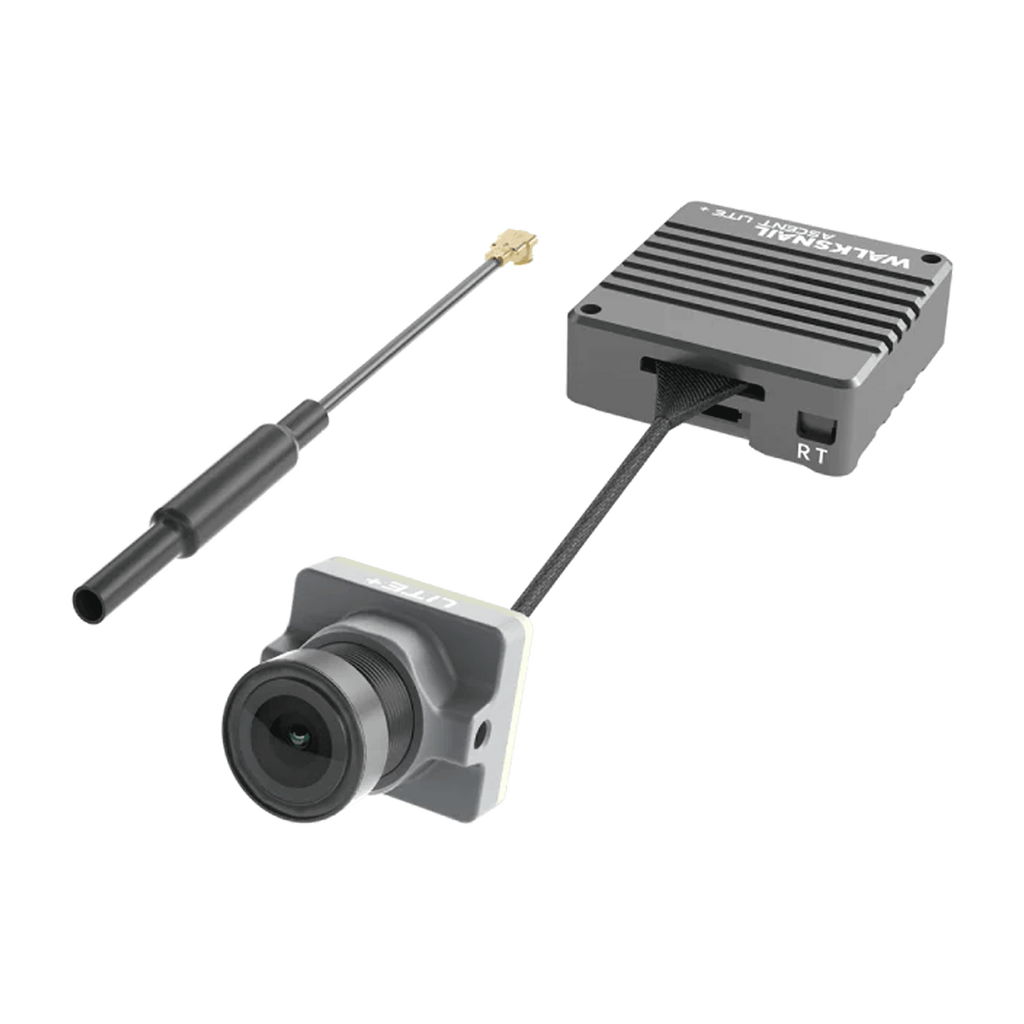

Walksnail Ascent HD Lite+ Kit
Pickup availability
1/80 Somersby falls RD, Somersby NSWProduct details
Are you looking to buy Walksnail Ascent HD Lite+ Kit in Australia?
*Ascent Lite+ works directly with Ascent goggles. For other FPV goggles, simply pair it with the Ascent VRX or Ascent VRX Pro receiver, which provides HDMI output to connect any HDMI-equipped goggles, monitors, or TVs.
Features
- Ultralight 2.75g Digital VTX: Weighing just 2.75g without the metal cover, this compact VTX delivers up to 500mW of power while keeping your FPV build light and agile.
- Built-In Live Audio: The built-in microphone captures motor and ambient sounds and transmits them in real time for a more immersive FPV experience.

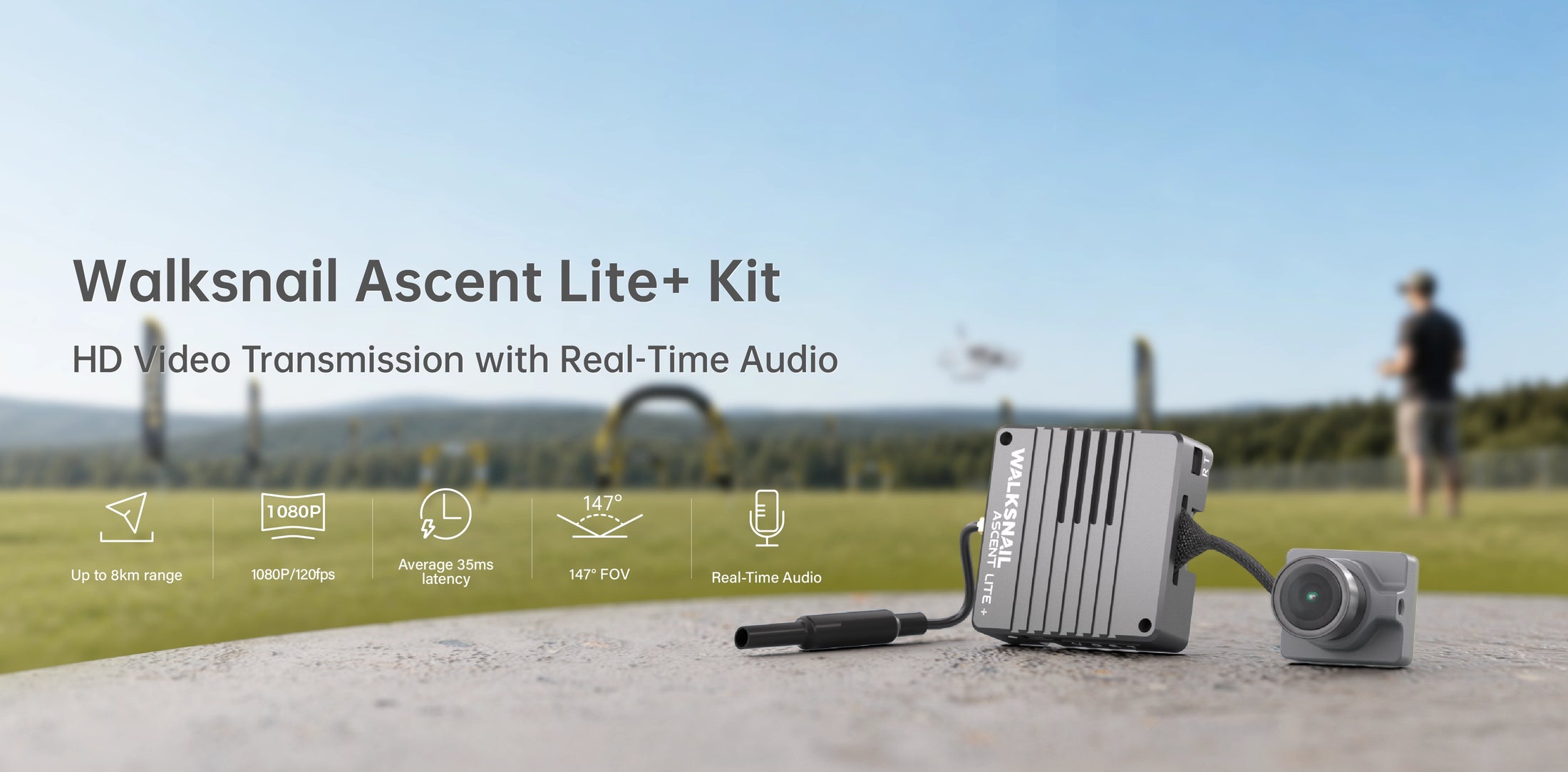

- HD 1080p/120fps Video: Enjoy 1080p video at up to 120fps with 35ms latency. The 147° wide-angle 16:9 view delivers an immersive perspective for racing and freestyle.
- Extended-Range Smart Transmission: Transmit HD video up to 8km with automatic frequency hopping to reduce interference and maintain a stable video feed.
- Natural Head Tracking: Pair with Ascent Goggles and GM1 V2 or GM3 V2 for immersive, head-controlled camera movement.

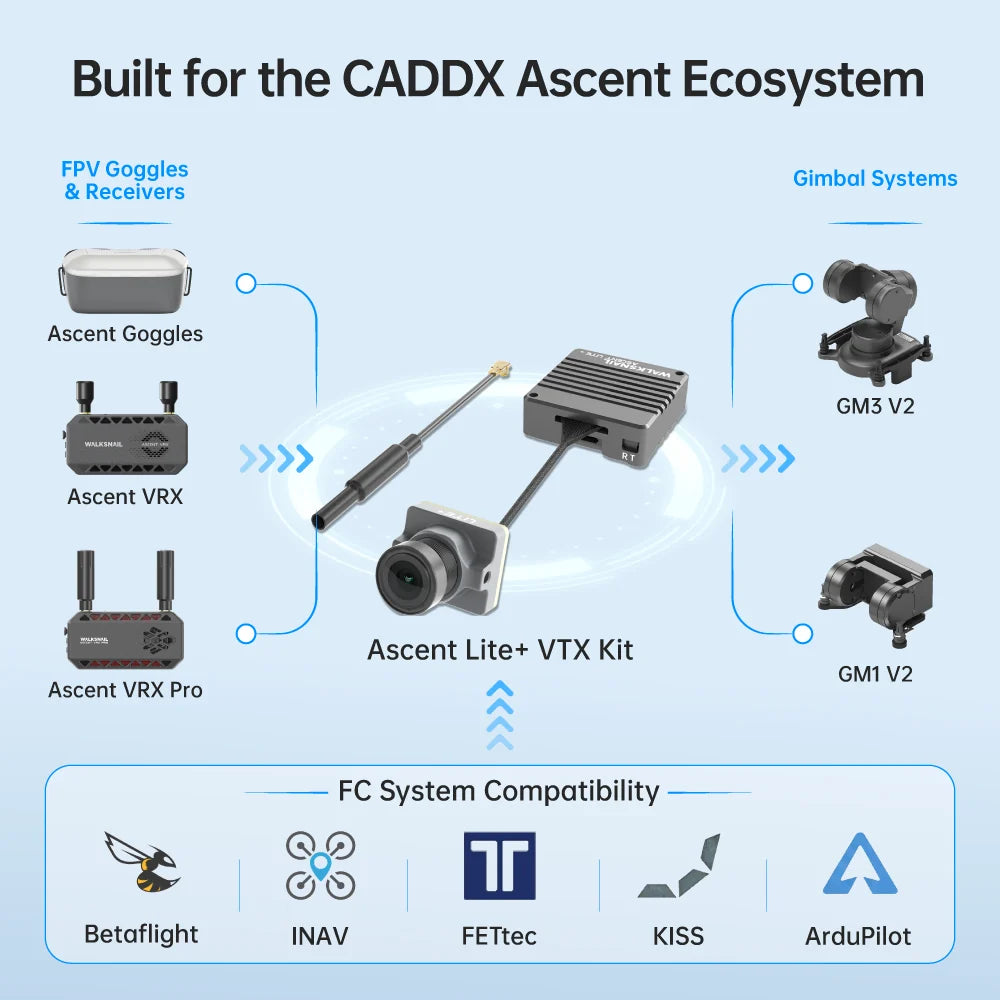

- Wide Compatibility: Compatible with Betaflight, INAV, FETtec, KISS, and ArduPilot. Pair it with the Ascent VRX for HDMI output to compatible FPV goggles, monitors, or TVs.

Powerful. Secure. Smart



Built-In Audio Transmission
The built-in microphone captures motor, propeller, and ambient sounds and transmits them in real time for a more immersive FPV experience. Compatible receiving devices can record audio and video in sync, reducing the need for post-dubbing

Up to 8km of HD Video Transmission
Under ideal conditions, Ascent Lite+ supports HD video transmission at distances of up to 8km, providing a stable digital FPV link for long-range exploration

Head Tracking Made Natural
Compatible with GM1 V2 and GM3 V2 gimbals, Ascent Lite+ supports head tracking for natural camera control and a more immersive FPV experience

Lightweight. Simple. Versatile.



Aerial Cruising
Smooth, immersive views from above
Road Cruising
Smooth, immersive views from above
Freestyle
Fast, agile, and ready for action
Built for More FPV Platforms
A versatile digital FPV system for RC cars, RC boats, FPV drones, and fixed-wing aircraft

Specifications
- Name: Ascent Lite+ VTX
- Communication Frequency: 5.730-5.815GHz
- Transmit Power (EIRP): FCC/SRRC:≤27dBm; CE:<14dBm
- I/O Interface: 3
- Wide Voltage Input: 3V~12.6V
Includes
- 1x Ascent Lite+
- 1x Accessory Pack
- 1x Quick Start Guide
