Aikon F7 Mini HD 20x20 V3 Flight Controller

Aikon F7 Mini V3 20x20 BMI270 Flight Controller

$109.95 AUD
Skip to product information
Aikon F7 Mini HD 20x20 V3 Flight Controller

Aikon F7 Mini V3 20x20 BMI270 Flight Controller

$109.95 AUD
GST included
Out of stock
Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.
Unavailable for pickup
SKU: 17603
Shipping Weight: 20g
W/H: W-02-C-17
Add to Wishlist


Are you looking to buy an Aikon F7 Mini v3 Flight Controller with BMI270 in Australia?

The Aikon F7 Mini HD 20x20 V3 Flight Controller is a new generation flight controller designed specifically to work with Aikon 4-in-1 ESCs. They've packed all the greatest features including HD compatibility into one seamless flight experience.

What features make the F7 amazing?

  • 216mhz F7 processor
  • 5 Software invertible hardware UARTS
  • Onboard OSD and blackbox

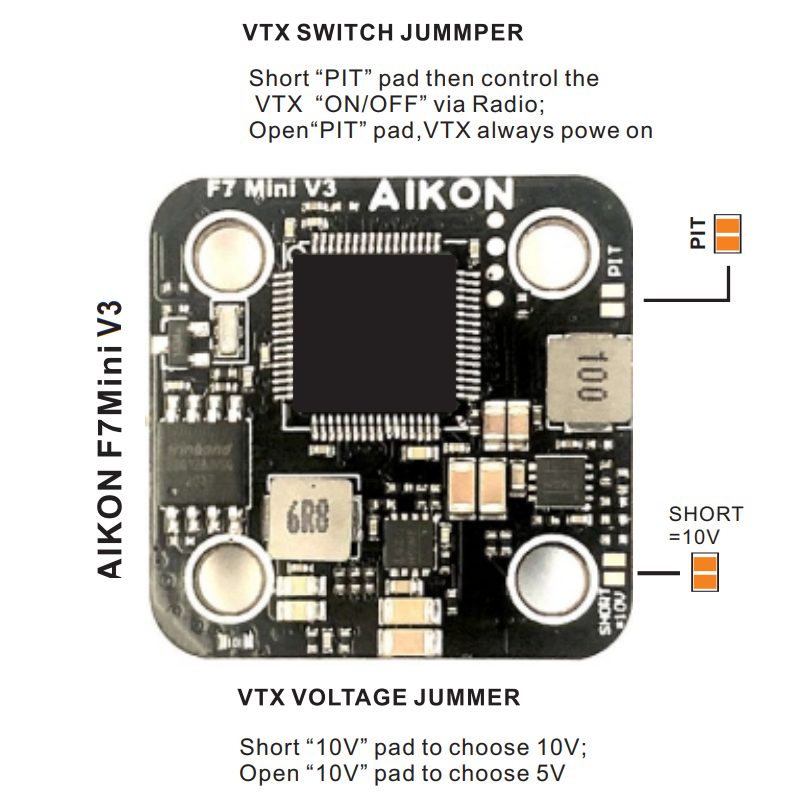

  • Software controlled VTX power switch
  • LED outputs
  • Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon 4-in-1 ESCs
  • On-board voltage regulator up to 6S

Specifications

  • MCU: STM32F722RET6
  • Gyro: BMI270
  • Flash: 16Mb on board
  • OSD: AT7456E
  • Input: 12-50V (3-6 Cell Lipo)
  • Bec: 5V@2A
  • Firmware: AIKON F7
  • Size(mm): 30x30x5
  • Weight(g): 5.4

Features:

  • STM32F77RET6 MCU
  • BMI270 Gyro
  • DJI Air Unit Port: YES
  • Built in OSD (AT7456)
  • Built in 16mb Flash for DATA logging
  • Wide range of voltage input (50V)
  • 5 UARTS
  • VTX Switch
  • Cam controller

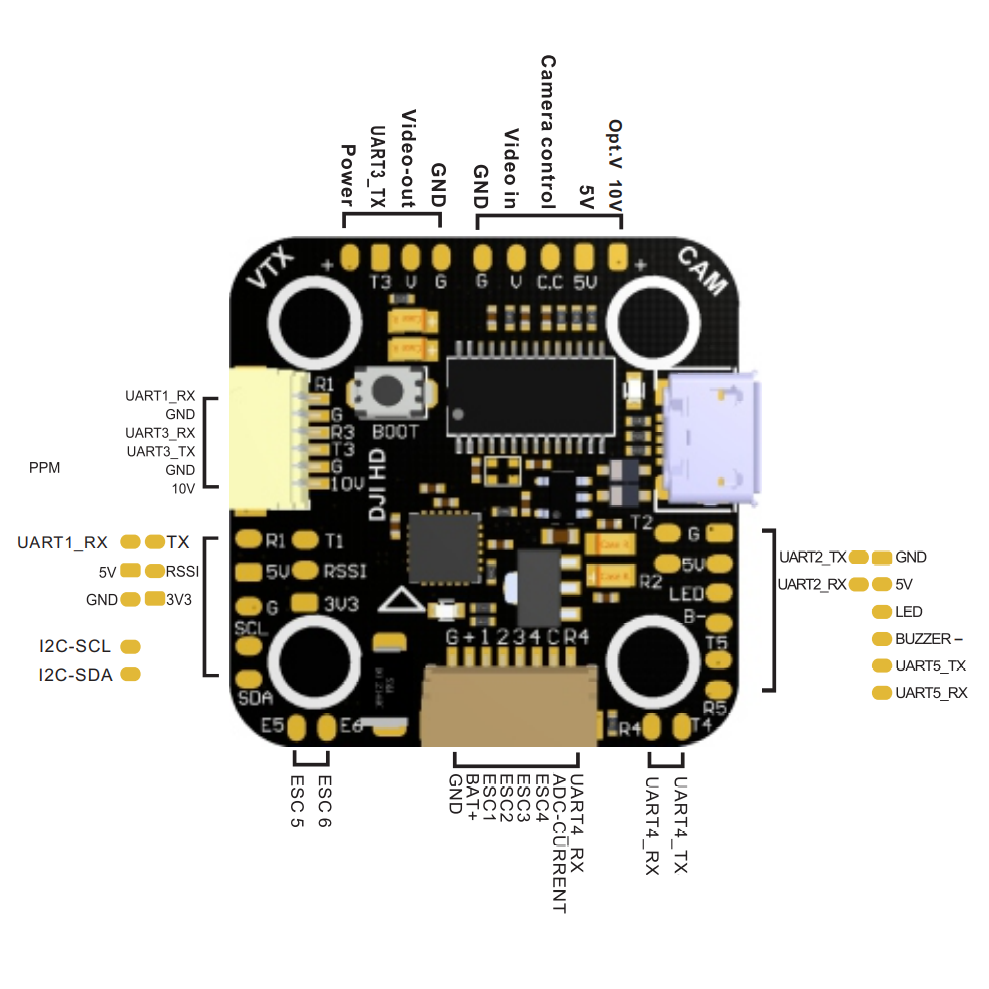

  • l2c LED-STRIP, BUZZER, ESC5, ESC6, PPM, RSSI
