Are you looking to buy iflight BLITZ Whoop F7 AIO ICM42688 Flight Controller in Australia?

This setup includes a plug-and-play DJI HD VTX connector, eliminating the need for soldering, and supports multiple protocols including Smartaudio and IRC Tramp VTX. Key specs include an STM32F722 MCU, ICM42688 gyro.

Features

  • Improved circuit design, better components and lower electrical noise!
  • DJI HD VTX Connector (Plug-and-Play / No soldering required)
  • FC indicator LEDs for visual debugging
  • With LC filter

Specifications

  • MCU: STM32 F722
  • Gyro: ICM42688
  • Barometer: DPS310
  • OSD Chip: AT7456E
  • Flash: 32MB (Blackbox flash)
  • UARTS: 6
  • Motor outputs: 4x (SH1.0 connector)
  • I2C serial: SDA / SLA pads
  • Smartaudio / IRC Tramp VTX protocol supported
  • LED controller: Yes
  • Beeper pad: Yes
  • Firmware target: IFRC-IFLIGHT_BLITZ_F722
  • Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

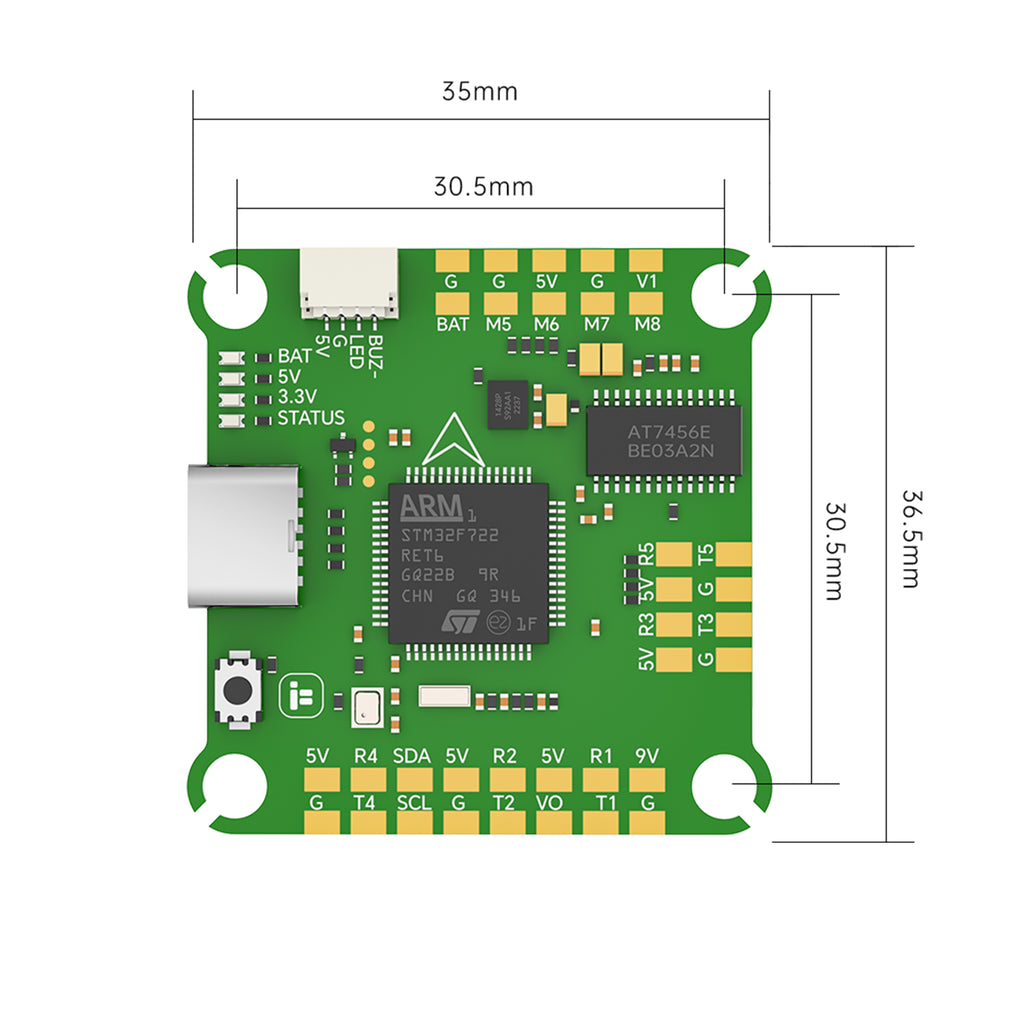

  • Dimensions: 36.5*35 mm
  • Weight: 7.8g
  • BEC:  5V 2.5A / 9V 2A

Included

  • 1 x BLITZ F7 V1.2 Flight Controller
