Are you looking to buy Runcam Speedy Bee F7 AIO Flight Controller in Australia?



F7 AIO Flight Controller
New layout New Features
F7 AIO Flight Controller
Support 4in1 ESC
8 PIN connector or Solder Pads Two connection methods
F7 AIO Flight Controller
Better support for high currents
5*5.0V/1*9.0V Output(Max.2.5A)
F7 AIO Flight Controller
F7 AIO Flight Controller
F7 AIO Flight Controller

BLE Module Integrated 0 configuration

Setting the FC parameters via mobile device
iOS 10.0+：iPhone4S, iPad 3rd Gen and later  APP Store
Android 4.3+:  Google Play, Download
＊Throttle Armed, the Bluetooth module will deactivate automatically
Throttle Disarmed, the Bluetooth module will activate automatically
Wiring Guide
F7 AIO Flight Controller
Built-in Bluetooth Chip
Zero configuration, connect to the Speedy Bee App directly after powering on, easy to set the FC parameters
Package
F7 AIO Flight Controller
Specifications
MCU STM32F722
IMU ICM20689
Baro BMP280 (I2C)
OSD BetaFlight OSD w/ AT7456E chip
BLE Module inner connect to UART3 for remote setting with SpeedyBee App or other similar apps
BlackBox 32MB onboard dataflash
Current Sensor 200A(Scale 102)
BetaFlight Camera Control Pad Yes
Power input 3s - 6s Lipo
Power output 5V *5(Including BZ+), the maximum load current is 2.5A. 9V * 1, the maximum load current is 2.5A.
ESC power output 4 * VCC output
UART UART Pads * 4(UART1, UART2, UART4, UART5)
RSSI input RSSI input solder pad
SmartPort Use Softserial1 to support SmartPort
Support Flight Controller Firmware Betaflightbeta, iNav(Coming soon)
I2C Used for external Magnetometer, Sonar, etc.
Buzzer BZ+ and BZ- pad used for 5V Buzzer
ESC signal S1 - S5
LED pin Used for WS2812 LED
Boot button Used to easy enter DFU mode
Weight ≈8.8g

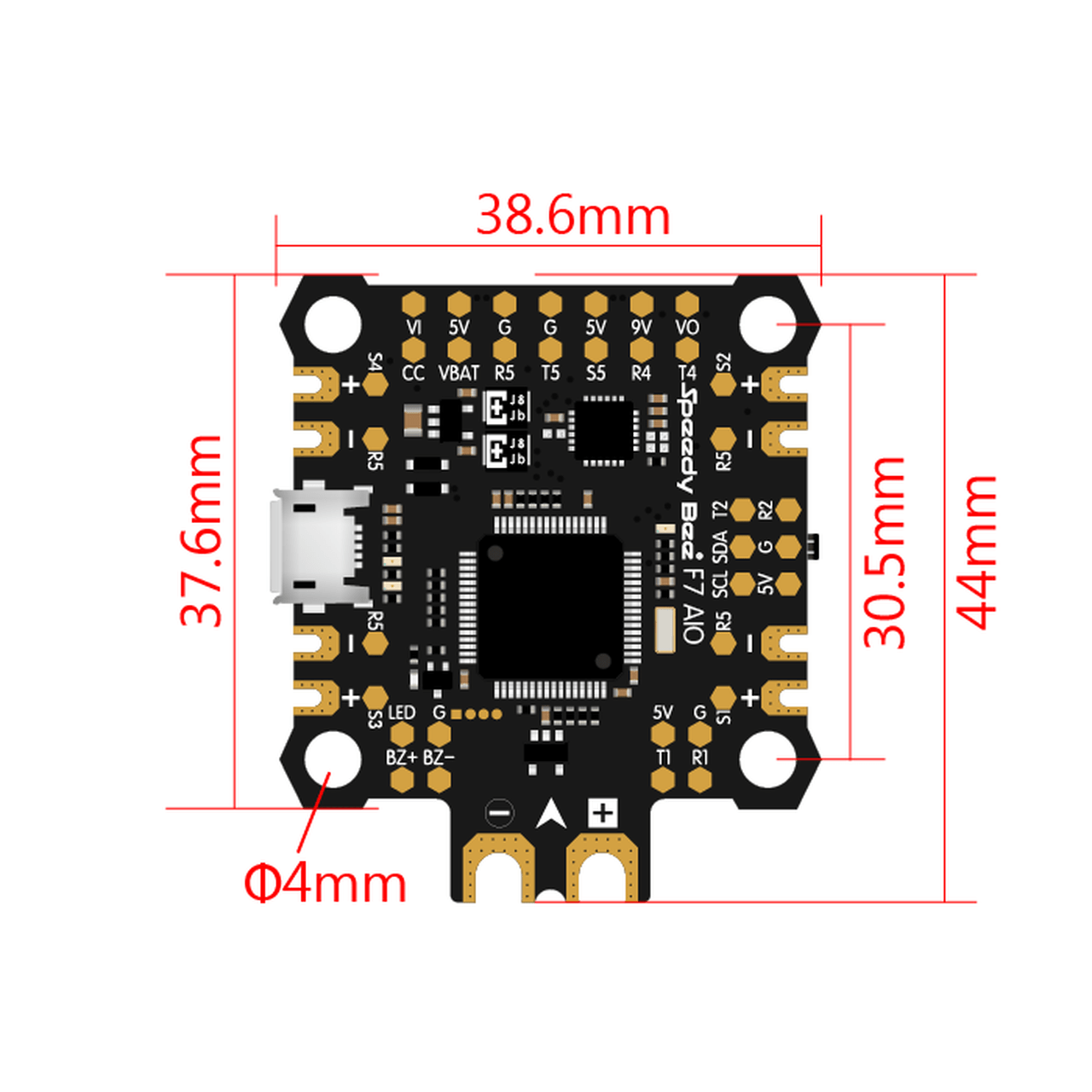

Dimension 36.5*44*7mm
