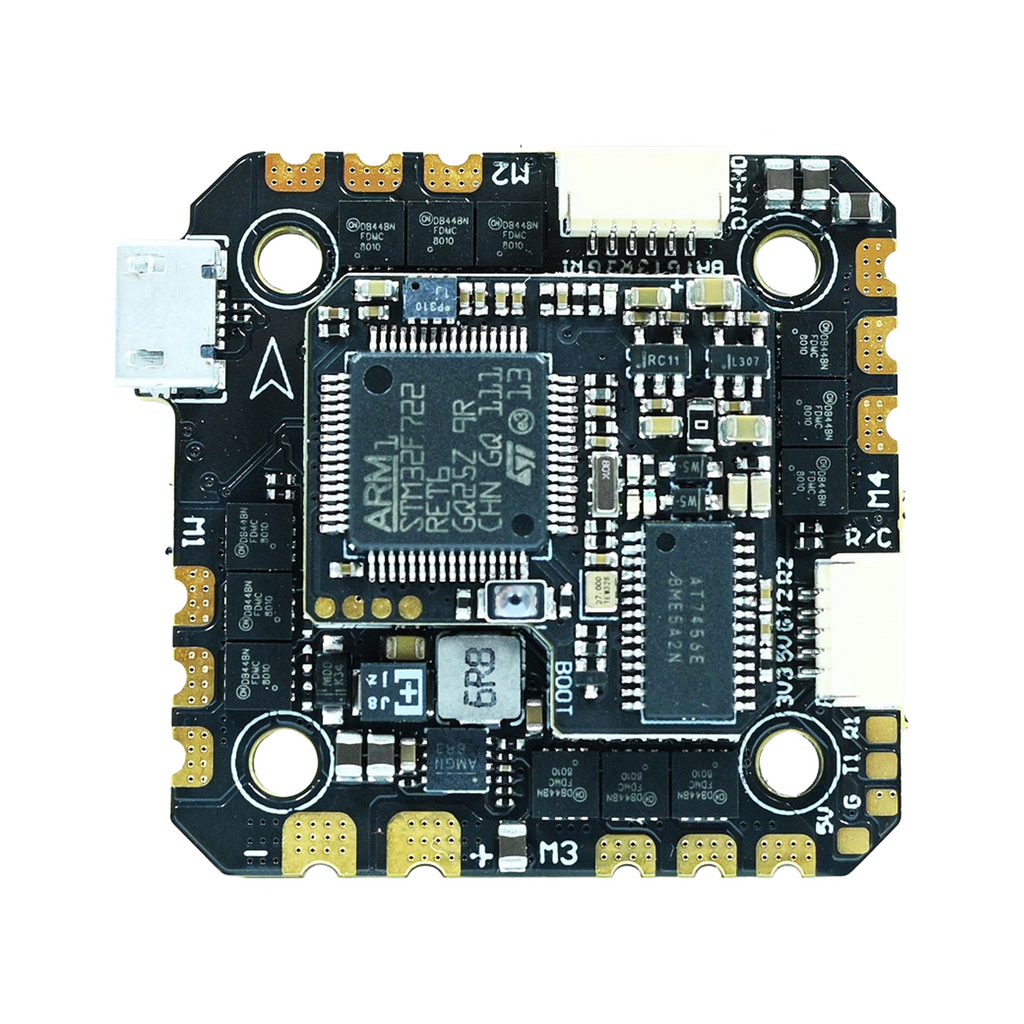

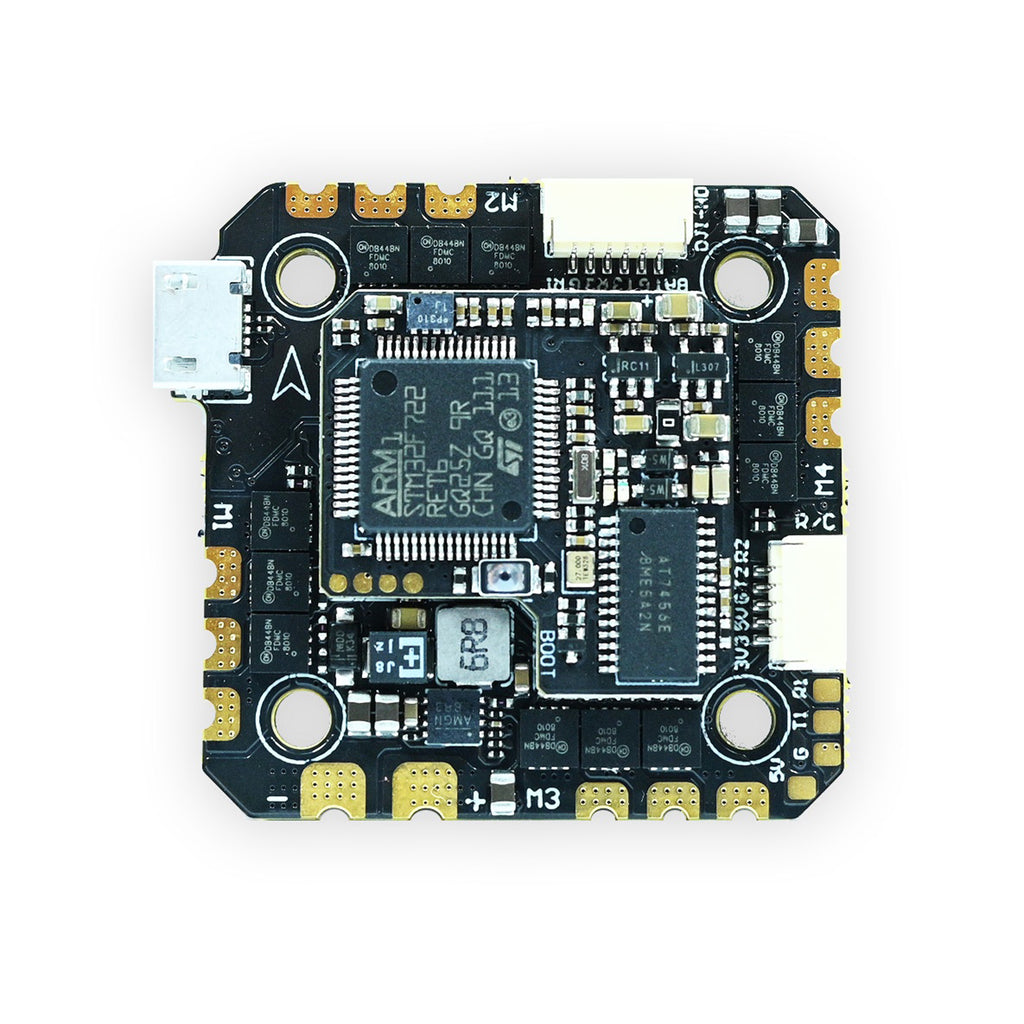

Aikon F7 Mini 45A AIO 25.5x25.5mm BMI270 Flight Controller

Name: Aikon F7 Mini 45A AIO 25.5x25.5mm BMI270 Flight Controller
Brand: Aikon
SKU: 25505
Price: 179.95 AUD
Availability: OutOfStock

$179.95 AUD

GST included

Out of stock

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Pickup availability

1/80 Somersby falls RD, Somersby NSW

Unavailable for pickup

SKU: 25505

Shipping Weight: 50g

W/H: T-05-E-05

Categories: 20x20 Flight Controller, 25.5 x25.5 AIO Flight Controllers / ESC Combos, Aikon, Aikon Flight Controller, AIO, BMI270 Gyro FPV Flight Controllers, Flight Controllers

Tags: 20x20, 20x20 Flight Controllers, 25.5xx25.5, BMI270, Flight Controller

Add to Wishlist

Why buy from Phaser FPV?

Dependable — Phaser started in 2012. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy an Aikonn F7 Mini AIO 45A Flight Controller in Australia?

The Aikon flight controller is a new generation flight controller and ESC combination specifically designed for cinewhoops and other high-current applications. We've packed all the greatest features into one seamless flight experience.

What makes the Aikon AIO Mini amazing?

216mhz F7 processor
Idependent FC and ESC PCBs for low noise
5 Software invertible hardware UARTS
Onboard OSD and blackbox
Software controlled VTX power switch (assigned to USER1 mode by default)
Connectors for DJI-HD and RC link
LED and buzzer outputs (LED pad doubles as PPM)
On-board high overhead voltage regulators rated up to 6S (50v peak to handle voltage spikes)
10v 1.5A voltage regulator for DJI HD system
3.3mm high current MOSFETs.

Aikon F7 Mini AIO specifications

Battery	3-6s
Mount Holes	25.5*25.5mm
Flight Control Firmware	Betaflight AIKONF7 Target
MCU	STM32F722
IMU	BMI270 (interrupt pin connected)
Barometer	DSP310
Blackbox	SPI 16MB
ESC Firmware	BLHeli_32
Constant Current	45A
Burst Current	55A
Current Sensor Scale	200
Weight	14.5g
