Aikon F7 Mini V3 20x20 MPU6000 Flight Controller
Sale price
$79.47 AUD
Regular price
$104.95 AUD
Save 24%
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup available
1/80 Somersby falls RD, Somersby NSWUsually ready in 2 hours
Product details
SKU:
29476
Shipping Weight:
40g
W/H:
W-03-C-01
0 Hand-picked accessories
Compatible options selected by our team
Are you looking to buy an Aikon F7 Mini v3 Flight Controller with MPU6000 in Australia?

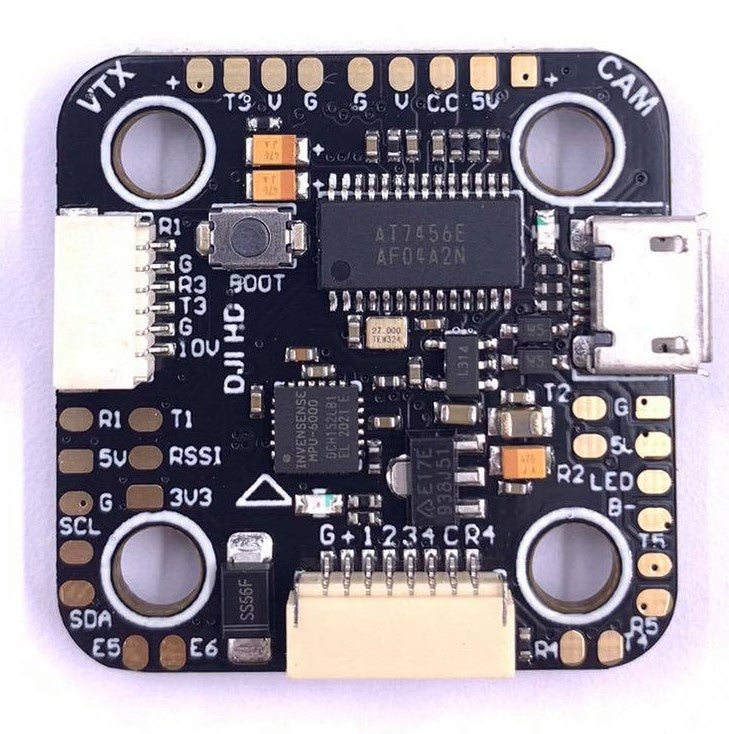

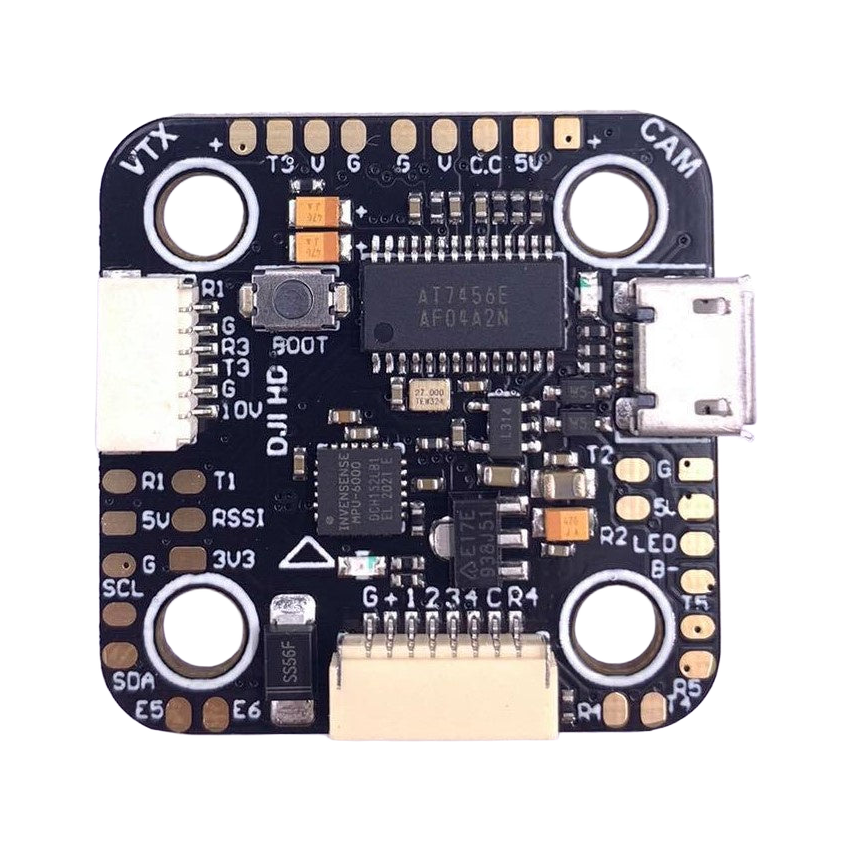

The Aikon F7 Mini HD 20x20 V3 Flight Controller is a new generation flight controller designed specifically to work with Aikon 4-in-1 ESCs. They've packed all the greatest features including HD compatibility into one seamless flight experience.

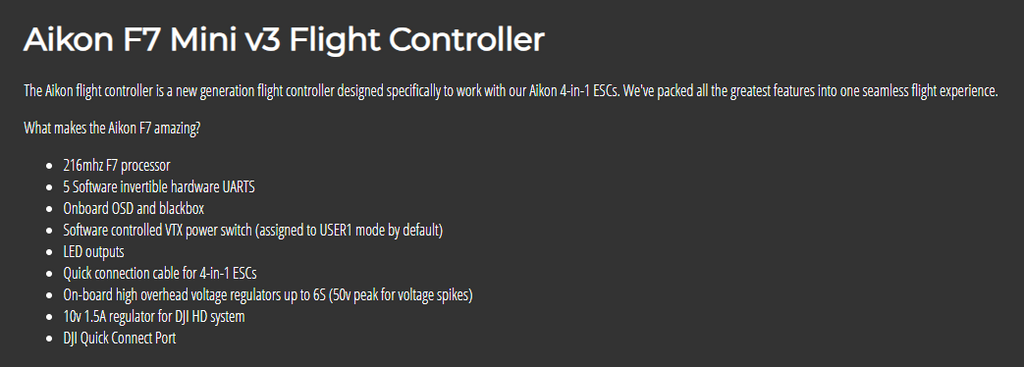

What features make the F7 amazing?
- 216mhz F7 processor
- 5 Software invertible hardware UARTS
- Onboard OSD and blackbox
- Software controlled VTX power switch
- LED outputs
- Quick connection cable for 4-in-1 ESCs, works out of the box with the Aikon 4-in-1 ESCs
- On-board voltage regulator up to 6S

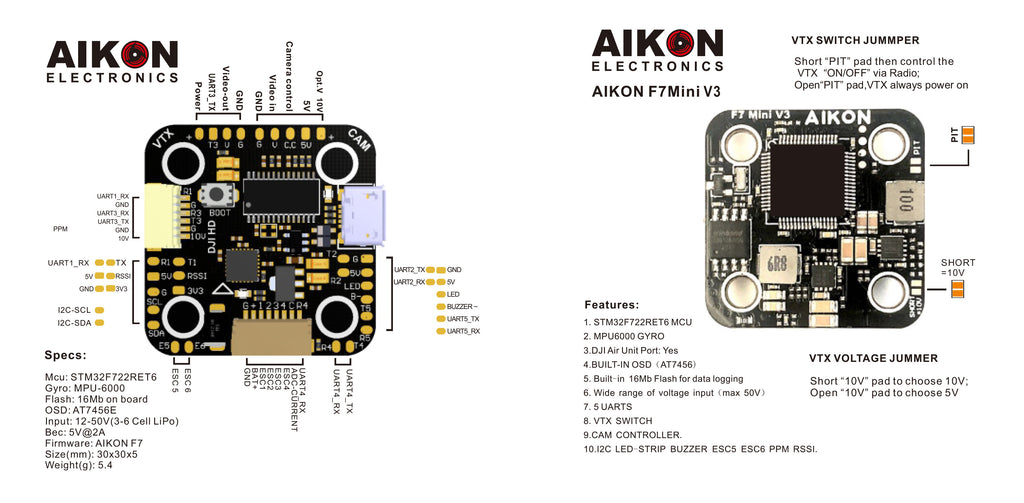

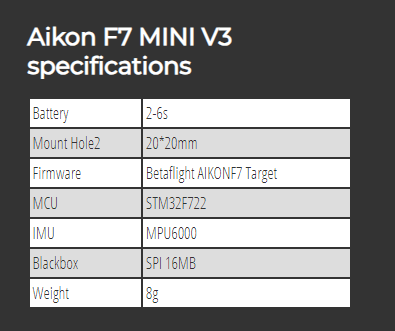

Specifications
- MCU: STM32F722RET6
- Gyro: MPU6000
- Flash: 16Mb on board
- OSD: AT7456E
- Input: 12-50V (3-6 Cell Lipo)
- Bec: 5V@2A
- Firmware: AIKON F7
- Size(mm): 30x30x5
- Weight(g): 5.4
Features:
- STM32F77RET6 MCU
- BMI270 Gyro
- DJI Air Unit Port: YES
- Built in OSD (AT7456)
- Built in 16mb Flash for DATA logging
- Wide range of voltage input (50V)
- 5 UARTS
- VTX Switch
- Cam controller
- l2c LED-STRIP, BUZZER, ESC5, ESC6, PPM, RSSI
