Matek AP_PERIPH CAN RC Input Adapter, CAN-L4-RC

Are you looking to buy an AP_PERIPH CAN RC Input Adapter, CAN-L4-RC in Australia?

• CAN-L4-RC is an Adapter Node based on ArudPilot AP_Periph firmware.
• Using this adapter to turn Serial receiver into CAN receiver.

Specifications

• MCU: STM32L431xC, 256KB Flash
• 1x CAN, DroneCAN Protocol
• 1x UART(UART3, Tx3/ Rx3)
• ST debug, SWCLK & SWDIO

LED

• • Blue, Fast blinking,  Booting
  • Blue, Slow blinking, working
• Input voltage range: 4.5~5.5V  @5V pad/pin
• Power consumption: 10mA
• Operating Temperatures: -40~85 °C

Physical

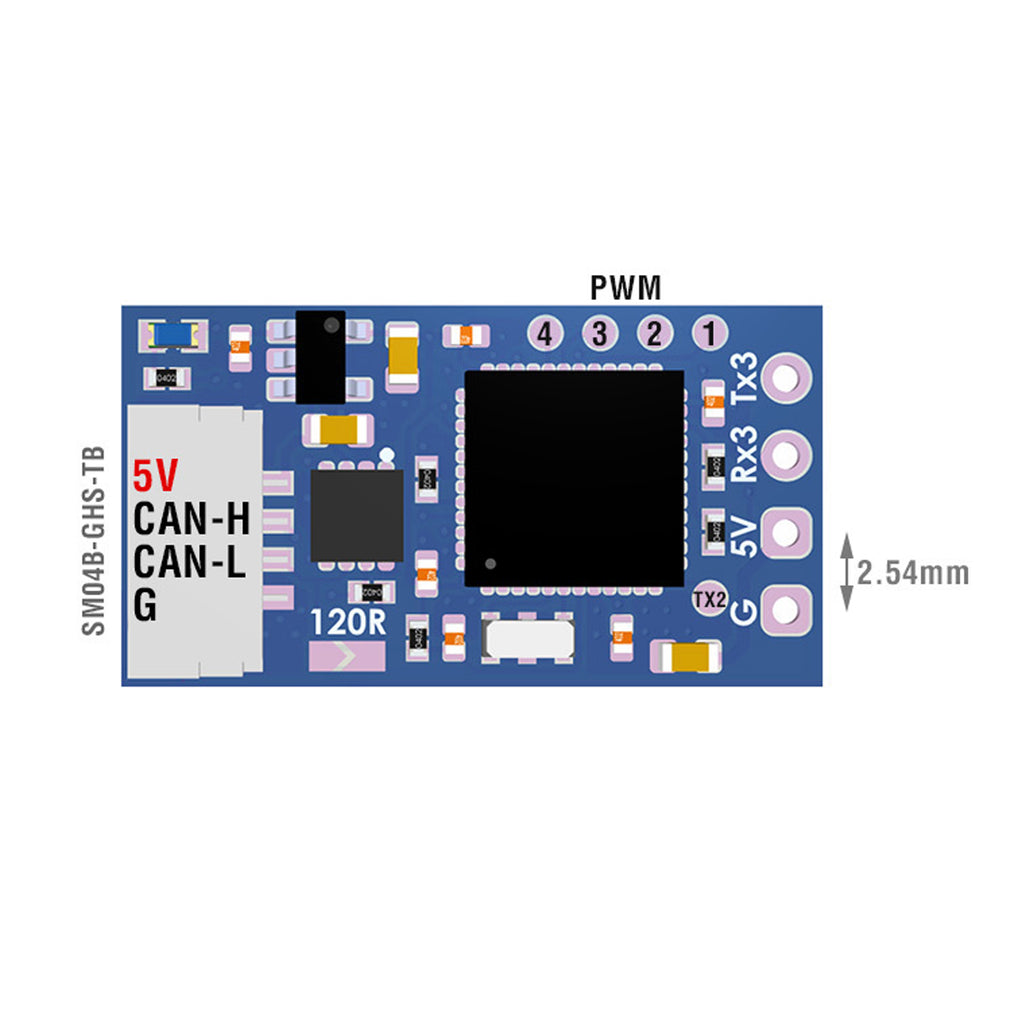

• 1x JST-GH-4P(SM04B-GHS-TB) for CAN
• 2.54mm pitch holes for UART3

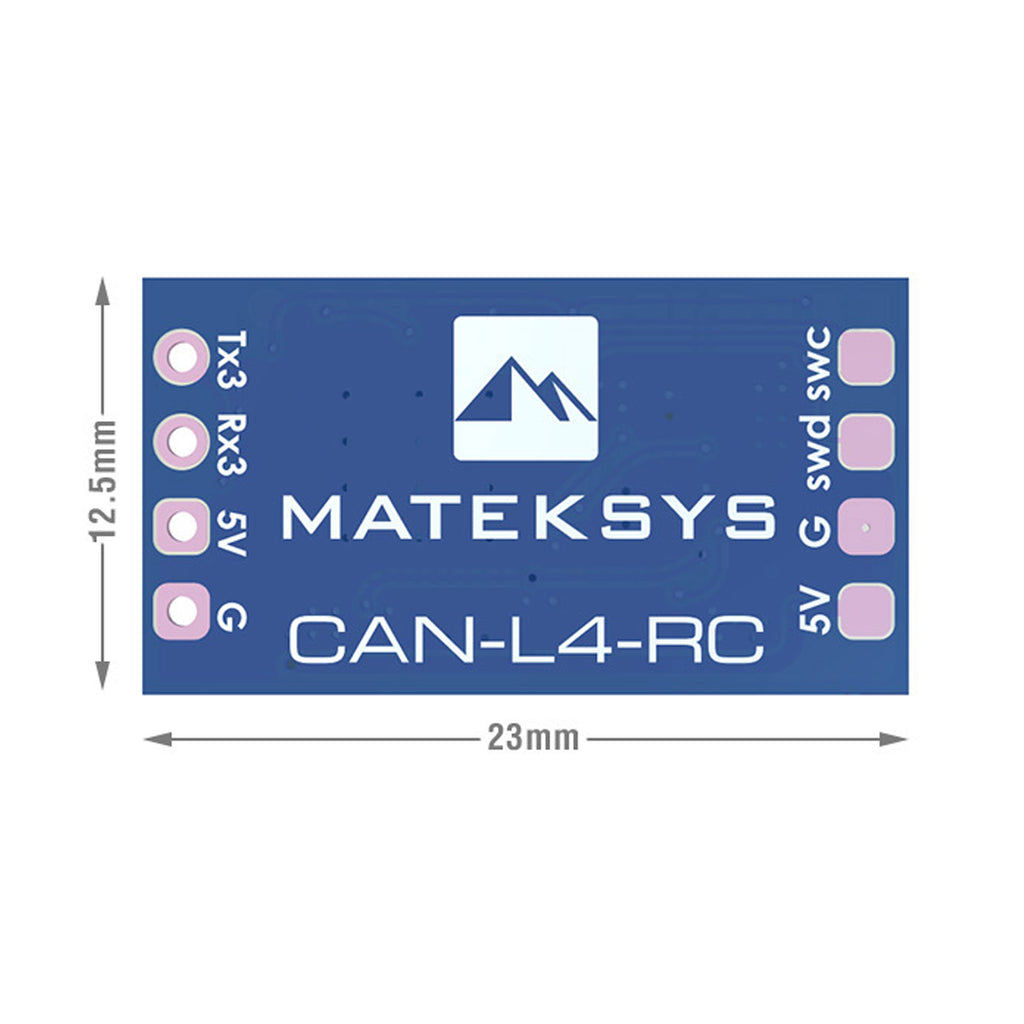

• Board Size: 23mm*12.5mm.  2.5g
• 3D file : CAN-L4-RC_STEP.zip

Included

• 1x CAN-L4-RC board
• 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
