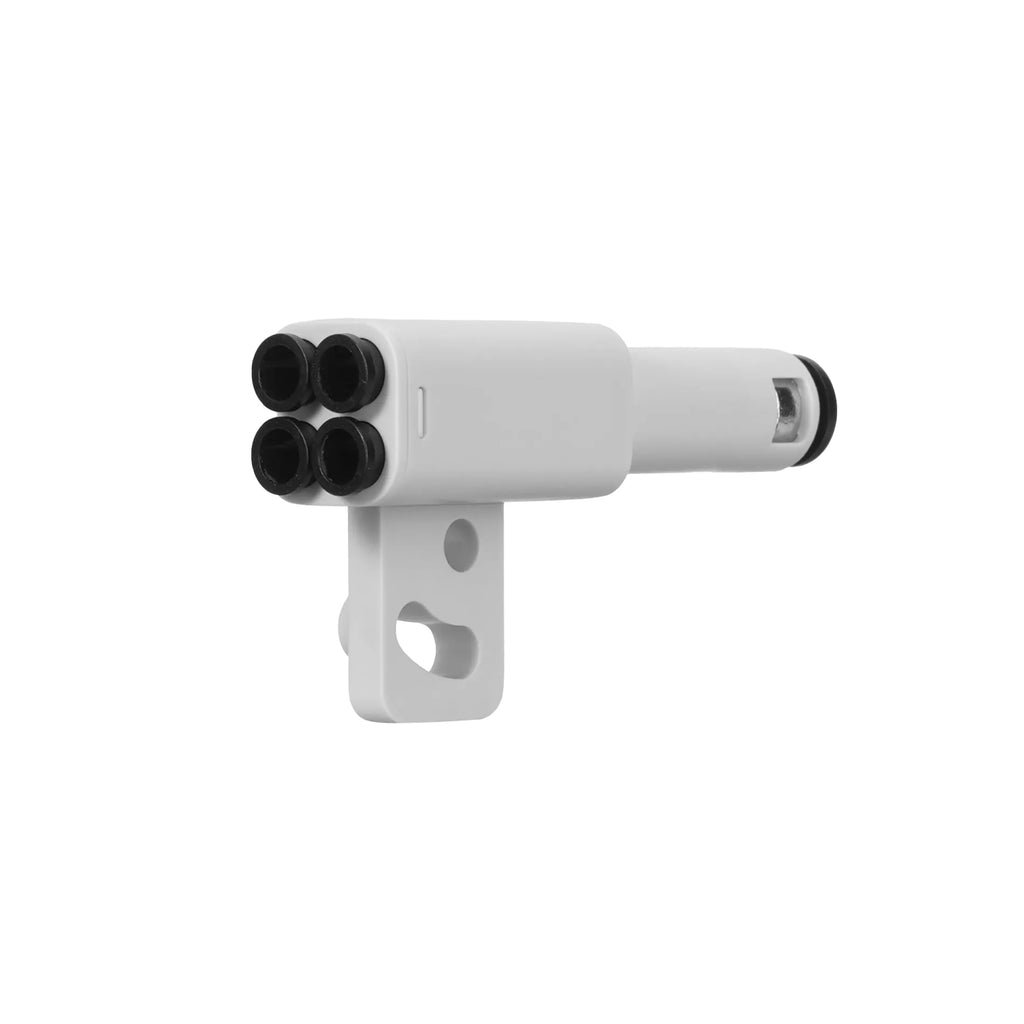

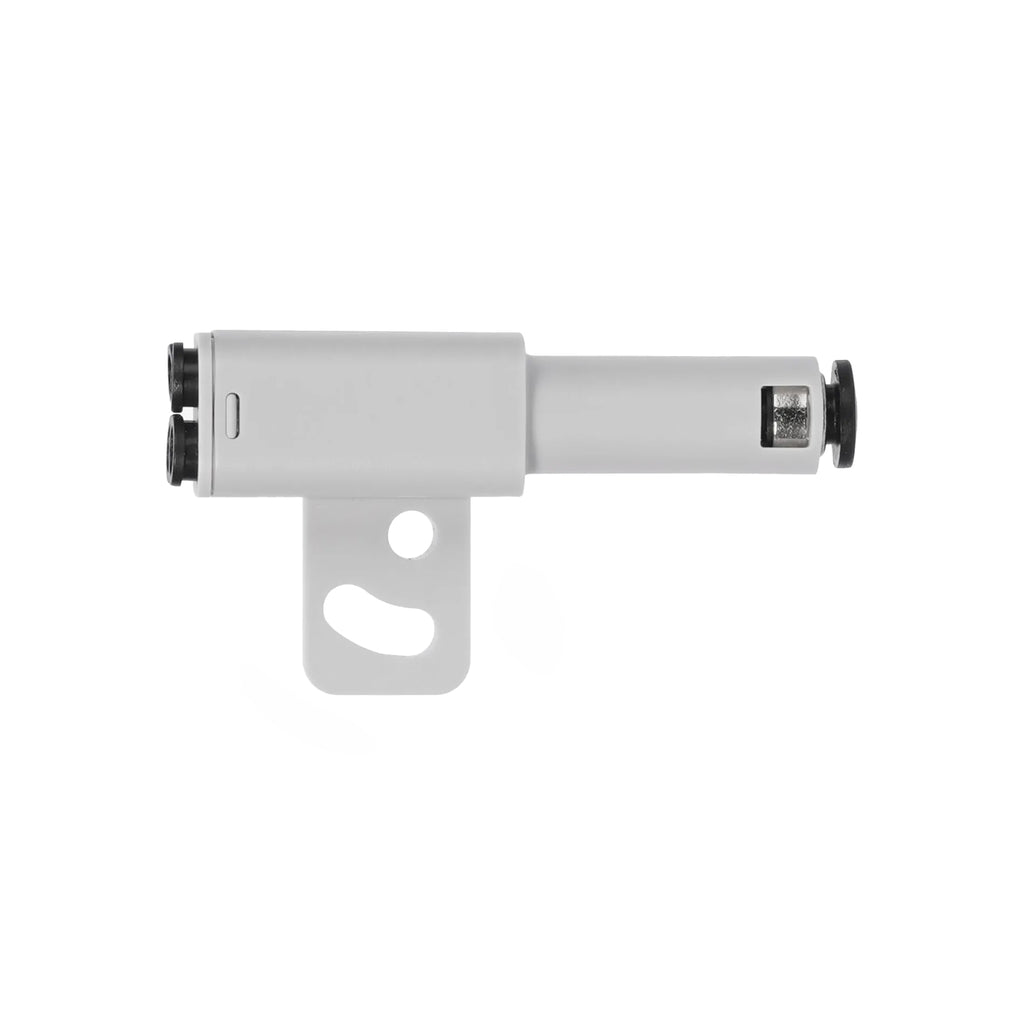

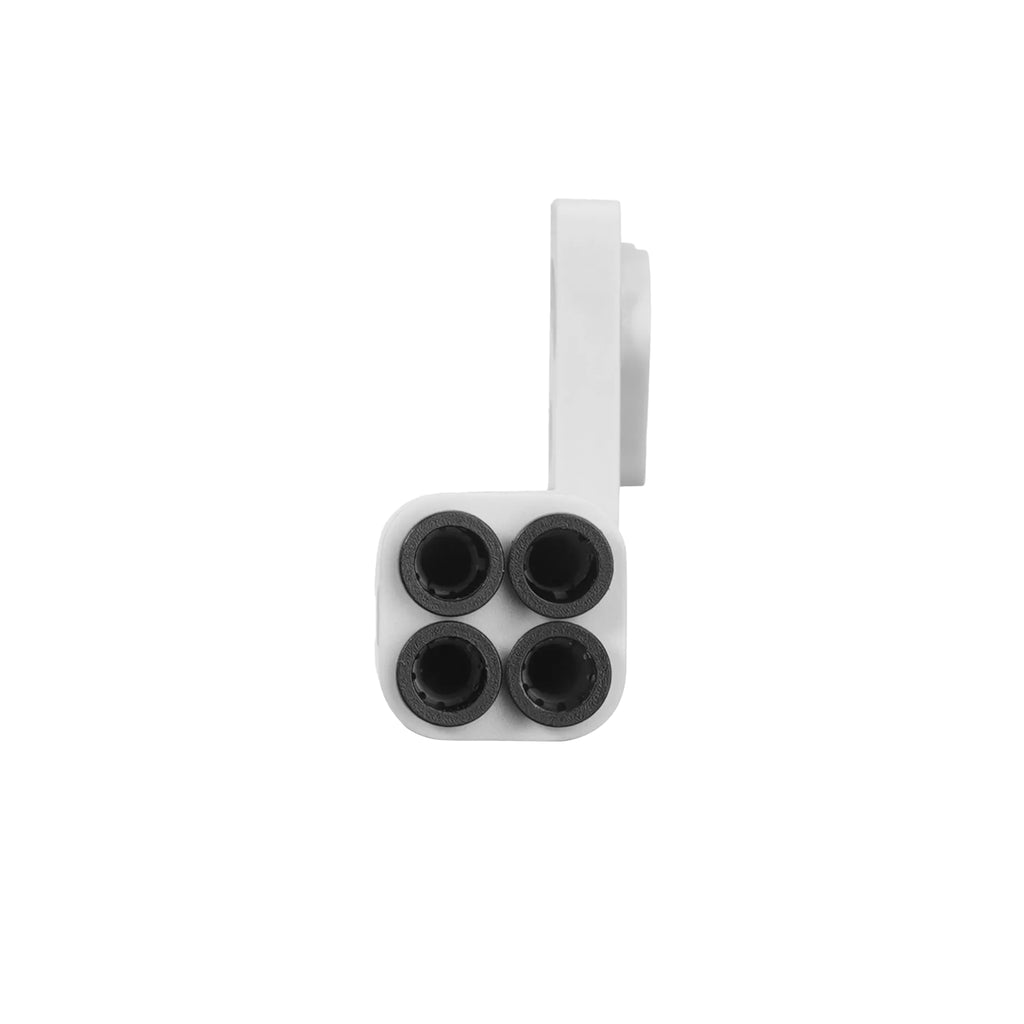

Bambu 4-in-1 PTFE Adapter

Are you looking to buy Bambu 4-in-1 PTFE Adapter in Australia?

Overview

For X1 Series/P1 Series/H2D/H2S/P2S

The Bambu 4-in-1 PTFE Adapter is an adapter used to connect the PTFE tube. Compared to the original PTFE tube connector, the 4-in-1 adapter can connect 4 feeder modules to the printer at the same time. (up to 7 different filaments: 1 AMS and other 3 filaments)
It can help users to connect the printer to AMS along with other filaments which are not compatible with AMS such as TPU 95A, Bambu PET-CF and other brands' carbon-fiber/glass-fiber contained filaments.

For H2C

The 4-in-1 PTFE Adapter can simultaneously connect four filament input modules to the printer, enabling up to 7 color of filament printing. It also allows the printer to connect both to the AMS and to filaments that are not compatible with the AMS, such as TPU95A, Ta Zhu PET-CF, and other carbon fiber or glass fiber-containing filaments.

Instructions for use

The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use, as shown in the figure below.1. When using AMS:

- Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
- Connect the PTFE tube from the buffer output to one of its IN ends. - Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.



2. When the AMS is not being used:

- Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
- Directly insert a maximum of four filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.

It is important to note that reversing connections may cause filament blockage. Therefore, it is essential to ensure that the installation direction is correct.
