Are you looking to buy a BetaFPV 1S 5A AIO Brushless ELRS Flight Controller in Australia?

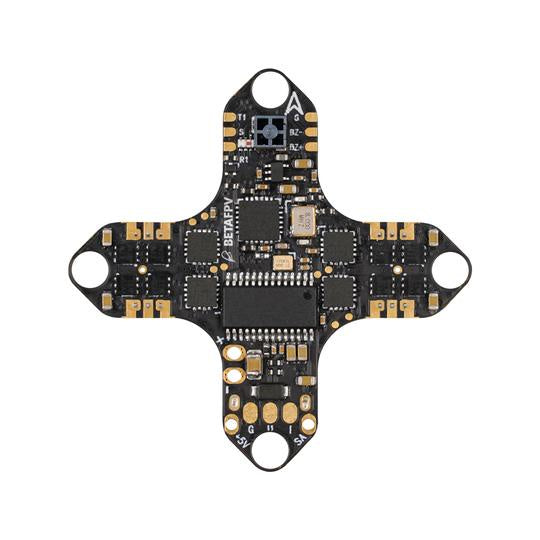

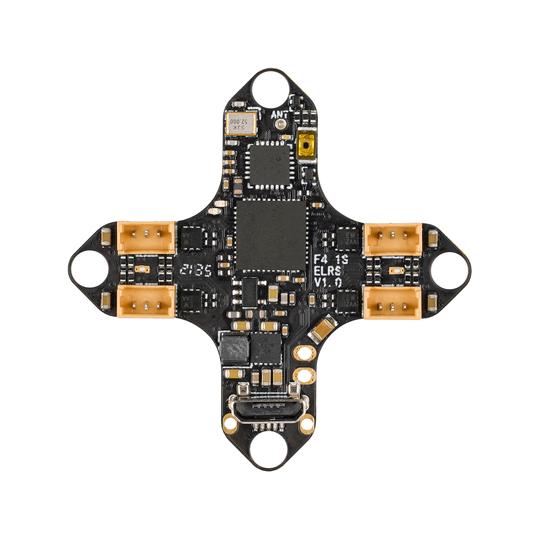

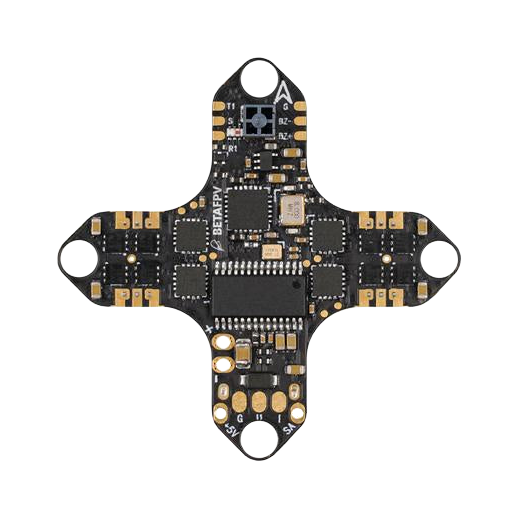

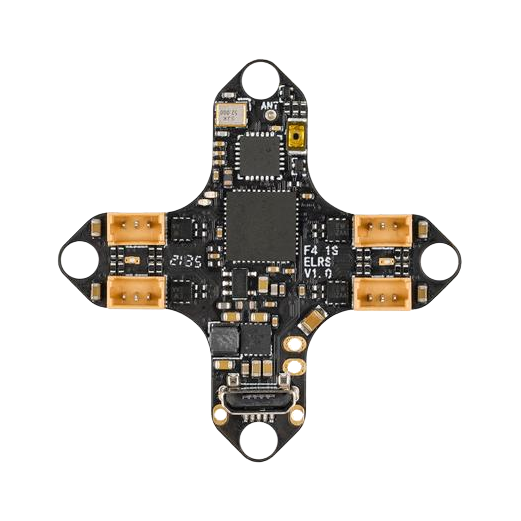

The classical ultralight F4 1S brushless FC comes back with SPI ExpressLRS 2.4G receiver.

SPECIFICATIONS OF FC

  • CPU: STM32F411CEU6 ( 100MHZ )
  • Six-Axis: ICM-20689/MPU-6000
  • Built-in Receiver: SPI ExpressLRS 2.4G
  • Receiver antenna: 2.4GHz SMD ceramic antenna
  • Size: 29mm x 29mm, fully mounting pattern compatible with the whoop frame in the current market
  • Firmware version: betaflight_4.3.0_STM32F411_norevision
  • OSD: Built-in BetaFlight OSD
  • Recommend VTX: >=200mW, like BETAFPV M03 350mW VTX or TBS Unify VTX
  • Power Cable: 55mm, with BT2.0 connector

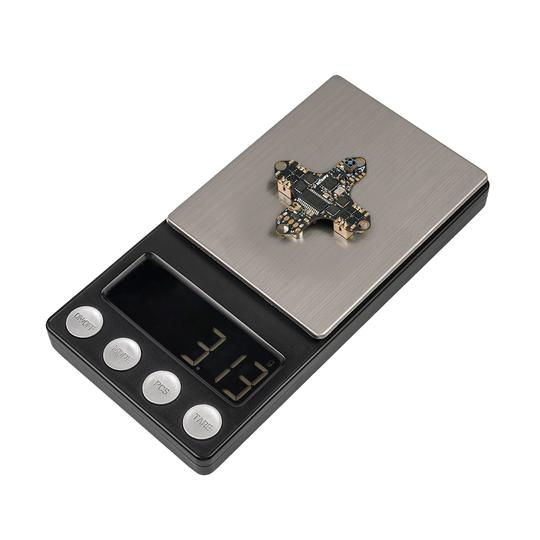

  • Weight: 3.13g (no power cable included)

SPECIFICATIONS OF ESC

  • Power supply: 1S
  • Current: 5A continuous and peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_5_48_REV16_8.HEX
  • Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

Betaflight Firmware and CLI

Since Betaflight has not yet released the official firmware that could supports the SPI ExpressLRS protocol, the current version is the Beta version. Please use the firmware and the CLI dump file below to recovery the FC board if needed. Betaflight will update to their official target soon. Please feel free to contact with us if you have any issues with this Beta version Firmware.

It is normal that there is no any option on Betaflight Configurator Receiver. As show below, the checkbox is blank.

Please change the “PID loop frequency” to “4KHZ” , sometimes it would make the SPI receiver not working correct while the value is “8KHZ”.

Download the firmware and CLI dump file for the F4 1S 5A FC (ELRS 2.4G) board.

How to Bind with Betaflight FC with SPI ExpressLRS Receiver.

More details and discussion on Github about SPI ELRS receiver.

RECOMMENDED PARTS LIST

  • Battery: BT2.0 300mAh 1S Battery
  • Frame:  Meteor65 frame / Meteor75 frame
  • Props: 31mm 4-Blades props (for 65mm frame) / 40mm 4-blades props (for 75mm frame)
  • Motors: 0603 motors / 0703 motors / 0802 motors
  • VTX: M03 25-350mW VTX

DIAGRAM

Larger motor pad for conveniencty solder directly.



    PACKAGE

    • 1 * F4 1S brushless flight controller (BT2.0 Connector)
    • 4 * M1.2x4mm screws
    • 4 * M1.4x5mm screws
    • 4 * Anti-vibration rubber dampers
