Are you looking to buy BetaFPV M01 AIO Camera 5.8G VTX V2.1 (Wired Version) in Australia?

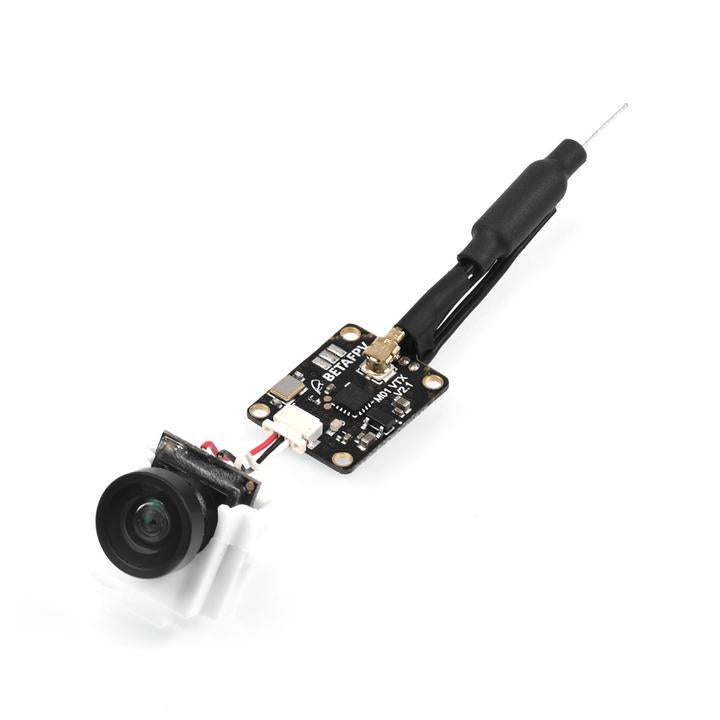

M01 AIO Camera 5.8G VTX V2.1 is upgraded into a wired version, easy to connected with the camera. With the ultra-lightweight 2.72g, it comes with a super Mini 5.8GHz FPV Transmitter, 800TVL FPV Camera and RG178 Antenna, features 6 bands and 37 channels on the 5.8GHz band with Raceband which is perfect for Pro Series and Brushed Whoop Drone.

FEATURE

  • Lighter than Z02 AIO Camera VTXperfect for Micro Drone
  • Suitable for Pro Series and Brushed Whoop Drone
  • 30° tilt Camera Mounting hardware is provided to suit your preference

    SPECIFICATION

    • Item: M01 Camera AIO VTX V2.1
    • TVL: 600TVL
    • FOV: H:120°/V:100°
    • Video System: NTSC
    • Horizontal Resolution: 640X480 1/4”
    • Output power: 25mW
    • Supply Voltage: 5V
    • Size: 18*14*4.5mm(VTX)

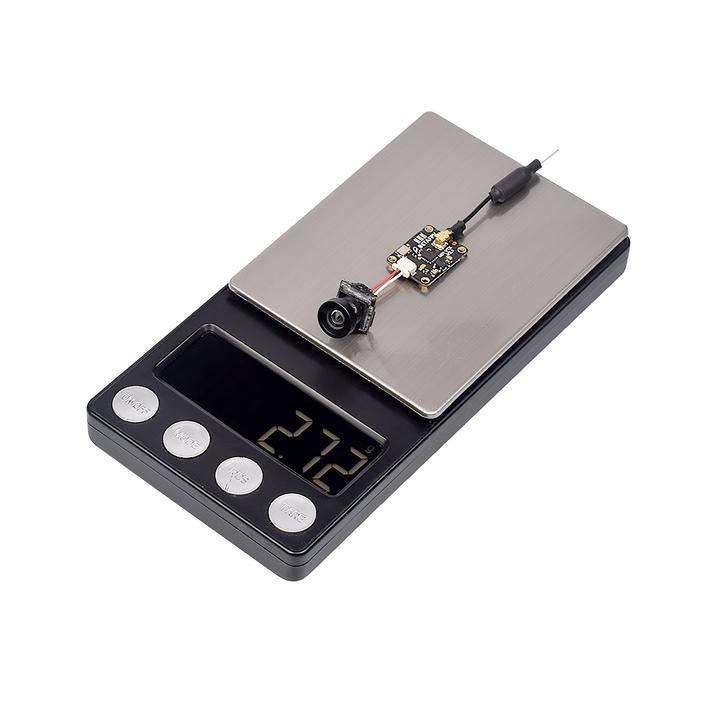

    • Weight: 2.72g
    • Antenna: RG178 Antenna
    • Frequency: 5.8GHz 6 bands 37 channels, with Raceband: 5362~5945MHz

      Component Layout Diagram for M01 VTX

      How to Connect with FC

      M01 VTX comes with pluggable pins, which is convenient assembly with brushed FC like F4 AIO 1-2S FC.

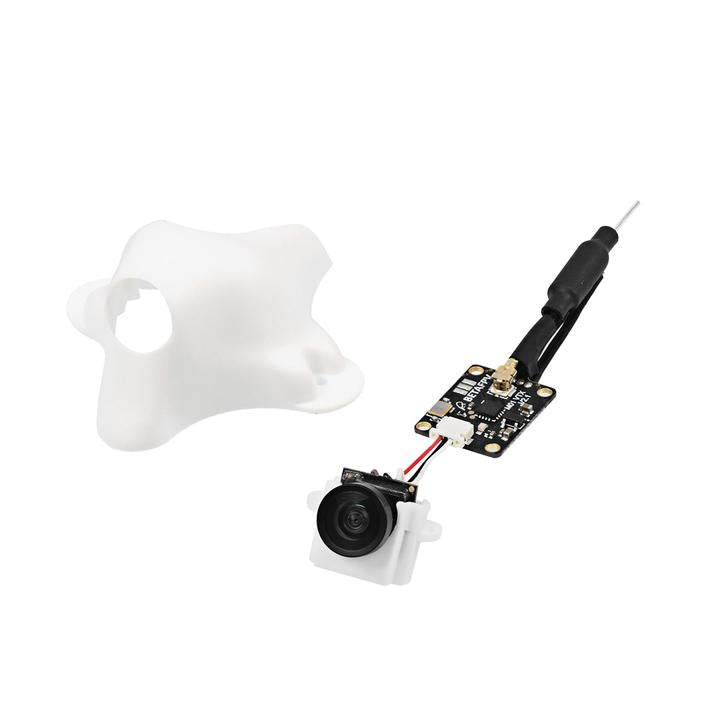

      PACKAGE
      • 1 * BETAFPV M01 AIO FPV Camera VTX
      • 1 * White Micro Canopy
      • 4 * M1.4x4mm screws
      • 1 * 1/4'' Camera Mounting hardware
