BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless

BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless

$102.95 AUD
Skip to product information
BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless
  • BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless
  • BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless
  • BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless
BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless

BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless

$102.95 AUD
GST included Shipping calculated at checkout.

Delivery options

BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless

Pickup

Local pickup is free. Collect from Somersby NSW; choose Pick up at checkout instead of a courier. We open 7:30am Monday - weekend orders are usually ready to collect by 10am.

Delivery options
Out of stock
Price match

Request a price match

BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless Our price: $102.95

We reply approved or declined by email, usually within 15–60 minutes during business hours. Matching is at our discretion — we can't promise every price, but if it's fair we usually will.
Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.
Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup availability

1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
Product details
SKU: 34860
Categories: BetaFPV, Drone ESCs, ELRS Express LRS Receivers & Modules, F4 Flight Controllers, Flight Controllers, FPV Antennas, ICM42688-P Gyro FPV Flight Controllers, Radio Gear
Tags: 5.8ghz, ELRS, F4, ICM42688-P


Are you looking to buy BetaFPV Matrix V2 AIO G4 FC 12A 1S ESC ELRS 2.4G Solderless in Australia?

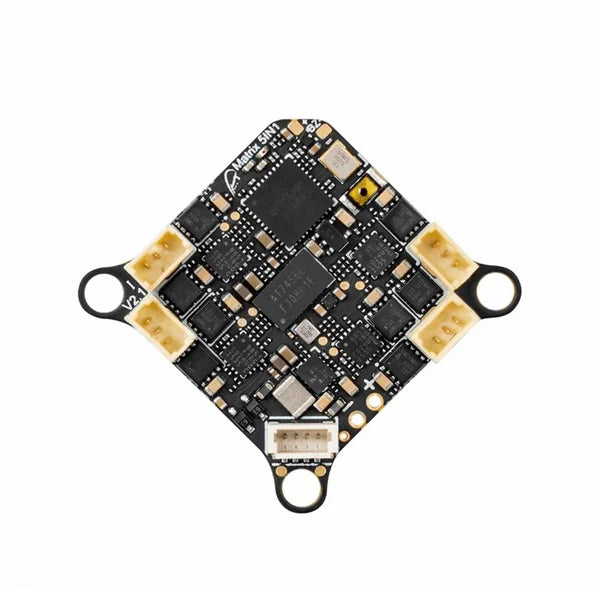

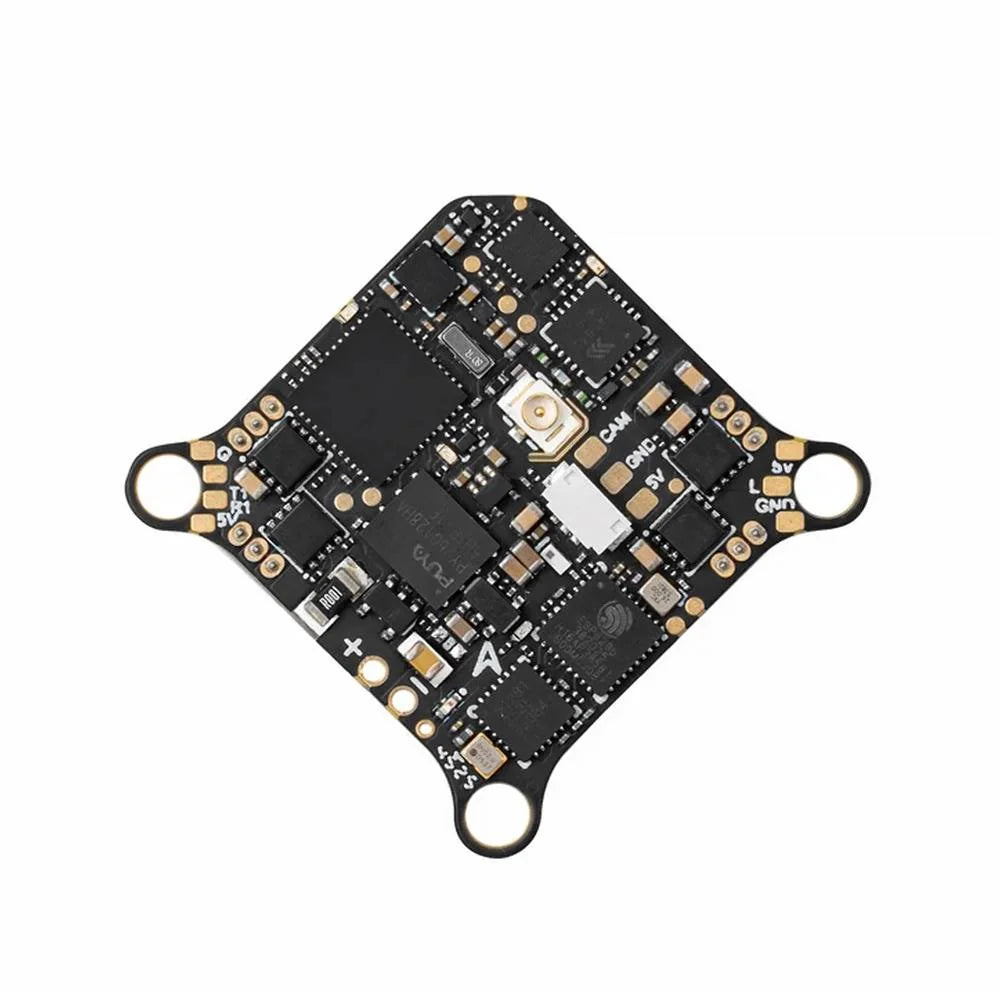

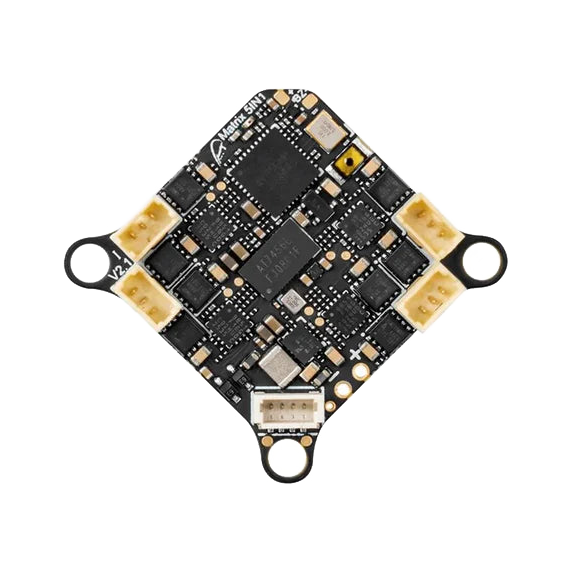

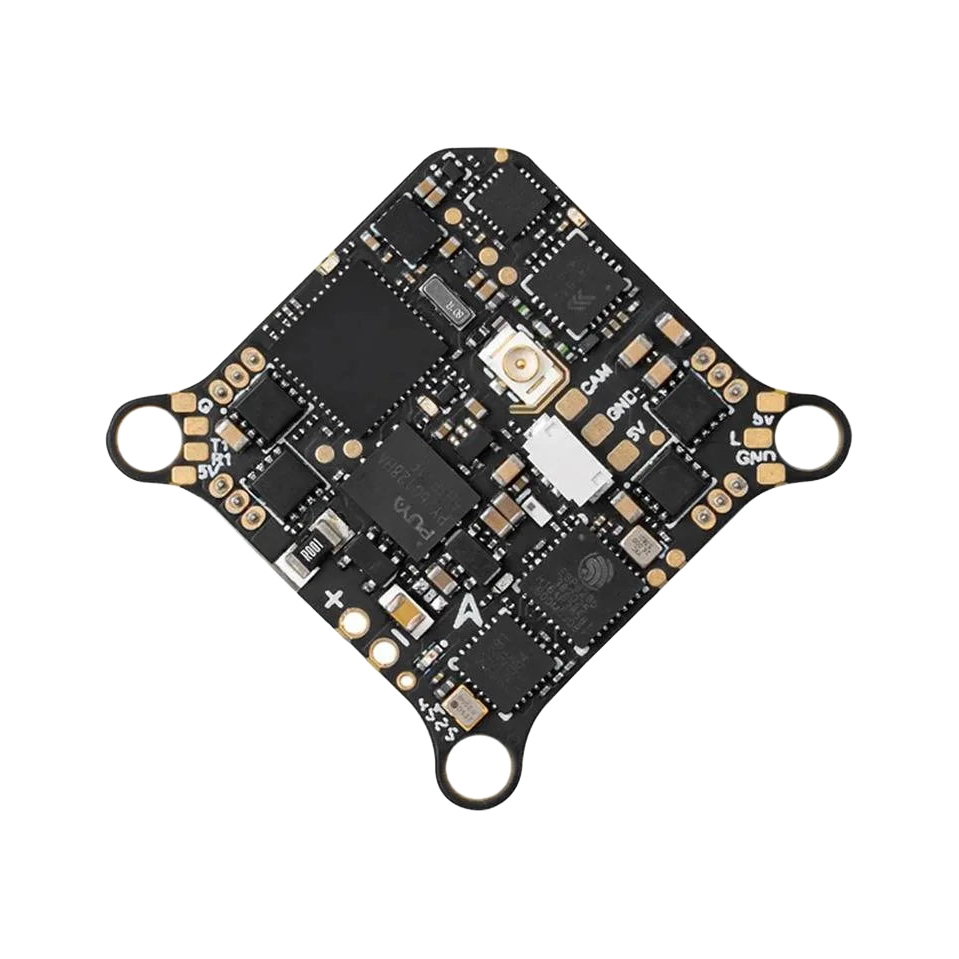

The BETAFPV Matrix V2 AIO is the next-generation flight controller engineered for pilots who refuse to compromise. Building on the proven all-in-one design, it delivers a substantial leap in both performance and durability. Experience the raw power of a 12A continuous ESC, the crash-proof confidence of 3-point mounting, and the convenience of solder-free design. This is the durable, high-output core for your most demanding 1S whoop builds.

Features

  • All-in-one integration combines the FC, ESC, OSD, Serial ELRS 2.4GHz RX, and a 5.8GHz 400mW VTX into a single, compact unit
  • Upgraded 12A continuous ESC
  • Durable 3-point mounting system and a 1.0mm thick PCB to absorb crash impacts and protect core components
  • Solder-free for easy connection and maintenance
  • Built around a powerful G473 processor for precise racing and complex freestyle maneuvres
  • Optimised layout improves durability and overall reliability

Specifications

  • Flight Controller
    • MCU: STM32G473CEU6
    • Gyro: ICM42688P
    • Blackbox memory: 16MB
    • Sensor: Voltage & Current
    • BEC: 5V, Max 3A
    • UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
    • BetaFlight OSD: AT7456E
    • ESC: 12A continuous
    • RX: Serial ELRS 2.4GHz (V3.4.3)
    • VTX: 5.8GHz 48 channels, Max 400mW
    • FC firmware: Betaflight_4.5.3_BETAFPVG473_V2
    • USB port: SH1.0-4Pin
    • Motor connector: JST1.25
    • Battery connector: BT2.0
    • Mounting hole size: 26mm x 26mm
    • Weight: 4.1g
  • ESC
    • Output power: 25/100/200/400/PIT
    • Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
    • Channel SEL: SmartAudio2.0
    • Modulation type: FM
    • Frequency control: PLL
    • All harmonic: Max -50dBm
    • Frequency stability: ±100KHz (Typ.)
    • Frequency precision: ±200KHz (Typ.)
    • Channel carrier error: ±1.5dB
    • Antenna port: 50 Ω
    • Operating temperature: -10℃-80℃

BetaFPV Setup Support

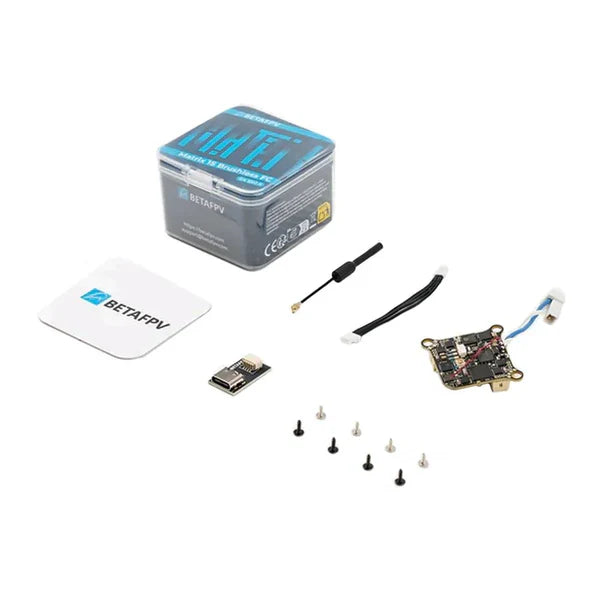

Includes

  • 1x BETAFPV Matrix V2 AIO Brushless Flight Controller
  • 1x Type-C to SH1.0 Adapter
  • 1x SH1.0-4Pin Adapter Cable
  • 1x 5.8G Antenna
  • 4x M1.2x4 Self-tapping Screws
  • 4x M1.4x5 Self-tapping Screws
  • 4x Shock Absorbing Balls
