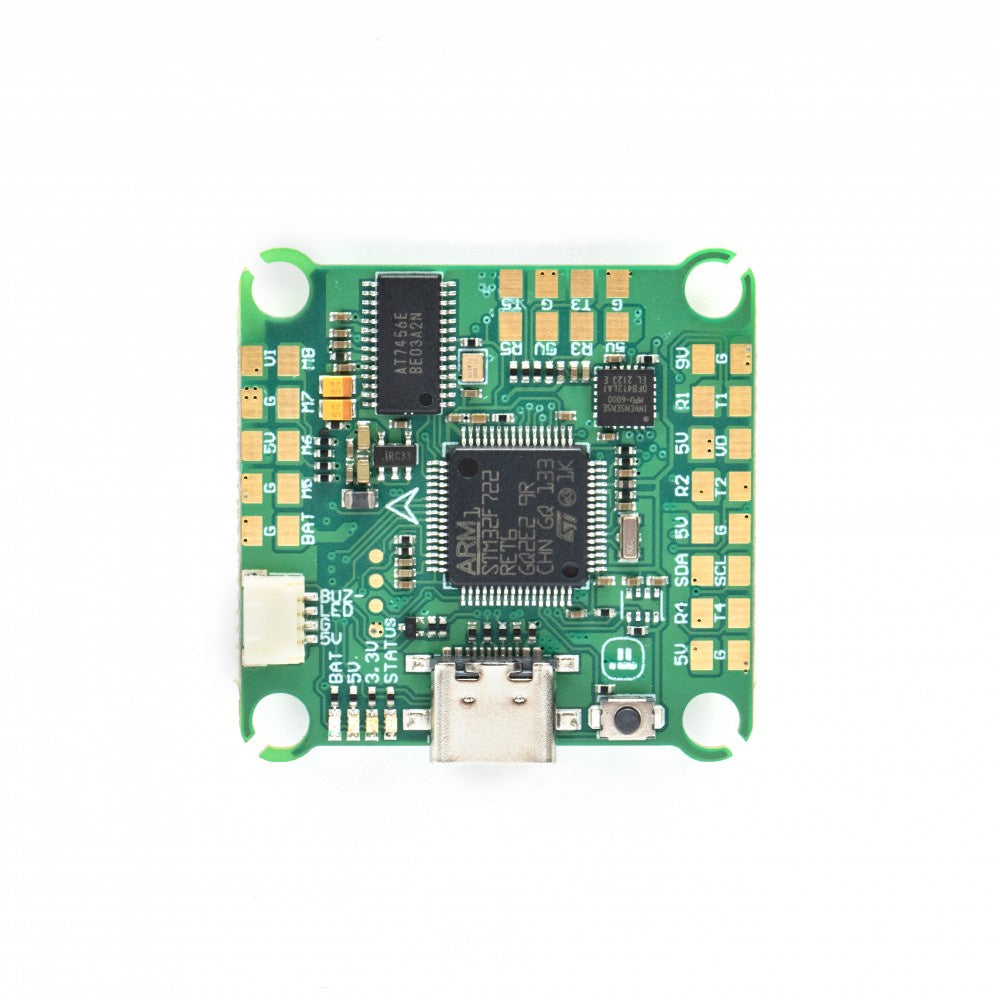

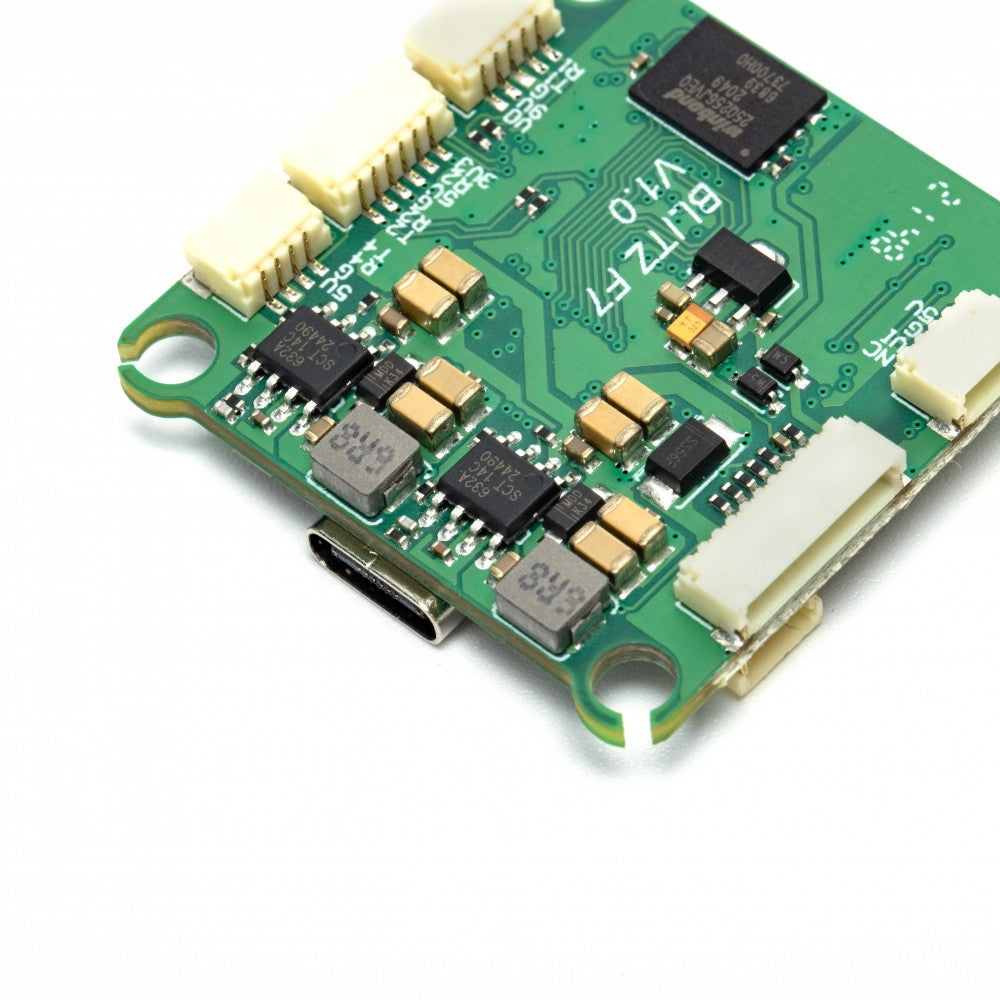

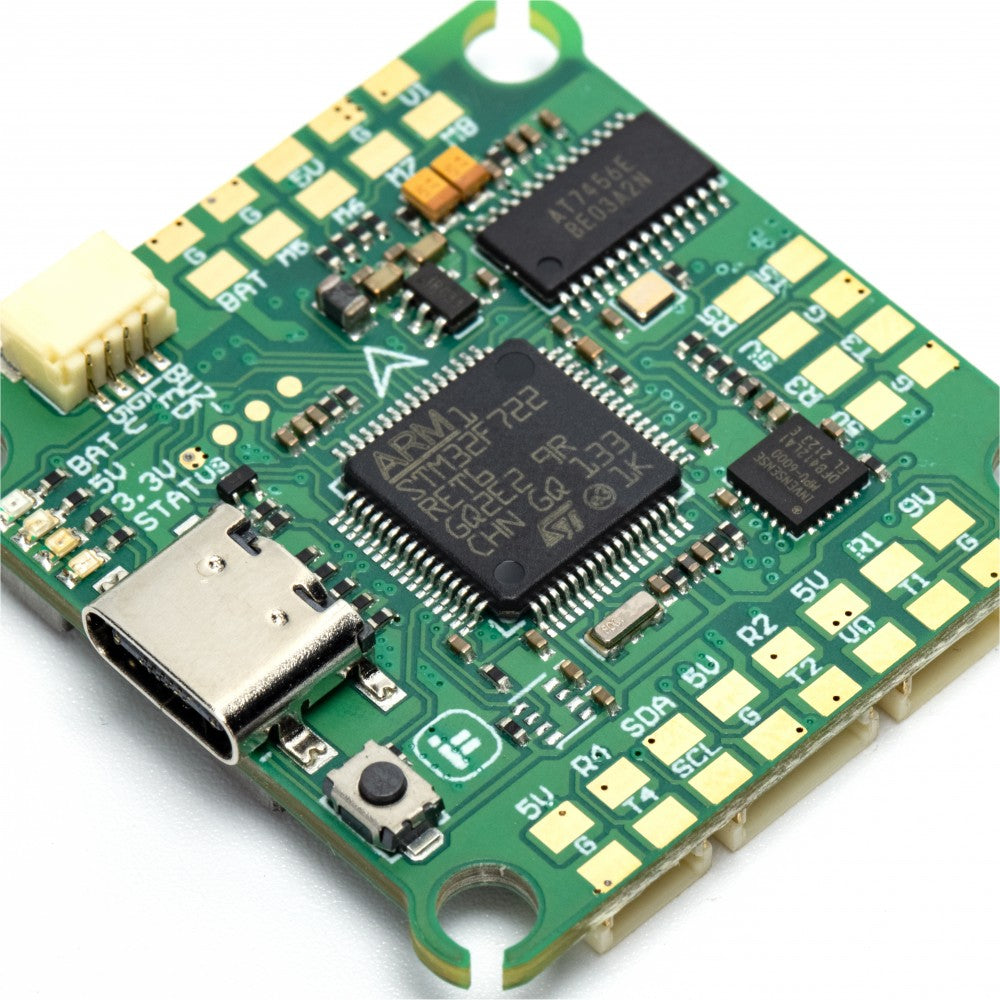

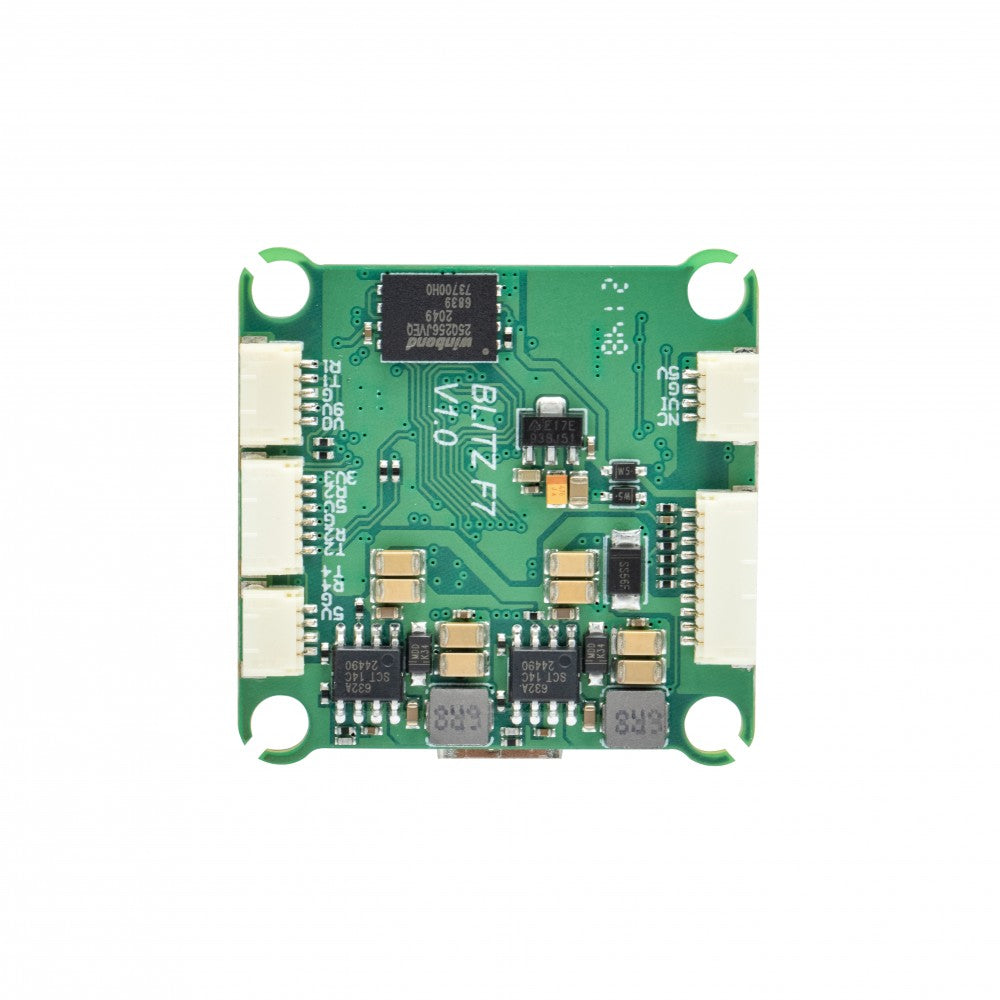

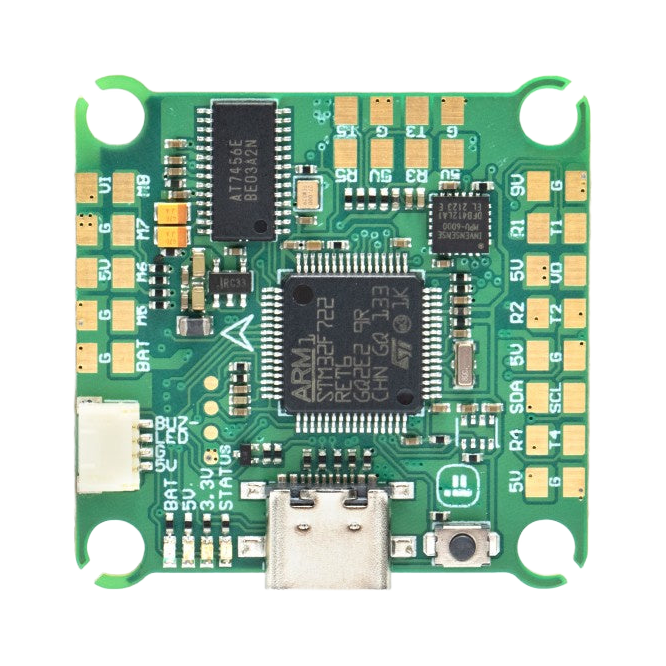

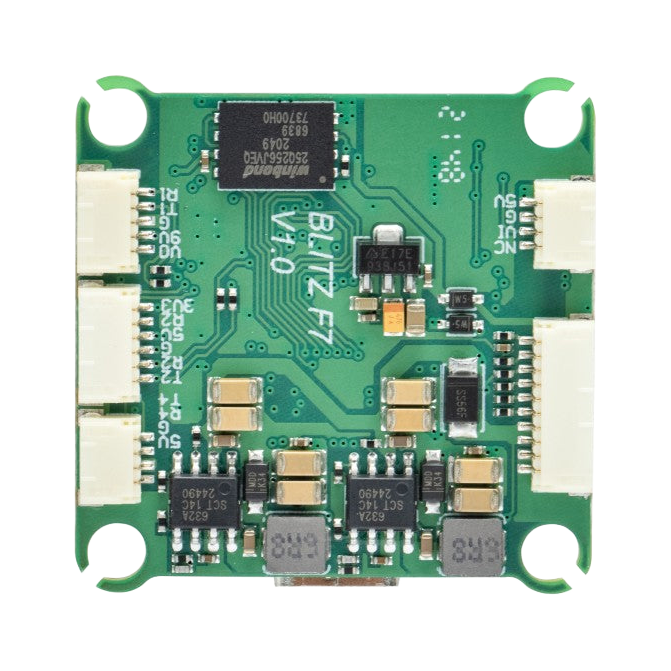

iflight BLITZ F7 V1.2 Flight Controller ICM42688

Features

• Improved circuit design, better components and lower electrical noise!
• DJI HD VTX Connector (Plug-and-Play / No soldering required)
• FC indicator LEDs for visual debugging
• With LC filter

Specifications

• MCU: STM32 F722
• Gyro: MPU6000
• Barometer: No
• OSD Chip: AT7456E
• Flash: 32MB (Blackbox flash)
• UARTS: 6
• Motor outputs: 4x (SH1.0 connector)
• I2C serial: SDA / SLA pads
• Smartaudio / IRC Tramp VTX protocol supported
• LED controller: Yes
• Beeper pad: Yes
• Firmware target: IFRC-IFLIGHT_BLITZ_F722
• Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
• Dimensions: 36.5*35 mm

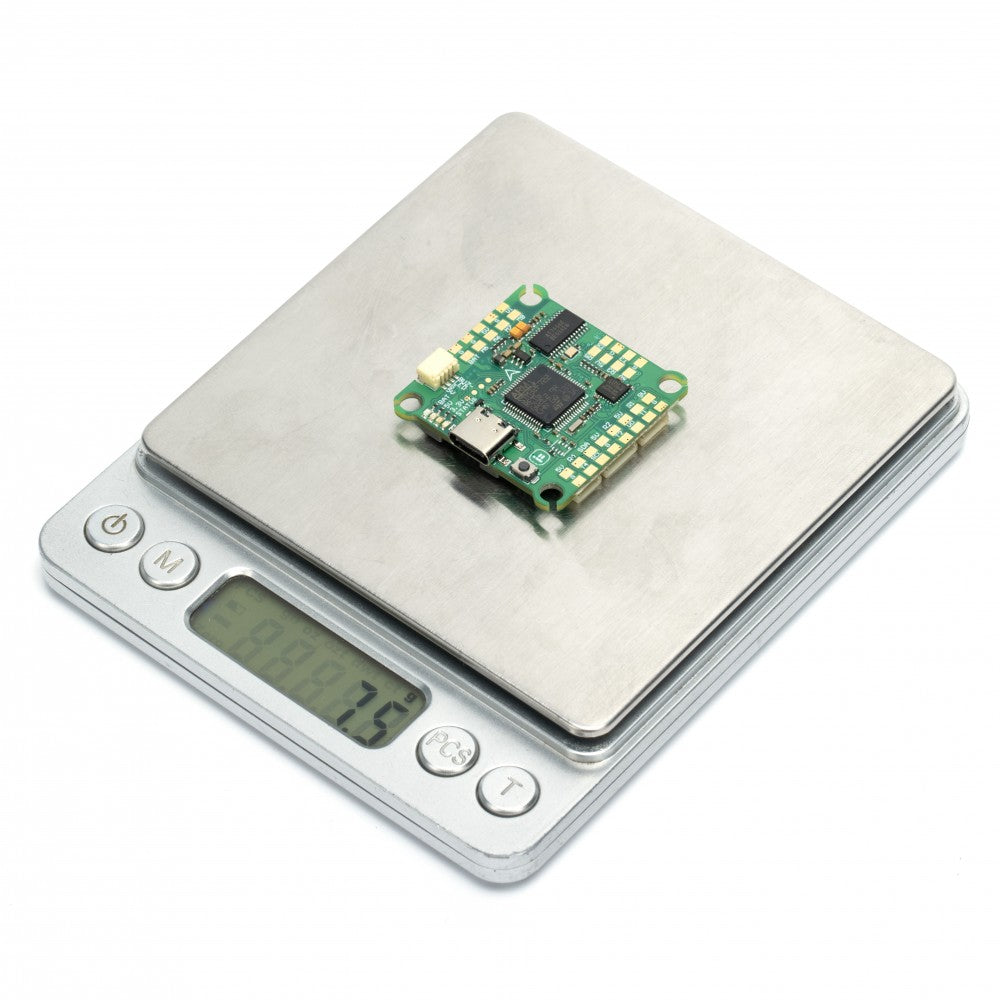

• Weight: 7.8g

Wiring suggestion

• UART 1 for VTX HD / Analog
• UART 2 for a Receiver
• UART 3/4/5 for GPS or other sensors that require a serial port
• UART 6 for ESC Telemetry

Tips

1. F722 MCU has an inner inverter.
2. SBUS、CRSF、ELRS、IBUS、DSM ETC... can be connected to any unused UART_RX，we suggest you connect to Uart_RX2
3. Frsky SmartPort，Tramp & Smartaudio can be connected to any unused UART_TX，we suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TX，we suggest you connect to Uart_TX2

Included Connectors (Plug-and-Play wire harness)

• 1x SH1.0 - 5pin connector for HD VTX/Analog VTX&CAM (R1/T1/G/9V/VO)
• 1x SH1.0 - 10pin connector for ESC (R6/CUR/M4/M3/M2/M1/BAT/BAT/G/G)
• 1x SH1.0 - 6pin connector for any receiver or DJI（3V3/R2i/5V/G/R2/T2）
• 1x SH1.0 - 4Pin connector GPS (T4/R4/G/5V)
• 1x SH1.0 - 4Pin connector LED & Beeper (5V/G/VI/NC)

Included

• 1 x BLITZ F7 Flight Controller
• 1 set of FC connectors (as above)
• 1 set silicon grommets
