Product description

Are you looking for Bondtech HeatLink 300°C Thermistor In Australia?

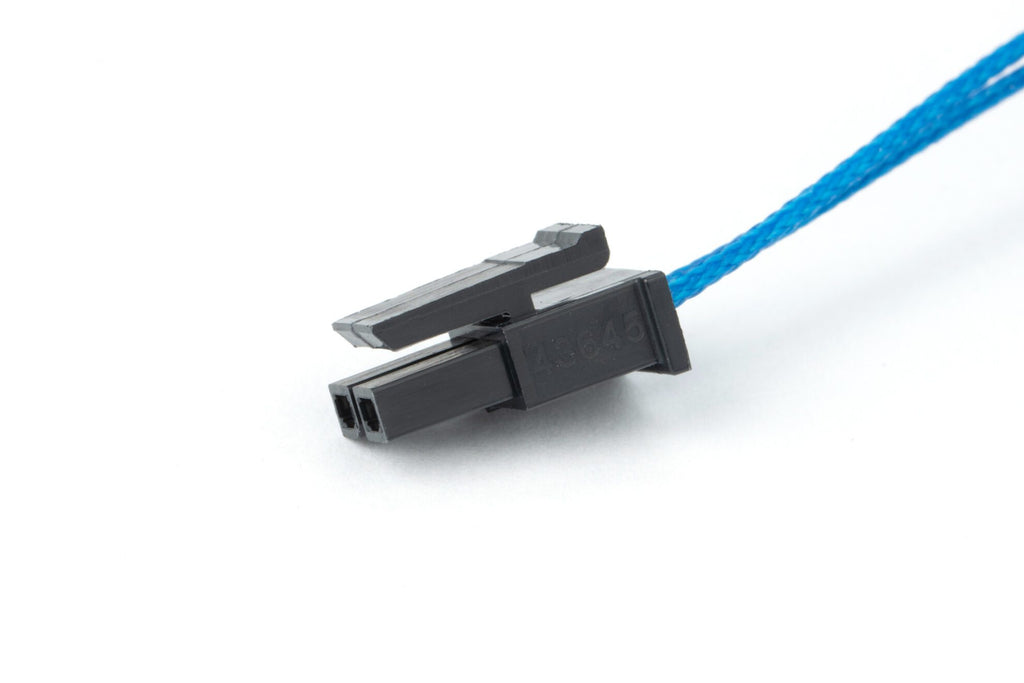

This 300C thermistor based on the SeMitec 104NT-4-R025H42G temperature sensor and uses a Molex micro-fit 3.0 female connector to enable extending it with one of the HeatLink interface cables and connect to your printer without hassle.

Use the following code to customize your Marlin2.0 to use this thermistor:
#define TEMP_SENSOR_0 5

Check the R/T table here:
104NT-4-R025H42G_RT_table.pdf

The HeatLink range is an alternative group of thermistors and heater cables enabled with Molex micro-fit connectors, complemented by several short interface cables for connecting to dozens of 3D printer models to bring ease of use to their owners.

Specifications

1.5m leads with blue sleeves and Molex micro-fit 3.0 female connector;

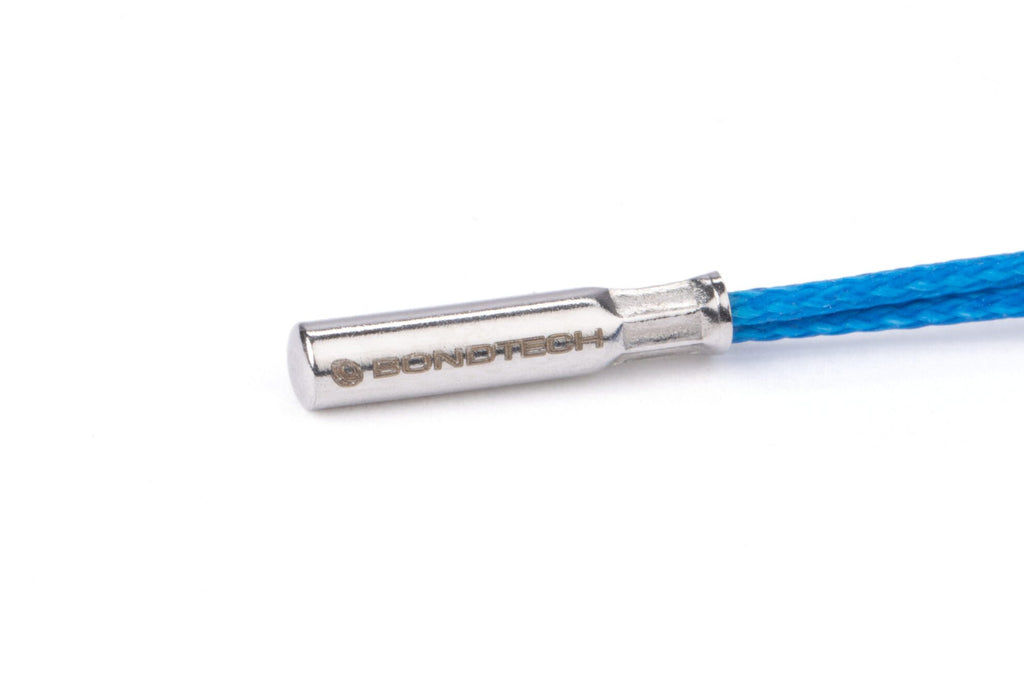

Ø 3mm Stainless Steel crimped cartridge with laser engraved Bondtech logo;
SeMitec 104NT-4 temperature sensor;

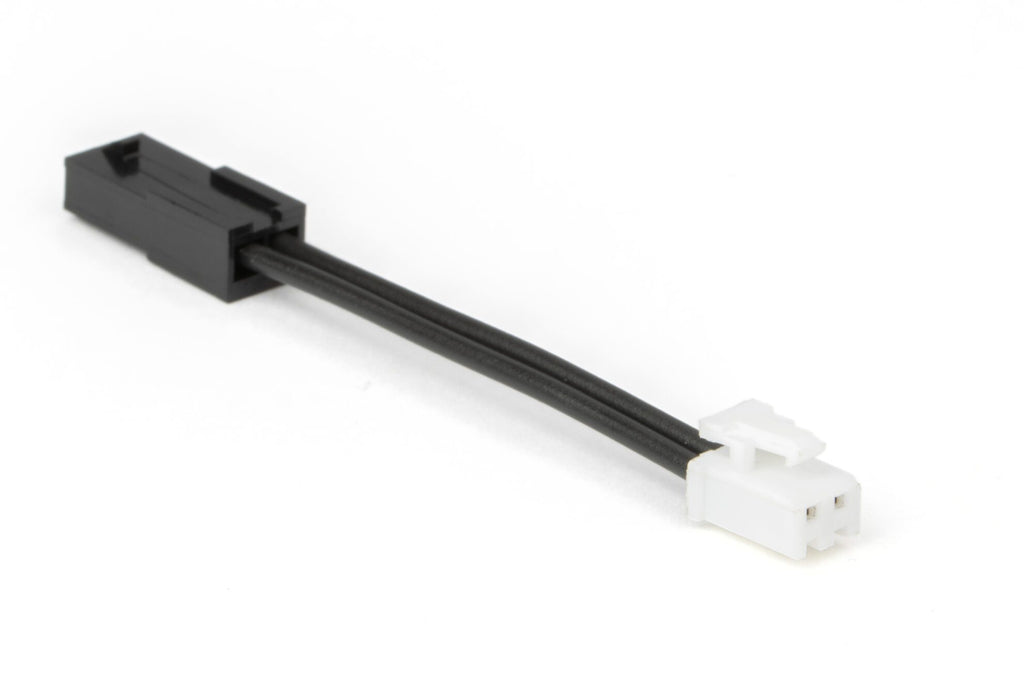

If buying with interface cable, Each Interface Cable is 50mm long and will fit entirely inside the control box.

Includes

1x Bondtech HeatLink 300°C Thermistor with interface cable (if chosen)
