Are you looking to buy an Bondtech LDO 36mm Round 20mm 1.8degree Pancake Motor (used in LGX Lite Extruder) LDO-36STH20-1004AHG(XH) in Australia?

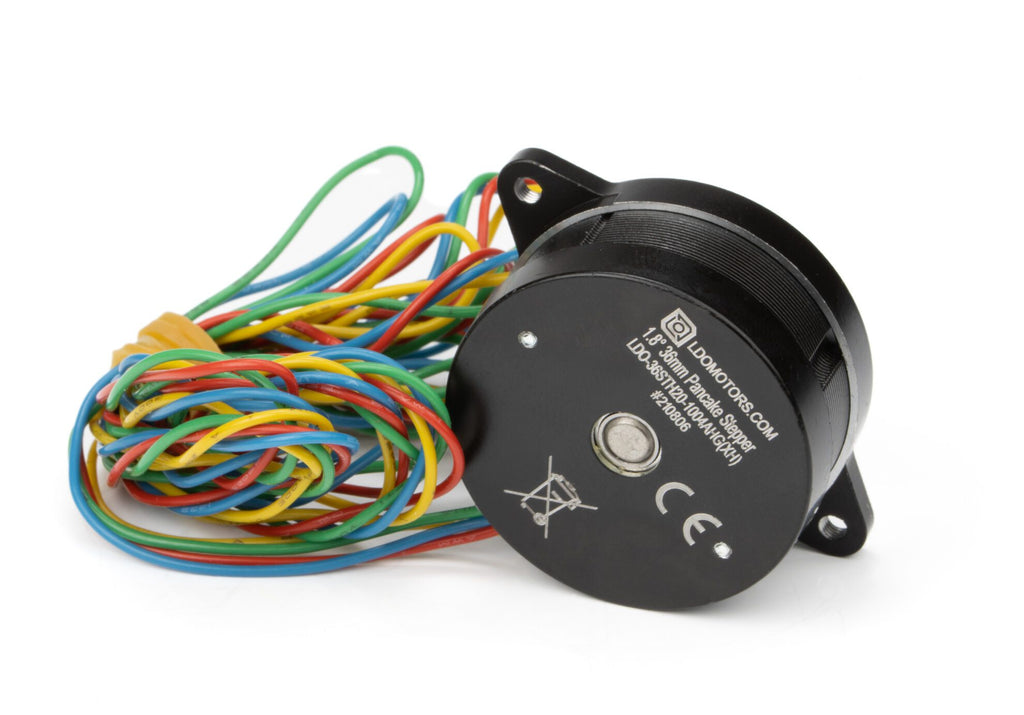

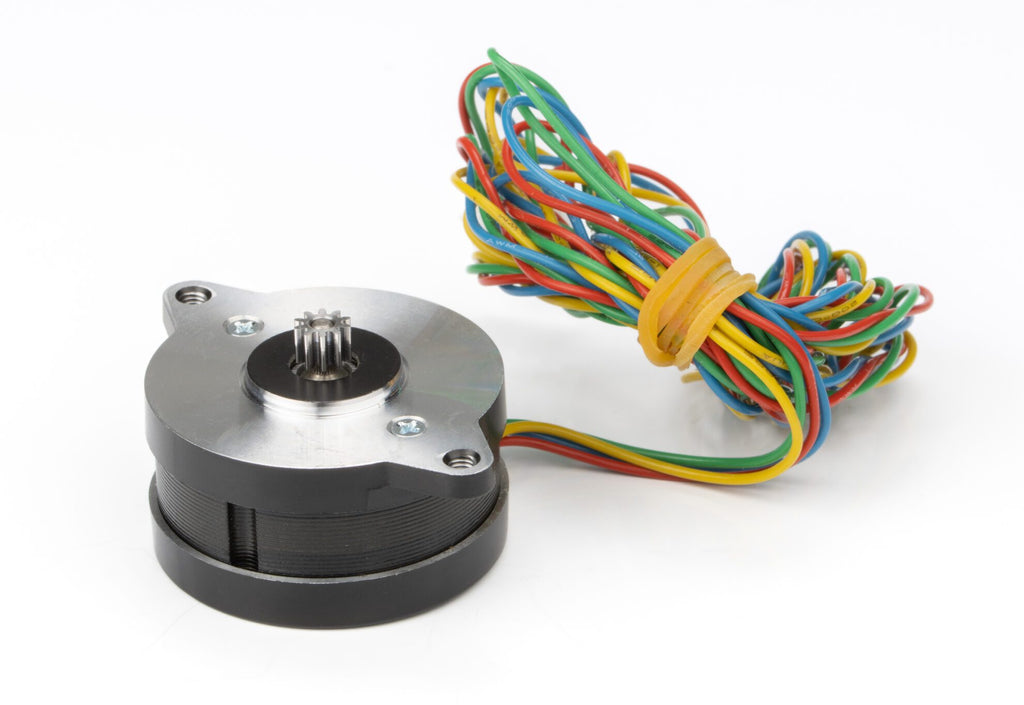

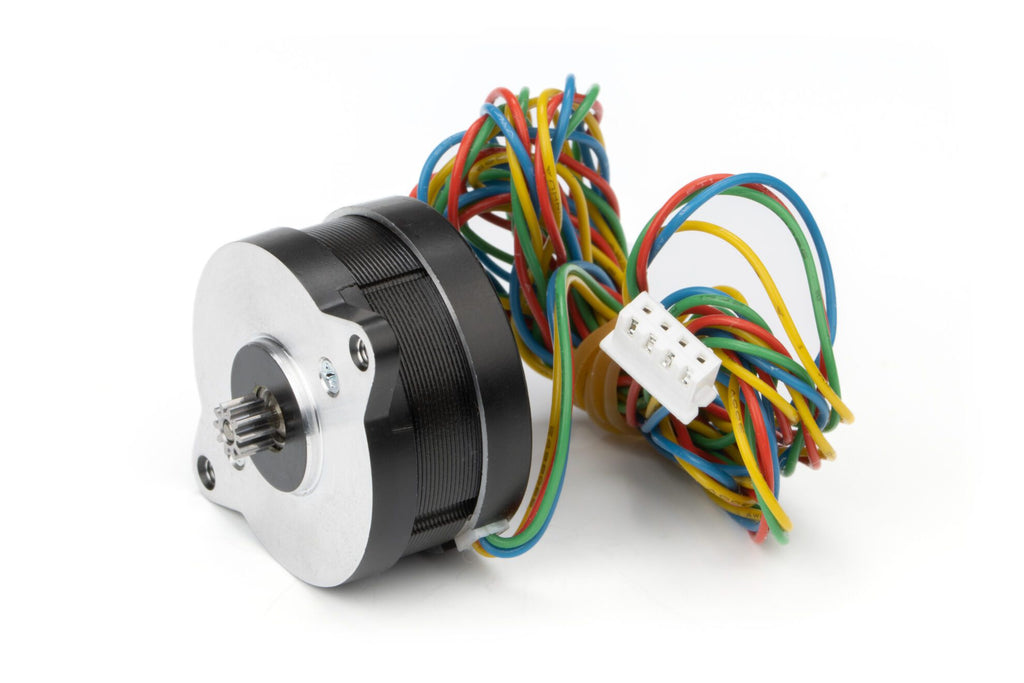

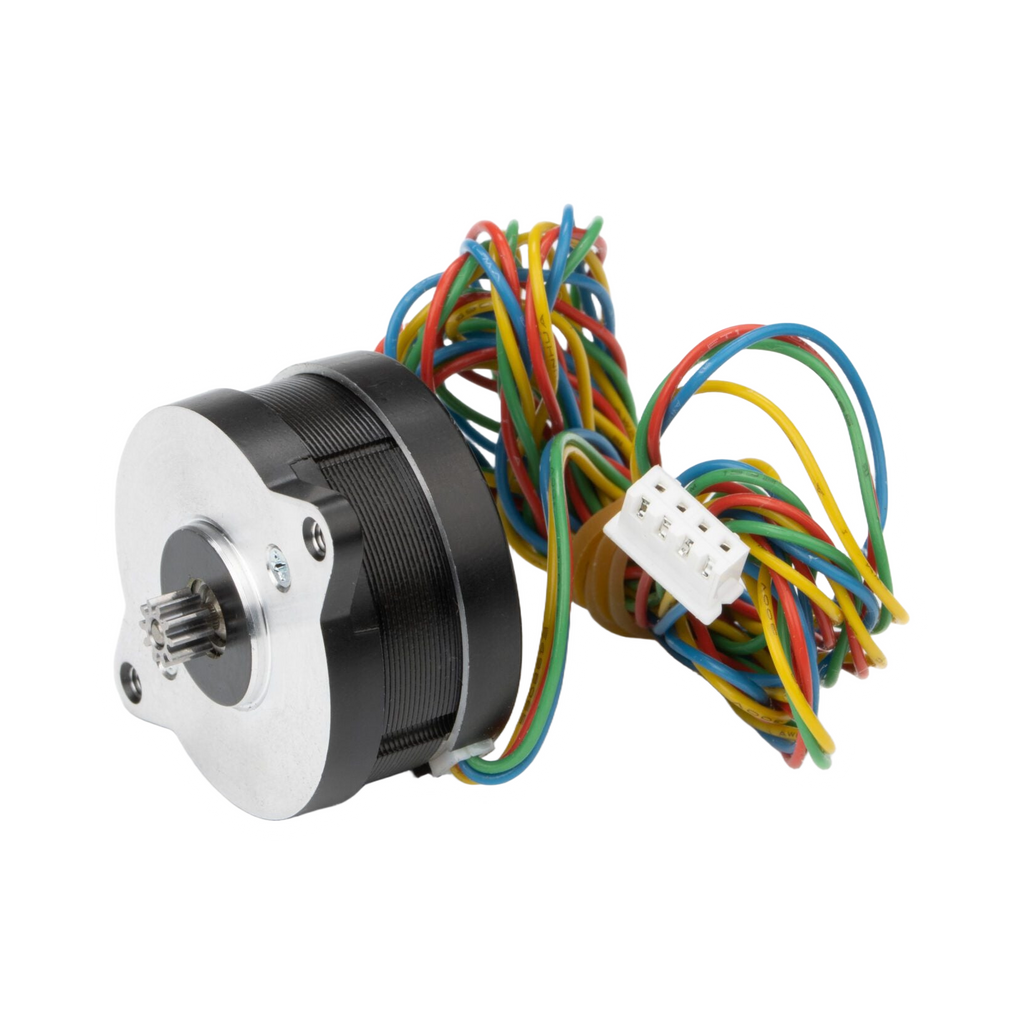

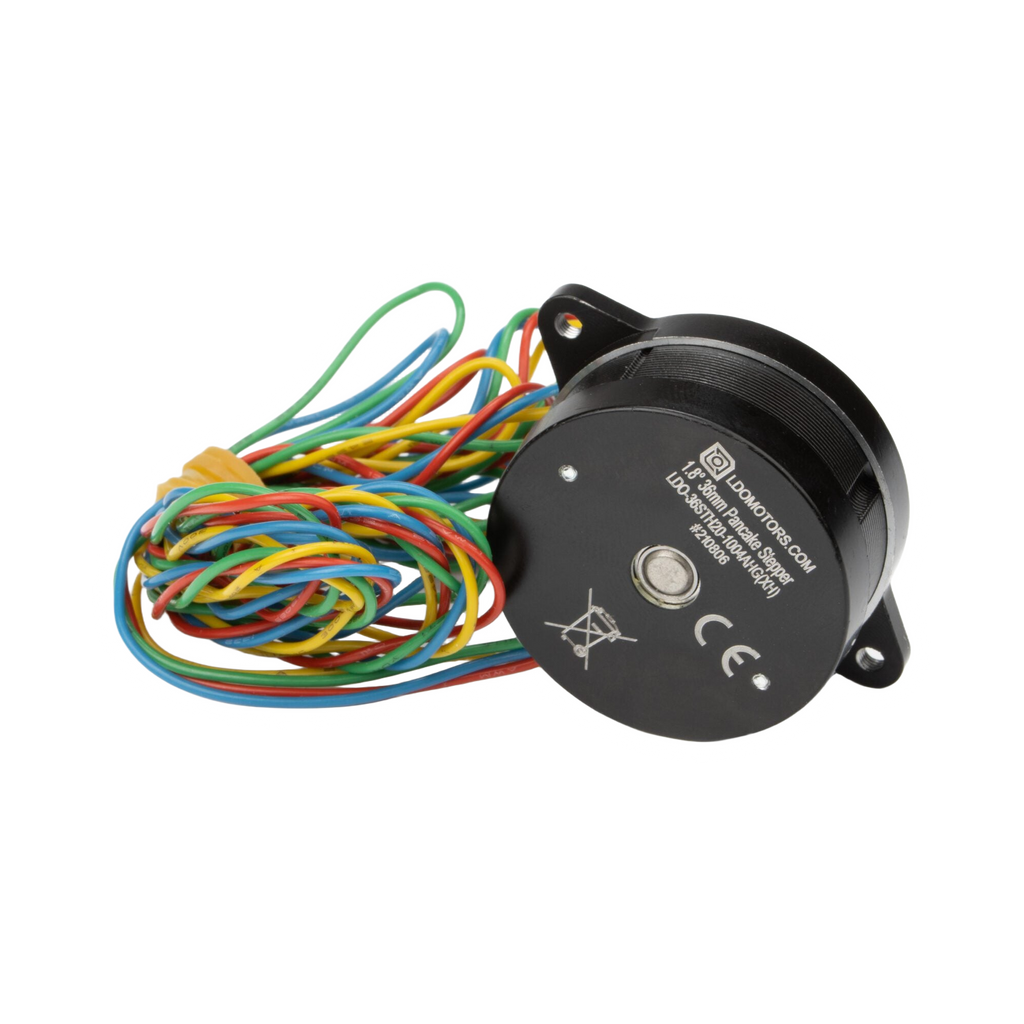

Nema14 High resolution 1.8 degree pancake stepper motor. Compatible with the following compact extruders:
- LGX Lite
- Orbiter
- HextrudORT
- Sherpa Mini
Ships with 1m long leads and JST-XH 4-pin connector
- Connector: JST-XH 4-pin connector
- Motor gear : 10 teeth
- Motor length: 20 mm
- Motor Diameter: 36mm
- Weight : 93g
- Max Current : 1.0 A / phase
- Leads Length : 1m
- Step Angle : 1.8 degree
- Max Torque at : 1800 PPS
- Potential Flow Rate @ Max Torque : 120mm^3/s
- Class: H, rated peak temp 180℃
- Max operating Temperature / Current :
120℃ / 750 mA - Manufacturer : LDO
- Manufacturer SKU : LDO-36STH20-1004AHG(XH)
For common ratings, specifications and dimensions please check the Technical Data Sheet.
