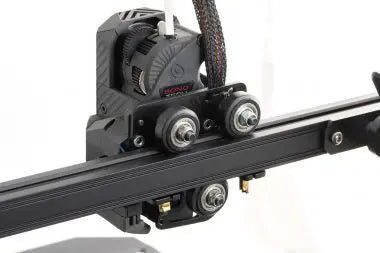

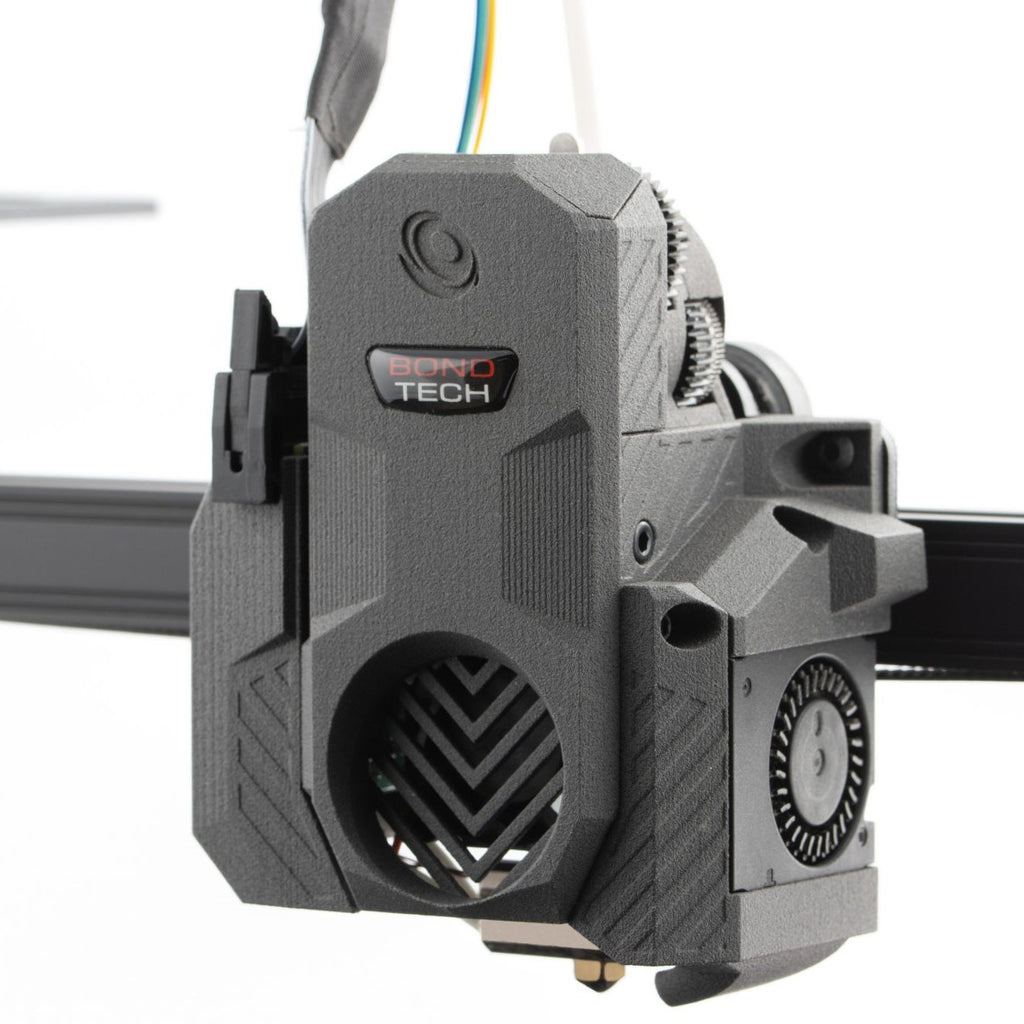

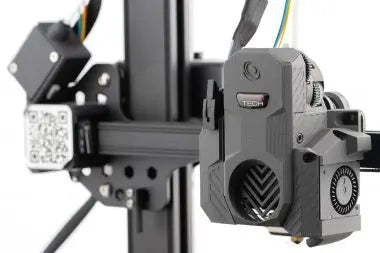

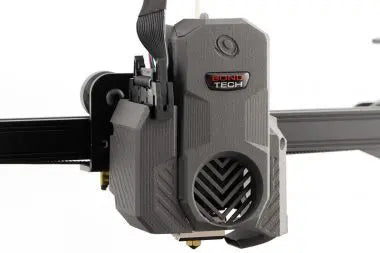

Bondtech LGX Lite Arrow Mount for Creality

Are you looking to buy a Bondtech LGX Lite Arrow Mount for your Creatlity Printer in Australia?

Upgrade kit compatible with LGX Lite only to use on:

• Creality CR-6 SE;
• CR-6 Max;
• CR-10 Smart.

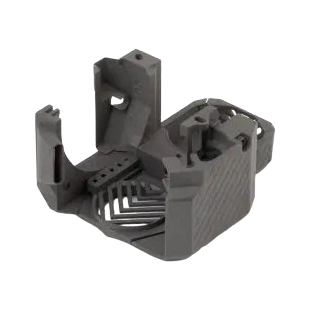

The LGX Lite Arrow for Creality plastic parts are made of grey Polyamide (PA12) with no dyeing featuring a wax protective coating.

Extruder not included.
A LGX Lite extruder is required to use this kit.

Main Features

• It converts the compatible printers from Bowden to direct extruder.
• Extra load on gauge strain is limited to the LGX Lite itself.
• Housing is light and insulated from the Extruder to allow for strain gauge levelling.
• It is compatible with all stock hotends and cooling fans.
• Housing is easy to remove for maintenance and service of the hotend and extruder.
• Z-position of the fan shroud may be adjusted.

Additional Features

Weight: 65g.
E-steps : 562 @ 16 microsteps.
Klipper’s rotation_distance : 5.7.
Stepper motor current : 0.45 to 0.65A max.
Max operating temperature : 90°C.
It may be upgraded with Slice Engineering hotends:

• Copperhead Screw Mount;
• Mosquito;
• Mosquito Magnum;
• Mosquito Magnum + Air.

Product includes:

• 1x LGX Lite Strain Gauge mounting set
• 1x LGX Lite Arrow housing set
• 1x LGX Lite Arrow Hardware mounting set with:
  • 4x M3x6 button head screw
  • 4x M3x8 button head screw
  • 2x M3x10 button head screw
  • 1x M3x16 screw
  • 2x M3x20 MC6S screw
  • 1x M3x25 screw
  • 4x M3 square nut
• 1x Capricorn cutting fixture
• 1x 70mm Capricorn tube
