Are you looking for a Pancake Stepper 25mm (1.8°) Motor in Australia?

Nema 17 High resolution 1.8° pancake stepper motor. Perfect fit for our BMG / Prusa extruder upgrades.

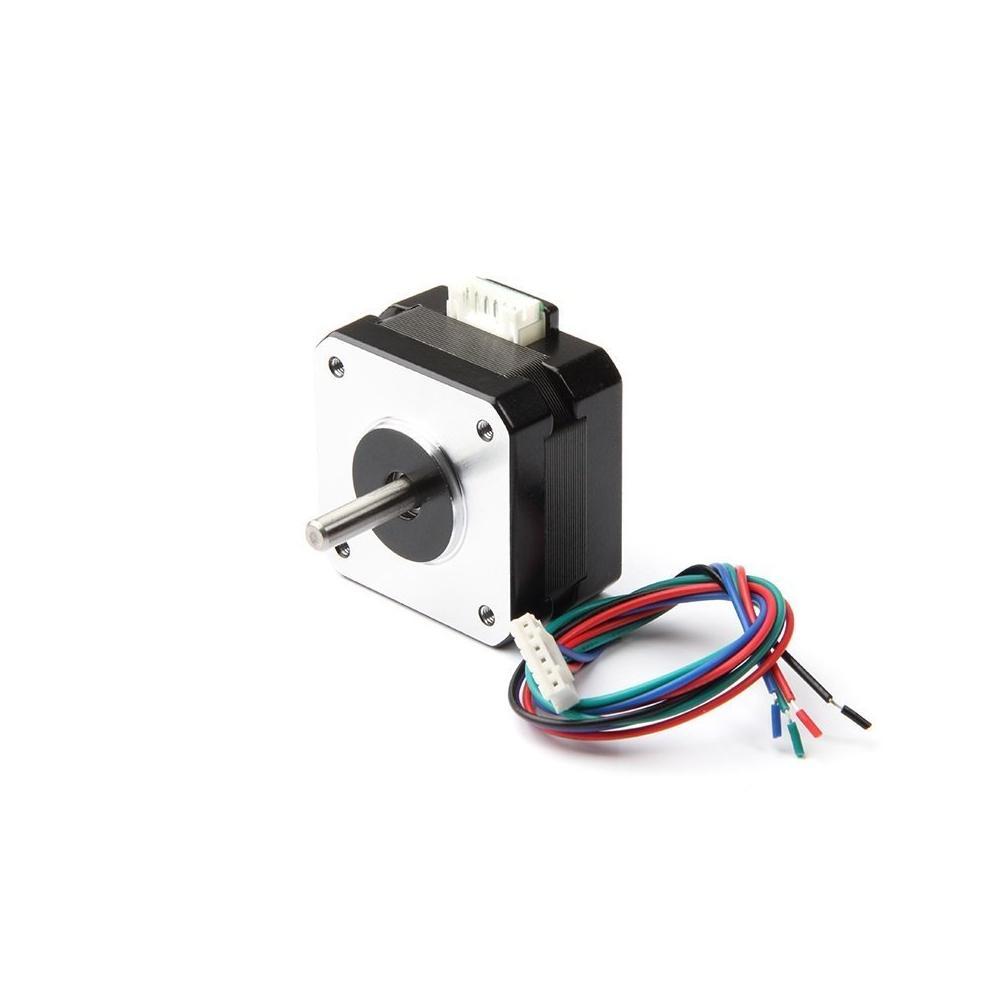

Delivers with a 300 mm JST-XH6 cable stripped without a second connector.

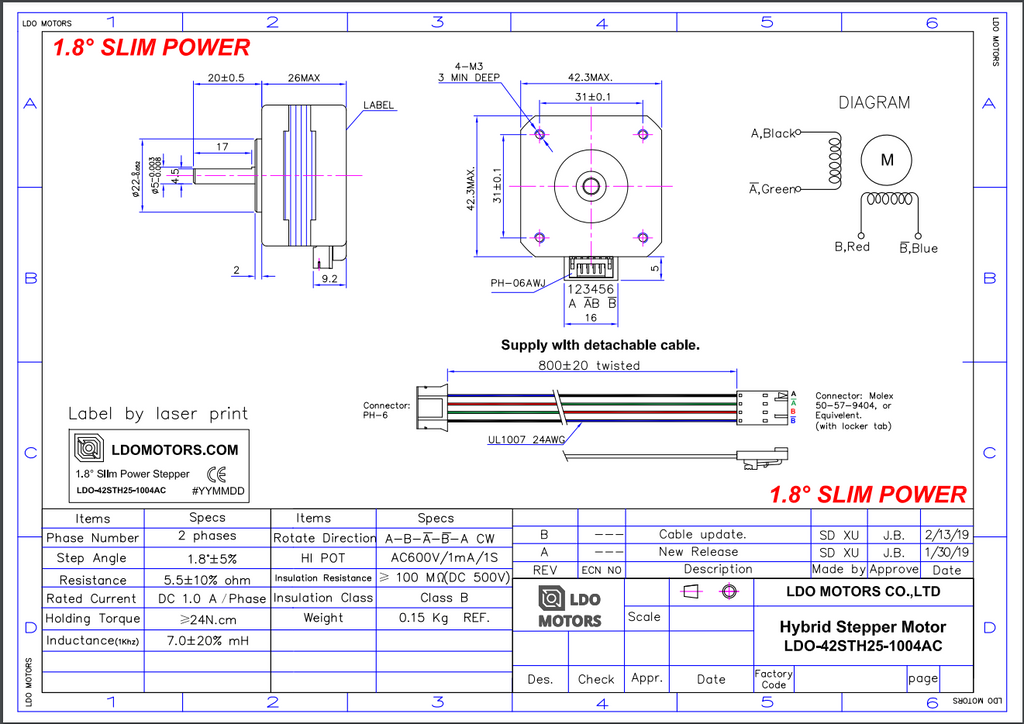

Nema17 25mm 1.8° Stepper Motor Specifications:
  • Max Input current: 0.7 A per phase
  • Step angle: 1.8 deg.
  • Torque: 18 N/cm
  • Output shaft diameter: 5.0 mm
  • Hole for mounting: 31 mm, 4x M3
  • Motor length: 25 mm
  • Weight: 153 g



For use with BMG use the following step values
8 bit microstepping: E-steps 415
16 bit microstepping: E-steps 830
32 bit microstepping: E-steps 1660
