Caddx Firefly Micro FPV Camera w/ VTX

Name: Caddx Firefly Micro FPV Camera w/ VTX
Brand: Caddx
SKU: 8474
Price: 39.95 AUD
Availability: OutOfStock

$39.95 AUD

GST included Shipping calculated at checkout.

Out of stock

Price match

Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.

Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup availability

1/80 Somersby falls RD, Somersby NSW

Unavailable for pickup

Product details

SKU: 8474

Shipping Weight: 40g

W/H: T-05-E-02

Categories: Caddx, FPV Gear & Equipment

Tags: Cameras, FPV, Micro

Why buy from Phaser FPV?

Dependable — Phaser started in 2014. Long reputable history and 5 star reviews.
Speed — All stock is in our retail store in Somersby NSW Australia. We ship express today; you often receive tomorrow. Shipping details.
Transparent stock — If it says in stock, we ship today. If we know the ETA, we show it on the product.
Experience — Across our staff you'll find people who fly, build, and use this gear. Not sure what to buy? Call us — we'll help you avoid buying twice.
Free gift on first and recurring orders
Active on social media — tag us or DM us
Large Facebook community for like-minded pilots
GST registered — handy if you need to claim GST (some niche FPV stores are not)

Are you looking to buy a Caddx Firefly Micro FPV Camera with VTX in Australia?

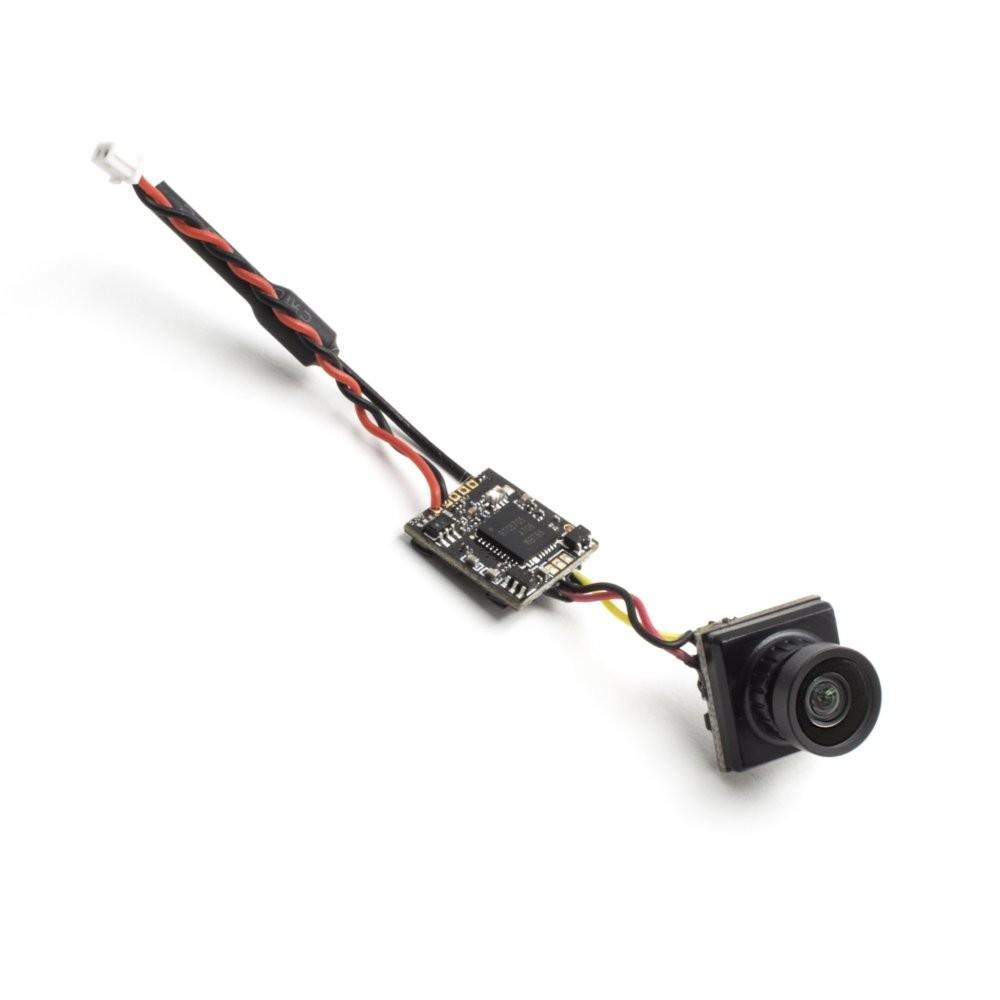

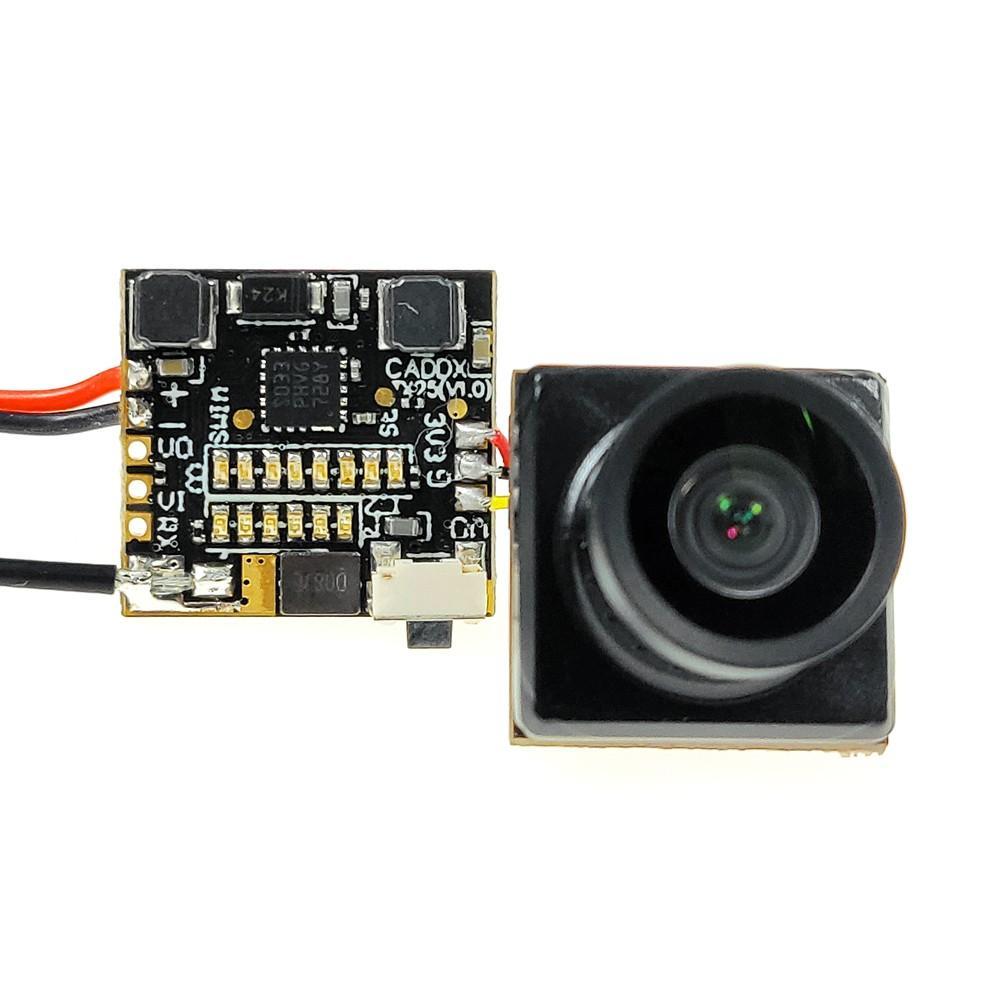

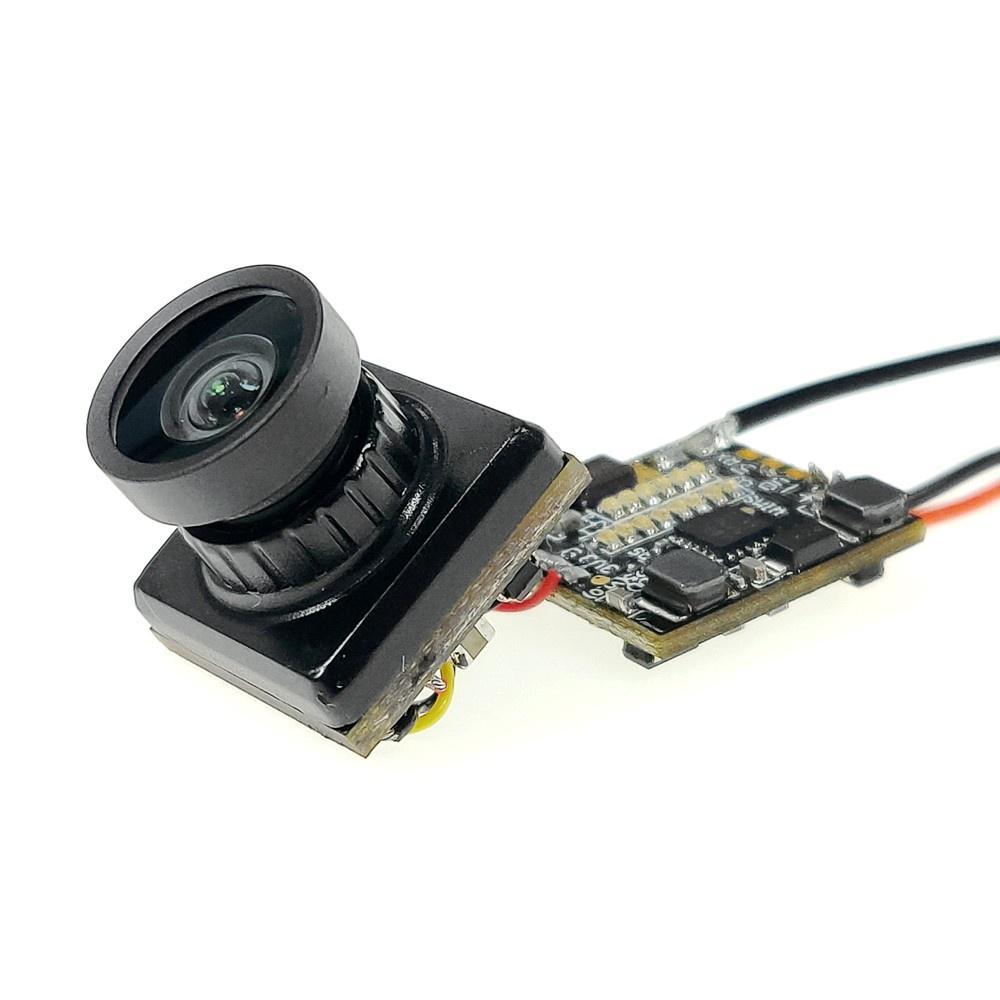

The Firefly is a micro-sized FPV camera with a tiny 5.8GHz VTX attached. Even though it's micro-sized, the Firefly packs a 1/3" CMOS sensor at 1200TVL. Other features global WDR, two levels of DNR, and an easy to press button not commonly found on micro VTXs. All of this comes together to weigh only 4.2g. All in all, this is a boon for micro FPV / whoop style builds!

View our other Caddx Cameras.

View our Caddx Replacement Lens

Specifications

FPV Camera

Color: Black
Lens: 2.1mm
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC (optional)
Image: 4:3 (optional)
Synchronization: Internal
Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 2 DNR
Dimensions: 14mm*14mm*16mm
Wide Power Input: DC 3.3-9V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 4.1g (Camera + VTX)

Video Transmitter

Feature: TBS SMART OSD
Frequency Band: 5362~5945MHz
Channel Customer: 48
Modulation Type: FM
Channel SEL.: Touch Switch
Channel Indicate: CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6 LEDS
Transmit Power: 13±1dBm
Frequency Control: PLL
All Harmonic: Max -50dBm
Frequency Stability: ±100KHz (Typ.)
Frequency Precision: ±200KHz (Typ.)
Channel Carrier Error: 1dB
Antenna Port: 50 Ω
Power Consumption: 140±20MA@5V DCIN
Supply Voltage: 2.9-5.5V
Operating Temperature: -10℃~+60℃
Profile Dimension: 15mmx14mm

Firefly Manual

Includes

1x Firefly FPV Camera + VTX
