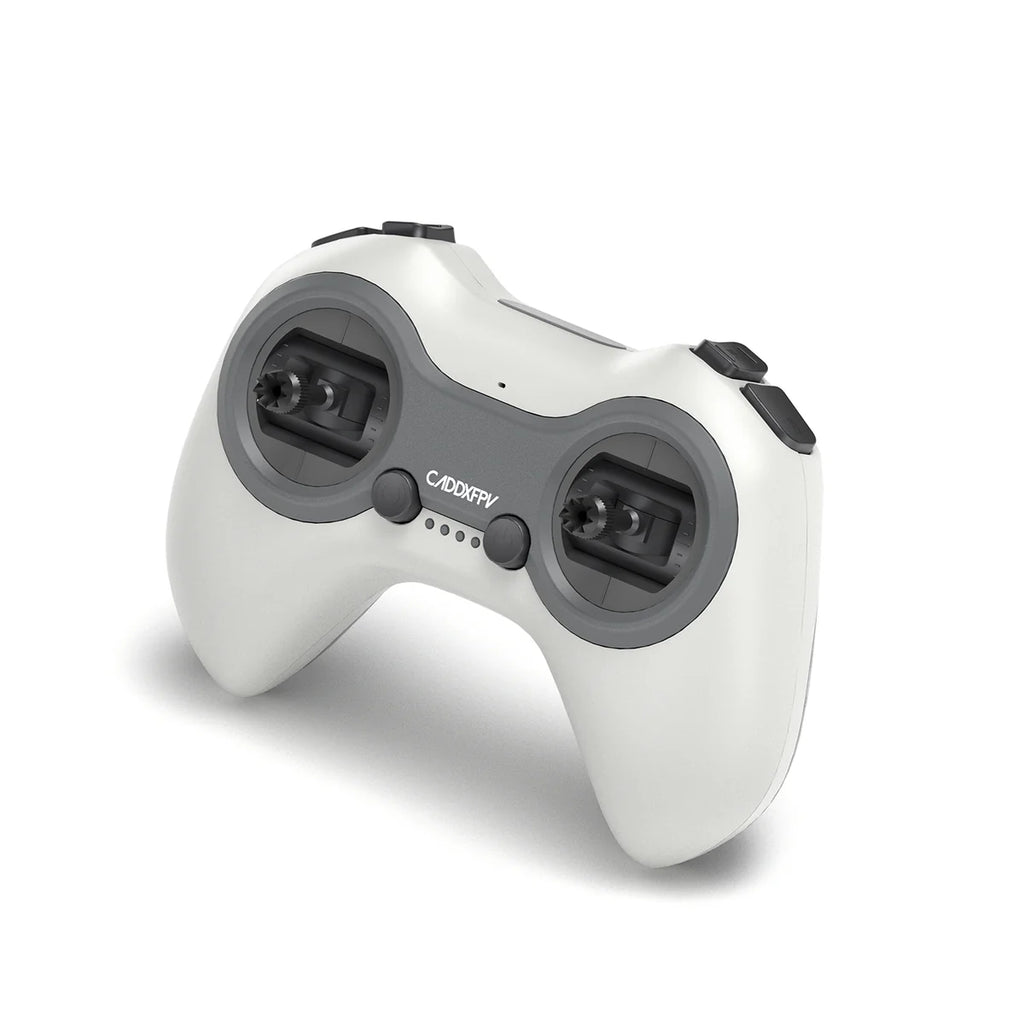

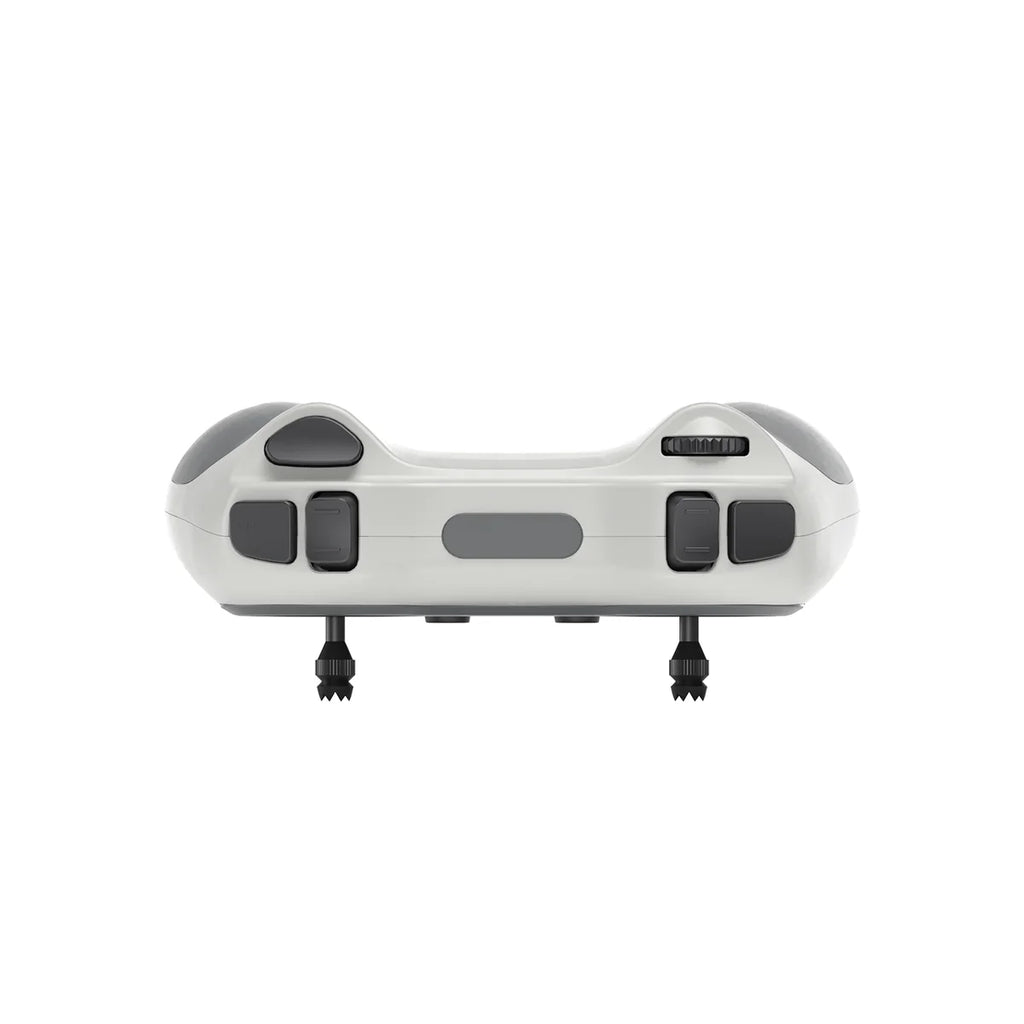

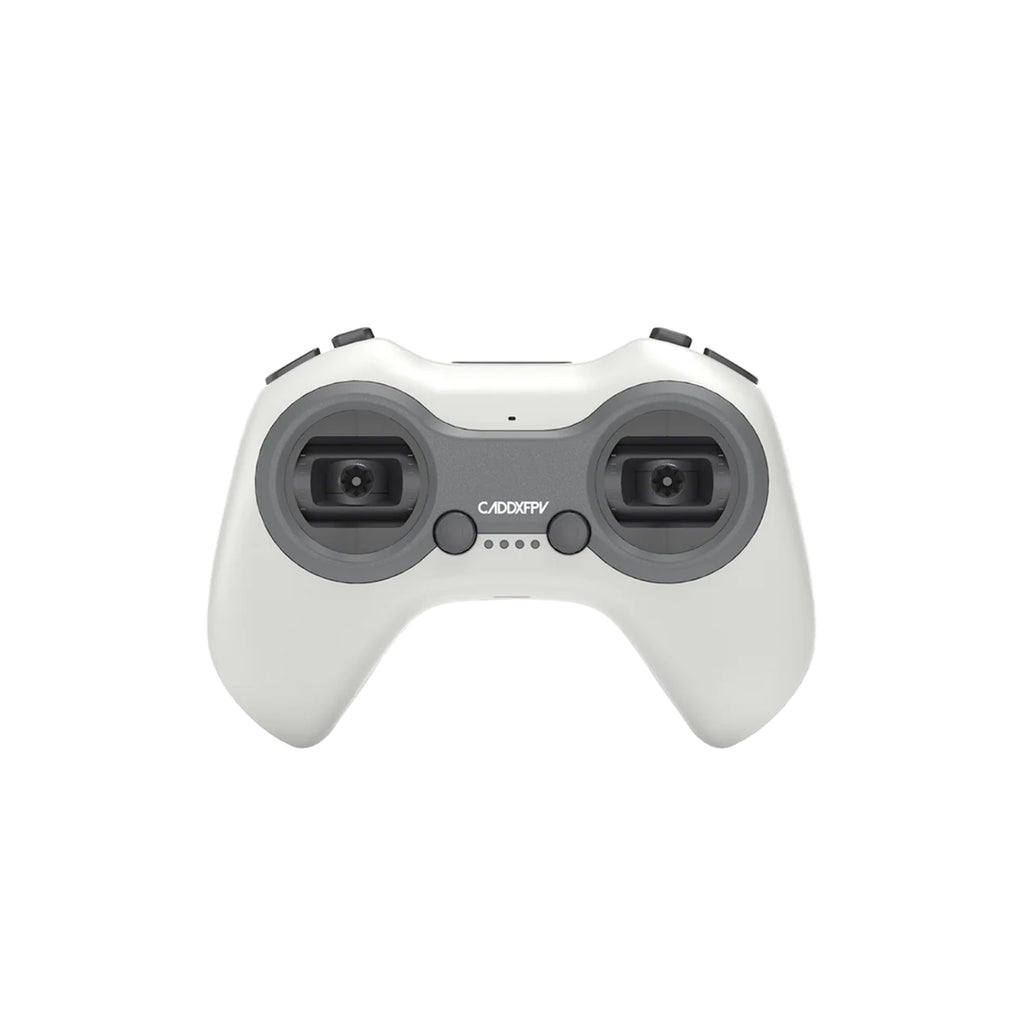

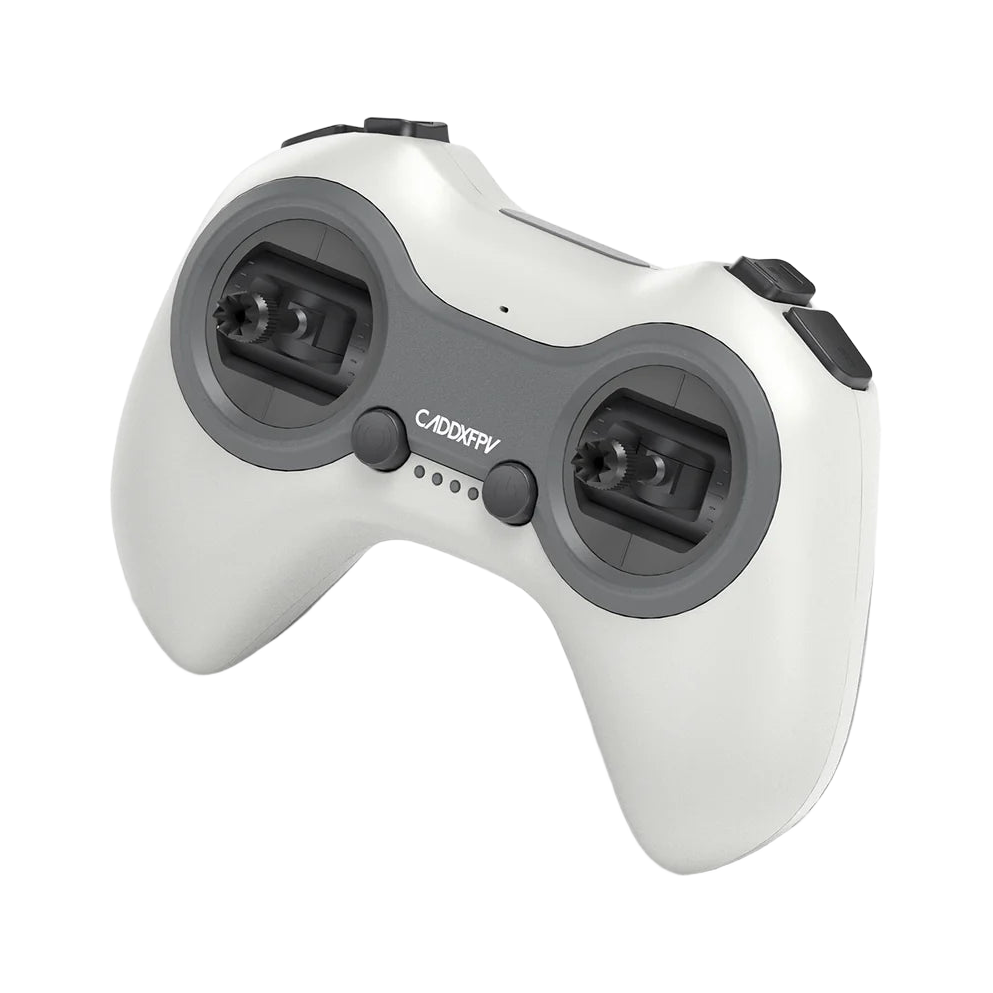

CaddxFPV Alink ELRS FPV Controller - Mode 2
$79.95 AUD
Skip to product information
Out of stock
CaddxFPV Alink ELRS FPV Controller - Mode 2
$79.95 AUD
GST included Shipping calculated at checkout.
Order in
H, M,
Seconds
(before 1pm Sydney time) for same day despatch.
Pickup availability
1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
Product details
SKU:
34352
Barcode:
627179528793
Shipping Weight:
350g
W/H:
U-03-D-05
Categories:
Caddx, Drone Radio Transmitters, ELRS Express LRS Receivers & Modules, FPV Antennas, Radio Accessories, Radio Gear
Tags:
2.4ghz, ELRS, Protos, Transmitter
Are you looking to buy CaddxFPV Alink ELRS FPV Controller - Mode 2 in Australia?
This product is equipped with a built-in ELRS 2.4GHz RF module and a 10-channel RC model remote controller. It can be used to control any RC model equipped with an ELRS 2.4GHz receiver.
FPV Flight Simulator

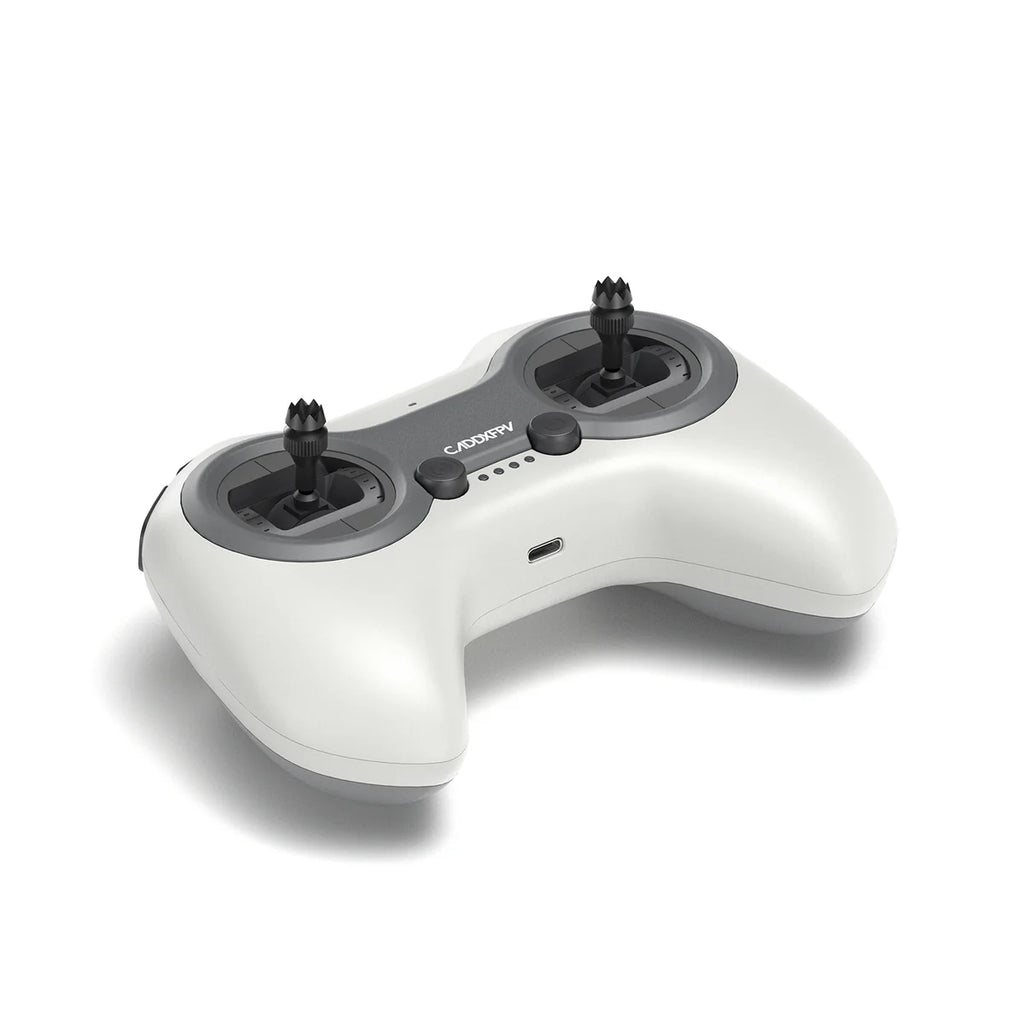

This product can be directly connected to a computer using a Type-C data cable. The Type-C port is located at the center of the back of the remote controller. Once connected, you can use an FPV simulator for practice.
Specifications
- FCC IC: 2BHG9-C0PJ-YKL19
- Main Control Chip: AT32 F413RCT7
- RF Module: ELRS 2.4GHZ
- RF Protocol: CRSF
- Max RF Power: 100mW (20dB)
- Number of Available Channels: 10 Channels (including 4 joystick channels)
- Joystick Type: Full-Bearing Hall-Sensor Joystick Assembly
- Function Switch:
- 1 x Latching Button
- 2 x Momentary Buttons
- 2 x 3-Position Toggle Switches
- 1 x Scroll Wheel
- Status Indicator Module:
- 4 x Status Indicator LEDs
- Buzzer
- Charging & Communication Interface: USB-Type C
- Battery Specification: Lipo 1s 1000mAh
- Max Charging Power: 5V / 1A / 3.50W
- Charging Time: ≈90:00 min
- Operating Voltage Range: DC 3.50V~4.20V
- Dimensions: 158mmx108mmx58mm
- Weight: 180g±5g
