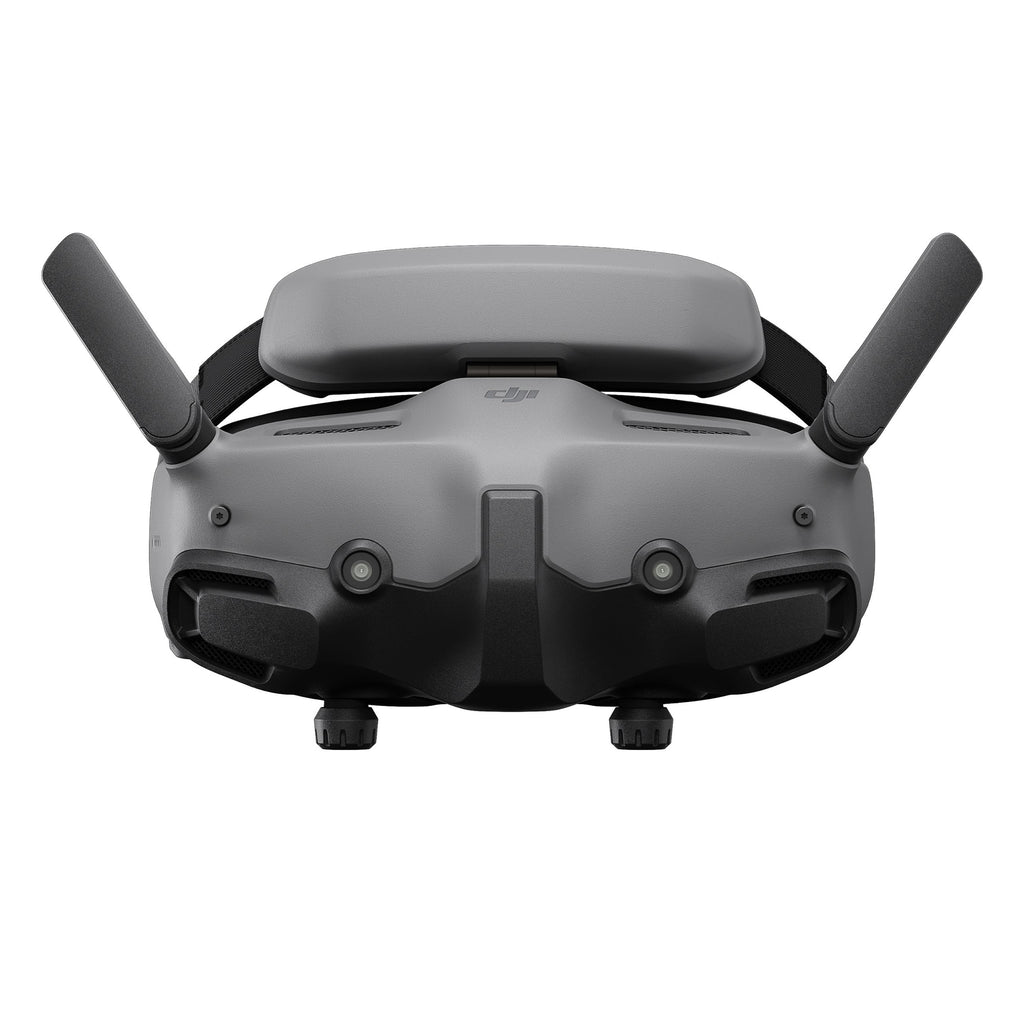

DJI Goggles 3 [DG]

DJI Goggles 3 is equipped with DJI's latest O4 digital video transmission with a 2-transmitter, 4-receiver, and 6-antenna design, ensuring a robust anti-interference capability. The system features a transmission latency as low as 24 ms, covers a range of up to 13 km, and automatically selects between the 2.4 GHz or 5.8 GHz bands  depending on signal conditions to maintain stable, near-synchronous flight perceptions.

With a maximum video transmission rate of 60Mbps coupled with SyncSmooth Technology, video transmission performance from the skies to the ground is significantly optimised. This creates clearer, smoother visuals for a more comfortable viewing experience.

 Features

• Low-Pressure Padding: DJI Goggles 3 incorporates the forehead pad into the foam padding, reducing pressure and nose-light leakage. The result is a soft, comfortable fit.
• One-Tap Defogging: With defogging enabled, an internal fan rapidly accelerates to maximum speed, ensuring the lenses stay clear by swiftly circulating air – a convenient solution for sudden changes in temperature or high-humidity conditions.
• Battery and Headband Integration: The sleek design, weighing in at a mere 470 g with an even weight distribution, integrates the battery with the headband. This liberates you from the tangle of cables, making the goggles easy to put on and take off, leaving you free to move. With a lengthy 3-hour operating time, there's more than enough power to meet the needs of immersive flights – circle through the sky multiple times and still have a generous reserve of battery.
• Refraction Adjustment, Instant Clarity: Supporting a diopter adjustment from -6.0 D to +2.0 D, Goggles 3 enables real-time visibility directly onscreen, making adjustments a simple and swift operation.
• Quick Control With AR Cursor: When used with DJI RC Motion 3, you can treat the Motion 3 as an AR cursor to navigate the menu on the goggles' screen. The AR cursor makes using Goggles 3 simple. Enabling functions, adjusting the camera settings, and modifying transmission specifications have never been more efficient.
• More Fun With Wireless Streaming: Avata 2's video transmission is displayed on the DJI Fly app interface when Goggles 3 is Wi-Fi connected to a smart device. Connect up to 5 m away. ‌Sharing the excitement of FPV just got easier, and learning how to fly is more accessible than ever. You can also import panoramic and 3D videos onto an SD card and play them back using the Goggles 3 for an immersive experience that seems almost within reach.
• A New Flight Experience With Camera Drones: DJI Goggles 3 is compatible with DJI Air 3 and DJI Mini 4 Pro. You can control the drones using DJI RC Motion 3, DJI RC 2, or DJI RC-N2 remote controllers for a fresh, immersive flying experience.

Compatibility with the O4 Air Unit

Important Note

• Third party goggles not supported.
• Third party radio systems can be used with a separate compatible receiver.
• Compatibility information is based on information provided from official DJI resources and may be subject to change.

Specifications

• Video Transmission System: O4
• Live View Quality: 1080p@30/50/60/100fps
• Operating Frequency: -2.400-2.4835 GHz -5.170-5.250 GHz* -5.725-5.850 GHz* * 5.170-5.250 GHz and 5.725-5.850 GHz can be used only in countries and regions where permitted by local laws and regulations.
• Transmitter Power (EIRP): -2.4 GHz ＜33 dBm (FCC) ＜20 dBm (CE/SRRC/MIC) -5.1 GHz < 23 dBm (CE) -5.8 GHz ＜33 dBm (FCC) ＜30 dBm (SRRC) < 14 dBm (CE)
• Communication Bandwidth: Max 60 MHz
• Max Transmission Distance (unobstructed, free of interference):
  • FCC: 13 km (subject to the aircraft's max flight distance)
  • CE: 10 km -SRRC: 10 km -MIC: 10 km

* Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the goggles screen during your flight.

• Max Transmission Distance (unobstructed, with interference):
  • Strong Interference: Urban landscape, approx. 1.5-4 km
  • Medium Interference: Suburban landscape, approx. 4-10 km
  • Low Interference: Suburb/seaside, approx. 10-13 km

* Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

• Max Transmission Distance (obstructed, with interference):
  • Low Interference and Obstructed by Buildings: approx. 0-0.5 km
  • Low Interference and Obstructed by Trees: approx. 0.5-3 km

* Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

• Max Download Speed: Wi-Fi: 30 MB/s

* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.

• Lowest Latency With DJI Goggles 3: -1080p/100fps Video Transmission Quality: 24 ms -1080p/60fps
• Video Transmission Quality: 40 ms
• Max Video Bitrate: 60Mbps
• Antennas: 4 antennas, 2T4R

Compatibility

• DJI Avata 2
• DJI Mini 4 Pro
• DJI Air 3
• DJI RC Motion 3
• DJI FPV Remote Controller 3
• DJI RC-N2
• DJI RC 2

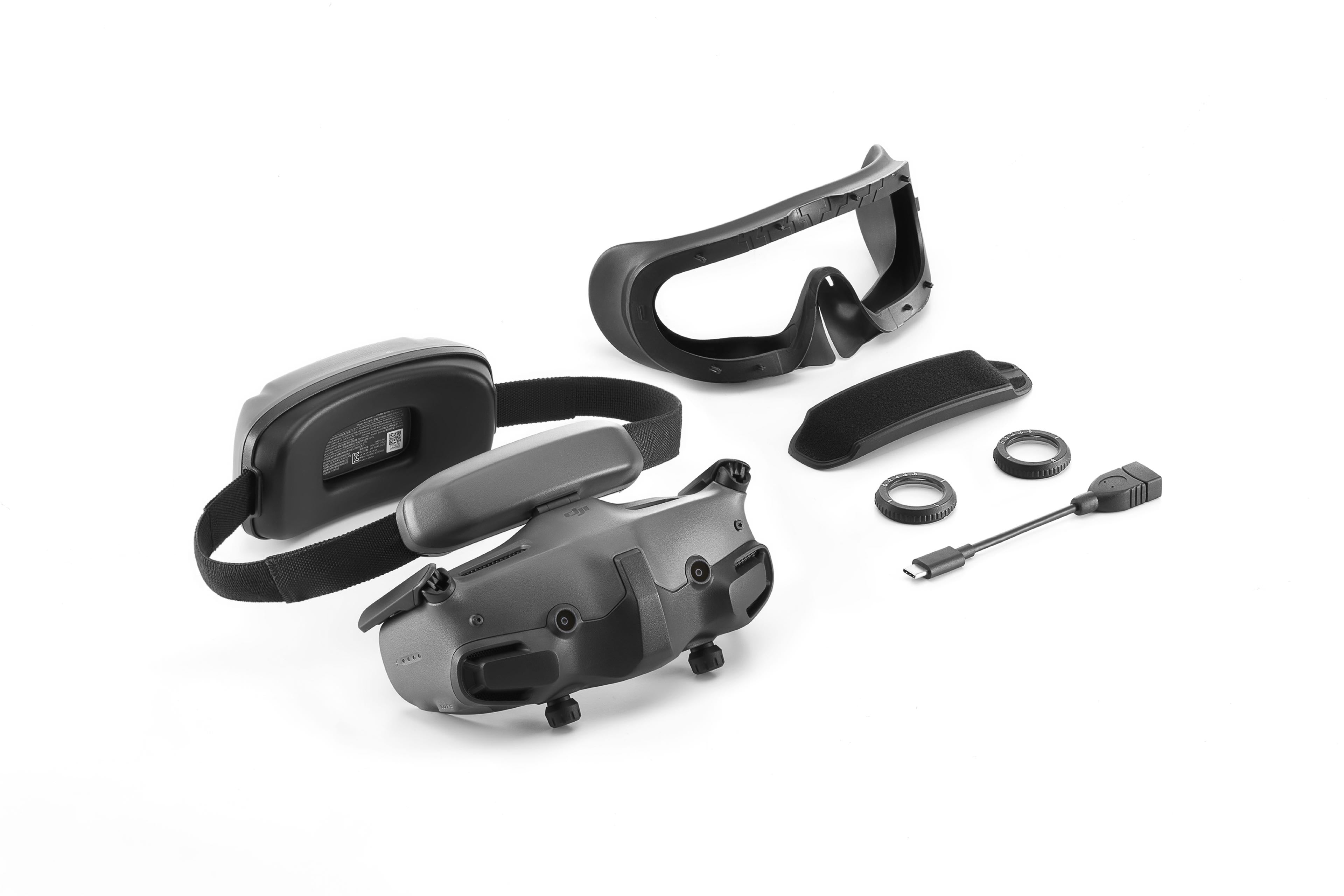

Includes

• 1x DJI Goggles 3
• 1x DJI Goggles 3 Foam Padding
• 1x DJI Goggles 3 Additional Forehead Pad
• 1x DJI Goggles 3 -2.0D Corrective Lenses (Pair)
• 1x USB-C OTG Cable

Air units: works with the DJI O4 Air Unit and O4 Air Unit Pro, paired with the DJI FPV Remote Controller 3.
