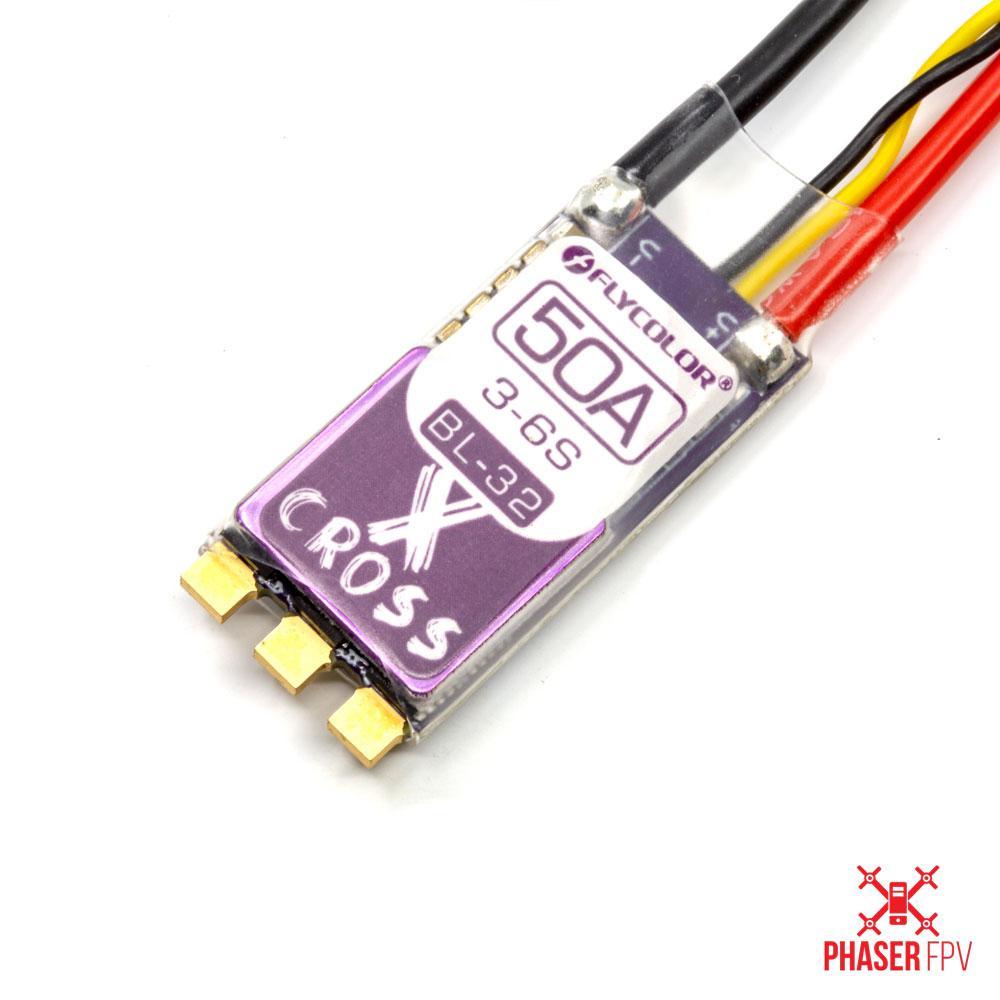

Flycolor X-Cross BL32 50A ESC (3-6s)

Are you looking to buy Flycolor X-Cross BL32 50A ESC (3-6s) in Australia?

Overview

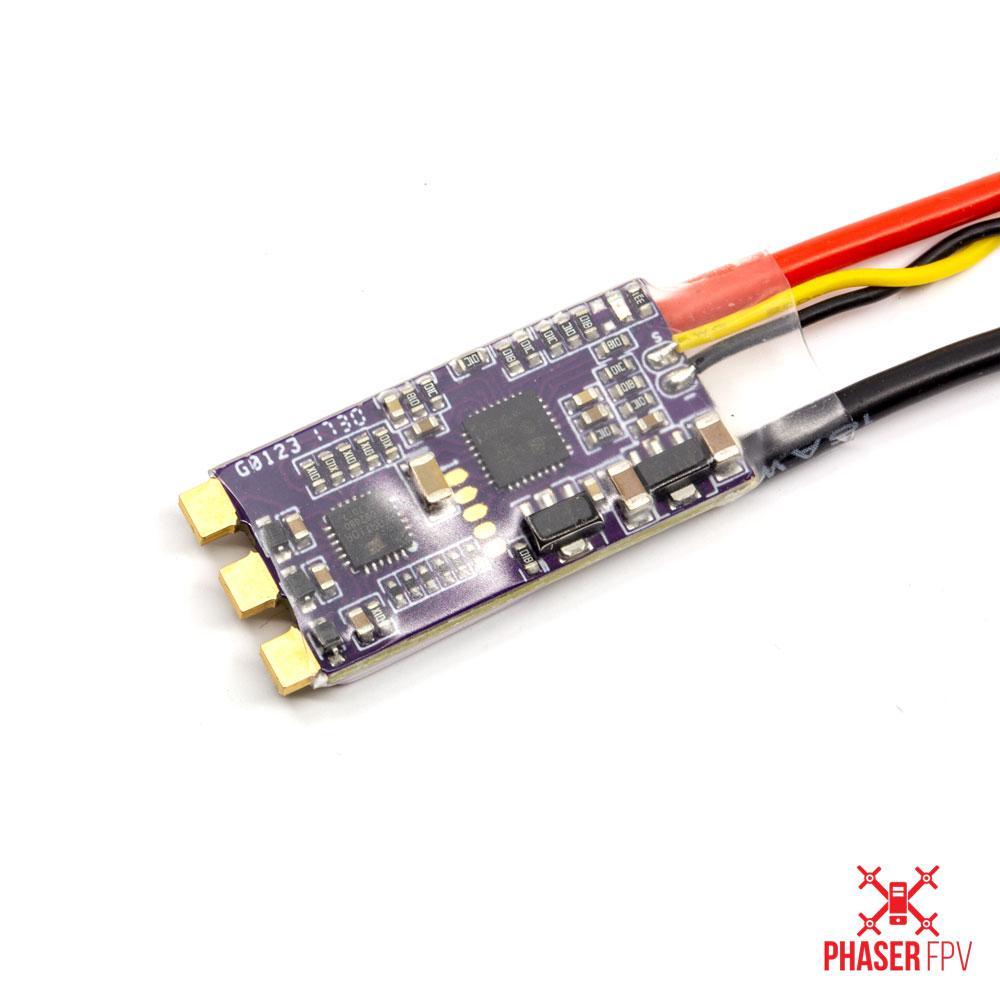

• ARM 32-bit Cortex MCU with BLHeli_32 firmware，which is faster than BLHeli_S；
• Dshot signal is supported at any rate up to Dshot1200；
• Adopting top quality MOSFET，low resistance，excellent impulse stability；
• Aluminum heat sink effectively slow down the temperature rise.；
• Full contact soldering pad，more stable soldering.

Features

• ARM 32-bit Cortex MCU, frequency up to 48 MHZ.
• BLHeli_32 firmware，which is designed for superior functionality and performance.
• Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and (5- 25us). The input signal is automatically detected by the ESC upon power up.
• signal is supported at any rate up to at least Dshot1200.
• Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
• Supports higher KV motor and more power load, more suitable for flight of racing

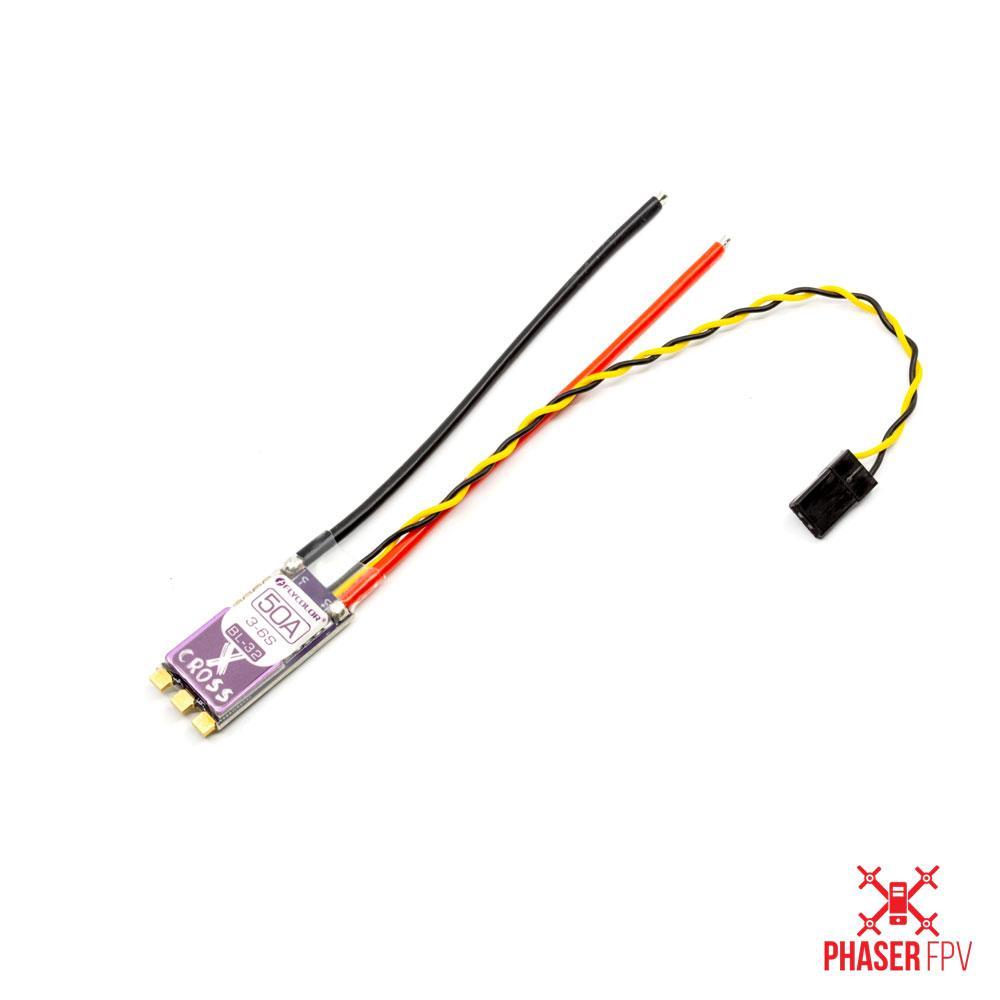

• The silicone twisted-pair of the throttle signal cable effectively reduces the crosstalk caused by and makes more stable.
• Aluminum heat sink effectively down the temperature rise.

Features

• Con. Current：50A
• Burst Current (10S)：60A
• LiPo cells：3-6S
• Weight：10g
• Size：33x16x6mm
• Typical Applications：170-450mm Multi
• Please note these ESCS are NOT CURRENT LIMITING ESCS

X-CROSS BL-32 IS USING FLYCOLOR_X_CROSS_BL_32_MULTI FIRMWARE

Amp draw demo

In this demo, was able to draw 71A with the ESC before the motor dies and ESC remains alive.
