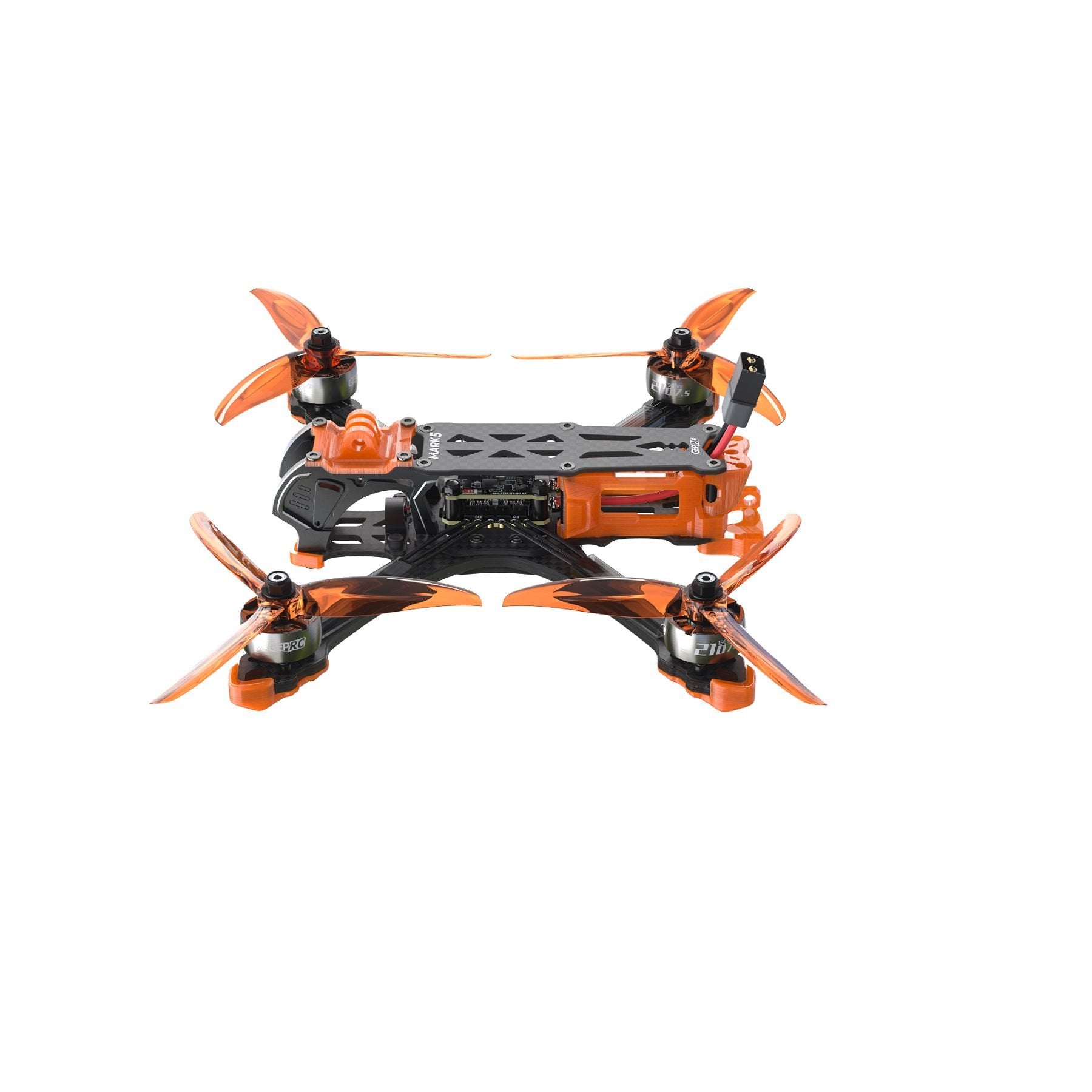

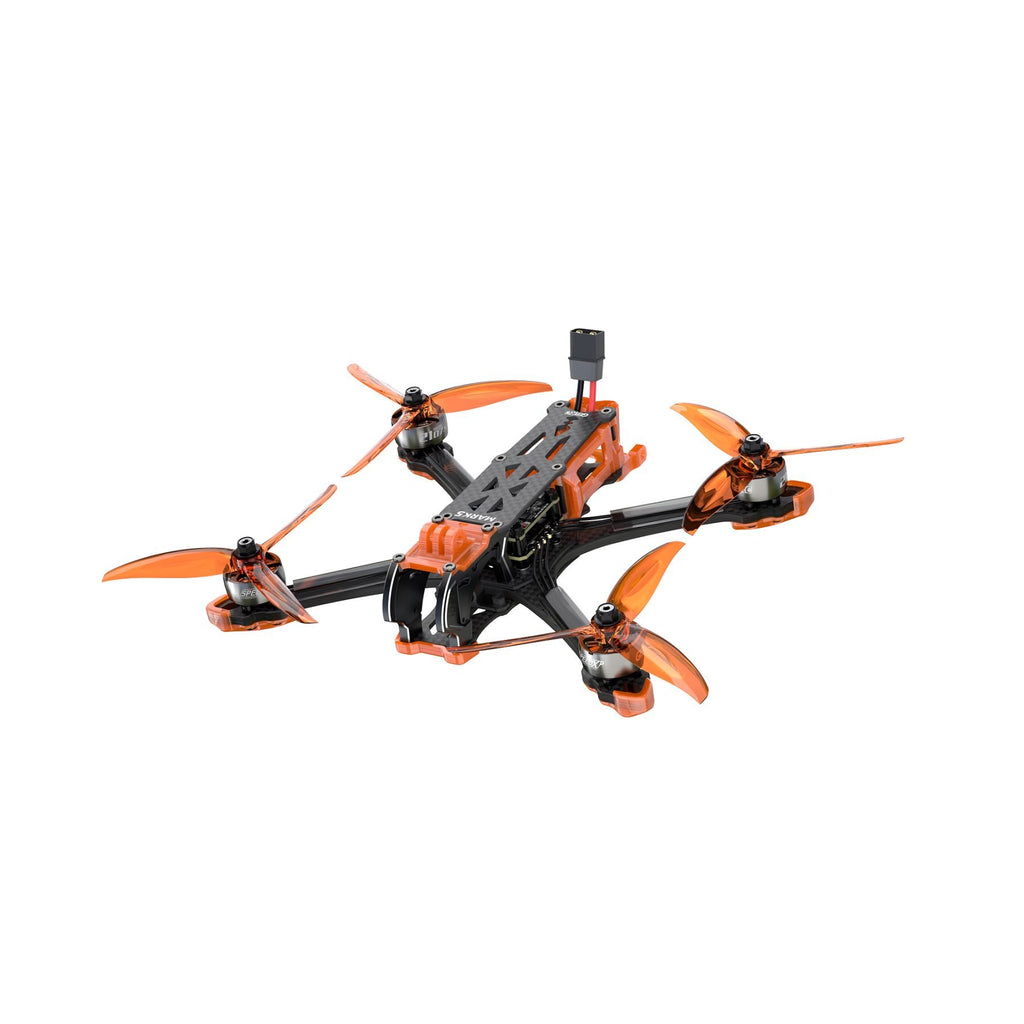

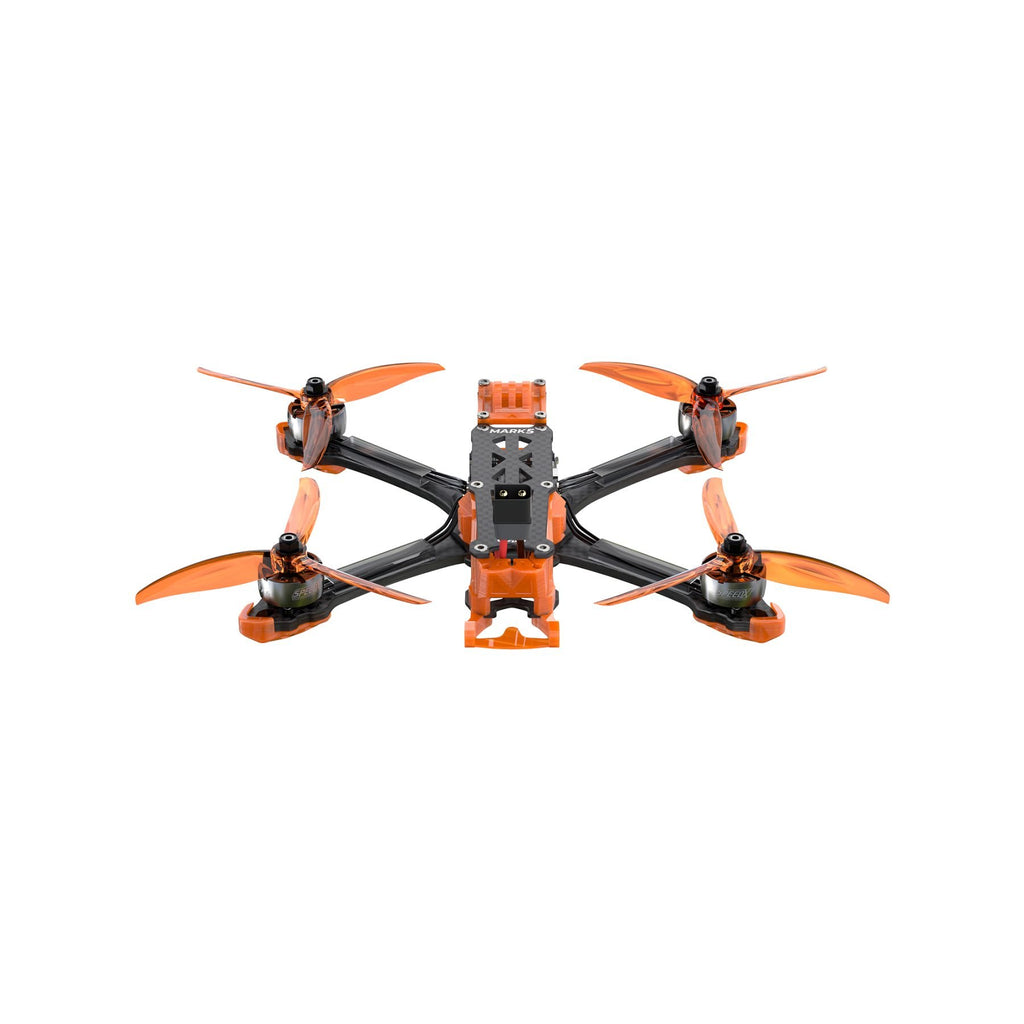

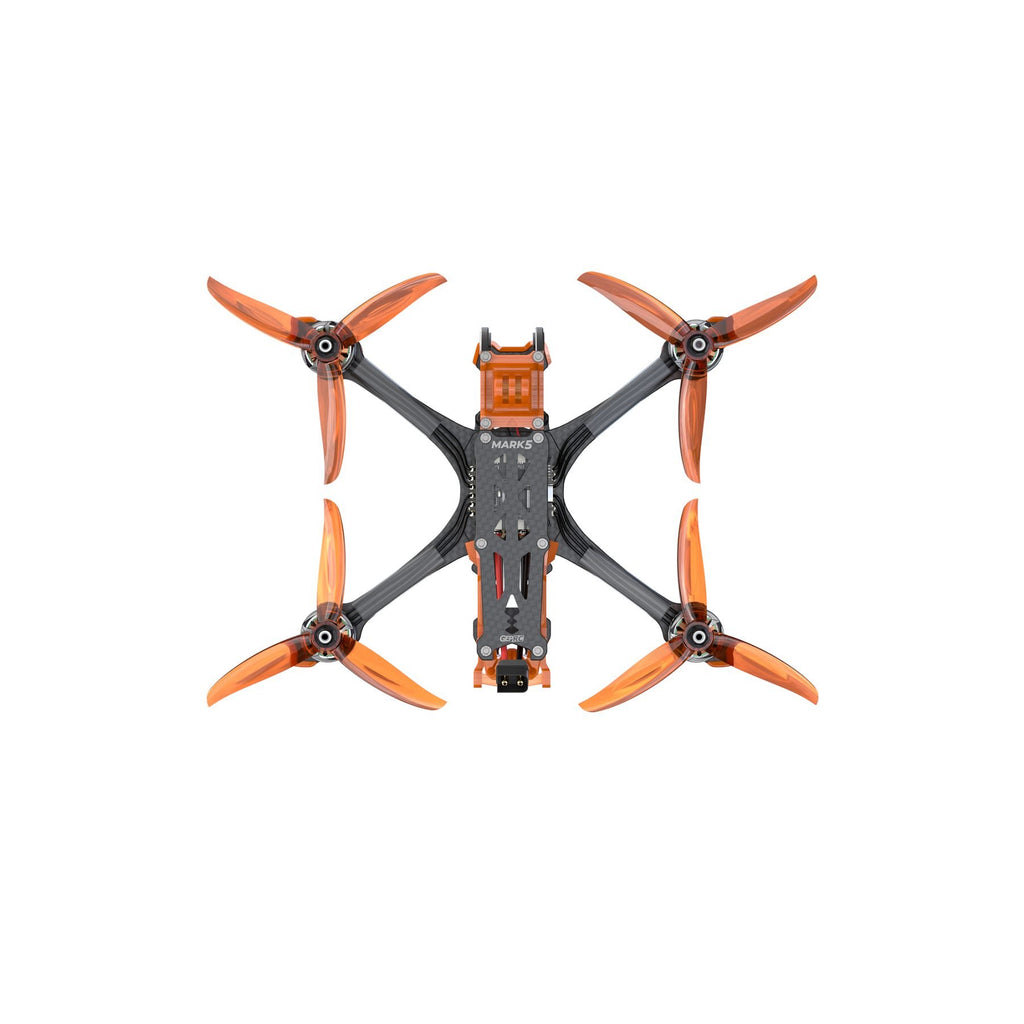

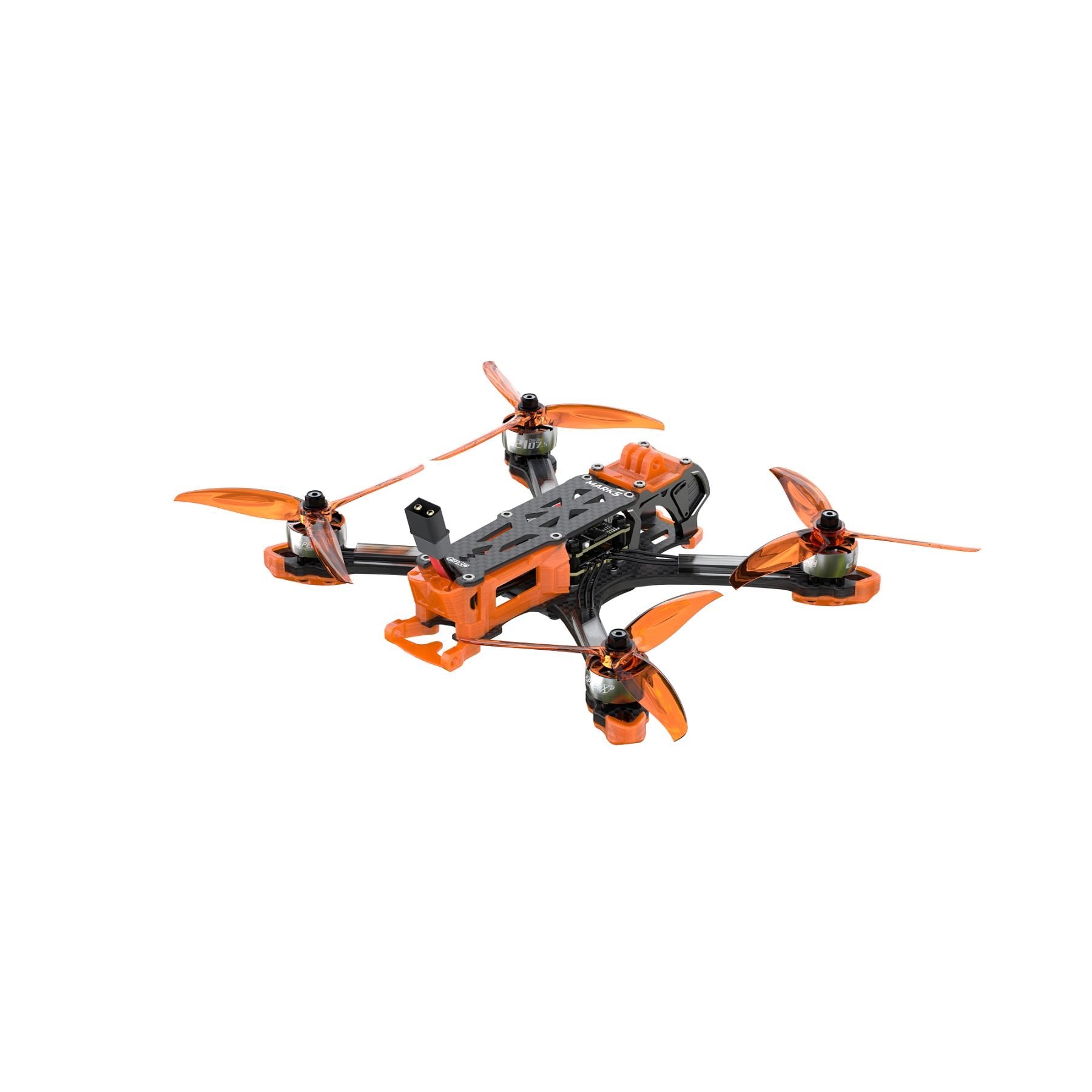

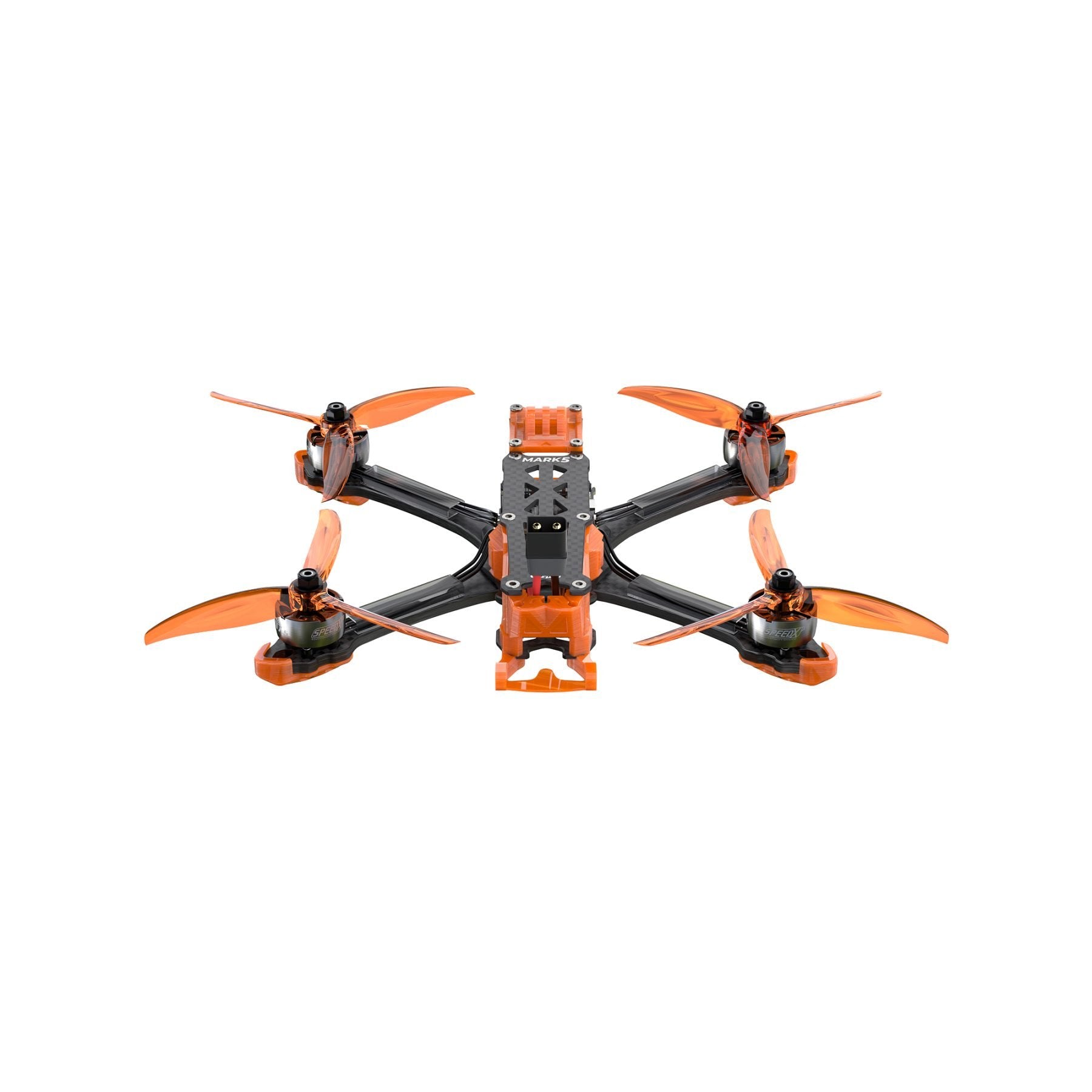

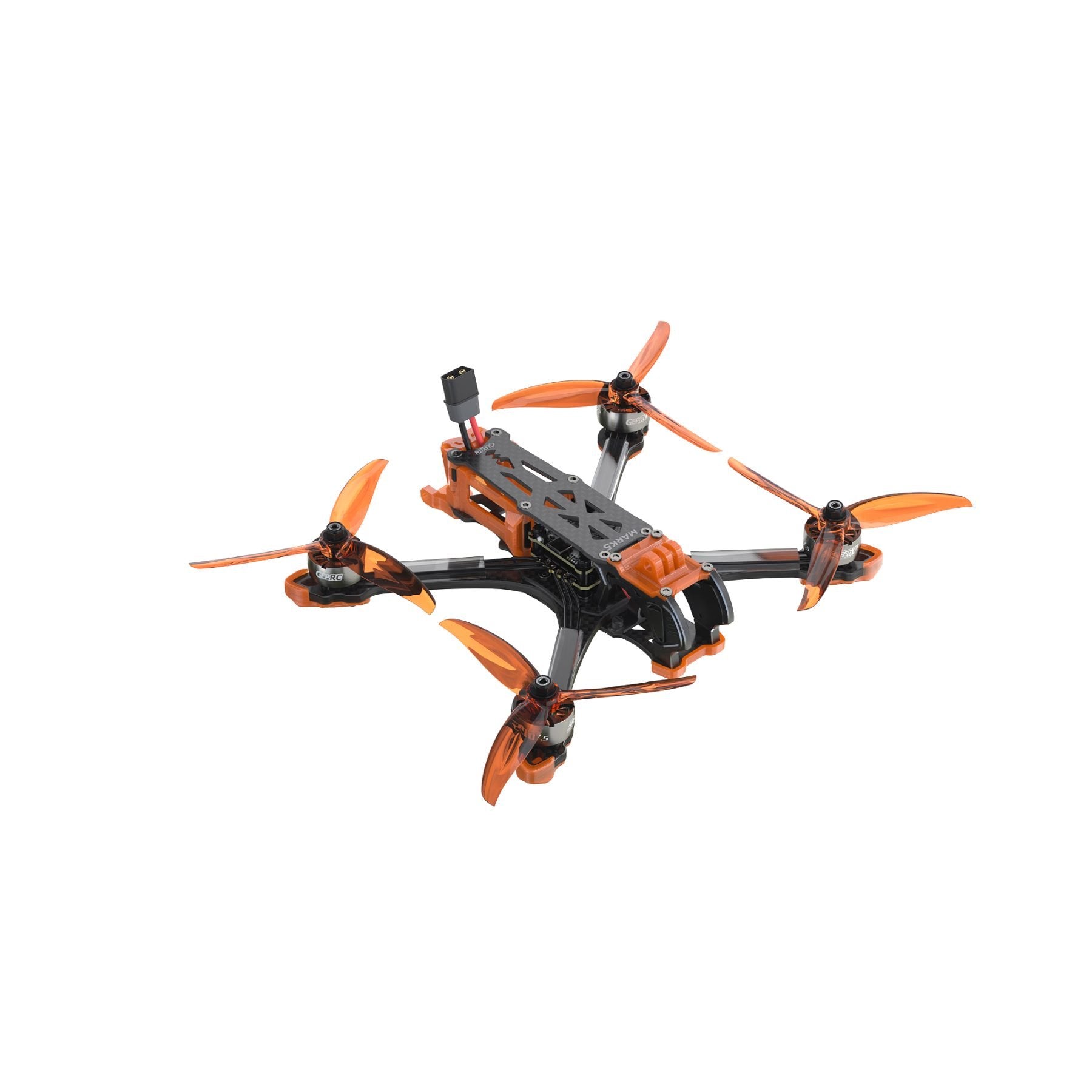

GEPRC MARK5 O4 Pro Wide X WTFPV Drone

Are you looking to buy GEPRC MARK5 O4 Pro Wide X WTFPV Drone in Australia?

The GEPRC MARK5 O4 series is expertly crafted for the DJI O4 Air Unit Pro VTX. Featuring a redesigned camera aluminium mount and custom shock-absorbing silicone, it significantly boosts compatibility and reduces vibrations. These upgrades ensure stable, smooth footage while effectively minimising the impact of vibrations on the gyroscope during flight, resulting in a more stable and fluid flying experience.

Features

• Optimised for DJI O4 Air Unit Pro, offering enhanced compatibility.
• DC and wide X frames, fit for a variety of flying situations.
• Two TPU camera mounts, compatible with all action cameras.
• Quick-release arms with just two screws for easy swapping.
• 3K carbon fibre frame that is lighter, stronger, and more durable.
• Separate capacitor and buzzer compartment for stable, jitter-free operation.
• Vibration-dampening frame for stable electronics performance.

Specifications

• Model: MARK5 O4 Pro Wide X WTFPV FPV
• Wheelbase: 225mm
• Weight: 380.6g ± 5g
• VTX: None
• Camera: None
• Antenna: None
• Motor: SPEEDX2 2107.5 1960KV
• Prop: Gemfan 5136
• FC: GEP-F722-BT-HD V3
• MCU: STM32F722
• IMU: ICM42688-P(SPI)
• OSD: BetaFlight OSD w / AT7456E chip
• ESC: GEP-BL32 50A 96K 4IN1 ESC
• Power Connector: XT60
• Receiver: PNP / ELRS 2.4G / TBS NanoRX
• Recommended Battery: LiPo 6S 1050mAh-1550mAh

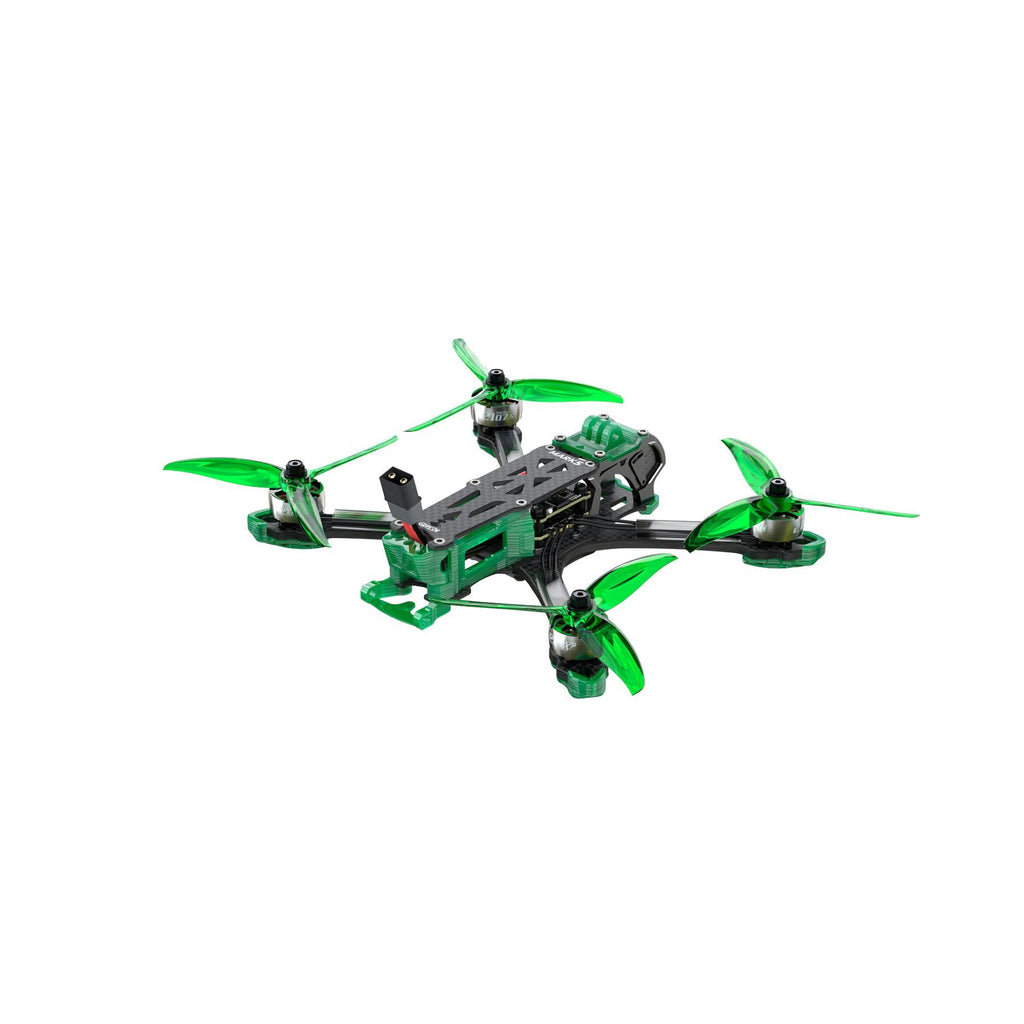

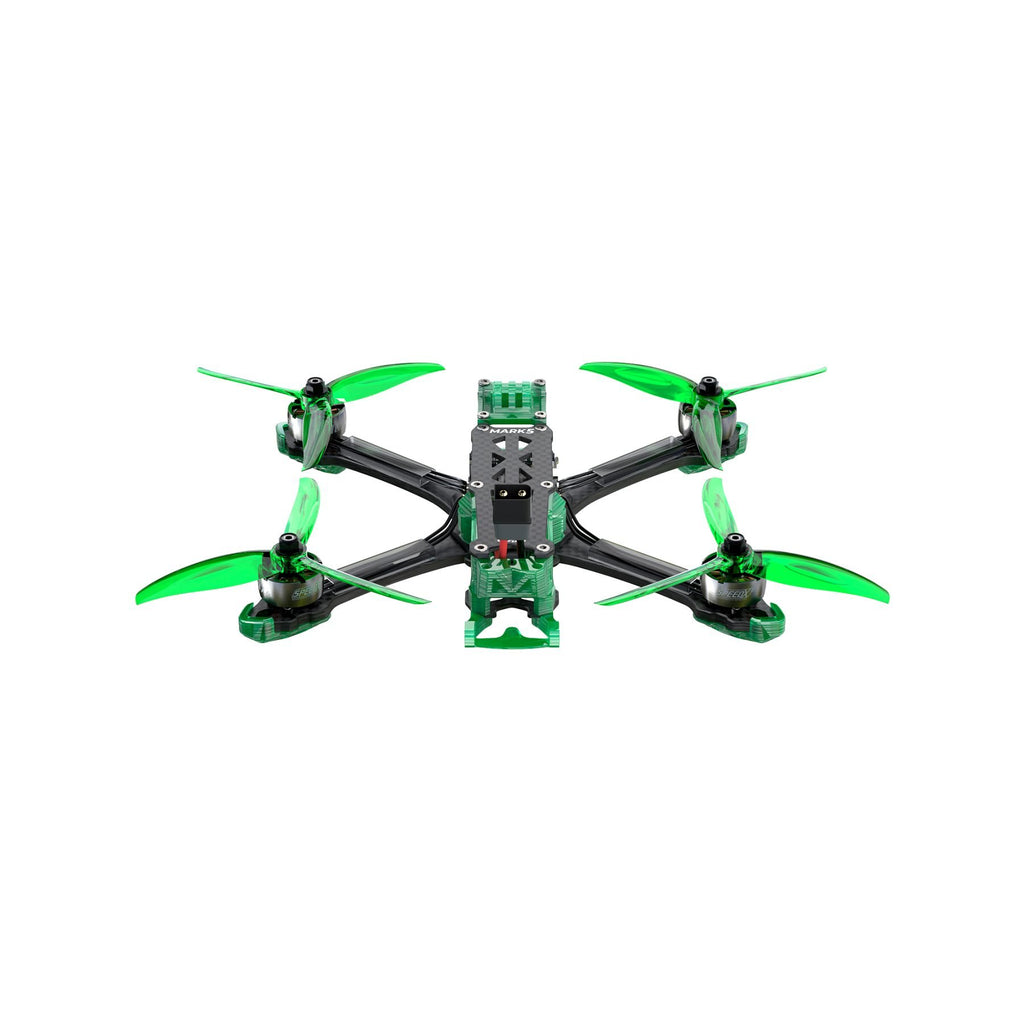

• Printouts Color: emerald green/coral orange

Includes

• 1 x GEPRC MARK5 O4 Pro WTFPV FPV
• 1 x Gemfan 5136（2CW 2CCW）
• 1 x 15*250mm Straps
• 2 x 20*250mm Straps
• 2 x Battery anti-slip pads
• 1 x 3D printouts pack
• 1 x Spare Screw Pack

  • 1 x M5 flanged nylon nut
  • 2 x M2 stainless rivet nut
  • 1 x M5*25 Stainless round-head hex screw
  • 4 x M3*10 button-head hex socket screw
  • 4 x M3*8 button-head hex socket screw
  • 2 x m3*8 countersunk hex socket screw
  • 2 x m3*5 countersunk hex socket screw
• 1 x L-shaped screwdriver 1.5mm
• 1 x L-shaped screwdriver 2mm
• 1 x L-shaped screwdriver 3mm
• 1 x M8 wrench
