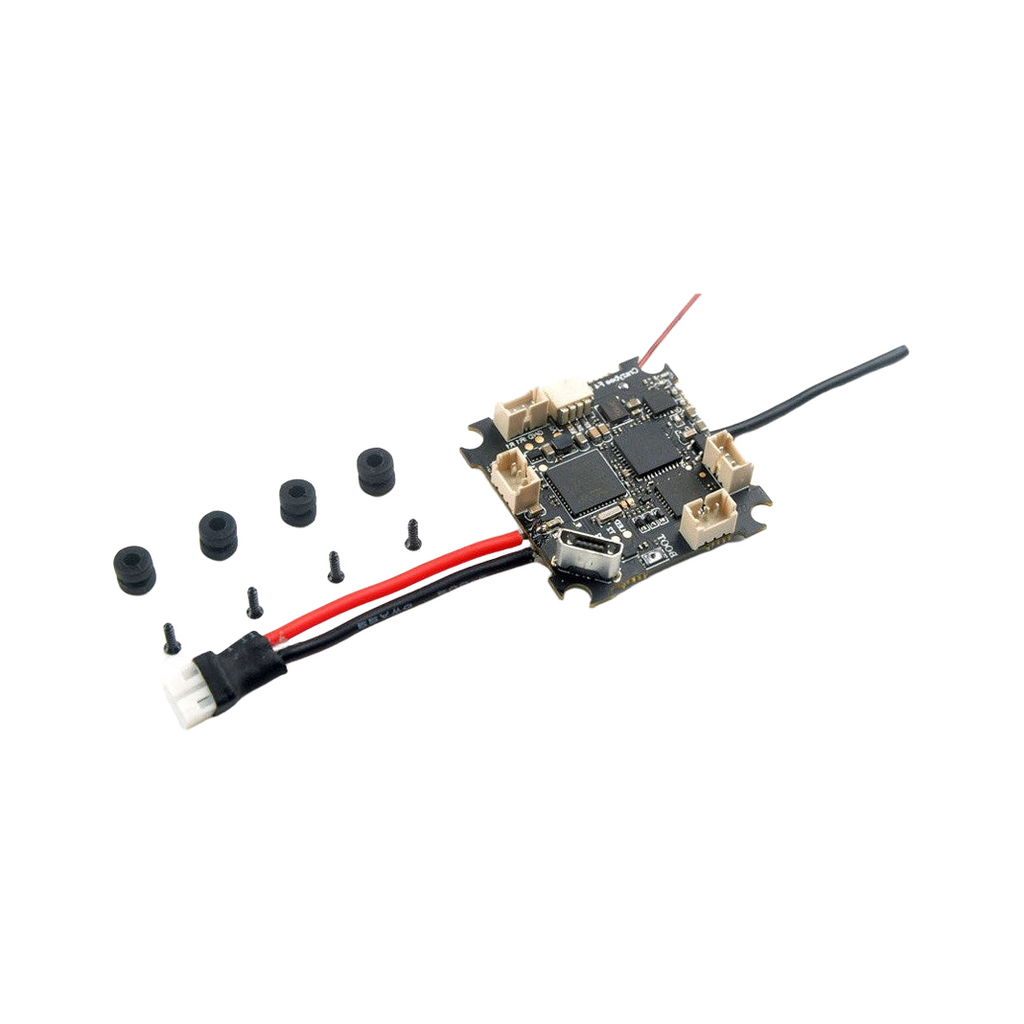

Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2

Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2

FRSKY
$93.95 AUD
Skip to product information
Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2
  • Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2
  • Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2
  • Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2
  • Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2
Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2

Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2

$93.95 AUD
GST included Shipping calculated at checkout.

Delivery options

Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2

Pickup

Local pickup is free. Collect from Somersby NSW; choose Pick up at checkout instead of a courier. We open 7:30am Monday - weekend orders are usually ready to collect by 10am.

Delivery options
Out of stock
Price match

Request a price match

Happymodel Crazybee F4 Lite 1S MPU6000 Whoop Flight Controller Frsky V4.2 Our price: $93.95

We reply approved or declined by email, usually within 15–60 minutes during business hours. Matching is at our discretion — we can't promise every price, but if it's fair we usually will.
StyleFRSKY
Order in H, M, Seconds (before 1pm Sydney time) for same day despatch.
Fast dispatch from Somersby, NSW Easy returns Australian warranty & local support

Pickup availability

1/80 Somersby falls RD, Somersby NSW
Unavailable for pickup
Product details
SKU: 19036
Shipping Weight: 15g
W/H: W-01-E-07
Categories: AIO, F4 Flight Controllers, Flight Controllers, HappyModel, MPU6000 Gyro FPV Flight Controllers
Tags: F4, MPU6000


Are you looking to buy a Happymodel Crazybee F4 Lite 1s Whoop Flight Controller in Australia?

The Happymodel CrazyBee F4 Lite Flight Controller brings lots of power in a small package. This 4-in-1 FC comes with an integrated receiver (FrSky), ESC, and an onboard 5.8GHz VTX!

Notes

  • R1(RX1) Pad is used for IBUS/DSM2/DSMX signal input
  • IR1(IRX1) Pad is used for SBUS signal input (Already inverted)
  • R1 and IR1 Cannot be used simultaneously

Specifications

FC

  • (Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: MPU-6000(SPI connection)
  • Board size: 28.5 * 28.5MM
  • Power supply: 1S battery input (DC 2.9V-4.35V)
  • Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
  • Built-in Betaflight OSD(SPI Control)
  • Built-in 5.8G VTX
  • Built-in SPI Frsky/Flysky receiver
  • Built-in 5V 1A BEC
  • Built-in voltage detection

Onboard 4in1 ESC

  • MCU upgraded to EFM8BB21
  • Power supply: 1S LiPo/LiPo HV
  • Current: 5A continuous peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_5_REV16_7.HEX
  • Default protocol: DSHOT600

Onboard Frsky SPI D8

  • SPI BUS receiver Frsky D8 compatible
  • Compatible Non-EU transmitter D8 model
  • Channels: 8ch
  • Failsafe support
  • No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m

Onboard 5.8GHz VTX

  • Output power: 25mw
  • Frequency: 40CH
  • Input voltage: 3.3V 5.5V
  • Current consumption: 300mA(type)
  • Frequency: 5.8GHz 5bands 40 channels
  • With Race band
  • Smart audio ready

Includes

  • 1x Happymodel CrazyBee F4 Lite 1S Whoop Flight Controller – Frsky
