Product details
SKU: 26654
Shipping Weight: 7g
W/H: W-04-B-11
Categories: Drone RC RX Receivers, ELRS Express LRS Receivers & Modules, FPV Antennas, HappyModel, Radio Gear
Tags: 2.4ghz, ELRS, Receiver


Are you looking to buy a HappyModel EP1 DUAL TCXO True Diversity 2.4G ELRS Receiver ExpressLRS RX in Australia?

EP1 EP2 ELRS receiver is the hottest Tiny ExpressLRS receiver since it was released. Now the new TCXO version EP series receiver apply “temperature compensated crystal oscillator”, accurate frequency and excellent performance in extreme temperature environments make these TCXO much reliable.

Specifications

  • Type: ISM2.4GHz

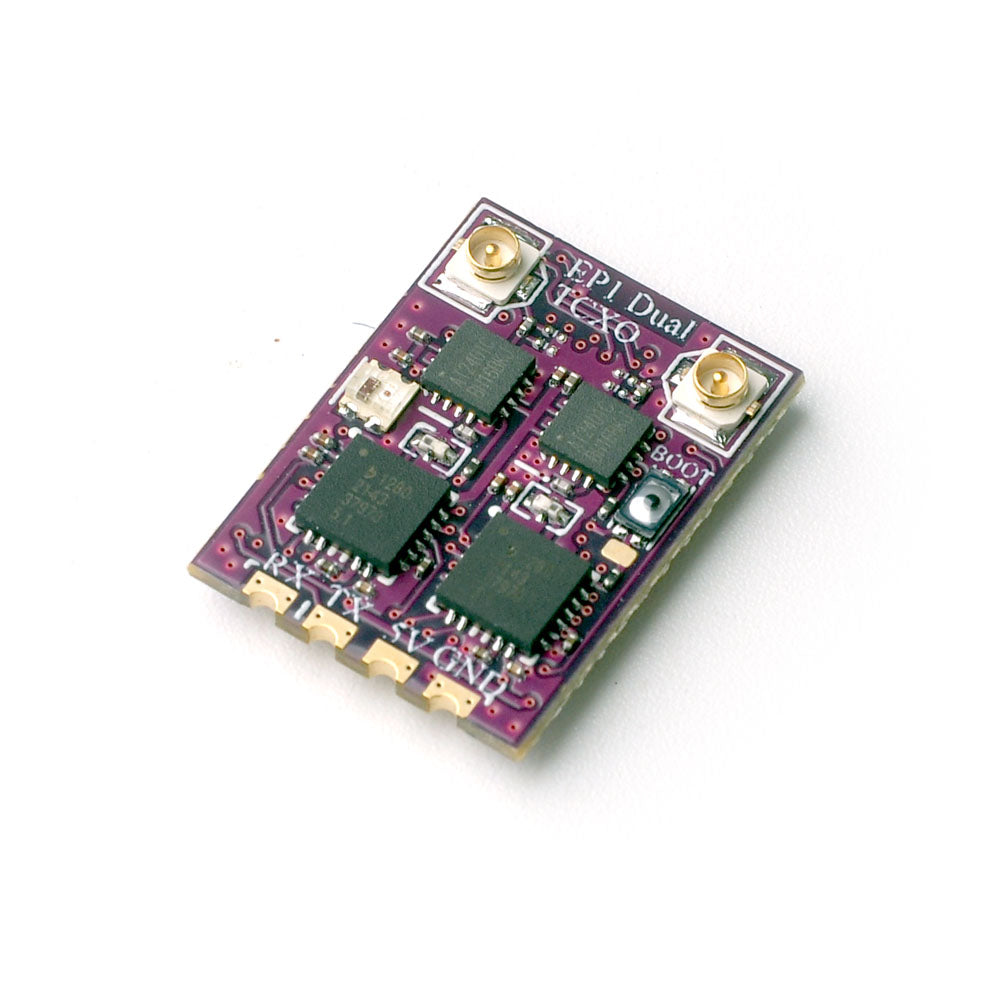

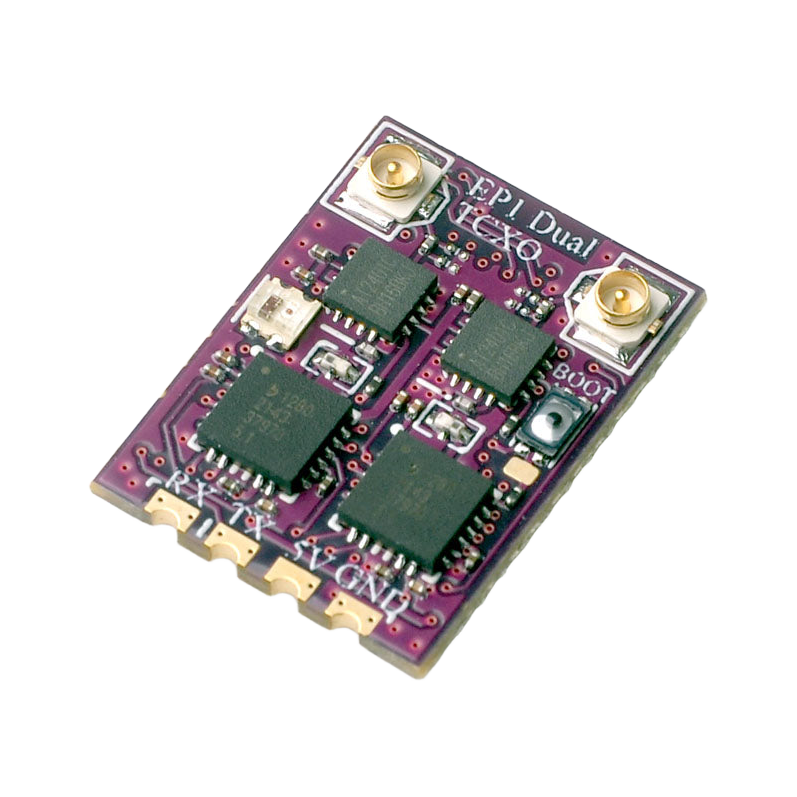

  • ESP32 PICO D4, dual SX1280(SX1281)

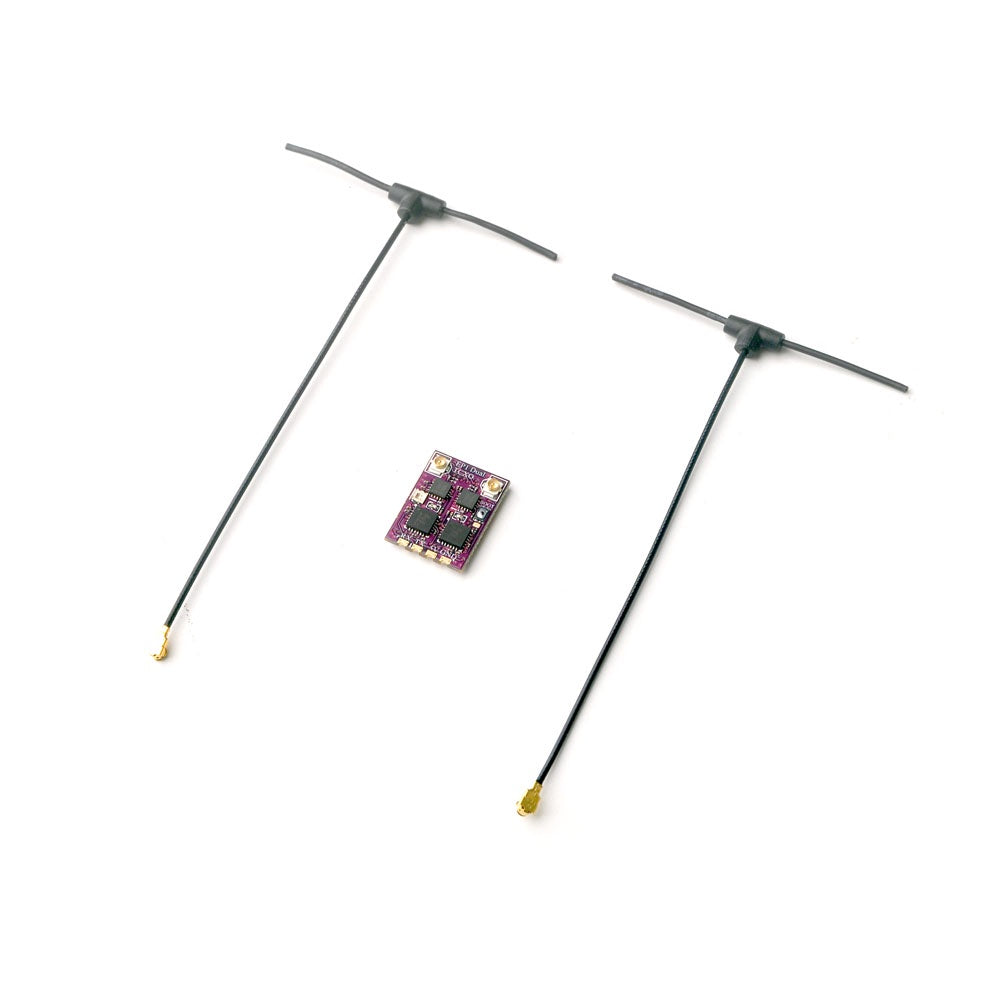

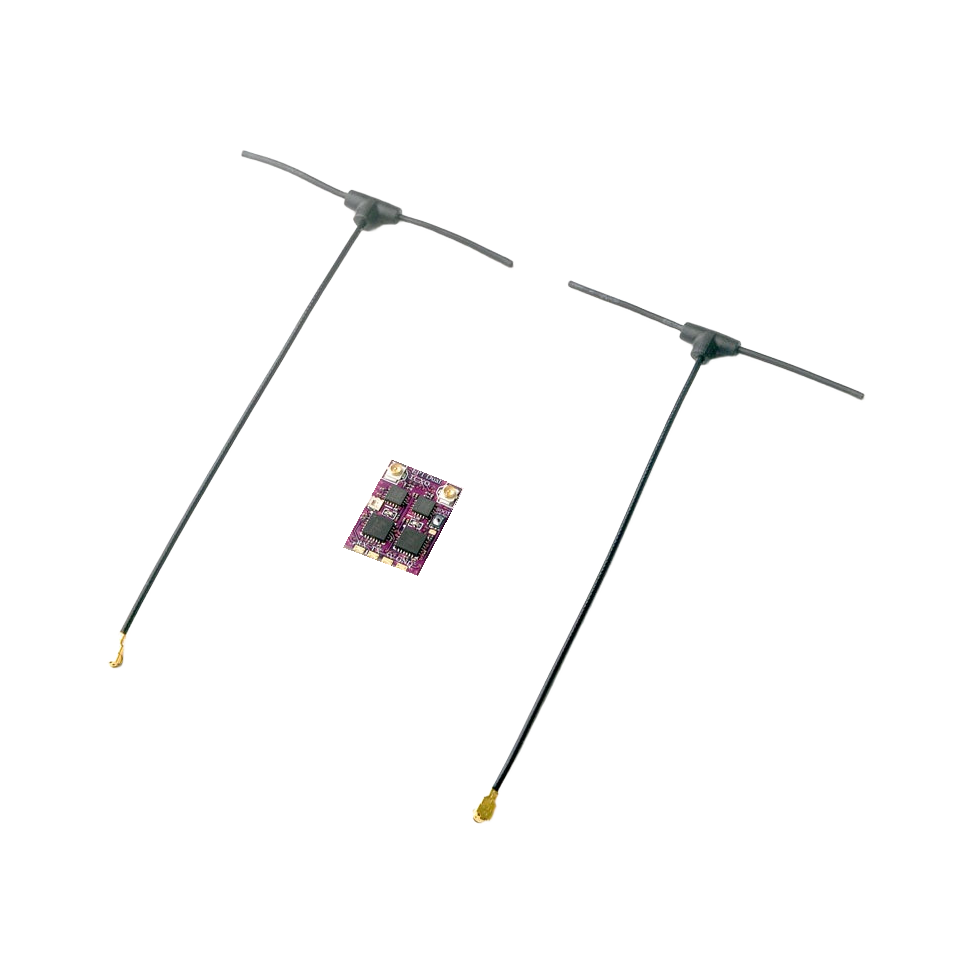

  • Antenna connector: IPEX MHF 1/U.FL
  • RF Frequency: 2.4GHz (2400~2480MHz)
  • Telemetry power: >19dbm
  • Receiver protocol: CRSF
  • Input voltage: +5V DC @ “+” pad
  • PCB size: 19mm x 14mm

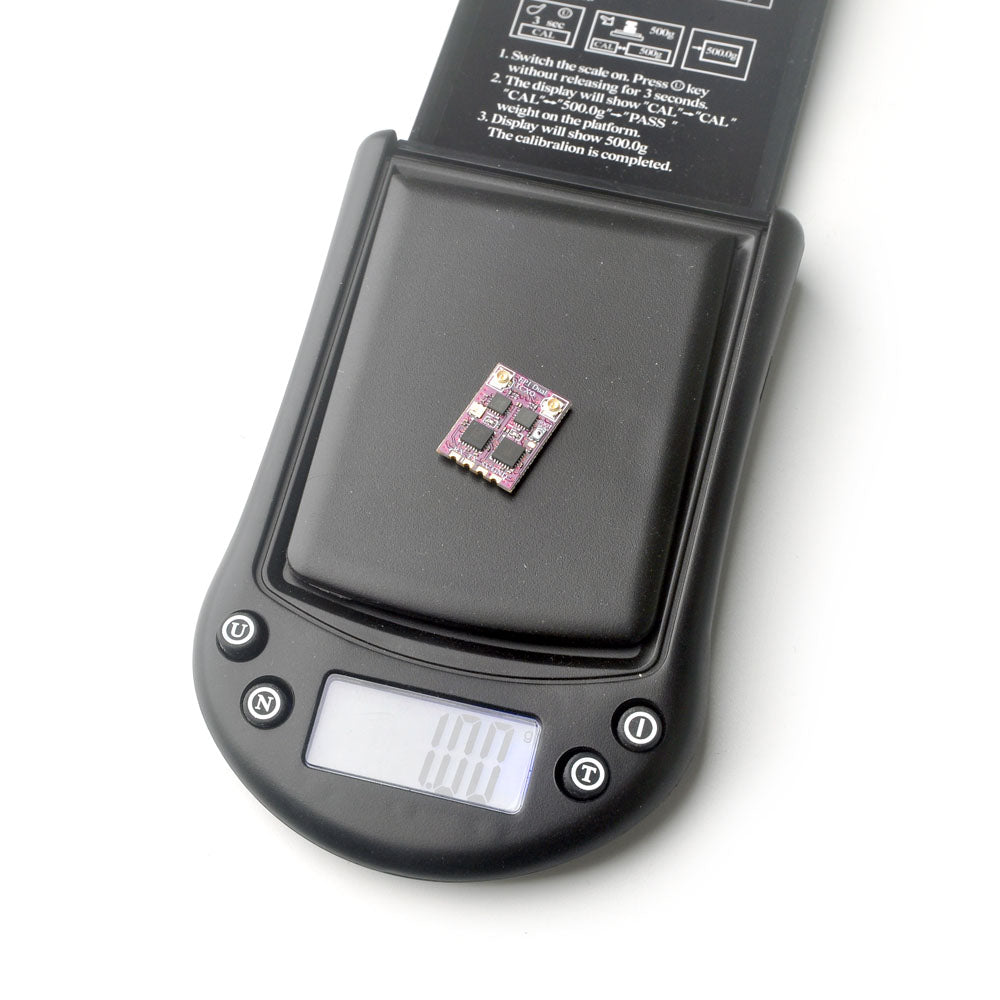

  • Weight: 1gram exclude antenna
  • Built-in a TCXO (temperature compensated crystal oscillator)

Firmware

  • Default Firmware out of factory: Unified_ESP32_2400_RX  Could upgrade to HappyModel EP1 Dual 2400 RX 3.0FW
  • Firmware update via UART or WIFI

Includes

  • 1x Happymodel 2.4G ExpressLRS EP1 Dual TCXO RX True Diversity Receiver Module
